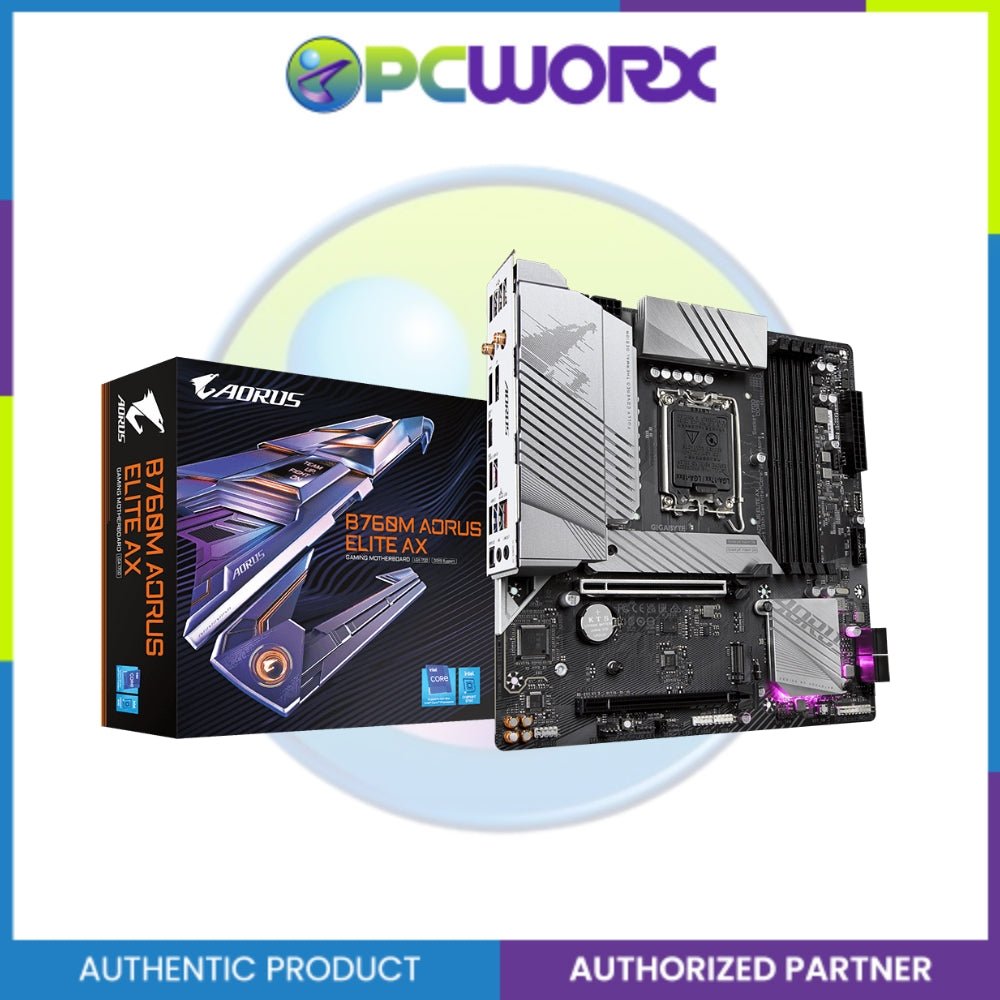

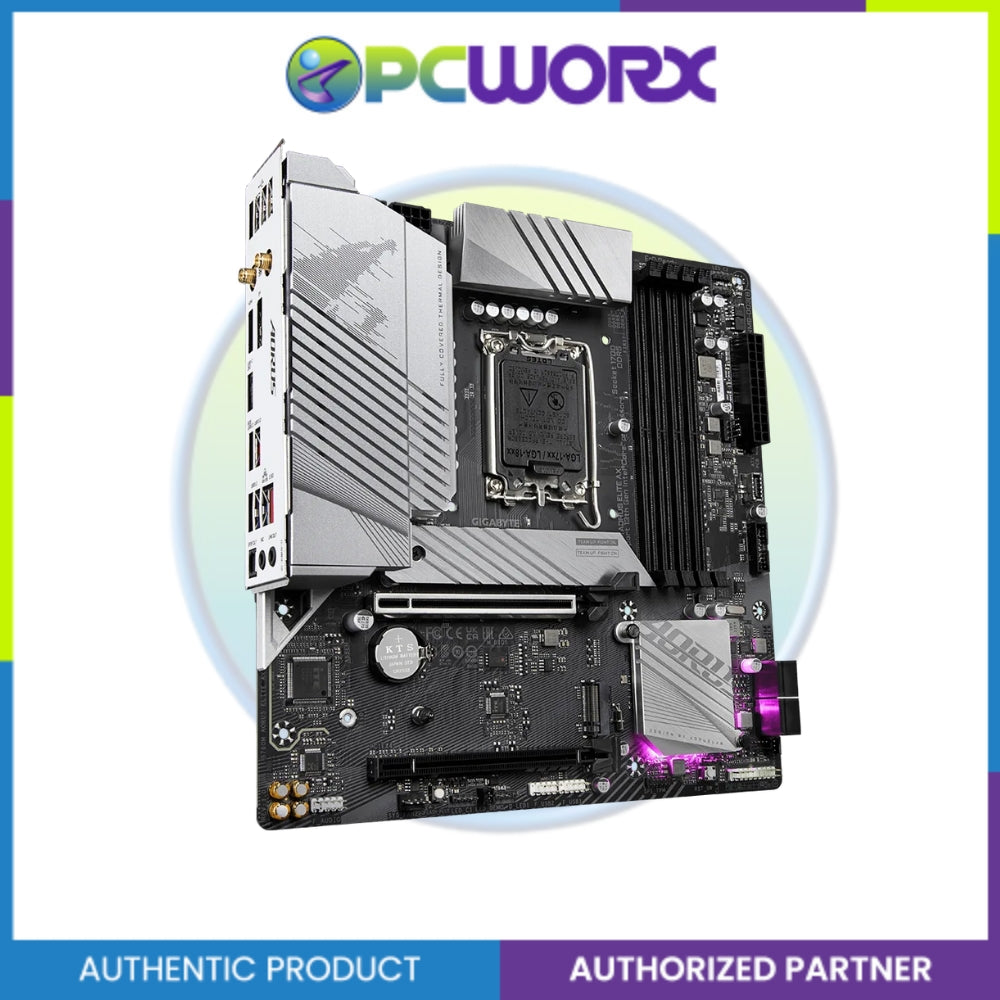

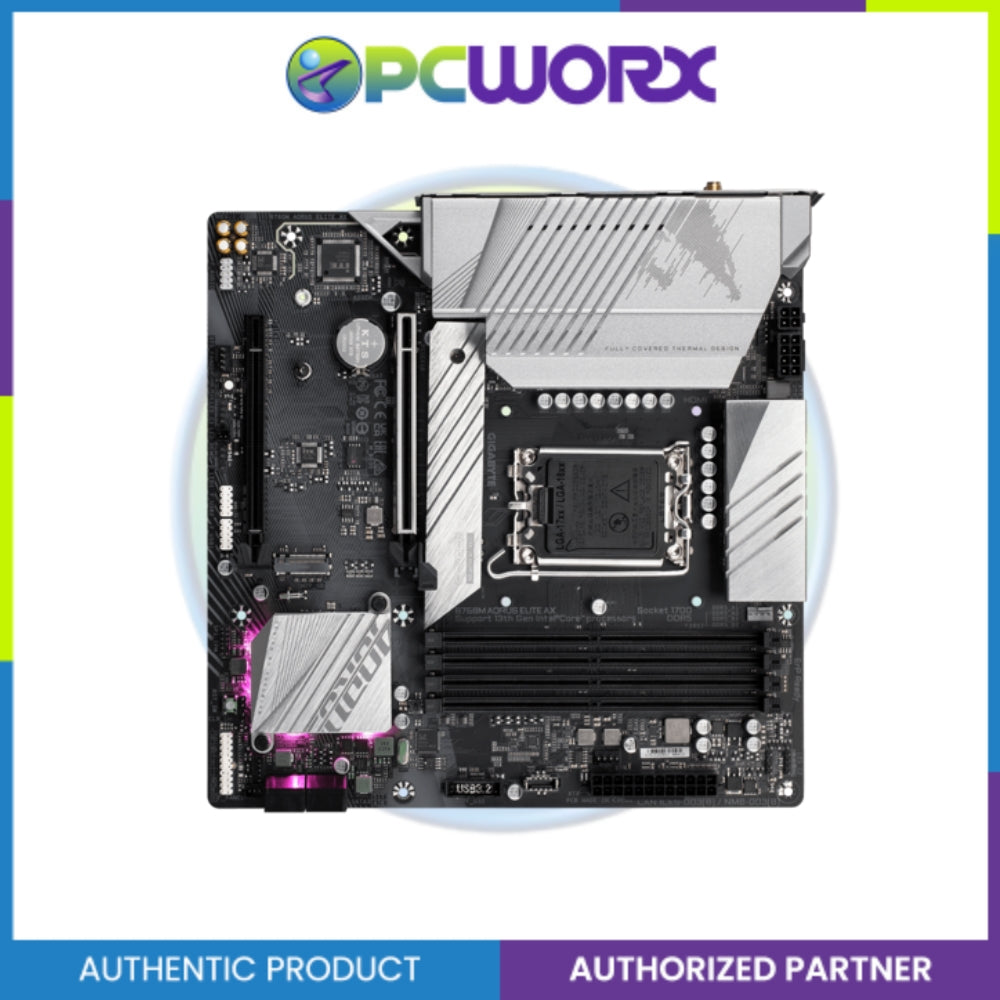

Gigabyte GA-B760M-AORUS-ELITE-AX DDR5 LGA1700 m-ATX

₱11,764.50

₱11,764.50

Authorized Seller

100% Original Authentic Product

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks： 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card



Category Specification
CPU LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU (*Refer to CPU Support List)
Chipset Intel® B760 Express Chipset
Memory Support for DDR5 7800(O.C.)/7600(O.C.)/7400(O.C.)/.../4000 MT/s; 4 × DDR5 DIMM sockets up to 192 GB (48 GB per DIMM); Dual channel; ECC & non-ECC support; XMP support
Onboard Graphics Intel® HD Graphics support; 1 × HDMI (4096x2160@60Hz), 1 × DisplayPort (4096x2304@60Hz)
Audio Realtek® Audio CODEC; High Definition; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)
Wireless Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E RTL8852CE; Wi-Fi a/b/g/n/ac/ax 2.4/5/6 GHz; Bluetooth 5.3; 11ax 160MHz support
Expansion Slots CPU: 1 × PCIe x16 (PCIe 4.0 x16); Chipset: 1 × PCIe x16 (PCIe 4.0 x4); AMD CrossFireX™ support
Storage Interface CPU: 1 × M.2 Socket 3, type 2280 PCIe 4.0 x4/x2; Chipset: 1 × M.2 Socket 3 type 22110/2280 PCIe 4.0 x4/x2; 4 × SATA 6Gb/s; RAID 0/1/5/10 support
USB USB Type-C (USB 3.2 Gen 2x2 & Gen 2); USB 3.2 Gen 2 Type-A; USB 3.2 Gen 1; USB 2.0; Internal headers; Thunderbolt™ connectors
Internal I/O Connectors 24-pin ATX, 8-pin + 4-pin ATX 12V, CPU & system fan headers, LED headers, 2 × M.2, 4 × SATA, front panel headers, TPM header, Q-Flash Plus, reset, Clear CMOS jumper

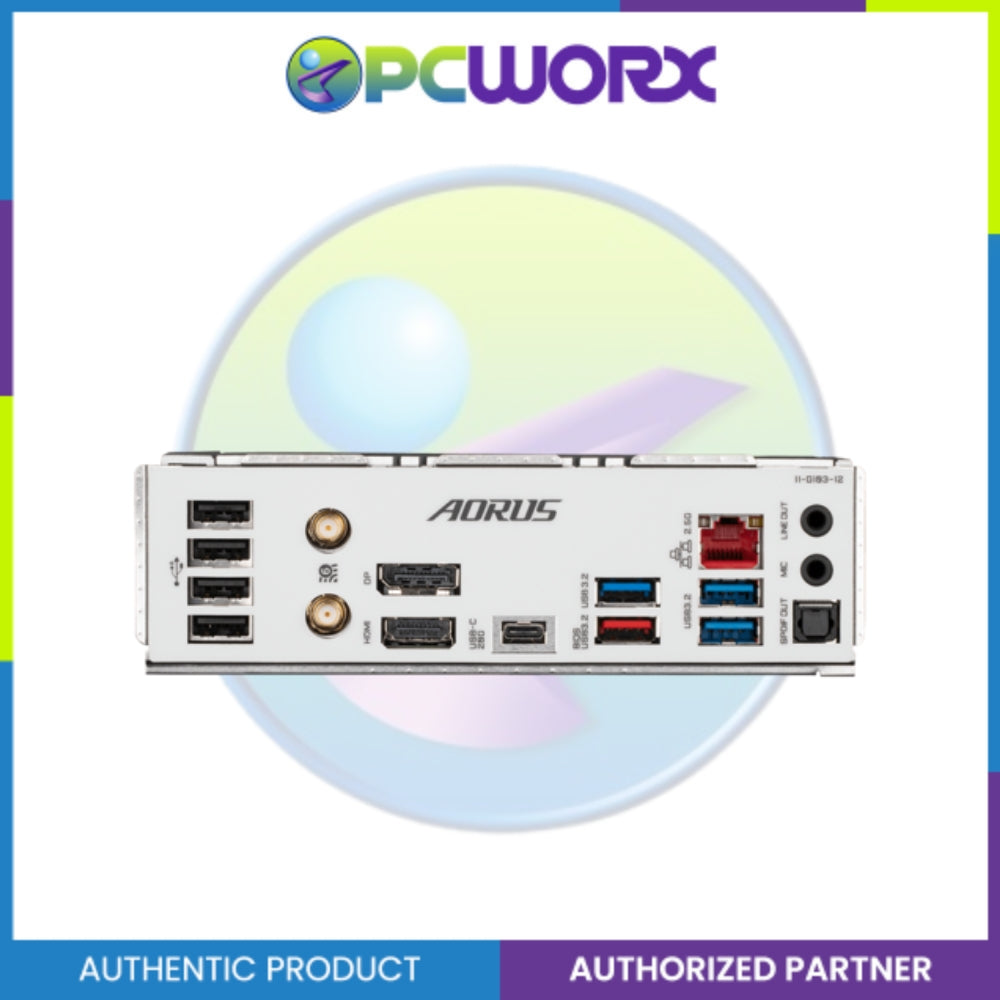

Back Panel Connectors 2 × SMA antenna, USB Type-C, USB 3.2 Gen 2/1, USB 2.0, HDMI, DisplayPort, RJ-45, optical S/PDIF, 2 × audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan control
BIOS 1 × 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC) support; Q-Flash & Q-Flash Plus
Bundled Software Norton® Internet Security (OEM); LAN bandwidth management software
Operating System Windows 11 64-bit / Windows 10 64-bit
Form Factor Micro ATX; 24.4 × 24.4 cm
