Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.
Conserve Energy
The DGS-1024C supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially.
Reliable Plug and Play Installation
The DGS-1024C is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.
Smooth Streaming
These switches support QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
SPECIFICATION
Interfaces
24 x 1000Base-T
Auto MDI/MDIX
120G CXP
Switching Capacity
48Gbps
Maximum Forwarding Rate
35.712 Mpps
Store & Forwarding Forwading
Yes
Dimensions
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)
Weight
1.14 kgs
Max Power Consumption
13.5 watts
Standby Power Consumption
6.5 watts
Maximum Heat Dissipation
46.035 BTU/h
MTBF
247,291 hours
Power Input
AC:100 ~ 240 V
Packet Buffer Size
512KBytes
FAN
Fanless
Comply with RoHS 6
Yes
Energy Efficiency Ethernet (EEE)
Yes
MAC Address Table Size
16000
Control
802.3x Flow
Head-of-line (HOL) Blocking Prevention
Yes
Jumbo Frame
9,216 Bytes
Switch intelligence
Unmanaged
Acoustic
0 dB
Humidity
Storage: 5% ~ 95% RH
Operating: 10% ~ 90% RH
Temperature
Operating: 0 ~ 40 °C
Storage: - 40 ~ 70 °C
Power Saving
By Link Status
By Cable Length
Advanced Security Features

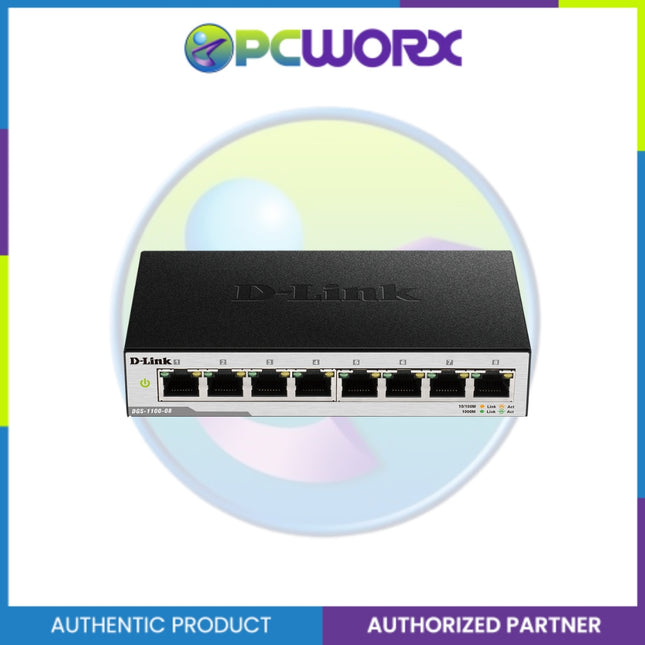

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Specification
Details
Interfaces
8 x 1000Base-T; Auto MDI/MDIX; 8 x 10/100/1000BASE-T PoE ports
Switching Capacity
16 Gbps
Maximum Forwarding Rate
11.9 Mpps
Dimensions
145 x 82 x 28 mm
Temperature
Operating: 0 ~ 40 °C; Storage: -40 ~ 70 °C
Weight
0.34 kg
Humidity
Operation: 0% - 90% RH; Storage: 0% - 95% RH
Operating Altitude
2000 m
Max Power Consumption
4.94 W
Standby Power Consumption
1.93 W
Maximum Heat Dissipation
16.85 BTU/hr
Device Interfaces
Wireless N 300Four 10/100 LAN ports10/100 WAN (Internet) port
Antenna
Two 5 dBi external antenna
Standards
IEEE 802.11n/g/bIEEE 802.3IEEE 802.3uIEEE 802.3x
LEDs
Power LEDInternet LED
Minimum System Requirements
Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higherMicrosoft Internet Explorer 7, Firefox 12.0, Chrome 20.0,Safari 4.0, or other Java-enabled browserNetwork interface cardCable or DSL modemSubscription with an Internet Service Provider
Security
WPA & WPA2 (Wi-Fi Protected Access)Wi-Fi Protected Setup (WPS) - PIN
Advanced Features
Web setup wizardUPnP supportActive firewall - Network Address Translation (NAT)Repeater mode
Wireless specifications
Wi-Fi Standard:
Wi-Fi 5 (802.11ac)
Speed:
Up to 1200 Mbps (300 Mbps on 2.4GHz + 867 Mbps on 5GHz)
Bands:
Dual-band (2.4GHz and 5GHz)
Antennas:
Four 5dBi external antennas
MU-MIMO:
Yes
Mesh:
Yes (EasyMesh compatible)
Ports and buttons
Gigabit Ethernet:
1 WAN and 3 LAN ports
USB:
1x USB 2.0 port for media sharing
Buttons:
WPS/Mesh, Reset
Security and management
Security:
WPA/WPA2/WPA3 encryption, SPI firewall, MAC and IP filtering
VPN Support:
PPTP, L2TP, IPsec passthrough
QoS:
Smart QoS engine
Management:
Web-based setup wizard and WEB GUI
Other features
Operating Modes:
Router, Access Point, Repeater, Client
Power:
12V/1A adapter
Discovering the Next Generation of Home Wi-Fi
3.6 Gbps Dual Band WiFi 7 Empowers your devices to operate at their maximum speed. Delight in seamless 4K/8K streaming, immersive AR/VR gaming, and rapid downloads.
2.5G Port: 1× 2.5Gbps WAN port 4 ×
1Gbps LAN ports with link-aggregation offer high-speed data transmissions. This setup surpasses the 1G bottleneck, propelling your devices to optimal performance levels.
Enhanced Coverage
Utilizing 4x high-power external antennas combined with Beamforming, our system offers increased capacity, robust and reliable connections and reduced interference.
Mesh Compatibility
Seamlessly integrates with Mesh routers to create a unified Mesh WiFi network throughout your home, ensuring uninterrupted connectivity and eliminating drops or lag when transitioning between signals.
Advanced Parental Controls
Protect your kids online with instant monitoring, content filters and customized settings for every connected device.
Easy Setup and Use
Managing and configuring your network is now simpler than ever using D-Link APP.
Wireless Speed:
Up to 3600Mbps (2882Mbps on 5GHz band + 688Mbps on 2.4GHz band)
Wi-Fi Standard:
Wi-Fi 7
Mesh Compatibility:
Yes, supports mesh for expanded coverage
Ports:
1 x 2.5Gbps WAN port
1 x 2.5Gbps LAN port
3 x 1Gbps LAN ports
Antennas:
4 high-gain antennas
Key Features:
Dual-band, 3.6 Gbps speed, enhanced coverage, multi-gigabit ports
W-Fi Feature
Standard
Modulation schemes
Transfer Rate
802.11b/g/n/ac/ax/be, 688Mbps1 2.4G
802.11a/n/ac/ax/be, 2882Mbps1 5G
OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
DSSS = DBPSK, DQPSK, CCK
EHT20: up to 688Mbps1 2.4G+5G
EHT40: up to 1376Mbps1 2.4G+5G
EHT80: up to 1441Mbps1 5G
EHT160: up to 2882Mbps1 5G
Key specifications
Feature
Specification
Ports
8 x 2.5GBASE-T Ethernet ports
Switching Capacity
40 Gbps
LAN Transfer Rate
10/100/1000/2500 Mbps
MAC Address Table
4K entries
Standards
IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.1p, 802.3az
Features
IGMP Snooping, Quality of Service (QoS), Flow Control, Auto MDI/MDIX, Energy-Efficient Ethernet (EEE)
Installation
Plug-and-play, no configuration required
Design
Durable metal casing, fanless, desktop or wall-mount design
Dimensions
145×82×28145 cross 82 cross 28
145×82×28
mm
Weight
343 g
Power
12V/1A; Max consumption: 8.586 W
Operating Temperature
0
0
to
4040
40
°C
More ports. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 8-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.
Plug-and-play convenience.
The DMS-108 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.
General
Wireless Technology:
Wireless N 150
Frequency Band:
2.4 GHz to 2.4835 GHz
Interface:
USB 2.0
Encryption:
WEP, WPA, and WPA2
Setup:
Wi-Fi Protected Setup (WPS) button and D-Link Setup Wizard
Compatibility
Operating Systems:
Windows XP SP3, Vista (32/64-bit), 7 (32/64-bit), and 8
Wireless Standards:
Backward compatible with IEEE 802.11g and 802.11b devices
Physical and environmental
Dimensions:
69.9 x 18.4 x 10.8 mm (2.75 x 0.72 x 0.43 inches)
Weight:
12 grams (0.02 lbs)
Operating Temperature:
0 to 40 °C (32 to 104 °F)
Storage Temperature:
-20 to 65 °C (-4 to 149 °F)
Secure
Easy to install and use with the D-Link Setup Wizard and Wi-Fi® Protected Setup (WPS)
Use the D-Link DWA-123 Wireless N 150 USB Adapter to connect your notebook or desktop
Computer to your wireless home network. Once connected, you can share a high-speed Internet connection and access shared documents, music, and photos from other computers on your network.
High-Speed Secure Wireless Networking
Connect to a high-speed wireless network with the D-Link Wireless N 150 USB Adapter and enjoy surfing the web, checking e-mail, and chatting with family and friends online. The DWA-123 uses Wireless N 150 technology, which offers increased speed and range over the 802.11g/b standard 1 giving you a faster, more reliable wireless connection. Additionally, to protect your data and maintain your privacy, the Wireless N 150 USB Adapter supports WEP, WPA, and WPA2 encryption for connecting to a secure wireless network.
Compatibility Assurance
The Wireless N 150 USB Adapter provides a high-speed connection to other Wireless N 150 or 802.11n devices and is backward compatible with 802.11g/b, ensuring compatibility with a wide range of wireless routers and networks.
Easy To Install & Connect
D-Links Quick Setup Wizard provides easy setup of your USB adapter so you can get connected quickly. Wi-Fi Protected Setup (WPS) sets up a secure wireless connection with the push of a button. WPS eliminates the need for complicated configuration, thus simplifying setup and saving time.
4G LTE Wi-Fi Modem/Router
Designed for True PortabilityThe DWR-910M 4G LTE Wi-Fi Modem/Router is small and slim enough to carry around in your purse or pocket so that you can take advantage of your fast 4G LTE connection wherever you are. Furthermore, the 4G LTE USB Wingle directly plugs in to your desktop or laptop computer’s USB port, eliminating the need for cables so you can reduce clutter.
Breakthrough Speeds with 4G LTETechnology
The DWR-910M 4G LTE Wi-Fi Modem/Router gives you fast access to the Internet wherever you are and lets you share it on-the-go. Using powerful new 4G LTE technology, you can achieve download speeds of up to 150Mbps and upload speeds of up to 50Mbps1.You’ll get a blazing fast Internet connection with two internal LTE antennas that give you a more reliable connection with faster speeds. You can connect and share the Internet with speeds fast enough to allow demanding tasks that were once difficult when using a mobile connection, such as streaming HD video to multiple devices.
Mobile Internet for All of your Devices
The 4G LTE Wi-Fi Modem/Router lets you share your fast mobile connection over Wi-Fi from a device small enough to t in your pocket. With the DWR-910M, you can get online with your notebook, smartphone, tablet, and any other wireless device by sharing a single 4G LTE connection. The DWR-910M will provide high-speed Wireless N Internet access for everybody – whether you are with colleagues on a business trip, or when you are travelling with friends and family.
Built-in Software for Instant Access Anywhere
The DWR-910M is truly plug-and-play with drivers built right into the routers you can connect without the need to install anything. Open a browser, connect the router, and you can set up your network right from a web interface. Notebooks and netbooks without a CD-ROM drive can connect and get up and running in no time. You can even plug the DWR-910M into any powered USB port and provide wireless connectivity to your mobile devices without a PC
Features
Connectivity• USB 2.0 plug connects to any PC or laptop computer• SIM slot allows you to access the Internet using your mobile service• Wireless 802.11b/g/n to create high-speed wireless networks
Mobile Connections• Data rates of up to 150 Mbps download and 50 Mbps upload• LTE/DC-HSPA+/HSPA/WCDMA support for the latest in mobile network technology• GSM/GPRS/EDGE support for legacy mobile plans and fallback in the absence of 4G LTE
Portability• Small enough to slip right in your pocket• Internal Wi-Fi and LTE antennas keep it compact Easy to Set Up, Easy to Use• Access your SIM card’s phonebook and SMS messaging right from your web browser• Built-in drivers and software mean that no CD-ROM drive is required• LED indicators let you know the status of your connection instantly
Technical Specifications:
General
Device Interfaces:
USB 2.0
SIM slot
Radio Frequency Bands:
LTE-FDD B1/B3/B7/B8/B20
LTE-TDD B38/B40/B41
UMTS / HSDPA / HSUPA / HSPA+ B1 / B8
GSM B3/B8
(900 / 2100 MHz)
Cellular Access:
LTE: 3GPP Rel-9 FDD-LTE Cat.4
Downlink: 150 Mbps
Uplink: 50 Mbps
DC-HSPA+:
Downlink: 42 Mbps
Uplink: 11 Mbps
Wi-Fi Access Point:
802.11n (75 Mbps)
802.11g (54 Mbps)
802.11b (11 Mbps)
Wireless Security:
WPA2-PSK Auto (TKIP / AES)
WPA-PSK Auto (TKIP / AES)
WEP (64 / 128-bit)
MAC filter
Connection Manager Software Requirements:
Windows 8 / 7 /Vista / XP, Mac OS X 10.5 or higher,
or Ubuntu Linux 10.04 or higher.
128 MB RAM or greater
50 MB available disk space
Functionality
Antenna:
Internal LTE main antenna
Internal TDS antenna
Internal Wi-Fi antenna
LED Indicators:
3 in 1 LED indicator
Power LED
Wi-Fi LED
Netwrok LED
Plug and Play:
Built in drivers and software, no CD-ROM reuired
Connection Software Features:
Web GUI
Phonebook
SMS
Wizard
APN
Traffic display and statistics
Wi-Fi Features:
Auto channel election
Up to 8 connected clients
Advanced Features:
3G fallback
Supports IP6v6
Physical
Dimensions (L x W x D):
71mm x 22mm x 4.2mm
Weight:
Less than 30g
Operating Temperature:
Working Temperature: -10°C ~ 40°C
Storage Temperature: -40°C ~ 70°C
Power:
SV DC
Compatible with 802.11n/g/b wireless devices
Connect up to 8 Wi-Fi devices
Up to 10 hours of battery in one charge
Small size lets you drop it in a purse or pocket and take it wherever you go
WPA/WPA2 Wi-Fi security protocols for industry standard encryption
Built-in firewall helps keep unwanted connections out
Wi-Fi Protected Setup (WPS) for one-touch setup
Micro-USB port for easy charging
