2.4GHz up to 300Mbps• LTE Downlink: Up to 150Mbps• LTE Uplink: Up to 50Mbps• 3 x 10/100Mbps LAN, 1 x 10/100Mbps WAN/LAN• 2 x 3G/4G Antennas• 2 x WI-FI Antennas• Support WPA3 Wireless security• Support TR069 management*• Supports WAN Failover (3G/4G &, Wired broadband connection)• In-built VPN Client for secure connection
Specifications:
Frequency Support
• FDD LTE: B1/3/5/7/8/20/28
• TDD 38,40,41
• WCDMA:B1/5/8
Device Interfaces
• 1x 10/100 Fast Ethernet WAN port
• 3x 10/100 Fast Ethernet LAN ports
• 1x Reset button
• 1 x WPS button
• 1 x Power jack Power jack
• 1 x Power switch
• 2 x 5dBi external LTE antennas
• 2 x 5dBi external 2.4G antennas
• 1 x Power switch
• 1x LTE Interface
• 1x Nano SIM card Slot
Data Rates
• 2.4GHz up to 300Mbps
Standards
• 802.11b/g/n
Wi-Fi Data Rates
• HT20: up to 144 Mbps
• HT40: up to 300 Mbps
Wireless Encryption
• Wi-Fi Protected Setup (WPS)
• WPA/WPA2/WPA3 wireless encryption
• 64/128-bit WEP (Wired Equivalent Privacy)
• Wireless ACL MAC address filtering
Firewall
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
Advanced Features
• WAN fail over
• Port forwarding
• IPsec VPN pass through
• QoS Flow Control
• TR-069 remote management
• DMZ
• IGMP proxy and MLD for IPTV
• DHCP server, DHCP client
• URL, IP,MAC filter
• Virtual server
• DDNS
• IPv6
• Denial of Service (DoS) protection
• Embedded AP with 4 SSIDs
• Router, AP, Wireless client, WISP, Repeater mode
Dimensions
• 222x 147x 42 mm (Wx D x H)
Weight
• 240 g
Power
• Input: 100 ~ 240 V
• Output: 12 V / 1A
Temperature
• Operating: -10°C to 40°C
• Storage: -40°C to 70 °C
Humidity
• Operating: 10% to 95% non-condensing
• Storage: 10% to 95% non-condensing
Certifications
• ROHS
• CE
AX3000 Wi-Fi 6 Smart Mesh Router M30
Dual-Band AX3000 Wi-Fi 6
Ultra-Fast Connectivity – Speeds up to 3 Gbps with an extra antenna on the faster 5 GHz band
Uninterrupted Wi-Fi Everywhere – Advanced antenna design offers 360° spherical coverage plus advanced AI technology
Scale-as-you-need Mesh – Create a robust mesh network with other AQUILA PRO AI routers and extenders
Multi-Gigabit Wired Connections – 1× Gigabit WAN port + 4× Gigabit LAN ports
Help Protect Your Home Network – Advanced parental controls, IoT cybersecurity certification and WPA3 encryption
Easy Setup and Management – The intuitive AQUILA PRO AI app guides you through setup step-by-step
Refined Aesthetics – Boasting an eagle-inspired form and a unique feather-patterned ventilation design
Eco-friendly Design – Made with Post-Consumer Recycled case and packed in recyclable packaging
Specifications:
Antenna:
5 x internal dual band antennas
Certifications:
CE
FCC
IC
Device Management:
AQUILA PRO AI app (iOS and android)
Web UI
Dimensions:
181.6 x 129. 2 x 661.1 mm (7.15 x 5.0 x 2.60 in)
Firewall:
1 x DMZ
Anti- spoofing checking
DoS
IP/MAC Address Filtering
Stateful Packet Inspection
Interfaces:
1 x Gigabit Ethernet WAN port
1 x power connector
1 x power on/off button
1 x WPS button
4 x Gigabit Ethernet LAN port
LED Status Indicators:
Power/Status
Maximum Power Consumption:
14.54W
Memory:
128MB Flash
512MB RAM
Operating Temperature:
0 to 40 °C (32 to 104 °F)
Power Input:
12V
1A
Security Protocol:
WPA/WPA2-Personal
WPA2/WPA3- Personal (WPS Not supported)
WPA2- Personal
WPA3 Only (WPS Not supported)
Voice Assistant:
Amazon Alexa
Google Assistant
Weight:
295g (0.65 lb)
Wireless Standard:
IEEE 802.11ax/ac/n/g/b/k/w/a/h IEEE 802.3U/ab
Wi-Fi Data Rate:
2.4 GHz Up to1200 Mbps
5 GHz Up to 1800 Mbps
PRODUCT DESCRIPTION

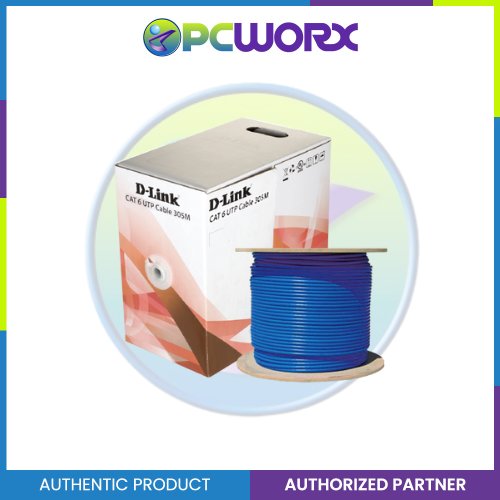

D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.
As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time.
D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.
SPECIFICATIONS
Brand:
D-Link
Color:
Blue
Conductor metal:
Bare Copper
Heavy duty and 100% BrandNew
Snaggles
Provide high speed connection and guaranteed quality
Key specifications
Cable Length:
3.5 meters
Input Voltage:
12V-24V (compatible with most vehicle power systems)
Output Voltage:
5V (powers the dashcam via USB)
Output Current:
2.5A
Connector Type:
USB 2.0
Functionality:
Provides 24-hour parking monitoring by maintaining a constant power supply to the dashcam
Technical Details
Brand
DAHUA
Manufacturer
DAHUA
Flash memory type
MicroSD
Special Features
G Sensor, Built In GPS
Mounting Hardware
Dash Cam
Number of items
1
Standing screen display size
3 Inches
Display Type
LCD
Batteries Included
No
Batteries Required
No
Connector Type
Wi-Fi
Product dimensions
4 x 6 x 9 cm; 600 Grams
Item Weight
600 g
H10
Dash Camera
> 2160P ultra high resolution image> Supports ADAS: Front Vehicle Starting Warning, Front Vehicle Collision Warning, Lane Departure Warning> Supports 24-hours parking monitoring (with hardwire kit)> Supports WDR> Built-in Wi-Fi AP module> G-Sensor module supports collision detection and video lock> Supports MicroSD card up to 256 GB Compatible with mobile client for setup, live view, recording search and backup> Supports voice control> Front and rear recording (Optional)
Camera
Image Sensor
1/2.7'' CMOS
Frame Rate
Dual-Channel: 3840Px2160P@30FPS; 1920Px1080P@25FPS (Optional)
Single-Channel: 3840Px2160P@30FPS
Field of View
H:118°，V: 62°，D:143°
Iris
F1.75
Video Compression
H.265
OSD
Display time, date, etc.
Image format
JPEG
Storage
1 TF card (up to 256GB)
Communication Module
5G WiFi AP
G-sensor
Built in, supports locking video after collision.
Interface
Power Supply
Type C
Audio Input
Build-in microphone
Audio Output
Build-in speaker
ADAS
Front Vehicle Starting Warning
Supported
Front Vehicle Collision Warning
Supported
Lane Departure Warning
Supported
General
Operating Temperature
-20°C to 70°C(-4°F to 158°F)
Operating humidity
<95%(No condensation)
Power Supply
DC 5V/2A
Power Consumption
<3.5W
Dimensions
106.0mm×49.5mm×39.8mm(4.17''×1.95''×1.57'')
Weight
≈120g
System Overview
The Dahua DHI-DAE-HC1301W-M1pro Dash Camera is a high-resolution automotive dash camera that features easy installation and operation. The device can be communicated with its DH Dashcam app through built-in Wi-Fi. The built-in G-Sensor can automatically lock the currently recording video when it senses a crash or strong vibration to prevent the video from being overwritten. MicroSD cards up to 128 GB are supported. The built-in mic and speaker can be used to record and play back.
Highlight
1080P ultra high-resolution image F2.0 iris offers crisp night imaging Built-in Wi-Fi AP module G-Sensor module supports collision detection and video lock Supports MicroSD card up to 128 GB Compatible with mobile client for setup, live view, recording search and backup HD night vision.
Scene
Suitable for consumer driving records.
Camera
Image CMOS
Sensor 1/3.0''
Resolution 1920×1080P@30FPS
Field of View D: 121°, H: 101°, V: 53
Iris F2.0 Video
° Compression H.265
OSD Display time, date, etc.
Image format JPEG
Storage 1 TF card (up to 128GB)
Communication Module WiFi AP
G-sensor G-Sensor
Interface
Power Supply Mini USB
Audio Input Build-in microphone
Audio Output Build-in speaker
General
Operating Temperature -20°C to 70°C(-4°F to 158°F)
Operating Humidity <95%(No condensation)
Power Supply 5V DC/1.5A
Power Consumption ≤1.5W
Dimensions 80mm×48mm×28.8mm(3.15′′×1.89′′×1.13′′)
Weight Approx. 42 g (0.093 lb.)
Camera and video
Resolution:
2304P x 1296P (1296p)
Field of View:
139° wide-angle lens
Night Vision:
Features an F1.8 aperture for crisp night imaging
Image Sensor:
3MP
Features and functionality
Connectivity:
Built-in Wi-Fi for connection to the DH Dashcam app
Sensor:
G-Sensor with collision detection and automatic video lock
Storage:
Supports MicroSD cards up to 128GB (not included)
Audio:
Built-in microphone and speaker for recording and playback
Control:
Voice control functionality
Mobile App:
Compatible with a mobile client for setup, live view, and recording search/backup
Physical and power
Dimensions:
80mm x 48mm x 28.8mm
Weight:
Approximately 52.6g
Power Supply:
DC 5V/1.5A
Power Consumption:
=7.5W
Materials:
Metal and plastic
