Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 12 Nb of horizontal rows 1 Type of door Plain Width Wall: 270 mm Outside: 294 mm Height Wall: 228 mm Outside: 252 mm Depth Outside : 18 mm Wall : 80 mm Total : 98 mm Complementary Enclosure mounting Flush 9 mm pitches 24 Total number of 18 mm modules 12 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 3 x 6 mm² for earth 3 x 6 mm² for neutral 4 x 10 mm² for earth 4 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 76 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Residential Small commercial Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.800 cm Package 1 Width 29.400 cm Package 1 Length 25.200 cm Package 1 Weight 873.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 8 Package 2 Height 52.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 7.912 kg Unit Type of Package 3 P12 Number of Units in Package 3 128 Package 3 Height 120.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 138.600 kg

Read more less

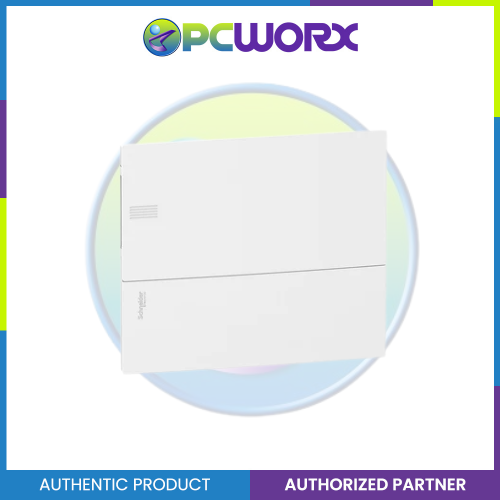

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 18 Nb of horizontal rows 1 Type of door Plain Width Wall: 378 mm Outside: 402 mm Height Wall: 228 mm Outside: 252 mm Depth Outside : 18 mm Wall : 80 mm Total : 98 mm Complementary Enclosure mounting Flush 9 mm pitches 36 Total number of 18 mm modules 18 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers Distribution block outgoers 2 x 16 mm² for earth 2 x 16 mm² for neutral 6 x 6 mm² for earth 6 x 6 mm² for neutral 8 x 10 mm² for earth 8 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 76 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Small commercial Residential Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.900 cm Package 1 Width 40.200 cm Package 1 Length 25.200 cm Package 1 Weight 1.200 kg Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 52.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 6.900 kg Unit Type of Package 3 P12 Number of Units in Package 3 80 Package 3 Height 120.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 97.600 kg

Read more less

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 4 Nb of horizontal rows 1 Type of door Plain Width Wall: 126 mm Outside: 150 mm Height Wall: 228 mm Outside: 252 mm Depth Outside : 18 mm Wall : 80 mm Total : 98 mm Complementary Enclosure mounting Flush 9 mm pitches 8 Total number of 18 mm modules 4 [In] rated current 50 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth 2 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 76 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Residential Small commercial Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.500 cm Package 1 Width 15.000 cm Package 1 Length 25.000 cm Package 1 Weight 496.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 15 Package 2 Height 53.000 cm Package 2 Width 31.000 cm Package 2 Length 41.000 cm Package 2 Weight 8.076 kg Unit Type of Package 3 P12 Number of Units in Package 3 240 Package 3 Height 118.500 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 141.208 kg

Read more less

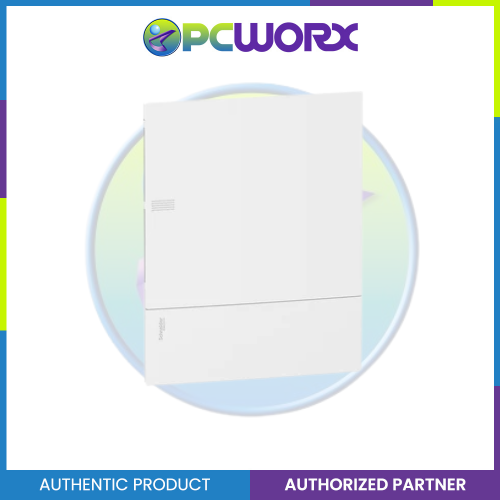

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 12 Nb of horizontal rows 2 Type of door Plain Width Wall: 270 mm Outside: 294 mm Height Wall: 353 mm Outside: 377 mm Depth Outside : 18 mm Wall : 80 mm Total : 98 mm Complementary Enclosure mounting Flush 9 mm pitches 24 Total number of 18 mm modules 24 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers Distribution block outgoers 2 x 16 mm² for earth 2 x 16 mm² for neutral 6 x 6 mm² for earth 6 x 6 mm² for neutral 8 x 10 mm² for earth 8 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 76 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Small commercial Residential Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.000 cm Package 1 Width 29.500 cm Package 1 Length 37.500 cm Package 1 Weight 1.412 kg Unit Type of Package 2 S04 Number of Units in Package 2 5 Package 2 Height 30.000 cm Package 2 Width 40.000 cm Package 2 Length 60.000 cm Package 2 Weight 7.948 kg Unit Type of Package 3 P12 Number of Units in Package 3 80 Package 3 Height 160.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 139.168 kg

Read more less

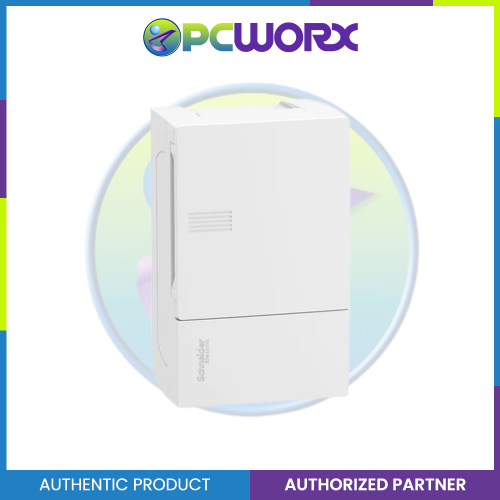

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 12 Nb of horizontal rows 3 Type of door Plain Width Wall: 270 mm Outside: 294 mm Height Wall: 478 mm Outside: 502 mm Depth Outside : 18 mm Wall : 80 mm Total : 98 mm Complementary Enclosure mounting Flush 9 mm pitches 24 Total number of 18 mm modules 36 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 20 outgoers 1 neutral (screwed) with 20 outgoers Distribution block outgoers 2 x 16 mm² for earth 2 x 16 mm² for neutral 9 x 10 mm² for earth 9 x 10 mm² for neutral 9 x 6 mm² for earth 9 x 6 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 76 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Residential Small commercial Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.000 cm Package 1 Width 29.500 cm Package 1 Length 50.000 cm Package 1 Weight 1.950 kg Unit Type of Package 2 CAR Number of Units in Package 2 4 Package 2 Height 31.000 cm Package 2 Width 39.500 cm Package 2 Length 53.500 cm Package 2 Weight 8.667 kg Unit Type of Package 3 P12 Number of Units in Package 3 64 Package 3 Height 119.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 150.672 kg

Read more less

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 18 Nb of horizontal rows 1 Type of door Plain Width Outside: 376 mm Height Outside: 228 mm Depth Outside : 101.5 mm Complementary Enclosure mounting Surface 9 mm pitches 36 Total number of 18 mm modules 18 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry 1 bare flange 1 trunking flange Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers Distribution block outgoers 2 x 16 mm² for earth 2 x 16 mm² for neutral 6 x 6 mm² for earth 6 x 6 mm² for neutral 8 x 10 mm² for earth 8 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 80 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Small commercial Residential Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 10.000 cm Package 1 Width 23.000 cm Package 1 Length 37.500 cm Package 1 Weight 1.105 kg Unit Type of Package 2 S04 Number of Units in Package 2 5 Package 2 Height 30.000 cm Package 2 Width 40.000 cm Package 2 Length 60.000 cm Package 2 Weight 6.365 kg Unit Type of Package 3 P12 Number of Units in Package 3 80 Package 3 Height 122.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 113.840 kg

Read more less

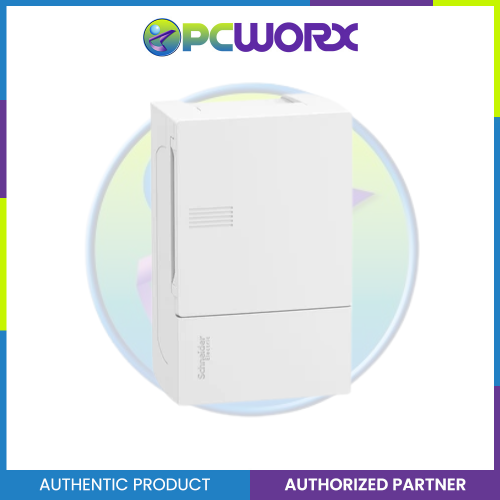

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 4 Nb of horizontal rows 1 Type of door Plain Width Outside: 124 mm Height Outside: 198 mm Depth Outside : 95 mm Complementary Enclosure mounting Surface 9 mm pitches 8 Total number of 18 mm modules 4 [In] rated current 50 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry 1 bare flange 1 trunking flange Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth 2 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 74 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Small commercial Residential Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.55 cm Package 1 Width 12.4 cm Package 1 Length 19.8 cm Package 1 Weight 400 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 52 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 8.1 kg Unit Type of Package 3 P12 Number of Units in Package 3 160 Package 3 Height 60 cm Package 3 Width 80 cm Package 3 Length 120 cm Package 3 Weight 76.8 kg

Read more less

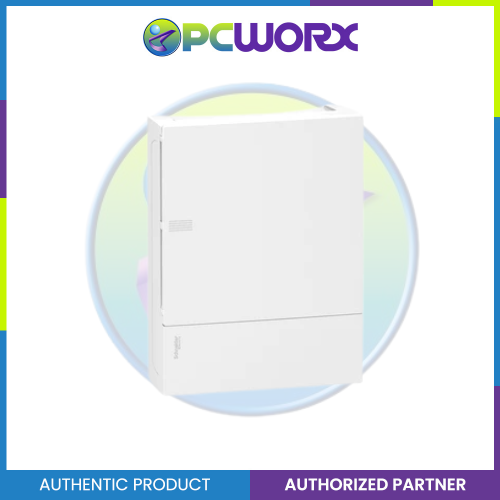

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 12 Nb of horizontal rows 2 Type of door Plain Width Outside: 268 mm Height Outside: 353 mm Depth Outside : 102 mm Complementary Enclosure mounting Surface 9 mm pitches 24 Total number of 18 mm modules 24 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry 1 trunking flange 1 bare flange Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers Distribution block outgoers 2 x 16 mm² for earth 2 x 16 mm² for neutral 6 x 6 mm² for earth 6 x 6 mm² for neutral 8 x 10 mm² for earth 8 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 80 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Small commercial Residential Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 10.200 cm Package 1 Width 26.800 cm Package 1 Length 35.300 cm Package 1 Weight 1.194 kg Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 52.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 6.740 kg Unit Type of Package 3 P12 Number of Units in Package 3 80 Package 3 Height 120.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 119.840 kg

Read more less

Category Parameter Specification Main Range Resi9 Product name Resi9 MP Product or component type Enclosure Enclosure type Modular enclosure Number of 18 mm modules per row 12 Number of horizontal rows 1 Type of door Plain Dimensions (Outside) Width 268 mm Height 228 mm Depth 101.5 mm Complementary Enclosure mounting Surface Number of 9 mm pitches 24 Total number of 18 mm modules 12 Rated current [In] 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate Cable entry 1 bare flange, 1 trunking flange Terminal block function Earth / Neutral Number of terminal blocks 1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers Distribution block outgoers Earth: 1×16 mm², 3×6 mm², 4×10 mm² Neutral: 1×16 mm², 3×6 mm², 4×10 mm² Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 80 mm Colour Door: White (RAL 9003) Front face: White (RAL 9003) Market segment Residential, Small commercial Environment Standards IEC 60670-1, IEC 60670-24 Quality labels IMQ Fire resistance 650 °C (door, back part, front face) IP degree of protection IP40 IK degree of protection IK07 Operating temperature -25…60 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 10.0 cm Package 1 width 23.0 cm Package 1 length 26.5 cm Package 1 weight 808 g

Read more less

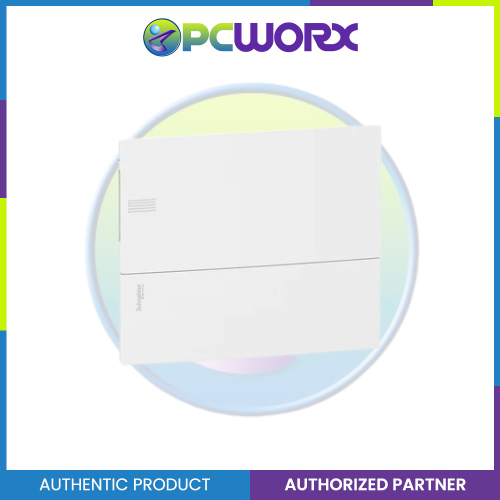

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 8 Nb of horizontal rows 1 Type of door Plain Width Wall: 198 mm Outside: 222 mm Height Wall: 228 mm Outside: 252 mm Depth Outside : 18 mm Wall : 80 mm Total : 98 mm Complementary Enclosure mounting Flush 9 mm pitches 16 Total number of 18 mm modules 8 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 3 x 6 mm² for earth 3 x 6 mm² for neutral 4 x 10 mm² for earth 4 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 76 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Small commercial Residential Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.700 cm Package 1 Width 22.200 cm Package 1 Length 25.200 cm Package 1 Weight 620.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 52.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 7.700 kg Unit Type of Package 3 P12 Number of Units in Package 3 160 Package 3 Height 120.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 112.800 kg

Read more less

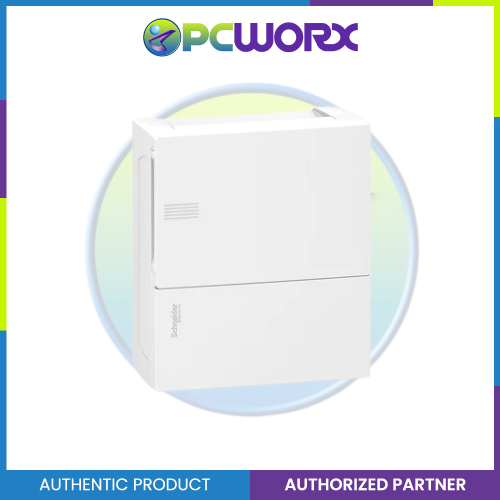

Specifications Main Range Resi9 Product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 8 Nb of horizontal rows 1 Type of door Plain Width Outside: 196 mm Height Outside: 198 mm Depth Outside : 101.5 mm Complementary Enclosure mounting Surface 9 mm pitches 16 Total number of 18 mm modules 8 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry 1 bare flange 1 trunking flange Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 3 x 6 mm² for earth 3 x 6 mm² for neutral 4 x 10 mm² for earth 4 x 10 mm² for neutral Enclosure material Back part: technoplastic Door: technoplastic Front face: technoplastic Internal depth 80 mm Colour Door: white (RAL 9003) Front face: white (RAL 9003) Market segment Residential Small commercial Environment Standards IEC 60670-1 IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 10.000 cm Package 1 Width 19.500 cm Package 1 Length 23.000 cm Package 1 Weight 636.000 g Unit Type of Package 2 S04 Number of Units in Package 2 10 Package 2 Height 30.000 cm Package 2 Width 40.000 cm Package 2 Length 60.000 cm Package 2 Weight 7.216 kg Unit Type of Package 3 P12 Number of Units in Package 3 160 Package 3 Height 121.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 127.456 kg

Read more less

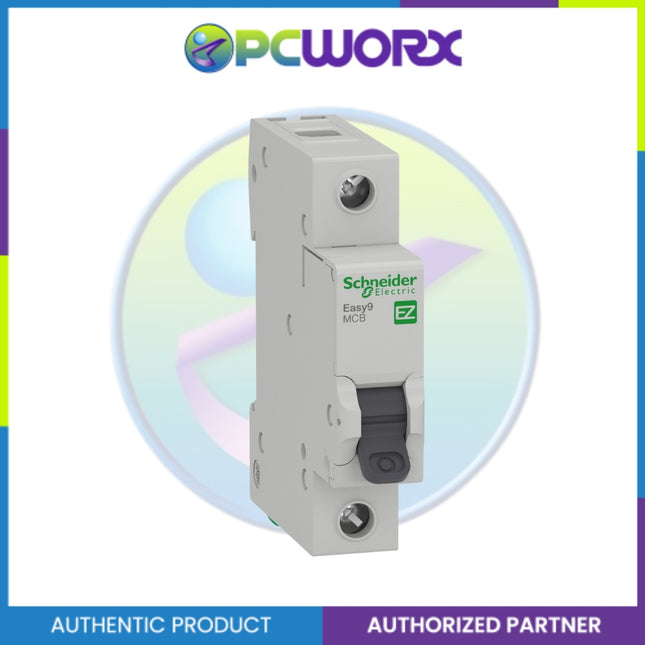

DESCRIPTIONS This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 10A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 66.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C. SPECIFICATIONS  Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 10:00 AM network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1   10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz   127 V AC 50 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 2 Height 81 mm Width 18 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid   Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque 2 N.m top or bottom Environment Standards IEC 60898-1 Product certifications VDE   CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.4 cm Package 1 Width 1.8 cm Package 1 Length 8.5 cm Package 1 Weight 102 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.2 cm Package 2 Width 9 cm Package 2 Length 22.6 cm Package 2 Weight 1.292 kg Unit Type of Package 3 S03 Number of Units in Package 3 144 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 14.688 kg

Read more less
