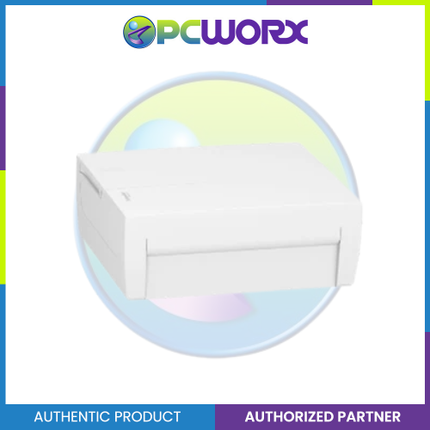

Schneider Enclosure Resi9 MP Surface Mounting 1 Row of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks (MIP12112)

Description

Category Parameter Specification
Main Range Resi9
Product name Resi9 MP
Product or component type Enclosure
Enclosure type Modular enclosure
Number of 18 mm modules per row 12
Number of horizontal rows 1
Type of door Plain
Dimensions (Outside) Width 268 mm
Height 228 mm
Depth 101.5 mm
Complementary Enclosure mounting Surface
Number of 9 mm pitches 24
Total number of 18 mm modules 12
Rated current [In] 63 A
Type of rail 35 mm asymmetrical rail
Mounting plate description Without mounting plate
Cable entry 1 bare flange, 1 trunking flange
Terminal block function Earth / Neutral
Number of terminal blocks 1 earth (screwed) with 8 outgoers
1 neutral (screwed) with 8 outgoers
Distribution block outgoers Earth: 1×16 mm², 3×6 mm², 4×10 mm²
Neutral: 1×16 mm², 3×6 mm², 4×10 mm²
Enclosure material Back part: technoplastic
Door: technoplastic
Front face: technoplastic
Internal depth 80 mm
Colour Door: White (RAL 9003)
Front face: White (RAL 9003)
Market segment Residential, Small commercial
Environment Standards IEC 60670-1, IEC 60670-24
Quality labels IMQ
Fire resistance 650 °C (door, back part, front face)
IP degree of protection IP40
IK degree of protection IK07
Operating temperature -25…60 °C
Packing Units Unit type of Package 1 PCE
Number of units in Package 1 1
Package 1 height 10.0 cm
Package 1 width 23.0 cm
Package 1 length 26.5 cm
Package 1 weight 808 g


Schneider Enclosure Resi9 MP Surface Mounting 1 Row of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks (MIP12112)

Product form

Category Parameter Specification Main Range Resi9 Product name Resi9 MP Product or component type Enclosure Enclosure type Modular enclosure Number... Read more

Free pickup in our shop(s)

SKU: 0000064425

5 in stock

₱1,106.65

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Category Parameter Specification
    Main Range Resi9
    Product name Resi9 MP
    Product or component type Enclosure
    Enclosure type Modular enclosure
    Number of 18 mm modules per row 12
    Number of horizontal rows 1
    Type of door Plain
    Dimensions (Outside) Width 268 mm
    Height 228 mm
    Depth 101.5 mm
    Complementary Enclosure mounting Surface
    Number of 9 mm pitches 24
    Total number of 18 mm modules 12
    Rated current [In] 63 A
    Type of rail 35 mm asymmetrical rail
    Mounting plate description Without mounting plate
    Cable entry 1 bare flange, 1 trunking flange
    Terminal block function Earth / Neutral
    Number of terminal blocks 1 earth (screwed) with 8 outgoers
    1 neutral (screwed) with 8 outgoers
    Distribution block outgoers Earth: 1×16 mm², 3×6 mm², 4×10 mm²
    Neutral: 1×16 mm², 3×6 mm², 4×10 mm²
    Enclosure material Back part: technoplastic
    Door: technoplastic
    Front face: technoplastic
    Internal depth 80 mm
    Colour Door: White (RAL 9003)
    Front face: White (RAL 9003)
    Market segment Residential, Small commercial
    Environment Standards IEC 60670-1, IEC 60670-24
    Quality labels IMQ
    Fire resistance 650 °C (door, back part, front face)
    IP degree of protection IP40
    IK degree of protection IK07
    Operating temperature -25…60 °C
    Packing Units Unit type of Package 1 PCE
    Number of units in Package 1 1
    Package 1 height 10.0 cm
    Package 1 width 23.0 cm
    Package 1 length 26.5 cm
    Package 1 weight 808 g
