| Specifications |
| Main |
|
| Range |
|
| Resi9 |
|

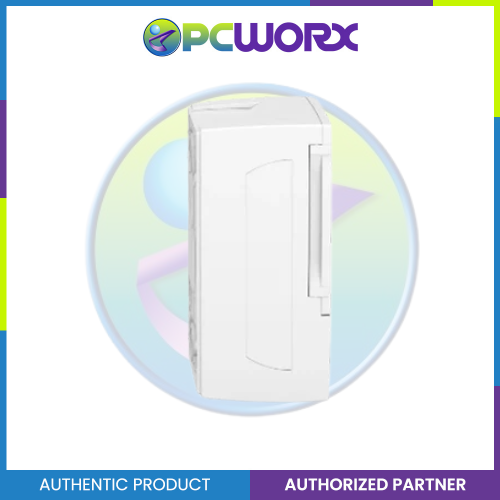

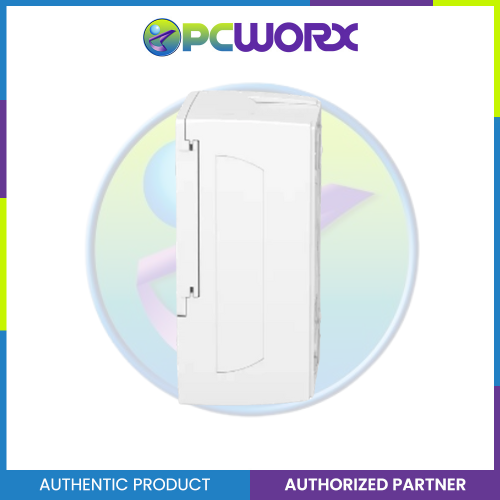

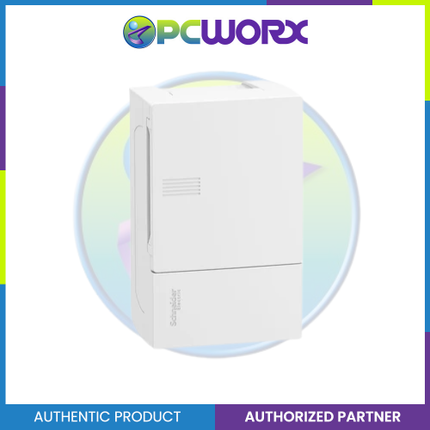

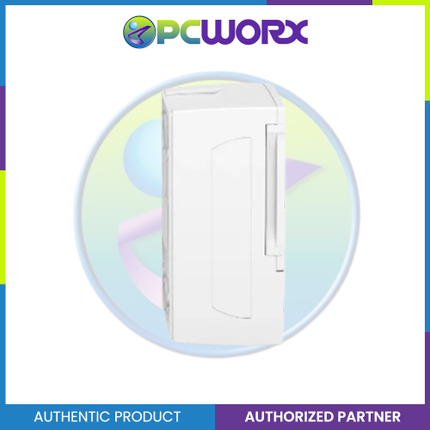

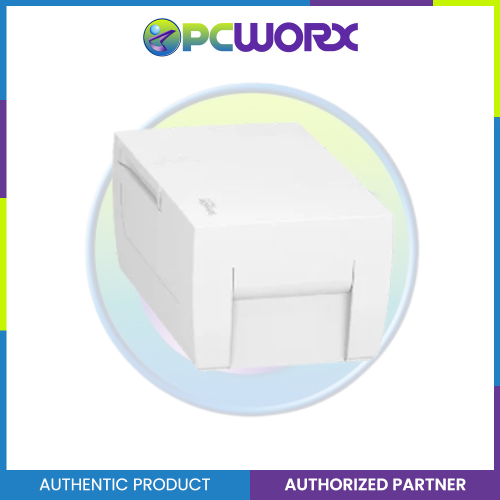

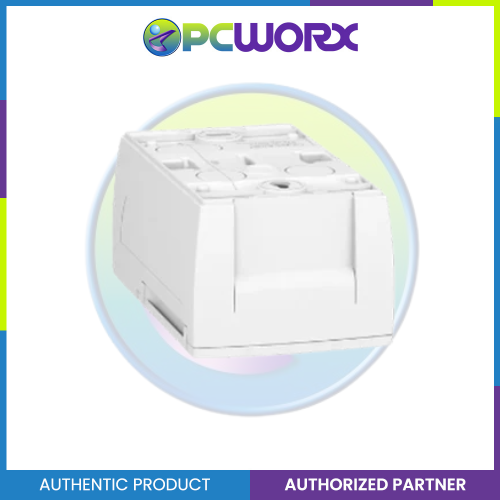

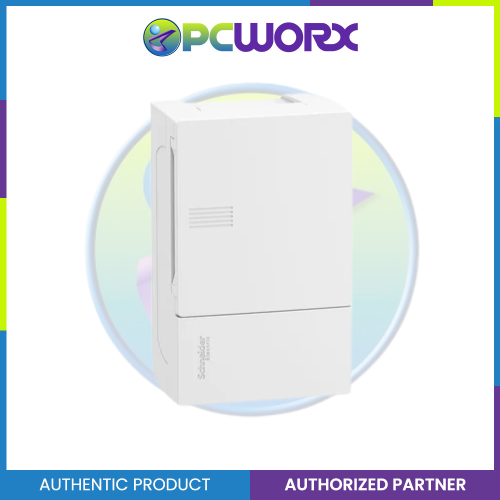

| Product name |
| Resi9 MP |
|
| Product or component type |
| Enclosure |
| enclosure type |
| Modular enclosure |
| Nb of 18 mm modules per row |
| 4 |
|
| Nb of horizontal rows |
| 1 |
|
| Type of door |
| Plain |
|
| Width |
|
| Outside: 124 mm |
| Height |
|
| Outside: 198 mm |
| Depth |
|
| Outside : 95 mm |
| Complementary |
| Enclosure mounting |
| Surface |
|
| 9 mm pitches |
| 8 |
|
| Total number of 18 mm modules |
| 4 |
|
| [In] rated current |
| 50 A |
|
| Type of rail |
| 35 mm asymmetrical rail |
| Mounting plate description |
| Without mounting plate |
| cable entry |
| 1 bare flange |
| 1 trunking flange |
| Terminal block function |
| Earth / neutral |
| Number of terminal blocks |
| 1 earth (screwed) with 4 outgoers |
| 1 neutral (screwed) with 4 outgoers |
| Distribution block outgoers |
| 1 x 16 mm² for earth |
| 1 x 16 mm² for neutral |
| 1 x 6 mm² for earth |
| 1 x 6 mm² for neutral |
| 2 x 10 mm² for earth |
| 2 x 10 mm² for neutral |
| Enclosure material |
| Back part: technoplastic |
| Door: technoplastic |
| Front face: technoplastic |
| Internal depth |
| 74 mm |
|
| Colour |
|
| Door: white (RAL 9003) |
| Front face: white (RAL 9003) |
| Market segment |
| Small commercial |
| Residential |
| Environment |
| Standards |
| IEC 60670-1 |
| IEC 60670-24 |
| Quality labels |
| IMQ |
|
| Fire resistance |
| Door: 650 °C |
| Back part: 650 °C |
| Front face: 650 °C |
| IP degree of protection |
| IP40 |
|
| IK degree of protection |
| IK07 |
|
| Ambient air temperature for operation |
| -25…60 °C |
|
| Packing Units |
| Unit Type of Package 1 |
| PCE |
|
| Number of Units in Package 1 |
| 1 |
|
| Package 1 Height |
| 9.55 cm |
|
| Package 1 Width |
| 12.4 cm |
|
| Package 1 Length |
| 19.8 cm |
|
| Package 1 Weight |
| 400 g |
|
| Unit Type of Package 2 |
| BB1 |
|
| Number of Units in Package 2 |
| 20 |
|
| Package 2 Height |
| 52 cm |
|
| Package 2 Width |
| 30 cm |
|
| Package 2 Length |
| 40 cm |
|
| Package 2 Weight |
| 8.1 kg |
|
| Unit Type of Package 3 |
| P12 |
|
| Number of Units in Package 3 |
| 160 |
|
| Package 3 Height |
| 60 cm |
|
| Package 3 Width |
| 80 cm |
|
| Package 3 Length |
| 120 cm |
|
| Package 3 Weight |
| 76.8 kg |
|
