| Specifications |
| Main |
|
| Range |
|
| Resi9 |
|
| Product name |

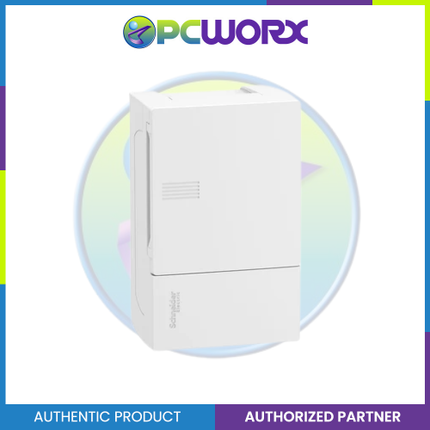

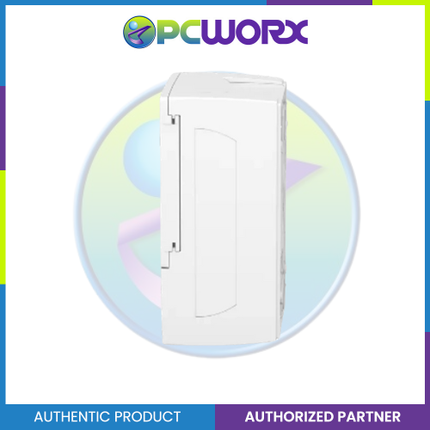

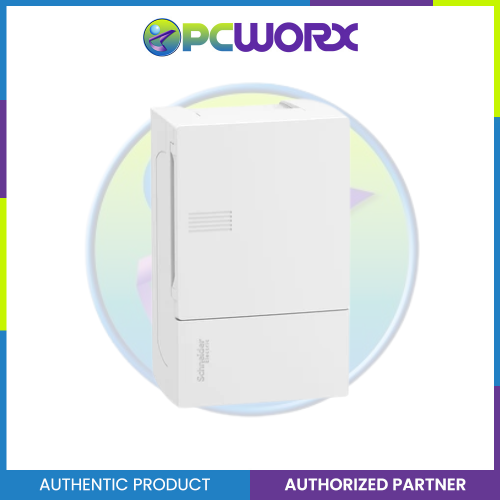

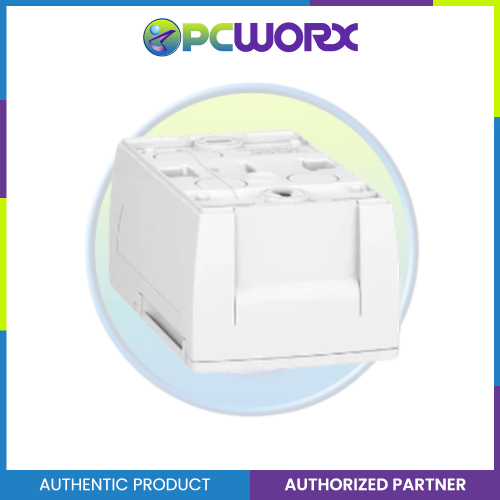

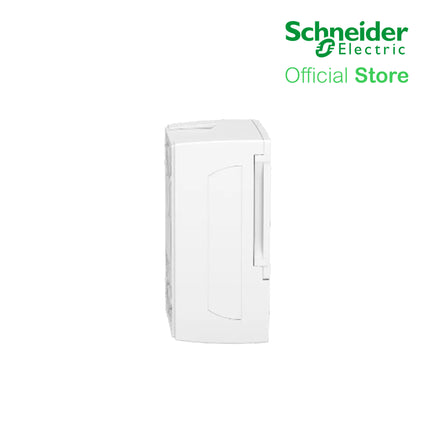

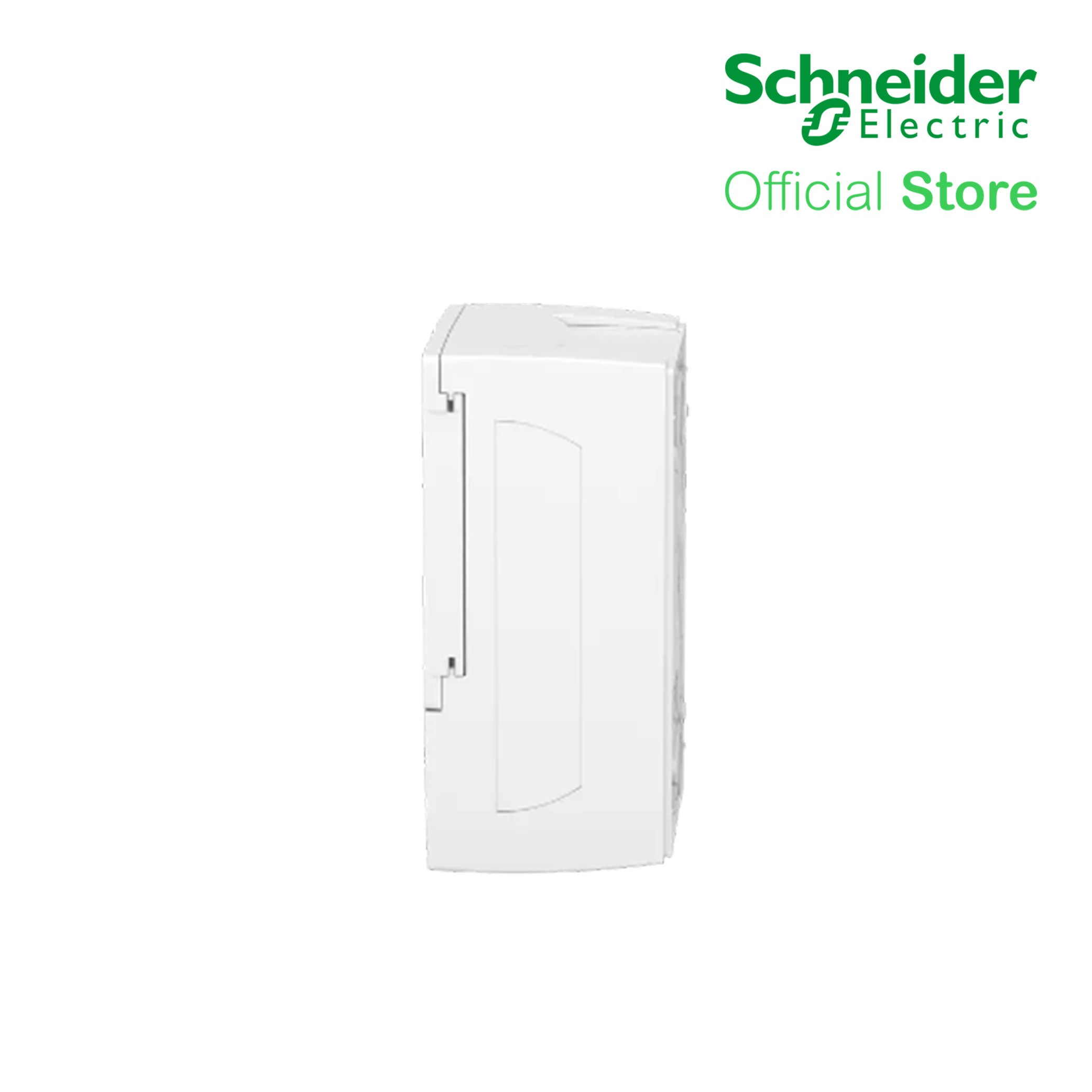

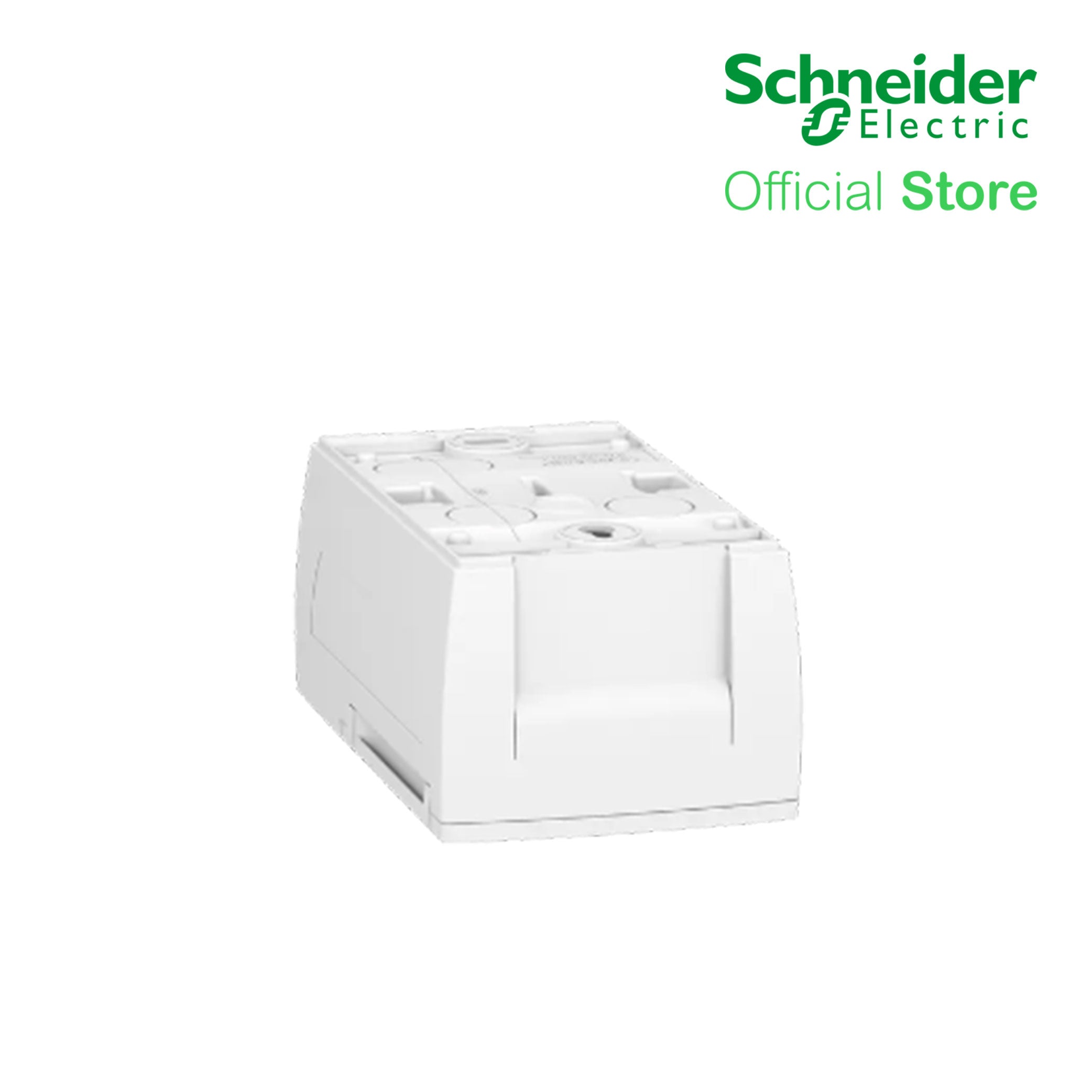

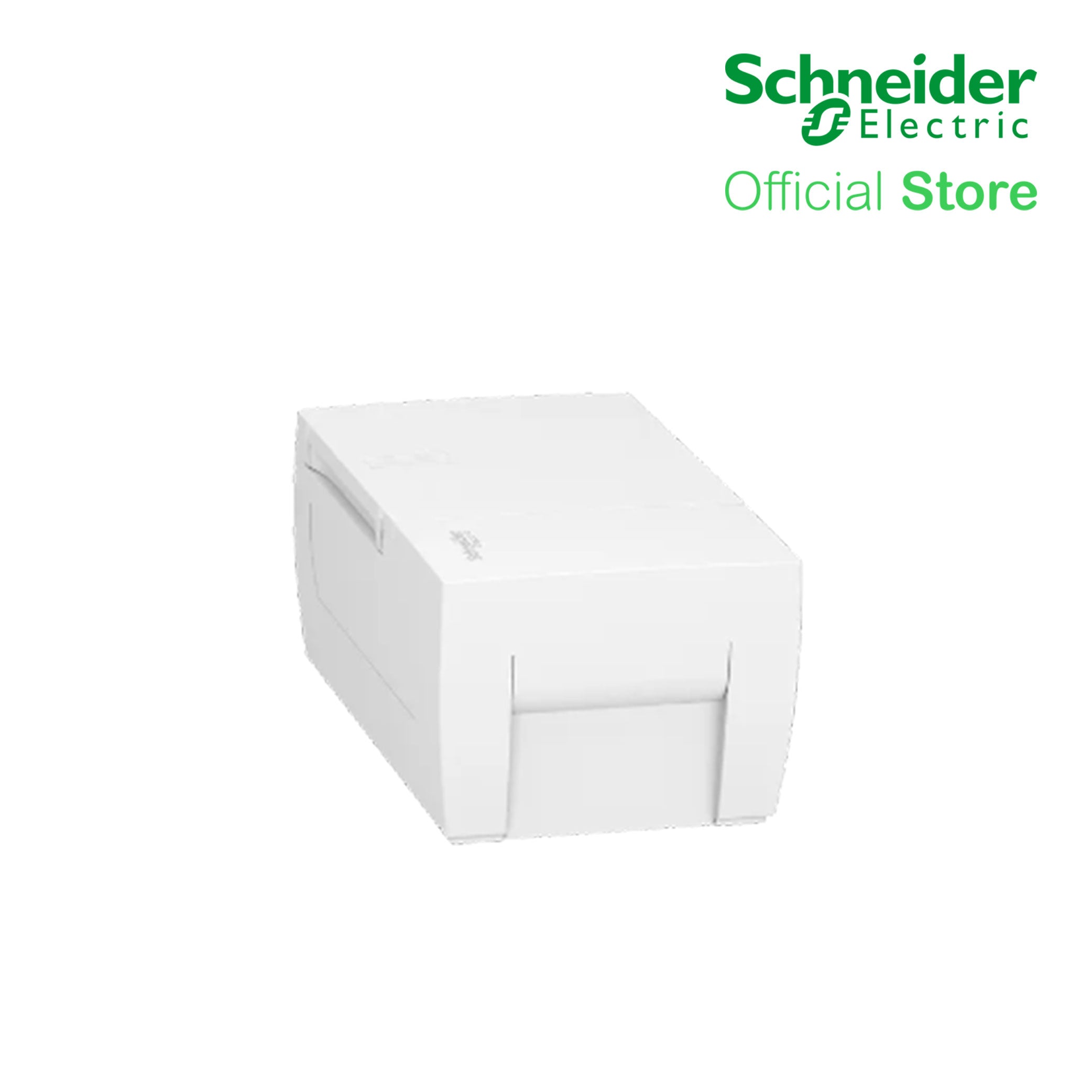

| Resi9 MP |
|
| Product or component type |
| Enclosure |
| enclosure type |
| Modular enclosure |
| Nb of 18 mm modules per row |
| 12 |
|
| Nb of horizontal rows |
| 3 |
|
| Type of door |
| Plain |
|
| Width |
|
| Wall: 270 mm |
| Outside: 294 mm |
| Height |
|
| Wall: 478 mm |
| Outside: 502 mm |
| Depth |
|
| Outside : 18 mm |
| Wall : 80 mm |
| Total : 98 mm |
| Complementary |
| Enclosure mounting |
| Flush |
|
| 9 mm pitches |
| 24 |
|
| Total number of 18 mm modules |
| 36 |
|
| [In] rated current |
| 63 A |
|
| Type of rail |
| 35 mm asymmetrical rail |
| Mounting plate description |
| Without mounting plate |
| cable entry |
| Pre-cutted holes |
| Terminal block function |
| Earth / neutral |
| Number of terminal blocks |
| 1 earth (screwed) with 20 outgoers |
| 1 neutral (screwed) with 20 outgoers |
| Distribution block outgoers |
| 2 x 16 mm² for earth |
| 2 x 16 mm² for neutral |
| 9 x 10 mm² for earth |
| 9 x 10 mm² for neutral |
| 9 x 6 mm² for earth |
| 9 x 6 mm² for neutral |
| Enclosure material |
| Back part: technoplastic |
| Door: technoplastic |
| Front face: technoplastic |
| Internal depth |
| 76 mm |
|
| Colour |
|
| Door: white (RAL 9003) |
| Front face: white (RAL 9003) |
| Market segment |
| Residential |
| Small commercial |
| Environment |
| Standards |
| IEC 60670-1 |
| IEC 60670-24 |
| Quality labels |
| IMQ |
|
| Fire resistance |
| Door: 650 °C |
| Back part: 650 °C |
| Front face: 650 °C |
| IP degree of protection |
| IP40 |
|
| IK degree of protection |
| IK07 |
|
| Ambient air temperature for operation |
| -25…60 °C |
|
| Packing Units |
| Unit Type of Package 1 |
| PCE |
|
| Number of Units in Package 1 |
| 1 |
|
| Package 1 Height |
| 9.000 cm |
|
| Package 1 Width |
| 29.500 cm |
| Package 1 Length |
| 50.000 cm |
| Package 1 Weight |
| 1.950 kg |
|
| Unit Type of Package 2 |
| CAR |
|
| Number of Units in Package 2 |
| 4 |
|
| Package 2 Height |
| 31.000 cm |
| Package 2 Width |
| 39.500 cm |
| Package 2 Length |
| 53.500 cm |
| Package 2 Weight |
| 8.667 kg |
|
| Unit Type of Package 3 |
| P12 |
|
| Number of Units in Package 3 |
| 64 |
|
| Package 3 Height |
| 119.000 cm |
| Package 3 Width |
| 80.000 cm |
| Package 3 Length |
| 120.000 cm |
| Package 3 Weight |
| 150.672 kg |
