Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 63 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 5000 A Icn at 60 V DC conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1

Read more less

 Specifications:  Product Name:  S-Flexi Aluminum Empty Floor Socket with Wall Box Model Number:  E224F-ABE Product Range:  S-Flexi Floor Box Shape:  Rectangular Color:  Aluminum (brushed finish) Material:  Zinc alloy Application:  Floor Outlet Box Protection Rating:  IP44 Embedding Depth:  6.5 cm Installation:  Easy installation in carpeted or hard floor settings Other Features: Special grid plate for versatile module combinations Durable construction for reliability Suitable for flush or surface-mounted installations

Read more less

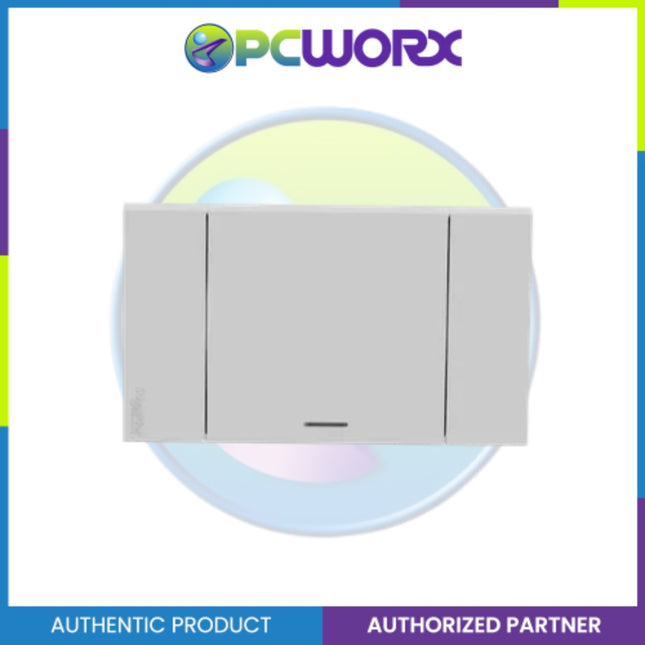

Schneider Electric AvatarOn switch A7031F_GY is a complete product in color grey. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20. The connection terminals of this switch are screwless type terminals. The switch is made of PC 10 % GF, making it as resistant as possible. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. Specifications Product Name:  AvatarOn A Switch Model:  A7031F_GY Color:  Grey Rating:  16AX, 250V~ Number of Gangs: 1 Number of Ways:  1 Local Signalling:  Fluorescent (black) Terminals:  Screwless type Material:  PC 10% GF Dimensions: Width:  120 mm Height:  70 mm Depth:  33 mm Embedding Depth:  22 mm IP Rating:  IP20 Mounting: Flush type mounting box required IP20 Certifications:  IEC, TIS

Read more less

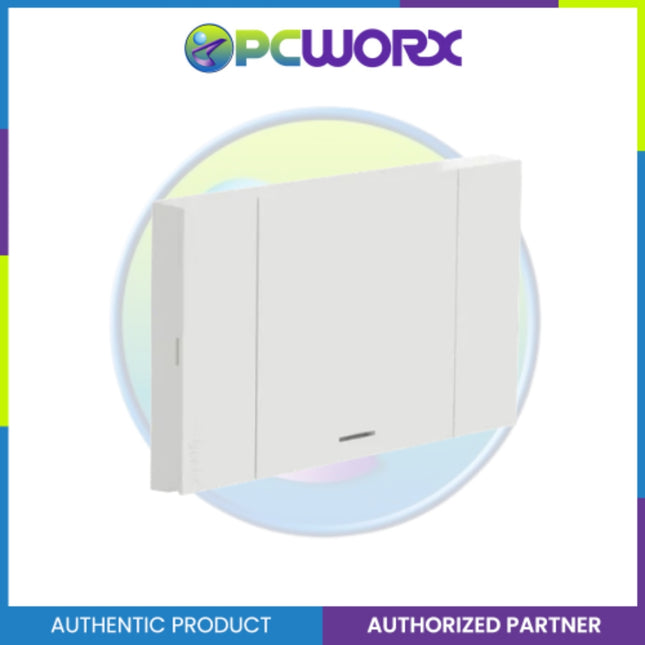

Schneider Electric AvatarOn switch A7031F_WE is a complete product in color white. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. Its connection terminals are screwless type terminals. Being made of PC 10 % GF material, this switch is quite reliable and resistant. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. Category Attribute Value Main Range of product AvatarOn A Main Product or component type Switch Main Load type Resistive load, Inductive, Fluorescent load Main Colour tint White (WE) Main Colour tint White Complementary Device presentation Complete product Complementary Rated current 16 AX at 250 V AC 50 Hz Complementary Switch function 1-way Complementary Switch application Control switch Complementary Number of gangs 1 gang Complementary Clamping connection capacity 2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm² Complementary Connections – terminals Screwless type terminals Complementary Local signalling Fluorescent (white) Complementary Material PC (dolly), PC 10% GF (base & base cover) Complementary Device mounting Flush Complementary Width 120 mm Complementary Height 70 mm Complementary Depth 33 mm Complementary Embedding depth 22 mm Environment IP degree of protection IP20 Environment Max ambient air temperature (operation) 45 °C Environment Ambient air temperature (storage) -5…60 °C Environment Operating altitude ≤ 2000 m Environment Relative humidity 0…95% Standards Standards IEC 60669-1 Standards Product certifications IEC, TIS Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 3.2 cm Packing Units Package 1 Width 7 cm Packing Units Package 1 Length 12 cm Packing Units Package 1 Weight 99 g

Read more less

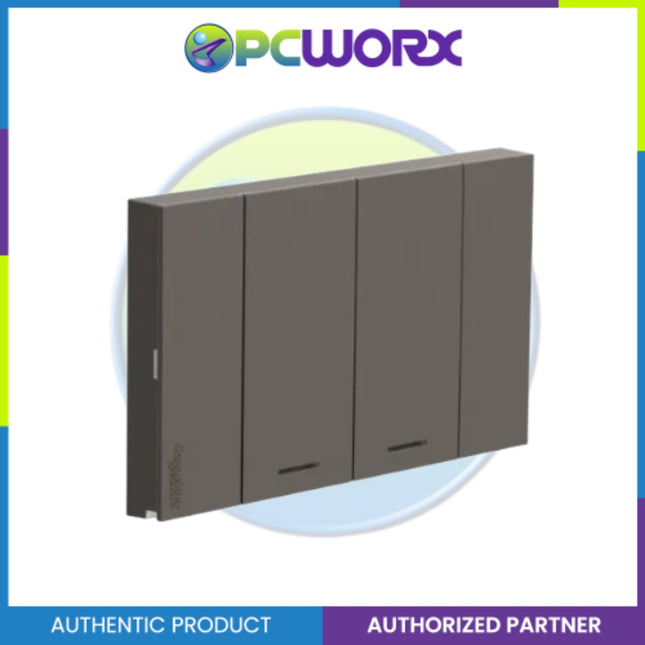

Schneider Electric AvatarOn switch A7032F_BK is a complete product in color black. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. Besides, the IP rating of this device is IP20. The connection terminals of this switch are screwless type terminals. The switch is made of PC 10 % GF, making it as resistant as possible. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.   Category Attribute Value Main Range of product AvatarOn A Main Product or component type Switch Main Load type Resistive load, Inductive, Fluorescent load Main Colour tint Black (BK) Main Colour tint Black Complementary Device presentation Complete product Complementary Rated current 16 AX at 250 V AC 50 Hz Complementary Switch function 1-way Complementary Switch application Control switch Complementary Number of gangs 2 gangs Complementary Clamping connection capacity 2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm² Complementary Connections – terminals Screwless type terminals Complementary Local signalling Fluorescent (black) Complementary Material PC: dolly; PC 10% GF: base; PC 10% GF: base cover Complementary Device mounting Flush Complementary Width 120 mm Complementary Height 70 mm Complementary Depth 33 mm Complementary Embedding depth 22 mm Environment IP degree of protection IP20 Environment Maximum ambient air temperature (operation) 45 °C Environment Ambient air temperature (storage) -5…60 °C Environment Operating altitude ≤ 2000 m Environment Relative humidity 0…95% Standards Standards IEC 60669-1 Standards Product certifications IEC, TIS Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 3.2 cm Packing Units Package 1 Width 7 cm Packing Units Package 1 Length 12 cm Packing Units Package 1 Weight 117 g

Read more less

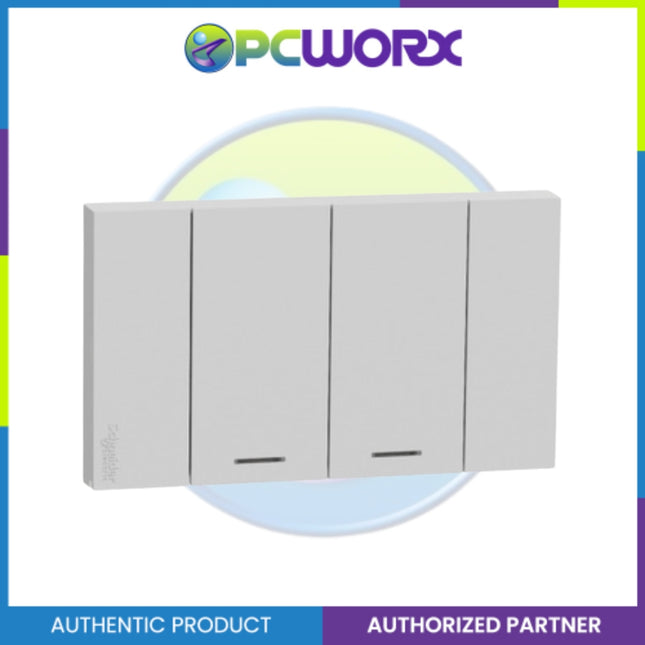

Schneider Electric AvatarOn switch A7032F_GY is a complete product in color grey. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. The connection terminals of this switch are screwless type terminals. Being made of PC 10 % GF material, this switch is quite reliable and resistant. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.   Category Attribute Value Main Range of product AvatarOn A Main Product or component type Switch Main Load type Resistive load, Inductive, Fluorescent load Main Colour tint Grey Main Colour tint Grey Complementary Device presentation Complete product Complementary Rated current 16 AX at 250 V AC 50 Hz Complementary Switch function 1-way Complementary Switch application Control switch Complementary Number of gangs 2 gangs Complementary Clamping connection capacity 2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm² Complementary Connections – terminals Screwless type terminals Complementary Local signalling Fluorescent (grey) Complementary Material PC: dolly; PC 10% GF: base; PC 10% GF: base cover Complementary Device mounting Flush Complementary Width 120 mm Complementary Height 70 mm Complementary Depth 33 mm Complementary Embedding depth 22 mm Environment IP degree of protection IP20 Environment Maximum ambient air temperature (operation) 45 °C Environment Ambient air temperature (storage) –5…60 °C Environment Operating altitude ≤ 2000 m Environment Relative humidity 0…95% Standards Standards IEC 60669-1 Standards Product certifications IEC, TIS Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 3.2 cm Packing Units Package 1 Width 7 cm Packing Units Package 1 Length 12 cm Packing Units Package 1 Weight 117 g

Read more less

Specifications Main Range of product AvatarOn A Product or component type Switch load type Resistive loadInductiveFluorescent load Colour tint White (WE) Colour tint White Complementary Device presentation Complete product Rated current 16 AX at 250 V AC 50 Hz Switch function 1-way Switch application Control switch Number of gangs 3 gangs Clamping connection capacity 2 x 1.5 mm² for solid cable(s)2 x 2.5 mm² for stranded cable(s)2 x 4 mm² Connections - terminals Screwless type terminals Local signalling Fluorescent (white) Material PC: dollyPC 10 % GF: basePC 10 % GF: base cover Device mounting Flush Width 120 mm Height 70 mm Depth 33 mm Embedding depth 22 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 45 °C Ambient air temperature for storage -5…60 °C Operating altitude <= 2000 m Relative humidity 0…95 % Standards IEC 60669-1 Product certifications IECTIS Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.2 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 128 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.386 kg Unit Type of Package 3 S03 Number of Units in Package 3 60 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 8.966 kg

Read more less

DESCRIPTION Schneider Electric AvatarOn socket-outlet A70426US_BK is a complete product in color black. With 2 socket outlets. The pole configuration of the outlet is 2 x 2P. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screwless terminals. It is 120 mm in width, 70 mm in height, and 36.35 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. SPECIFICATIONS Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Black Outlet poles configuration 2 x 2P Colour tint Black Complementary Rated current 16 A at 250 V AC 50...60 Hz Socket number 2 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Connections - terminals Screwless terminals Material Polycarbonate grid plate Polycarbonate cover Device mounting Flush Width 120 mm Height 70 mm Depth 36.35 mm Embedding depth 24.85 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0…95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.65 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 140 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.506 kg Unit Type of Package 3 S03 Number of Units in Package 3 60 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 9.686 kg

Read more less

Description This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. SPECIFICATION Device application: Distribution Range: Acti9 product name: Acti9 iC60 Product or component type: Miniature circuit-breaker Device short name: IC60N Poles description: 1P Number of protected poles: 1 [In] rated current: 25 A network type: AC DC Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 Utilisation category: Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Suitability for isolation: Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 Standards: EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2 Complementary Network frequency: 50/60 Hz Magnetic tripping limit: 8 x in +/- 20 % [Ics] rated service breaking capacity: 27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz 10 kA 100 % conforming to EN 60947-2 - 72 V DC 10 kA 100 % conforming to IEC 60947-2 - 72 V DC 15 kA 100 % conforming to EN 60947-2 - 12...60 V DC 15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC Limitation class: 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 [Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 Contact position indicator: Yes Control type: Toggle Local signalling: Trip indicator Mounting mode: Fixed Mounting support: DIN rail Comb busbar and distribution block compatibility: Top or bottom: YES 9 mm pitches: 2 Height: 85 mm Width: 18 mm Depth: 78.5 mm Product weight: 0.215 kg Colour: White Mechanical durability: 20000 cycles Electrical durability: 10000 cycles Connections - terminals: Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible Wire stripping length: 14 mm for top or bottom connection Tightening torque: 2 N.m top or bottom Earth-leakage protection: Without Environment: IP degree of protection: IP20 conforming to IEC 60529 IP20 conforming to EN 60529 Pollution degree: 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 overvoltage category: IV Tropicalisation: 2 conforming to IEC 60068-1 Relative humidity: 95 % at 55 °C Operating altitude: 0...2000 m Ambient air temperature for operation: -35…70 °C Ambient air temperature for storage: -40…85 °C Packing Units: Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.800 cm Package 1 Width: 7.200 cm Package 1 Length: 9.100 cm Package 1 Weight: 116.000 g Unit Type of Package 2 BB1 Number of Units in Package 2: 12 Package 2 Height: 8.000 cm Package 2 Width: 9.500 cm Package 2 Length: 22.500 cm Package 2 Weight: 1.500 kg Unit Type of Package 3: S03 Number of Units in Package 3: 132 Package 3 Height: 30.000 cm Package 3 Width: 30.000 cm Package 3 Length: 40.000 cm Package 3 Weight: 16.936 kg

Read more less

DESCRIPTION This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. SPECIFICATIONS Device application: Distribution Range: Acti9 product name: Acti9 iC60 Product or component type: Miniature circuit-breaker Device short name: IC60N Poles description: 1P Number of protected poles: 1 [In] rated current: 63 A network type: DC AC Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 Utilisation category: Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Suitability for isolation: Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 Standards: IEC 60947-2 EN 60947-2 IEC 60898-1 EN 60898-1 Complementary Network frequency: 50/60 Hz Magnetic tripping limit: 8 x In +/- 20 % [Ics] rated service breaking capacity: 27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz 10 kA 100 % conforming to EN 60947-2 - 72 V DC 10 kA 100 % conforming to IEC 60947-2 - 72 V DC 15 kA 100 % conforming to EN 60947-2 - 12...60 V DC 15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC Limitation class: 3 [Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 Contact position indicator: Yes control type: Toggle Local signalling: Trip indicator Mounting mode: Fixed Mounting support: DIN rail Comb busbar and distribution block compatibility: Top or bottom: YES 9 mm pitches: 2 Height: 85 mm Width: 18 mm Depth: 78.5 mm Product weight: 0.215 kg Colour: White Mechanical durability: 20000 cycles Electrical durability: 10000 cycles Connections - terminals: Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible Wire stripping length: 14 mm for top or bottom connection Tightening torque: 3.5 N.m top or bottom Earth-leakage protection: Without Environment IP degree of protection: 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 Pollution degree: 3 conforming to IEC 60947-2 overvoltage category: IV Tropicalisation: 2 conforming to IEC 60068-1 Relative humidity: 95 % at 55 °C Operating altitude: 0...2000 m Ambient air temperature for operation: -35…70 °C Ambient air temperature for storage: -40…85 °C Packing Units: Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.8 cm Package 1 Width: 7.5 cm Package 1 Weight: 9.5 cm Package 1 Weight: 128 g Unit Type of Package 2: BB1 Number of Units in Package 2: 12 Package 2 Height: 7.8 cm Package 2 Width: 9.8 cm Package 2 Length: 22.2 cm Package 2 Weight: 1.595 kg Unit Type of Package 3: S03 Number of Units in Package 3: 132 Package 3 Height: 30 cm Package 3 Width: 30 cm Package 3 Length: 40 cm Package 3 Weight: 18.224 kg Package 3 Weight: 18.224 kg

Read more less

Specifications  Model:  Acti9 iC60N Catalog Number:  A9F74216 Poles:  2P Rated Current:  16A Tripping Characteristic:  Type C Nominal AC Voltage:  500V AC Rated AC Voltage (Ue):  Up to 440 VAC Performance & Electrical Features  Interrupting Capacity:  10 kA (IEC 60947-2) Breaking Capacity (IEC 60898-1):  6kA at 400V AC Electrical Life:  10,000 cycles Mechanical Life:  20,000 cycles VisiTrip™:  Indicates the faulty circuit for quick diagnosis VisiSafe™:  Ensures the downstream circuit is always safe Communication Ready:  With Acti9 Smartlink Installation & Environmental  Mounting:  DIN-rail mount Dimensions:  36mm (W) x 85mm (H) x 78.5mm (D) Operating Temperature:  -35°C to 70°C Storage Temperature:  -40°C to 85°C Degree of Protection (IP):  IP20 Standards Compliance  Industry Standards:  Fully compliant with IEC/EN 60898-1 and IEC/EN 60947-2

Read more less

Specifications Main Device application Distribution Range Acti9 Product name Acti9 iC60 Product or component type Miniature circuit-breaker Device short name IC60N Poles description 2P Number of protected poles 2 [In] rated current 25 A Network type DC AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 Utilisation category Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Suitability for isolation Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 Standards IEC 60898-1 IEC 60947-2 EN 60947-2 EN 60898-1 Complementary Network frequency 50/60 Hz Magnetic tripping limit 8 x In +/- 20 % [Ics] rated service breaking capacity 15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz 4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz 15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz 27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz 27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz 10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC 10 kA 100 % conforming to EN 60947-2 - 72...125 V DC Limitation class 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 Contact position indicator Yes Control type Toggle Local signalling Trip indicator Mounting mode Fixed Mounting support DIN rail Comb busbar and distribution block compatibility Top or bottom: YES 9 mm pitches 4 Height 85 mm Width 36 mm Depth 78.5 mm Net weight 0.25 kg Colour White Mechanical durability 20000 cycles Electrical durability 10000 cycles Connections - terminals Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible Wire stripping length 14 mm for top or bottom connection Tightening torque 2 N.m top or bottom Earth-leakage protection Separate block Environment IP degree of protection IP20 conforming to IEC 60529 IP20 conforming to EN 60529 Pollution degree 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 Overvoltage category IV Tropicalisation 2 conforming to IEC 60068-1 Relative humidity 95 % at 55 °C Operating altitude 0...2000 m Ambient air temperature for operation -35…70 °C Ambient air temperature for storage -40…85 °C

Read more less
