Description

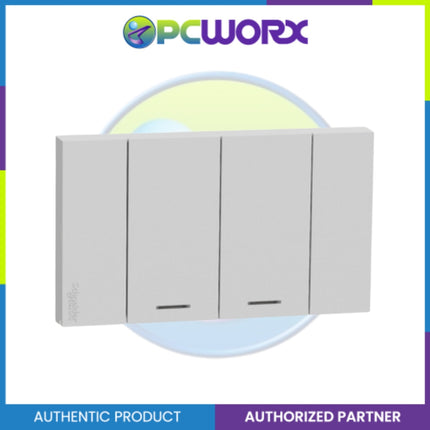

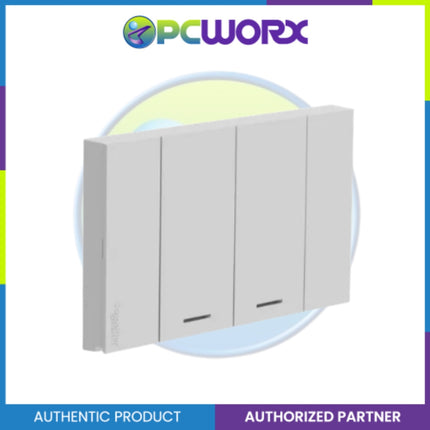

Schneider Electric AvatarOn switch A7032F_GY is a complete product in color grey. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. The connection terminals of this switch are screwless type terminals. Being made of PC 10 % GF material, this switch is quite reliable and resistant. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
| Category |
Attribute |
Value |
| Main |
Range of product |
AvatarOn A |
| Main |
Product or component type |
Switch |
| Main |
Load type |
Resistive load, Inductive, Fluorescent load |
| Main |
Colour tint |
Grey |
| Main |
Colour tint |
Grey |
| Complementary |
Device presentation |
Complete product |
| Complementary |
Rated current |
16 AX at 250 V AC 50 Hz |
| Complementary |
Switch function |
1-way |
| Complementary |
Switch application |
Control switch |
| Complementary |
Number of gangs |
2 gangs |
| Complementary |
Clamping connection capacity |
2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm² |
| Complementary |
Connections – terminals |
Screwless type terminals |
| Complementary |
Local signalling |
Fluorescent (grey) |
| Complementary |
Material |
PC: dolly; PC 10% GF: base; PC 10% GF: base cover |
| Complementary |
Device mounting |
Flush |
| Complementary |
Width |
120 mm |
| Complementary |
Height |
70 mm |
| Complementary |
Depth |
33 mm |
| Complementary |
Embedding depth |
22 mm |
| Environment |
IP degree of protection |
IP20 |
| Environment |
Maximum ambient air temperature (operation) |
45 °C |
| Environment |
Ambient air temperature (storage) |
–5…60 °C |
| Environment |
Operating altitude |
≤ 2000 m |
| Environment |
Relative humidity |
0…95% |
| Standards |
Standards |
IEC 60669-1 |
| Standards |
Product certifications |
IEC, TIS |
| Packing Units |
Unit Type of Package 1 |
PCE |
| Packing Units |
Number of Units in Package 1 |
1 |
| Packing Units |
Package 1 Height |
3.2 cm |
| Packing Units |
Package 1 Width |
7 cm |
| Packing Units |
Package 1 Length |
12 cm |
| Packing Units |
Package 1 Weight |
117 g |
