| Device application: |
Distribution |
| Range: |
Acti9 |
| product name: |

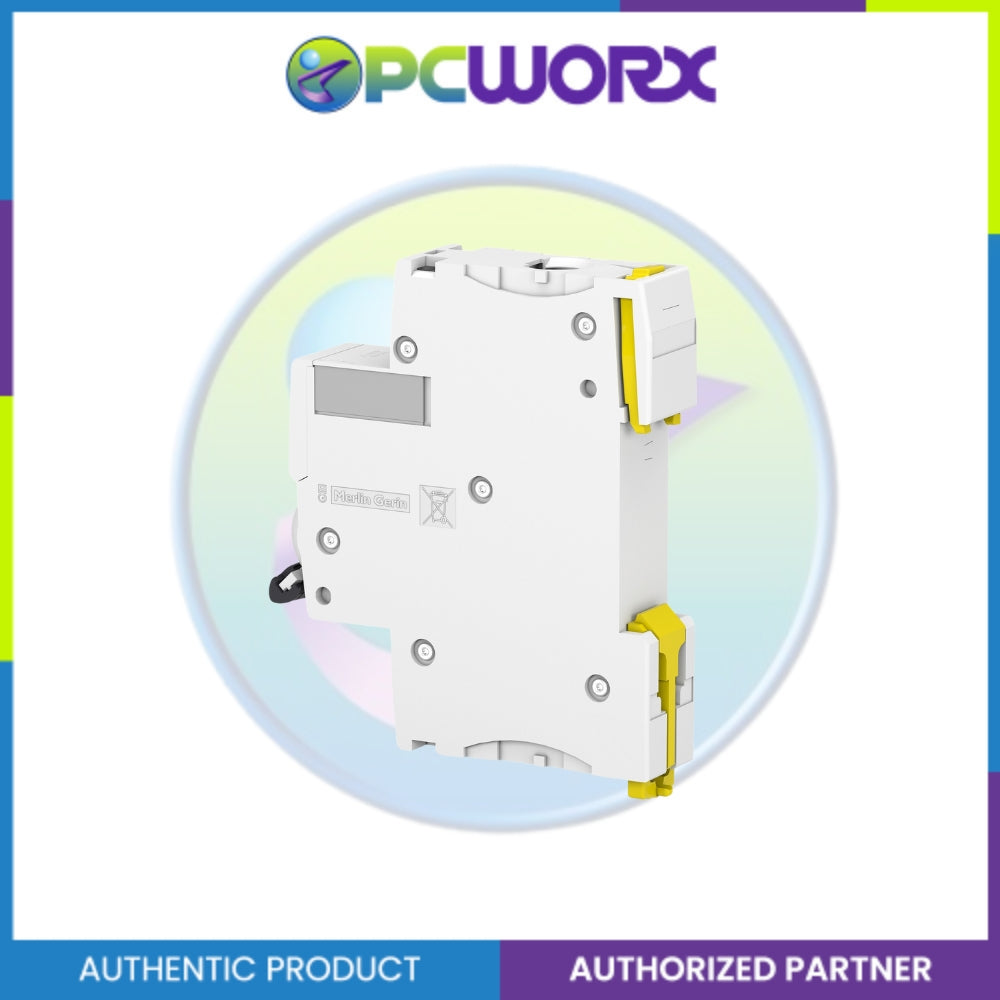

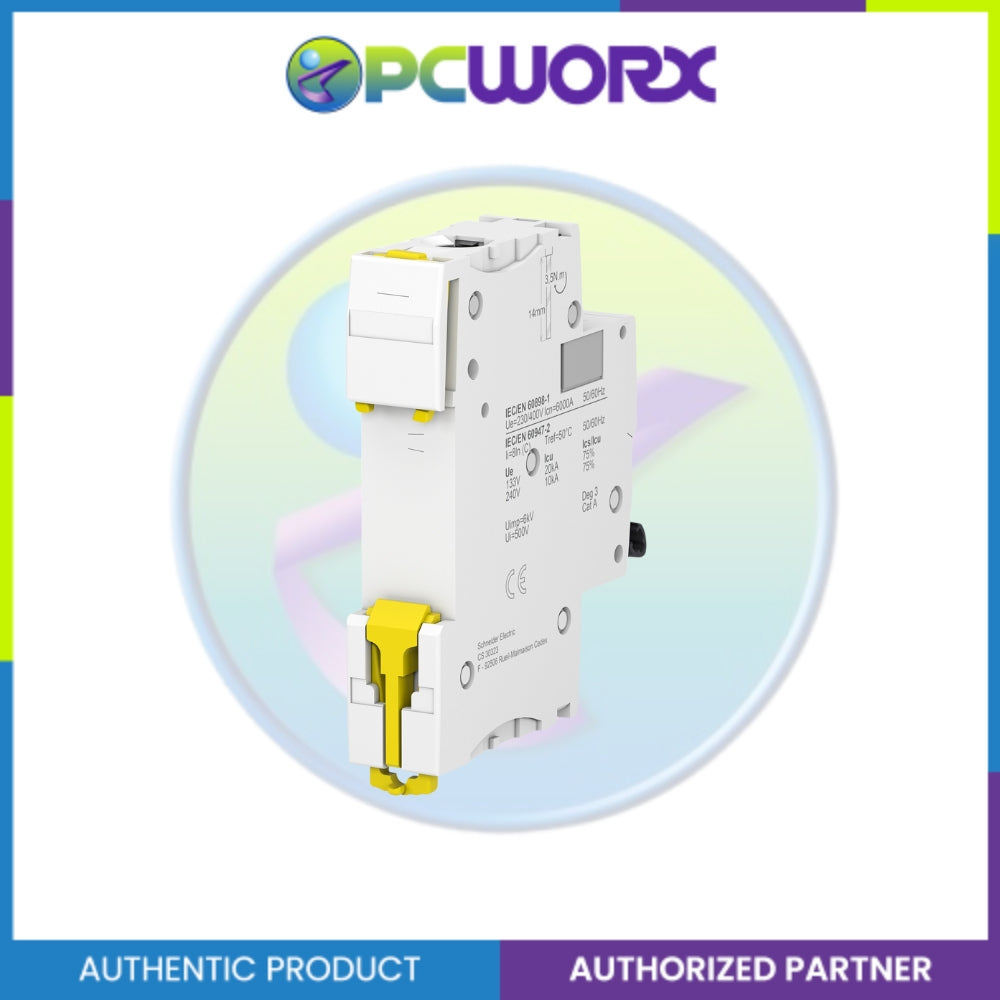

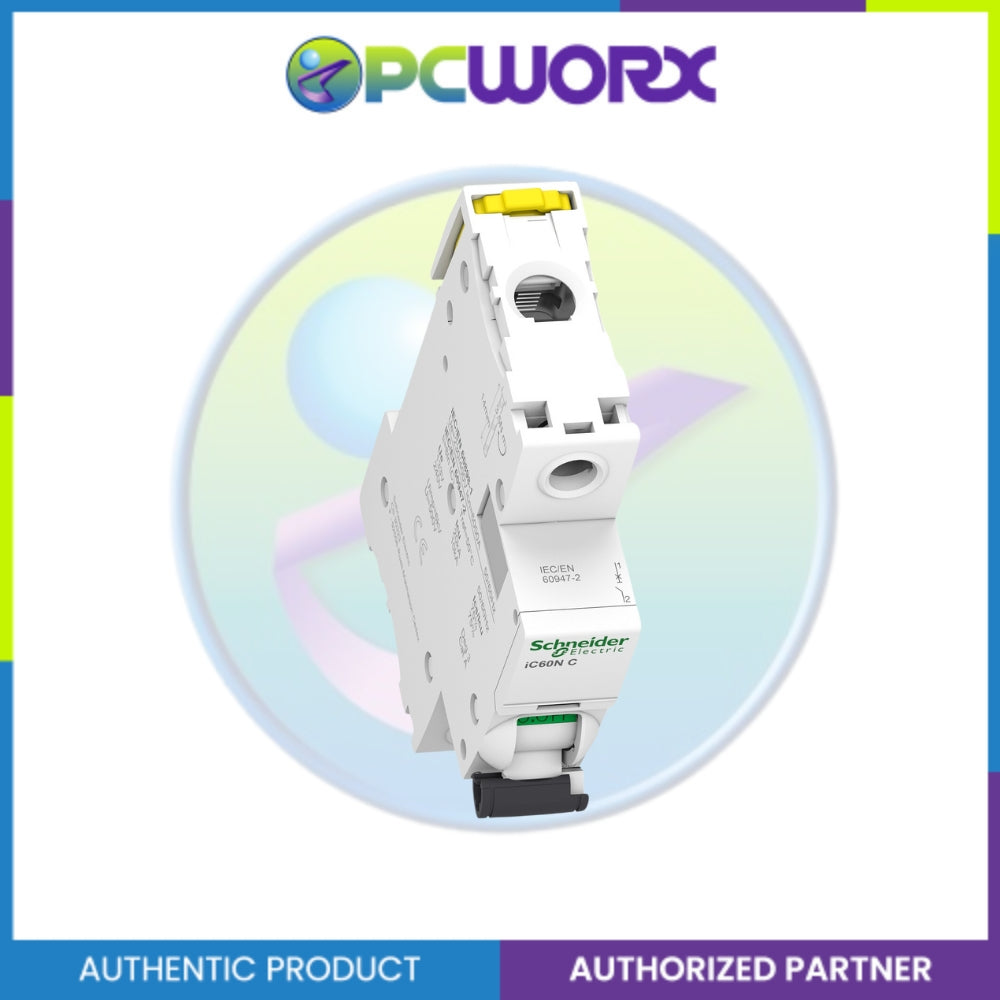

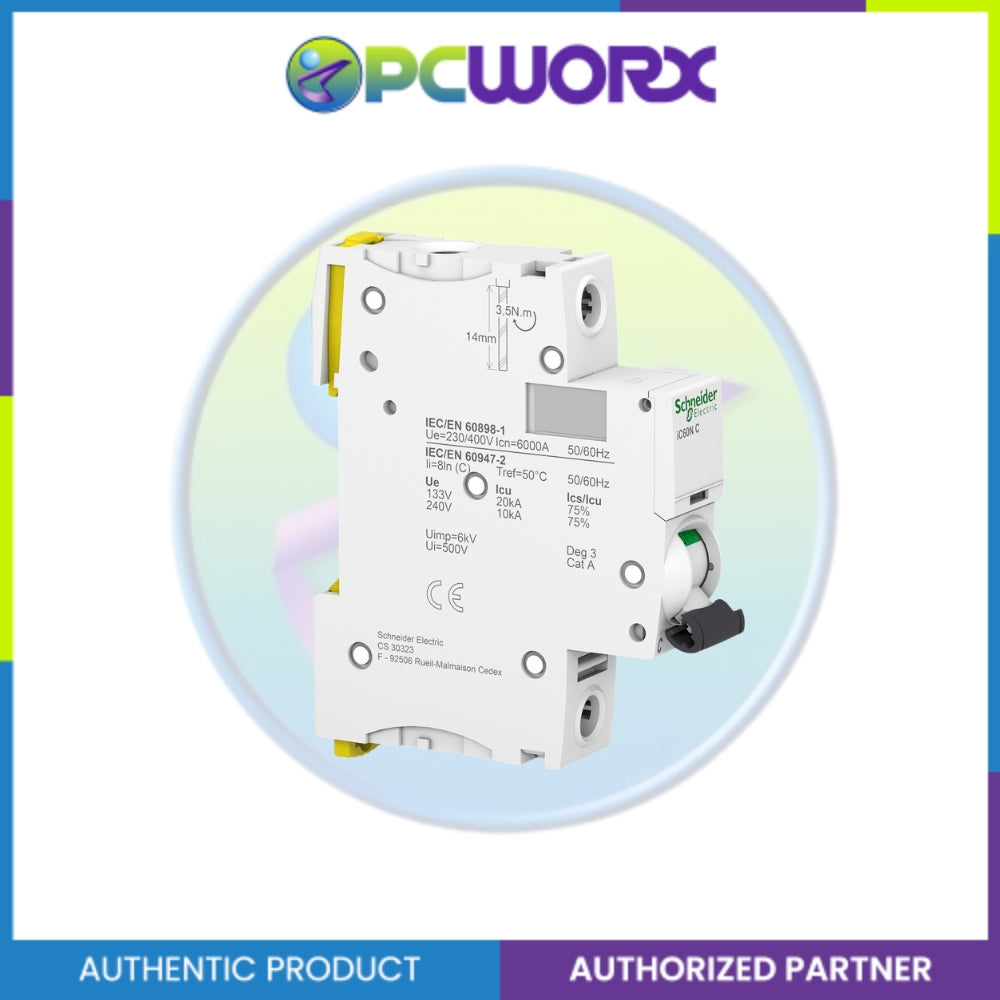

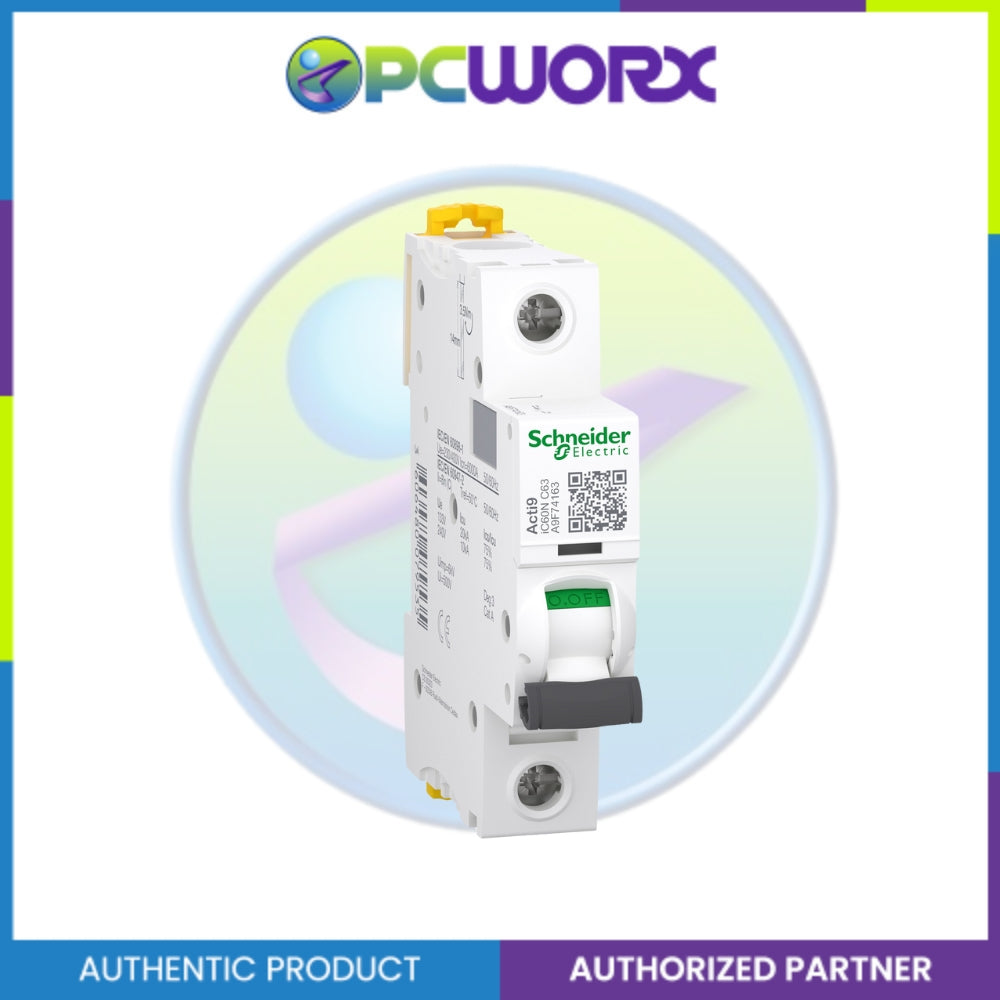

Acti9 iC60 |
| Product or component type: |
Miniature circuit-breaker |
| Device short name: |
IC60N |
| Poles description: |
1P |
| Number of protected poles: |
1 |
| [In] rated current: |
63 A |
| network type: |
DC |
|
AC |
| Trip unit technology: |
Thermal-magnetic |
| Curve code: |
C |
| Breaking capacity: |
6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
|
10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2 |
|
15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 |
|
10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
|
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
|
20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Utilisation category: |
Category A conforming to EN 60947-2 |
|
Category A conforming to IEC 60947-2 |
| Suitability for isolation: |
Yes conforming to EN 60898-1 |
|
Yes conforming to EN 60947-2 |
|
Yes conforming to IEC 60898-1 |
|
Yes conforming to IEC 60947-2 |
| Standards: |
IEC 60947-2 |
|
EN 60947-2 |
|
IEC 60898-1 |
|
EN 60898-1 |
| Complementary |
|
| Network frequency: |
50/60 Hz |
| Magnetic tripping limit: |
8 x In +/- 20 % |
| [Ics] rated service breaking capacity: |
27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz |
|
7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz |
|
27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz |
|
7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz |
|
15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz |
|
15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz |
|
6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz |
|
6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz |
|
10 kA 100 % conforming to EN 60947-2 - 72 V DC |
|
10 kA 100 % conforming to IEC 60947-2 - 72 V DC |
|
15 kA 100 % conforming to EN 60947-2 - 12...60 V DC |
|
15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC |
| Limitation class: |
3 |
| [Ui] rated insulation voltage: |
500 V AC 50/60 Hz conforming to EN 60947-2 |
|
500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: |
6 kV conforming to EN 60947-2 |
|
6 kV conforming to IEC 60947-2 |
| Contact position indicator: |
Yes |
| control type: |
Toggle |
| Local signalling: |
Trip indicator |
| Mounting mode: |
Fixed |
| Mounting support: |
DIN rail |
| Comb busbar and distribution block compatibility: |
Top or bottom: YES |
| 9 mm pitches: |
2 |
| Height: |
85 mm |
| Width: |
18 mm |
| Depth: |
78.5 mm |
| Product weight: |
0.215 kg |
| Colour: |
White |
| Mechanical durability: |
20000 cycles |
| Electrical durability: |
10000 cycles |
| Connections - terminals: |
Single terminal (top or bottom) 1…35 mm² rigid |
|
Single terminal (top or bottom) 1…25 mm² flexible |
| Wire stripping length: |
14 mm for top or bottom connection |
| Tightening torque: |
3.5 N.m top or bottom |
| Earth-leakage protection: |
Without |
| Environment |
|
| IP degree of protection: |
3 conforming to EN 60947-2 |
|
3 conforming to IEC 60947-2 |
| Pollution degree: |
3 conforming to IEC 60947-2 |
| overvoltage category: |
IV |
| Tropicalisation: |
2 conforming to IEC 60068-1 |
| Relative humidity: |
95 % at 55 °C |
| Operating altitude: |
0...2000 m |
| Ambient air temperature for operation: |
-35…70 °C |
| Ambient air temperature for storage: |
-40…85 °C |
| Packing Units: |
|
| Unit Type of Package 1: |
PCE |
| Number of Units in Package 1: |
1 |
| Package 1 Height: |
1.8 cm |
| Package 1 Width: |
7.5 cm |
| Package 1 Weight: |
9.5 cm |
| Package 1 Weight: |
128 g |
| Unit Type of Package 2: |
BB1 |
| Number of Units in Package 2: |
12 |
| Package 2 Height: |
7.8 cm |
| Package 2 Width: |
9.8 cm |
| Package 2 Length: |
22.2 cm |
| Package 2 Weight: |
1.595 kg |
| Unit Type of Package 3: |
S03 |
| Number of Units in Package 3: |
132 |
| Package 3 Height: |
30 cm |
| Package 3 Width: |
30 cm |
| Package 3 Length: |
40 cm |
| Package 3 Weight: |
18.224 kg |
| Package 3 Weight: |
18.224 kg |
