Specifications Main Product Miniature circuit-breaker Range QO Current Rating 60 A Voltage Rating 120/240 V AC 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Box lugs Complementary Interrupt Rating 10 kA at 120/240 V AC 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 8...AWG 2 copper or aluminium Tightening Torque 5 N.m Height 79 mm Width 38 mm Depth 74 mm Net weight 0.272 kg Environment Certifications UL listed CSA Ambient Rating 40 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.81 cm Package 1 Width 8.382 cm Package 1 Length 8.89 cm Package 1 Weight 272.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 8.382 cm Package 2 Width 6.604 cm Package 2 Length 19.304 cm Package 2 Weight 1.356 kg Unit Type of Package 3 CAR Number of Units in Package 3 50 Package 3 Height 20.574 cm Package 3 Width 20.066 cm Package 3 Length 43.688 cm Package 3 Weight 13.857 kg

Read more less

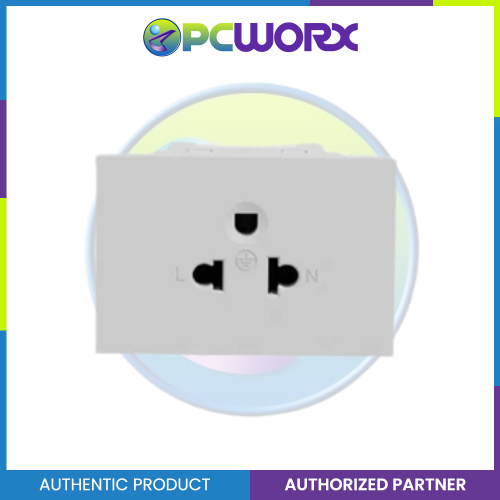

Specifications Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Grey Outlet poles configuration 2P + E Colour tint Grey Complementary Rated current 16 A at 250 V AC 50...60 Hz Socket number 1 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Connections - terminals Screwless terminals Material Polycarbonate cover Polycarbonate base Device mounting Flush Width 70.1 mm Height 69.3 mm Depth 30.3 mm Embedding depth 19 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0…95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.03 cm Package 1 Width 7 cm Package 1 Length 7 cm Package 1 Weight 68 g Unit Type of Package 2 BB1 Number of Units in Package 2 15 Package 2 Height 9.1 cm Package 2 Width 13 cm Package 2 Length 25.5 cm Package 2 Weight 1.104 kg Unit Type of Package 3 S03 Number of Units in Package 3 120 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 9.479 kg

Read more less

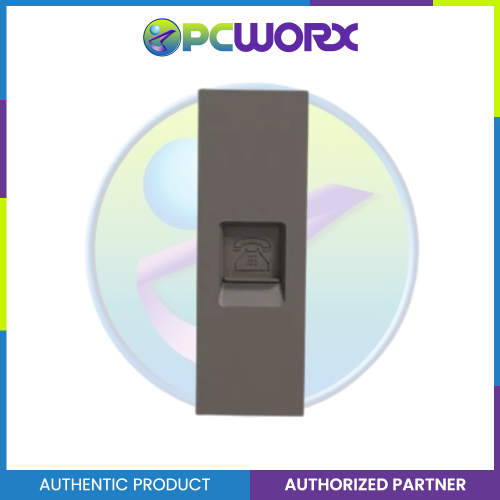

Category Specification Main Range of product AvatarOn A Product or component type Telephone socket Device application Communication Socket additional information Shuttered Material PC (polycarbonate) for cover, Brass for connectors Colour tint Black Complementary Device presentation Complete product Device mounting Flush Communication network category 3 Width 69.3 mm Height 23.1 mm Depth 32.9 mm Environment Environmental characteristic UV resistant Max. ambient air temperature (operation) 45 °C Ambient air temperature (storage) -5…60 °C Standards IEC 60670-1 Relative humidity 0…95 % IP degree of protection IP20 Packing Units – Package 1 Unit Type PCE Number of Units 1 Package Height 3.5 cm Package Width 2.3 cm Package Length 7.0 cm Package Weight 15 g

Read more less

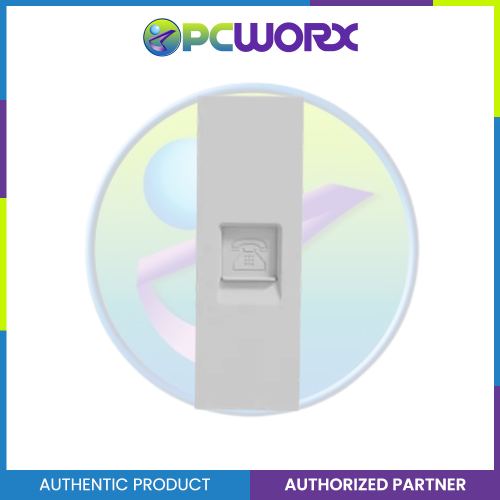

Specifications Main Range of product AvatarOn A Product or component type Telephone socket Device application Communication Socket additional information Shuttered Material PC (polycarbonate): cover Brass: connectors Colour tint Grey Colour tint Grey Complementary Device presentation Complete product Device mounting Flush Communication network category 3 Width 69.3 mm Height 23.1 mm Depth 32.9 mm Environment Environmental characteristic UV resistant Maximum ambient air temperature for operation 45 °C Ambient air temperature for storage -5…60 °C Standards IEC 60670-1 Relative humidity 0…95 % IP degree of protection IP20 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.5 cm Package 1 Width 2.3 cm Package 1 Length 7.0 cm Package 1 Weight 15.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 9.1 cm Package 2 Width 8.9 cm Package 2 Length 25.5 cm Package 2 Weight 371.0 g Unit Type of Package 3 S03 Number of Units in Package 3 240 Package 3 Height 30.0 cm Package 3 Width 30.0 cm Package 3 Length 40.0 cm Package 3 Weight 5.102 kg

Read more less

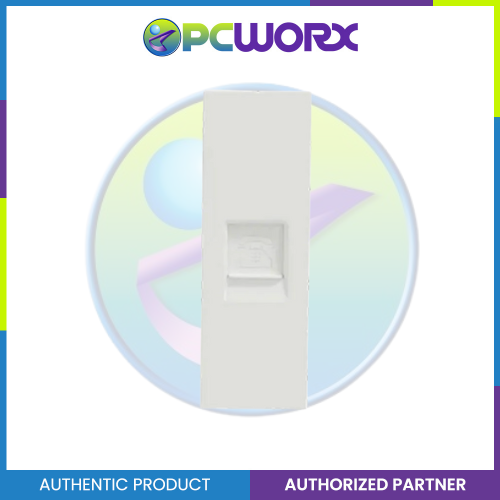

Specifications Main Range of product AvatarOn A Product or component type Telephone socket Device application Communication Socket additional information Shuttered Material PC (polycarbonate): cover Brass: connectors Colour tint White Colour tint White Complementary Device presentation Complete product Device mounting Flush Communication network category 3 Width 69.3 mm Height 23.1 mm Depth 32.9 mm Environment Environmental characteristic UV resistant Maximum ambient air temperature for operation 45 °C Ambient air temperature for storage -5…60 °C Standards IEC 60670-1 Relative humidity 0…95 % IP degree of protection IP20 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.5 cm Package 1 Width 2.3 cm Package 1 Length 7.0 cm Package 1 Weight 16.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 9.1 cm Package 2 Width 8.9 cm Package 2 Length 25.5 cm Package 2 Weight 371.0 g Unit Type of Package 3 S03 Number of Units in Package 3 240 Package 3 Height 30.0 cm Package 3 Width 30.0 cm Package 3 Length 40.0 cm Package 3 Weight 5.102 kg

Read more less

Specification Impedance 75 Ohm Material Polycarbonate (cover), Brass (terminal) Color Grey IP Rating IP20 Standards BS 5733, IEC 60670 Mounting Surface flush Dimensions 86 mm (height), 86 mm (width), 26 mm (depth)

Read more less

Specifications Main Range of product AvatarOn A Product or component type TV socket Device application Communication TV socket type TV TV connector Female IEC Colour tint White Complementary Device presentation Complete product Device mounting Flush Connections - terminals Pillar terminal without pressure plate Average impedance 75 Ohm Material Polycarbonate: cover Brass: terminal Colour tint White IP degree of protection IP20 Width 69.3 mm Height 23.1 mm Depth 26.5 mm Environment Ambient air temperature for operation -5…45 °C Relative humidity 0…95 % Standards IEC 60670-1 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 2.6 cm Package 1 Width 2.3 cm Package 1 Length 7.0 cm Package 1 Weight 17.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 9.1 cm Package 2 Width 8.9 cm Package 2 Length 25.5 cm Package 2 Weight 391.0 g Unit Type of Package 3 S03 Number of Units in Package 3 240 Package 3 Height 30.0 cm Package 3 Width 30.0 cm Package 3 Length 40.0 cm Package 3 Weight 5.342 kg
