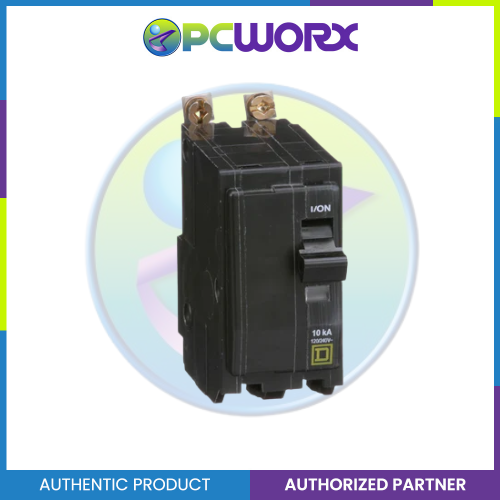

Category Specification Product Miniature circuit-breaker Range QO Current Rating 60 A Voltage Rating 120/240 V AC; 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Box lugs Interrupt Rating 10 kA at 120/240 V AC; 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 8 to AWG 2 (copper or aluminium) Tightening Torque 5 N·m Height 79 mm Width 38 mm Depth 74 mm Net Weight 0.272 kg Certifications UL listed; CSA Ambient Rating 40 °C Package Unit Type Units per Package Height Width Length Weight Package 1 PCE 1 3.81 cm 8.382 cm 8.89 cm 272.0 g Package 2 BB1 5 8.382 cm 6.604 cm 19.304 cm 1.356 kg Package 3 CAR 50 20.574 cm 20.066 cm 43.688 cm 13.857 kg

Read more less

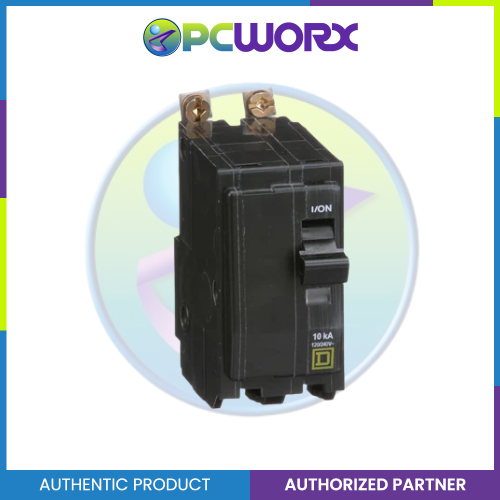

Section Parameter Value Main Product Miniature circuit-breaker Range QO Current rating 70 A Voltage rating 120/240 V AC120 V AC Mounting type Bolt-on Number of poles 2P Circuit breaker type Standard Ratings HACR rated Electrical connection Box lugs Complementary Interrupt rating 10 kA at 120/240 V AC10 kA at 120 V AC Number of panel spaces 2 Wire size AWG 8…AWG 2 (copper or aluminium) Tightening torque 5 N·m Height 79 mm Width 38 mm Depth 74 mm Net weight 0.277 kg Environment Certifications UL ListedCSA Ambient rating 40 °C Packing Units Unit type – Package 1 PCE Units per Package 1 1 Package 1 dimensions (H × W × L) 4.064 × 8.89 × 8.89 cm Package 1 weight 277 g

Read more less

Section Parameter Value Main Product Miniature circuit-breaker Range QO Current rating 80 A Voltage rating 120/240 V AC120 V AC Mounting type Bolt-on Number of poles 2P Circuit breaker type Standard Ratings HACR rated Electrical connection Box lugs Complementary Interrupt rating 10 kA at 120/240 V AC10 kA at 120 V AC Number of panel spaces 2 Wire size AWG 4…AWG 2/0 (copper or aluminium) Tightening torque 5.6 N·m Height 89 mm Width 38 mm Depth 74 mm Net weight 0.327 kg Environment Certifications UL ListedCSA Ambient rating 40 °C Packing Units Unit type – Package 1 PCE Units per Package 1 1 Package 1 dimensions (H × W × L) 4.064 × 8.382 × 10.922 cm Package 1 weight 317.514 g

Read more less

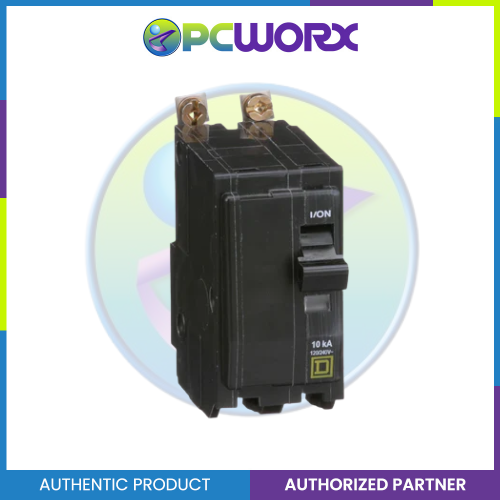

Specification Details Product Miniature circuit-breaker Range QO Current Rating 90 A Voltage Rating 120/240 V AC, 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Box lugs Interrupt Rating 10 kA at 120/240 V AC, 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 4…AWG 2/0 copper or aluminium Tightening Torque 5.6 N.m Height 89 mm Width 38 mm Depth 74 mm Net Weight 0.327 kg Certifications UL listed, CSA Ambient Rating 40 °C Packing Units (Package 1) 1 PCE Package 1 Height 4.064 cm Package 1 Width 8.636 cm Package 1 Length 10.922 cm Package 1 Weight 326.587 g

Read more less

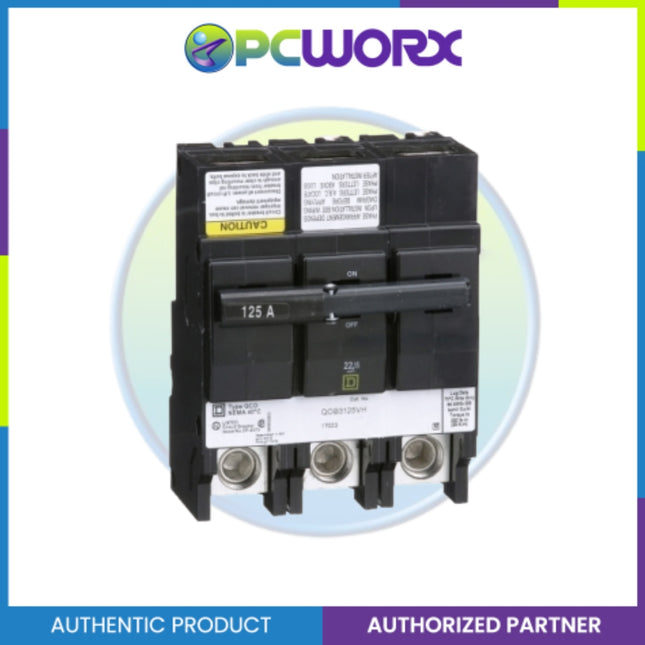

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555   Specification Details Product Miniature circuit-breaker Range QO Current Rating 125 A Voltage Rating 120/240 V AC; 240 V AC; 120 V AC Mounting Type Bolt-on Number of Poles 3P Circuit Breaker Type Standard Ratings Not rated Electrical Connection Box lugs Interrupt Rating 22 kA at 120/240 V AC; 22 kA at 240 V AC; 22 kA at 120 V AC Number of Panel Spaces 6 Wire Size AWG 4…300 kcmil copper or aluminium Tightening Torque 5.6 N.m Height 145 mm Width 114 mm Depth 124 mm Net Weight 0.435 kg Certifications UL listed; CSA Ambient Rating 40 °C Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 10.922 cm Package 1 Width 12.700 cm Package 1 Length 17.272 cm Package 1 Weight 1.769 kg Unit Type of Package 2 PAL Number of Units in Package 2 558 Package 2 Height 101.600 cm Package 2 Width 101.600 cm Package 2 Length 121.920 cm Package 2 Weight 1005.160 kg

Read more less

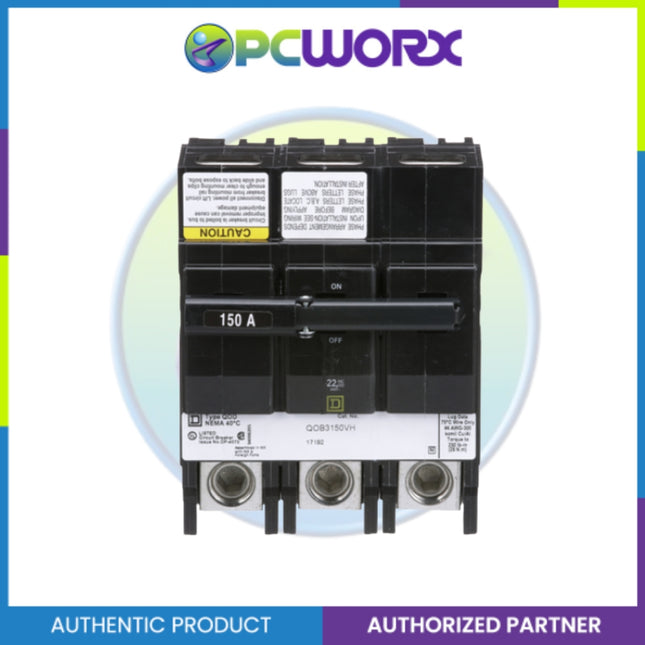

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555   Specification Details Product Miniature circuit-breaker Range QO Current Rating 150 A Voltage Rating 120/240 V AC; 240 V AC; 120 V AC Mounting Type Bolt-on Number of Poles 3P Circuit Breaker Type Standard Ratings Not rated Electrical Connection Box lugs Interrupt Rating 22 kA at 120/240 V AC; 22 kA at 240 V AC; 22 kA at 120 V AC Number of Panel Spaces 6 Wire Size AWG 4…300 kcmil copper or aluminium Tightening Torque 28.3 N.m Height 145 mm Width 114 mm Depth 124 mm Net Weight 0.249 kg Certifications UL listed; CSA Ambient Rating 40 °C Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 10.922 cm Package 1 Width 12.700 cm Package 1 Length 17.018 cm Package 1 Weight 1.805 kg Unit Type of Package 2 PAL Number of Units in Package 2 558 Package 2 Height 101.600 cm Package 2 Width 101.600 cm Package 2 Length 121.920 cm Package 2 Weight 997.449 kg

Read more less

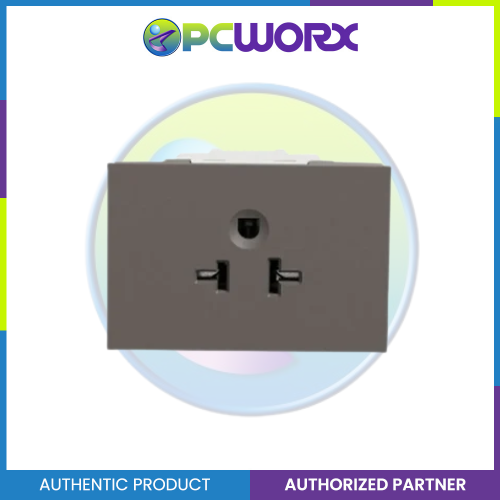

Specifications Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Black Outlet poles configuration 2P + E Colour tint White Complementary Rated current 20 A at 250 V AC 50...60 Hz Socket number 1 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Connections - terminals Folded terminal Material Polycarbonate cover Polycarbonate base Device mounting Flush Width 46.6 mm Height 69.3 mm Depth 34.5 mm Embedding depth 24.85 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0…95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.4 cm Package 1 Width 4.66 cm Package 1 Length 7 cm Package 1 Weight 51.5 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 9.1 cm Package 2 Width 8.9 cm Package 2 Length 25.5 cm Package 2 Weight 0.587 kg Unit Type of Package 3 S03 Number of Units in Package 3 120 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 7.689 kg

Read more less

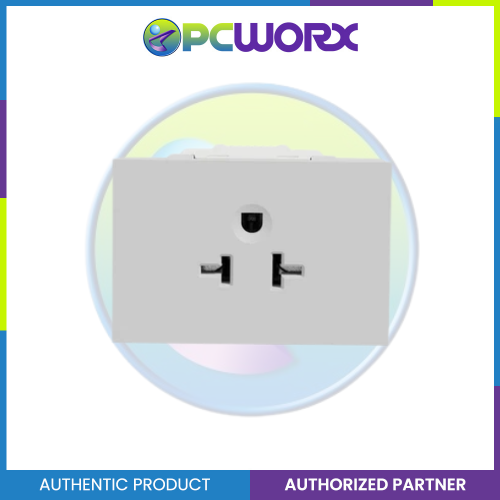

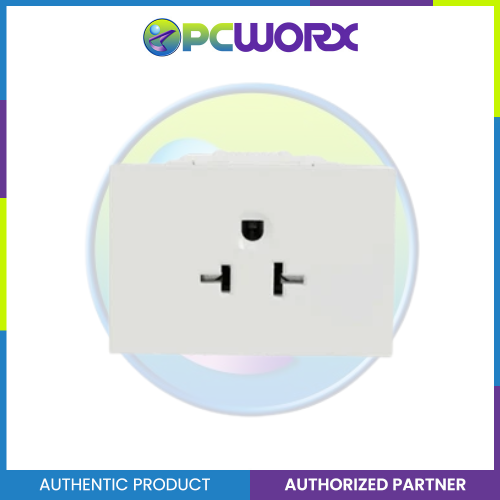

Schneider Electric AvatarOn socket-outlet M3T426MPH_WE is a complete product in color white. The pole configuration of the outlet is 2P + E. And its rated current is 20A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are folded terminal. It is 46.6 mm in width, 69.3 mm in height, and 34.5 mm in depth. Besides, the IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. Specifications – AvatarOn A Socket-outlet (2P + E, 20 A) Main Parameter Specification Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint White Outlet poles configuration 2P + E Complementary Parameter Specification Rated current 20 A at 250 V AC 50–60 Hz Socket number 1 Clamping connection capacity 2 x 1.5–2 x 4 mm² (solid or stranded cable) Connections - terminals Folded terminal Material Polycarbonate cover, Polycarbonate base Device mounting Flush Width 46.6 mm Height 69.3 mm Depth 34.5 mm Embedding depth 24.85 mm Environment Parameter Specification IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0–95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Parameter Specification Unit type of package 1 PCE Number of units in package 1 1 Package height 3.4 cm Package width 4.66 cm Package length 7 cm Package weight 51.5 g

Read more less

Category Specification Details Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint White Outlet poles configuration 2P + E Complementary Rated current 20 A at 250 V AC, 50–60 Hz Socket number 1 Clamping connection capacity 2 × 1.5–4 mm² (solid)2 × 1.5–4 mm² (stranded) Connections – terminals Folded terminal Material Polycarbonate coverPolycarbonate base Device mounting Flush Width 46.6 mm Height 69.3 mm Depth 34.5 mm Embedding depth 24.85 mm Environment IP degree of protection IP20 Max. ambient temperature (operation) 35 °C Ambient temperature (storage) −5 to 45 °C Relative humidity 0–95% Operating altitude < 2000 m Standards & Certification Standards IEC 60884-1 Product certifications IEC Packing Units Package 1 PCE – 1 unit – 3.4 × 4.66 × 7 cm – 51.5 g Package 2 BB1 – 10 units – 9.1 × 8.9 × 25.5 cm – 0.587 kg Package 3 S03 – 120 units – 30 × 30 × 40 cm – 7.689 kg

Read more less

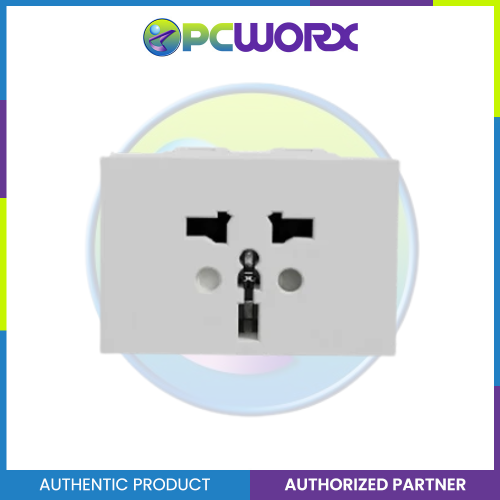

Schneider Electric AvatarOn socket-outlet M3T426_IS_GY is a complete product in color grey. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its connection terminals are screw terminal. It is 46.6 mm in width, 69.3 mm in height, and 33.85 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. Specifications Main Parameter Specification Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Grey Complementary Parameter Specification Rated current 16 A at 250 V AC, 50–60 Hz Socket number 1 Clamping connection capacity 2 × 1.5–4 mm² (solid cables)2 × 1.5–4 mm² (stranded cables) Connections – terminals Screw terminal Material Polycarbonate coverPolycarbonate base Device mounting Flush Width 46.6 mm Height 69.3 mm Depth 33.85 mm Embedding depth 23.05 mm Environment Parameter Specification IP degree of protection IP20 Max. operating temperature 35 °C Storage temperature -5 to 45 °C Relative humidity 0–95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Parameter Specification Unit type of package 1 PCE Number of units in package 1 1 Package height 3.4 cm Package width 4.66 cm Package length 7.0 cm Package weight 52.0 g

Read more less

Category Specification Details Main Range of Product AvatarOn A Product or Component Type Socket-outlet Device Presentation Complete product Colour Tint Black Outlet Poles Configuration 2P Complementary Rated Current 16 A at 250 V AC, 50–60 Hz Socket Number 1 Clamping Connection Capacity 2 × 1.5…2 × 4 mm² (solid cables)2 × 1.5…2 × 4 mm² (stranded cables) Connections – Terminals Screwless terminals Material Polycarbonate coverPolycarbonate base Device Mounting Flush Width 23.1 mm Height 69.3 mm Depth 36.35 mm Embedding Depth 24.85 mm Environment IP Degree of Protection IP20 Max. Ambient Temperature (Operation) 35 °C Ambient Temperature (Storage) −5…45 °C Relative Humidity 0…95 % Operating Altitude < 2000 m Standards IEC 60884-1 Product Certifications IEC Packing Units – Package 1 Unit Type PCE Units per Package 1 Package Dimensions (H × W × L) 3.65 × 2.3 × 7.0 cm Package Weight 31.0 g Packing Units – Package 2 Unit Type BB1 Units per Package 20 Package Dimensions (H × W × L) 9.1 × 8.9 × 25.5 cm Package Weight 691.0 g Packing Units – Package 3 Unit Type S03 Units per Package 240 Package Dimensions (H × W × L) 30.0 × 30.0 × 40.0 cm Package Weight 8.942 kg

Read more less

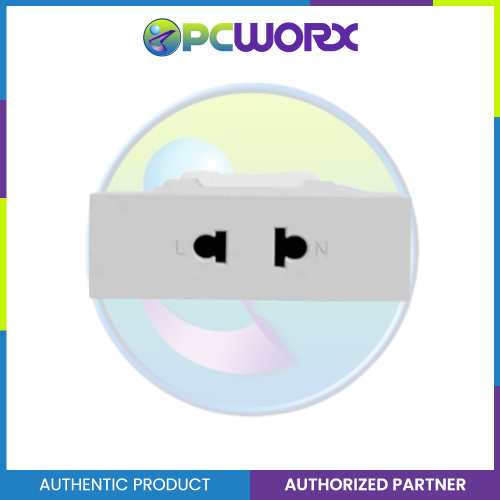

Schneider Electric AvatarOn socket-outlet M3T426US_GY is a complete product in color grey. The pole configuration of the outlet is 2P. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its connection terminals are screwless terminals. It is 23.1 mm in width, 69.3 mm in height, and 36.35 mm in depth. It reaches IP20 degree of protection too. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. Specifications – AvatarOn A Socket-outlet Main Parameter Specification Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Grey Outlet poles configuration 2P Complementary Parameter Specification Rated current 16 A at 250 V AC, 50–60 Hz Socket number 1 Clamping connection capacity 2 × 1.5–4 mm² (solid cables)2 × 1.5–4 mm² (stranded cables) Connections – terminals Screwless terminals Material Polycarbonate coverPolycarbonate base Device mounting Flush Width 23.1 mm Height 69.3 mm Depth 36.35 mm Embedding depth 24.85 mm Environment Parameter Specification IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5 to 45 °C Relative humidity 0–95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Parameter Specification Unit type of package 1 PCE Number of units in package 1 1 Package height 3.65 cm Package width 2.3 cm Package length 7.0 cm Package weight 31.0 g
