ST60F-ES230
80 PLUS 230V EU 600W ATX power supply
High efficiency with 80 PLUS certification
24/7 continuous power output with 40℃ operating temperatures
Class-leading single +12V rail
Active PFC Circuitry
PCI-E 8pin and PCI-E 6pin connector support
Silent running 120mm fan with 18dBA
Product Specifications
Product No.
SST-ST60F-ES230 (80 PLUS)
Color
Black (Lead-Free Paint)
Max. DC Output
600W
Power density
332W per liter
Load Range
+3.3V, +5V, +12V, +5VSB, -12V
Max. Amps
20A, 20A, 46A, 2.5A, 0.3A
Peak Amps
N/A
Min. Amps
0A, 0A, 0A, 0A, 0A
Range (%)
±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V
Line Reg. (%)
±1% for all outputs
Ripple (mVp-p)
50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V
Combined +3.3V & +5V
120W
Combined +12V
552W
Input Voltage
180V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC (PF > 0.9 at full load)
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Overpower protection, Over voltage protection, short circuit protection
Connectors
See detailed list in the description
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Certification
80 PLUS
Form factor
ATX
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
1.41 kg
Other
GPU Support list
Output
+3.3V
+5V
+12V
+5VSB
-12V
Max. (Amps)
20A
20A
46A
2.5A
0.3A
Peak (Amps)
/
/
/
/
/
Min. (Amps)
0A
0A
0A
0A
0A
Range (%)
±5%
±5%
±5%
±5%
±10%
Line Reg. (%)
±1%
±1%
±1%
±1%
±1%
Ripple(mVp-p)
50mV
50mV
120mV
50mV
120mV
KEY FEATURES
650W continuous output at 30°C/86°F operating environment.
80 PLUS 230V EU certified, deliver great efficiency under real world condition.
Low-profile flat cables.
Ultra Quiet 120mm fluid bearing fan delivers excellent airflow.
High amperage single +12V rail design.
DC-DC design for more precise electrical output.
Intel C6/C7 states & ErP ready.
Built-in industry grade protections: OVP, OPP, SCP
Compact Sizing: 150mm(W)x86mm(H)x140mm(D).

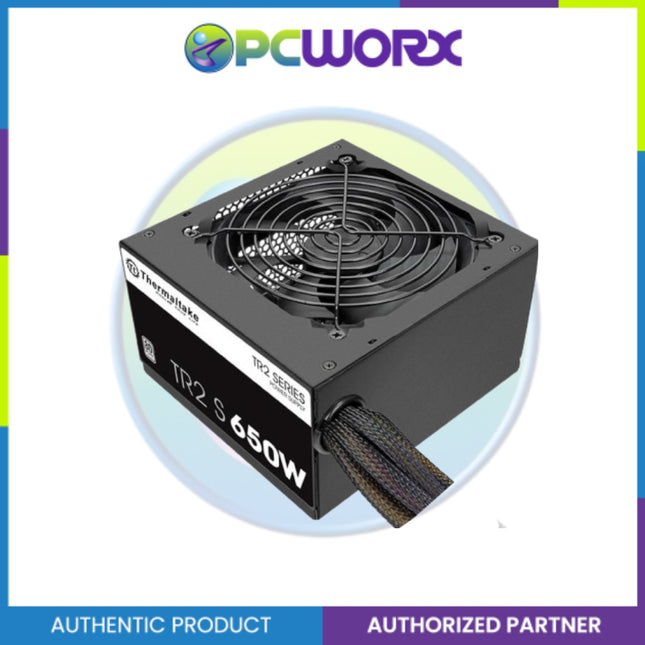

Thermaltake TR2 S 650W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Product details of PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply
PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply Thermaltake TR2 S 650WIncorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. Ultra Quiet FanTR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation. Multiple Connectors The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage. High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
SPECIFICATIONS
AC Input
Input Voltage: 200 - 240V~
Input Current: 6.3A
Frequency: 50Hz/60Hz
DC Output
+3.3V
Max Output Current: 18A
Max Output Power: 110W
+5V
Max Output Current: 18A
Max Output Power: 110W
+12V
Max Output Current: 54.2A
Max Output Power: 650W
-12V
Max Output Current: 0.3A
Max Output Power: 3.6W
+5VSB
Max Output Current: 3A
Max Output Power: 15W
Total Power
650W
General Info
P/N
PS-TRS-0650NNSAWU-P
Model
TRS-650AH2NLW-T
PFC
Active PFC
Power Good Signal
100-250 msec
Hold-Up Time
> 17 msec within 80% load
Cooling System
12cm FDB Fan
Dimension
150mm(W)x86mm(H)x140mm(D)
Environment
Operating Temperature
+5°C to +30°C
Operating Humidity
20% to 85%, non-condensing
Storage Temperature
-40°C to +55°C
Storage Humidity
10% to 95%, non-condensing
Miscellaneous
Efficiency
Meet 80 PLUS® 230V EU
MTBF
100,000 hrs minimum
Safety Approval
CE/LVD/CB/TUV
PCIe 6+2pin
2
Protections
Voltage Source
+3.3V, +5V, +12V
Over Voltage Protection
+3.3V: 3.764.3V, +5V: 5.747.0V, +12V: 13.4~15.6V
Over Power Protection
120%~160% over peak load
Short Circuit Protection
Short circuit on +5V, +12V, +3.3V, -12V will latch off, +5VSB auto-recovery
TR2 S 750W (DC to DC Version)
The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V EU Certified
TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC-to-DC circuit design provides very stable operation and enhanced voltage regulation.
AC INPUT
Input Voltage: 200-240VacInput Current: 8A Max.Frequency: 50Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
Max Output Current
18A
18A
62.5A
0.3A
2.5A
Max Output Power
100W
750W
3.6W
12.5W
Continuous Power
750W
SPECIFICATIONS
WATTS
750W (DC to DC)
MODEL
TRS-750AH4NXW
DIMENSION ( W/H/D )
150mm(W)x86mm(H)x 140mM (D)
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
>17msec at 80% load
INPUT CURRENT
8A Max.
INPUT FREQUENCY RANGE
50Hz
INPUT VOLTAGE
200-240Vac
OPERATING TEMPERATURE
5°C to + 40°C
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40°C to + 55°C
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm Hydraulic Bearing Fan
EFFICIENCY
80 PLUS® 230V EU Certified
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
2
PROTECTION
OVP/OPP/SCP
Trendsonic Saturn SA25M w/ 700W Power Supply Black Micro ATX PC Case No Fan Included
SPECIFICATIONS
TYPE:
Micro ATX Case
DRIVE SPACE:
5.25″ 1
DRIVE SPACE:
3.5″ 3
DRIVE SPACE:
2.5″ 0
MAIN BOARD:
Micro ATX
POWER SUPPLY:
PS2
EXPANSION SLOT:
4 slots
FAN CAPACITY FRONT:
1x8cm
FAN CAPACITY REAR:
N/A
FAN CAPACITY SIDE:
1x8cm
