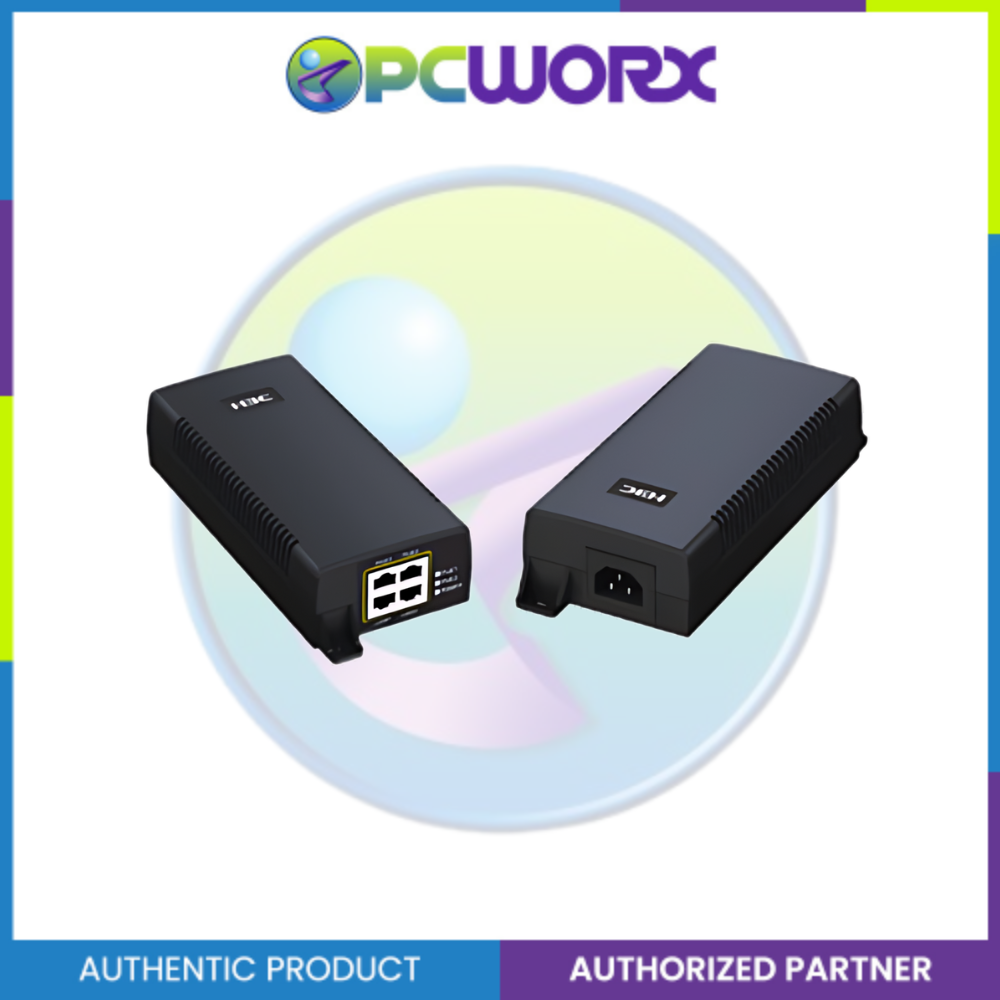

H3C 55V 60W PoE Adapter Power Supply

Item

Specification

Size（W×D×H）

208mm × 85mm × 46mm

Weight

437g

Input Voltage

100V AC～240V AC；50/60Hz

Input Current

1.5A Max, at 115Vac, Full load 0.75A Max, at 230Vac, Full load

Input Connector*

IEC320 C14

AC Inrush Current

30A Max. At 115Vac, Cold start. 60A Max. At 230Vac, Cold start

Output Voltage

55V

Output rated current

1.1A

Total Output Power

60W

Output Connection

Pins 3,6, 4,5(+) Pins 1,2, 7,8 (-)

Power Efficiency

Level V

Protection

OCP,OVP,SCP

Temperature

Operation: -30℃～55℃ Non-operation: -40℃～70℃

Humidity（Non-condensing）

5%～95%

Altitude

Up to 5000m

EMC

EN 55032: RE,CE

CISPR 32: RE,CE

IEC 61000-4-2: ESD

IEC 61000-4-3: RS

IEC 61000-4-4: EFT

IEC 61000-4-5: Surge

IEC 61000-4-6: CS

IEC 61000-4-11: DIPS

Safety Approvals

CE,TUV, CCC
