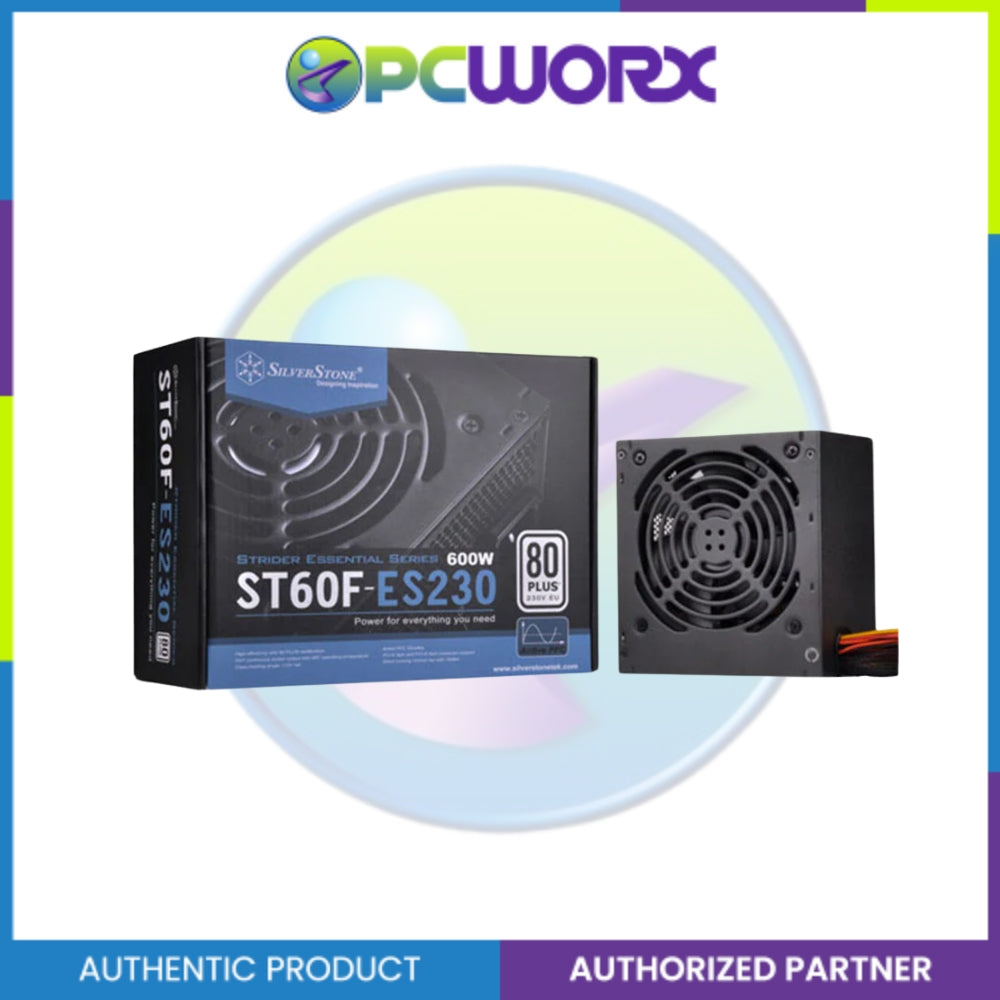

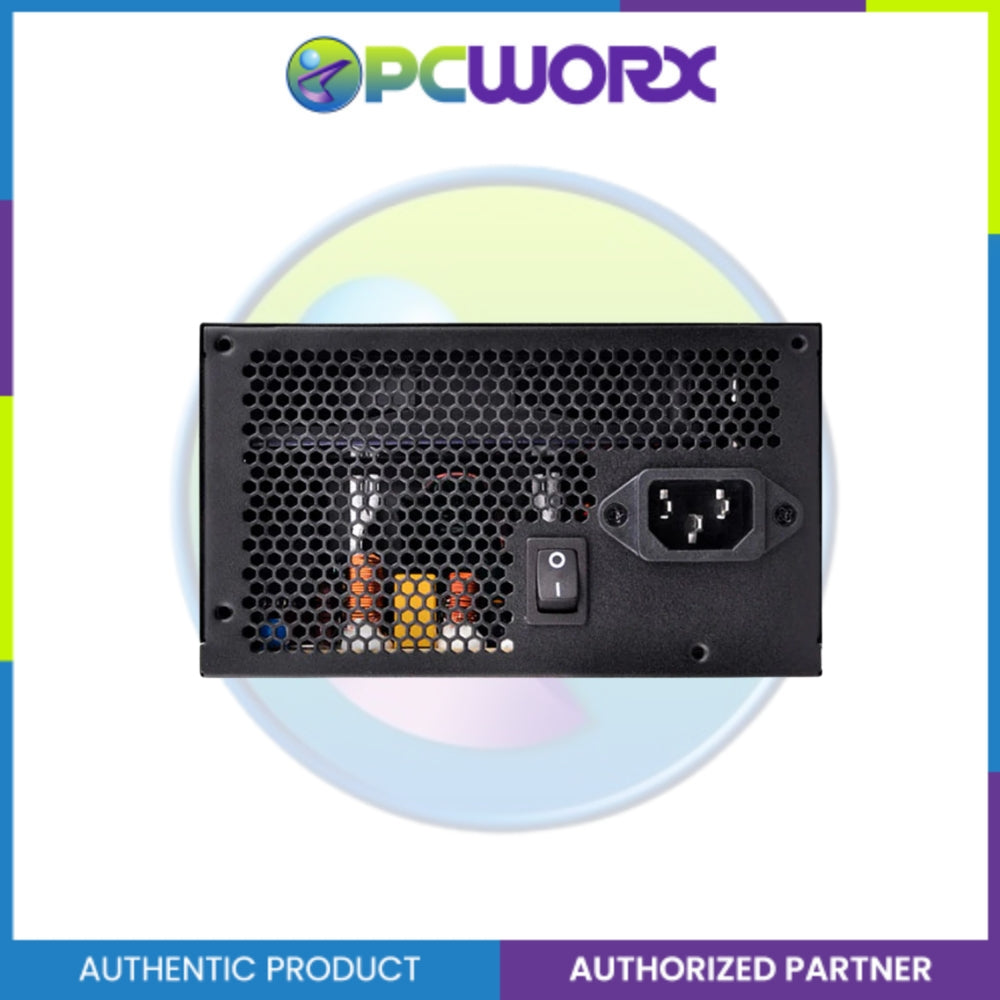

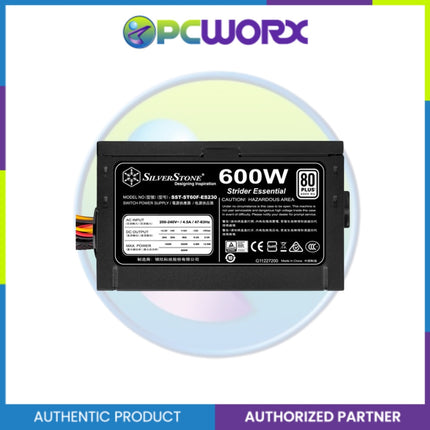

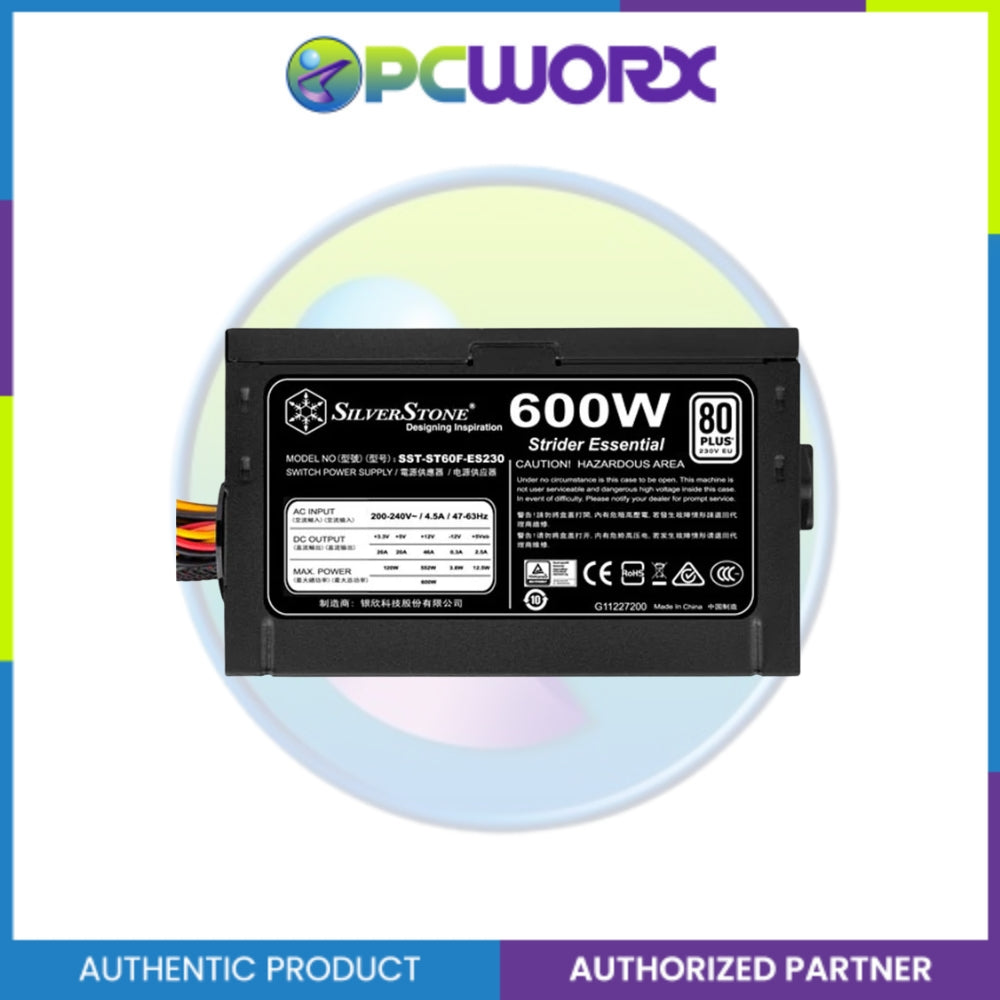

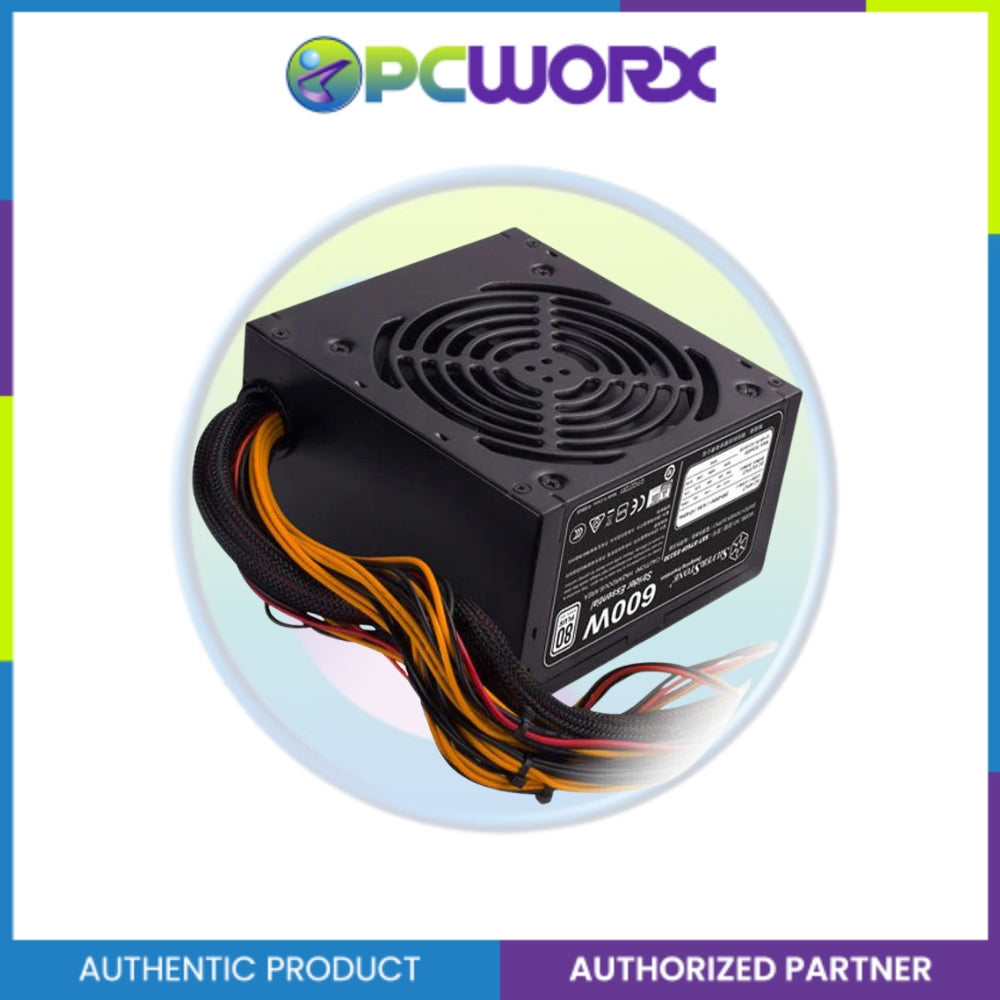

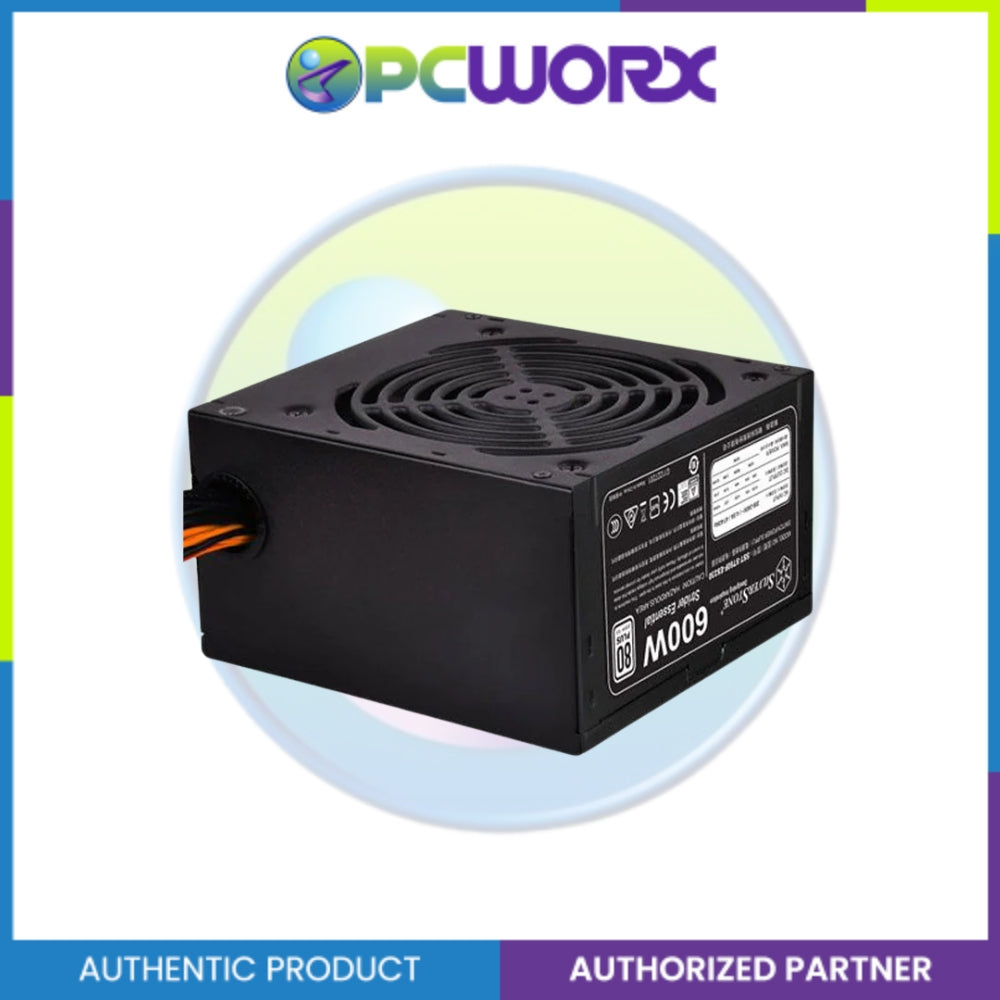

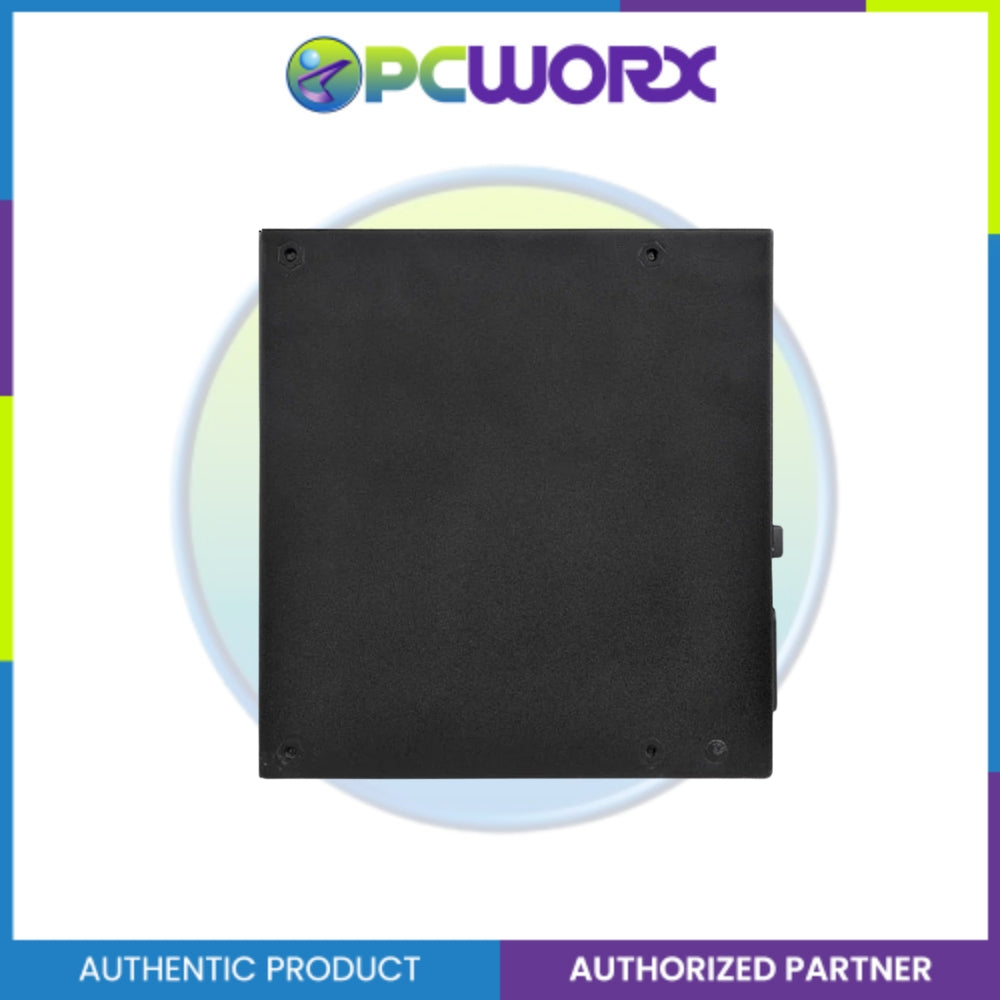

SilverStone SST-ST60F-ES230 Strider Essential 600W 80+ APFC Non-Modular PSU Power Supply

Description

ST60F-ES230
80 PLUS 230V EU 600W ATX power supply
  • High efficiency with 80 PLUS certification
  • 24/7 continuous power output with 40℃ operating temperatures
  • Class-leading single +12V rail
  • Active PFC Circuitry
  • PCI-E 8pin and PCI-E 6pin connector support
  • Silent running 120mm fan with 18dBA
Product Specifications

Product No.

SST-ST60F-ES230 (80 PLUS)

Color

Black (Lead-Free Paint)

Max. DC Output

600W

Power density

332W per liter

Load Range

+3.3V, +5V, +12V, +5VSB, -12V

Max. Amps

20A, 20A, 46A, 2.5A, 0.3A

Peak Amps

N/A

Min. Amps

0A, 0A, 0A, 0A, 0A

Range (%)

±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V

Line Reg. (%)

±1% for all outputs

Ripple (mVp-p)

50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V

Combined +3.3V & +5V

120W

Combined +12V

552W

Input Voltage

180V~264V

Input Frequency Range

47Hz~63Hz

PFC

Active PFC (PF > 0.9 at full load)

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Overpower protection, Over voltage protection, short circuit protection

Connectors

See detailed list in the description

Cooling System

Single 120mm silent fan

Noise Level

18 dBA minimum

Certification

80 PLUS

Form factor

ATX

Dimension

150mm (W) x 86mm (H) x 140mm (D)

Weight

1.41 kg

Other

GPU Support list

Output +3.3V +5V +12V +5VSB -12V
Max. (Amps) 20A 20A 46A 2.5A 0.3A
Peak (Amps) / / / / /
Min. (Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg. (%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV


SilverStone SST-ST60F-ES230 Strider Essential 600W 80+ APFC Non-Modular PSU Power Supply

Product form

ST60F-ES230 80 PLUS 230V EU 600W ATX power supply High efficiency with 80 PLUS certification 24/7 continuous power output with... Read more

SKU: 0000042920

Out of stock

₱2,520.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS
    • Guaranteed secure & safe checkout.

    Description

    ST60F-ES230
    80 PLUS 230V EU 600W ATX power supply
    • High efficiency with 80 PLUS certification
    • 24/7 continuous power output with 40℃ operating temperatures
    • Class-leading single +12V rail
    • Active PFC Circuitry
    • PCI-E 8pin and PCI-E 6pin connector support
    • Silent running 120mm fan with 18dBA
    Product Specifications

    Product No.

    SST-ST60F-ES230 (80 PLUS)

    Color

    Black (Lead-Free Paint)

    Max. DC Output

    600W

    Power density

    332W per liter

    Load Range

    +3.3V, +5V, +12V, +5VSB, -12V

    Max. Amps

    20A, 20A, 46A, 2.5A, 0.3A

    Peak Amps

    N/A

    Min. Amps

    0A, 0A, 0A, 0A, 0A

    Range (%)

    ±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V

    Line Reg. (%)

    ±1% for all outputs

    Ripple (mVp-p)

    50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V

    Combined +3.3V & +5V

    120W

    Combined +12V

    552W

    Input Voltage

    180V~264V

    Input Frequency Range

    47Hz~63Hz

    PFC

    Active PFC (PF > 0.9 at full load)

    Efficiency

    82% ~ 85% at 20% ~ 100% loading

    MTBF

    100,000 hours

    Operating temperature

    0°C ~ 40°C

    Protection

    Overpower protection, Over voltage protection, short circuit protection

    Connectors

    See detailed list in the description

    Cooling System

    Single 120mm silent fan

    Noise Level

    18 dBA minimum

    Certification

    80 PLUS

    Form factor

    ATX

    Dimension

    150mm (W) x 86mm (H) x 140mm (D)

    Weight

    1.41 kg

    Other

    GPU Support list

    Output +3.3V +5V +12V +5VSB -12V
    Max. (Amps) 20A 20A 46A 2.5A 0.3A
    Peak (Amps) / / / / /
    Min. (Amps) 0A 0A 0A 0A 0A
    Range (%) ±5% ±5% ±5% ±5% ±10%
    Line Reg. (%) ±1% ±1% ±1% ±1% ±1%
    Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
