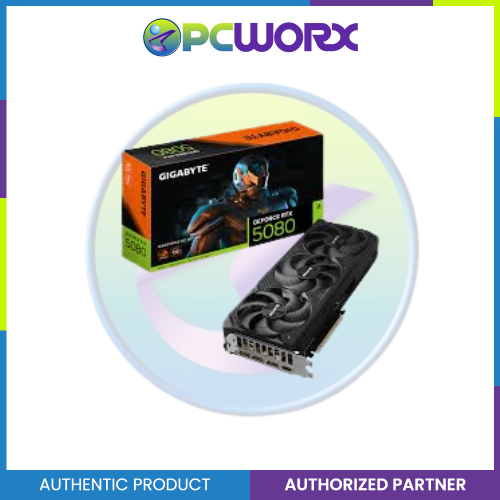

Specifications  GPU:  GeForce RTX™ 5080 Core Clock:  2670 MHz (Reference: 2617 MHz) CUDA Cores:  10752 Memory Size:  16GB Memory Type:  GDDR7 Memory Clock:  30 Gbps Memory Bus:  256-bit PCIe Interface:  PCI-E 5.0 Max Resolution:  7680 x 4320 Output Ports:  3x DisplayPort 2.1b, 1x HDMI 2.1b Power Connectors:  1x 16-pin Recommended PSU:  850W Key Features: 16GB GDDR7 Memory: Ensures top-tier performance for modern gaming and creative applications. Factory Overclocked: Optimized clock speeds for enhanced graphics rendering and smoother gameplay. WINDFORCE Cooling System: Advanced cooling solution for effective thermal management, keeping your GPU cool under pressure. Compact Design: Ideal for small form factor builds without sacrificing performance. Ray Tracing and AI Features: Experience cutting-edge graphics with real-time ray tracing and DLSS support. How to Use: Installation: Open your PC case and locate the PCIe slot. Remove any existing GPU and insert the Gigabyte GV-N5080WF3OC securely. Power Connection: Connect the necessary PCIe power cables from your power supply to the GPU. Driver Setup: Download and install the latest drivers from the Gigabyte website for optimal functionality. Configuration: Use gaming or graphics software to adjust settings according to your needs for the best performance.

Read more less

Core Specifications: GPU Architecture:NVIDIA Blackwell (GB206) CUDA Cores:3840 Base Clock:2280 MHz Boost Clock:2497 MHz Memory:8GB GDDR7 Memory Interface:128-bit Memory Speed:28 Gbps effective Bandwidth:448 GB/s Bus Interface:PCIe 5.0 x8 TDP:145W Recommended PSU:300W Cooling & Design: Single 90mm BladeLink Fan Dual-slot design Dimensions:164.5 mm (L) × 111.2 mm (H) × 36.4 mm (W) ITX-ready: Fits in 99% of PC builds Display Outputs: 3 × DisplayPort 2.1b (UHBR20) 1 × HDMI 2.1b (supports 4K 480Hz HDR or 8K 120Hz HDR with DSC) Advanced Features: Ray Tracing Cores:4th Gen Tensor Cores:5th Gen DLSS 4:AI-powered rendering and frame generation DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 NVENC/NVDEC:9th/6th Gen NVIDIA Broadcast, GeForce Experience, Studio Drivers ZOTAC FireStorm Utilityfor tuning and monitoring

Read more less

OVERVIEW The Palit GeForce RTX™ 5060 Ti Dual offers classic cooling efficiency in a sleek, modern black design. Twin 95mm fans provide competitive cooling and quiet operation, while a compact 2-slot design suits small form factor builds. A sturdy backplate adds structural integrity. Enjoy subtle RGB lighting for a refined aesthetic and customize your shroud with Palit Maker support without voiding your warranty. Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators. The Ultimate Platform for Gamers and Creators Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry The Ultimate in Ray Tracing and AI RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation. Supreme Speed. Superior Visuals. Powered by AI. DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX™ is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities. Game-Changing Realism The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX™ 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores. Compete at Warp Speed Compete at Warp Speed Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input. SPECIFICATIONS Memory Amount 8 GB Memory Interface 128 bits DRAM Type GDDR7 Graphics Clock 2407 MHz Boost Clock 2573 MHz Memory Clock 28 Gbps CUDA Cores 4608 Memory Bandwidth (GB/sec) 448 Microsoft DirectX Microsoft DirectX® 12 Ultimate OpenGL 4.6 Bus Support PCI-E 5.0 HDMI HDMI 2.1b DisplayPort DP2.1b x 3 Maximum Digital Resolution 4K at 480Hz or 8K at 120Hz with DSC Height 2 Slot Board Size 262.1 x 126.3 x 40.1 mm Graphics Card Power 180 W Recommended System Power 600 W Supplementary Power Connectors 8-pin x 1 Composite Heat Pipe Copper Base DrMOS 0-dB TECH NVIDIA Architecture Blackwell Ray Tracing Cores 4th Generation Tensor Cores 5th Generation NVIDIA DLSS 4 NVIDIA Reflex 2 NVIDIA Broadcast Resizable BAR NVIDIA App NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay NVIDIA® Highlights NVIDIA G-SYNC Game Ready Drivers NVIDIA Studio Drivers NVIDIA Omniverse RTX Remix NVIDIA GPU Boost Vulkan 1.4, OpenGL 4.6 NVIDIA Encoder (NVENC) 1x 9th Generation NVIDIA Decoder (NVDEC) 1 x 6th Generation AV1 Encode AV1 Decode CUDA Capability 12.8 VR Ready Multi Monitor 4

Read more less

The Palit RTX 5060 Infinity 3 is a sleek and powerful graphics card built on NVIDIA’s Blackwell architecture, designed for gamers and creators who want next-gen performance in a compact form factor. With 8GB of ultra-fast GDDR7 memory, it supports advanced ray tracing, AI-enhanced rendering, and high refresh rate gaming.  Specifications: GPU:  NVIDIA GB206 (Blackwell) CUDA Cores:  3840 Base Clock:  2280 MHz Boost Clock:  2497 MHz Memory:  8GB GDDR7 Memory Interface:  128-bit Memory Speed:  28 Gbps effective Bandwidth:  448 GB/s Bus Interface:  PCIe 5.0 x8 TDP:  145W Recommended PSU:  550W Power Connector:  1 × 8-pin Cooling & Design: Triple-fan cooling system Composite heat pipes with copper base 0-dB TECH for silent operation under low loads Dimensions: 291.9 × 116.6 × 41.3 mm Slot Width: Dual-slot Display Outputs: 1 × HDMI 2.1b 3 × DisplayPort 2.1b Max Resolution: 4K @ 480Hz or 8K @ 120Hz with DSC Advanced Features: Ray Tracing Cores: 4th Gen Tensor Cores: 5th Gen DLSS 4: AI-powered rendering and frame generation DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 NVENC/NVDEC: 9th/6th Gen AV1 Encode/Decode NVIDIA Reflex 2, Broadcast, Studio Drivers, RTX Remix, Omniverse, G-SYNC, and more Ideal For: High-performance 1080p and 1440p gaming AI-enhanced creative workflows Compact builds with efficient cooling

Read more less

The Palit RTX 5060 Dual is a compact and efficient graphics card built on NVIDIA’s Blackwell architecture, designed for gamers and creators seeking reliable 1080p and 1440p performance. With 8GB of ultra-fast GDDR7 memory, it offers next-gen features like ray tracing, DLSS 4, and AI-enhanced rendering in a sleek dual-fan design. Specifications: GPU Architecture:  NVIDIA Blackwell (GB206) CUDA Cores:  3840 Base Clock:  2280 MHz Boost Clock:  2497 MHz Memory:  8GB GDDR7 Memory Interface:  128-bit Memory Speed:  28 Gbps effective Bandwidth:  448 GB/s Bus Interface:  PCIe 5.0 x8 TDP:  145W Recommended PSU:  550W Power Connector:  1 × 8-pin Cooling & Design: Dual 95mm fans Composite heat pipes with copper base 0-dB TECH for silent operation under low loads RGB lighting Dimensions: 262.1 × 126.3 × 40.1 mm Slot Width: Dual-slot Backplate: Included for structural integrity Display Outputs: 1 × HDMI 2.1b 3 × DisplayPort 2.1b Max Resolution: 4K @ 480Hz or 8K @ 120Hz with DSC Advanced Features: Ray Tracing Cores: 4th Gen Tensor Cores: 5th Gen DLSS 4: AI-powered rendering and frame generation DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6 NVENC/NVDEC: 9th/6th Gen AV1 Encode/Decode NVIDIA Reflex 2, Broadcast, Studio Drivers, RTX Remix, Omniverse, G-SYNC, and more Ideal For: Smooth 1080p and 1440p gaming AI-enhanced creative workflows Compact builds with efficient cooling

Read more less

The GIGABYTE RTX 5060 Ti WINDFORCE OC is a compact yet powerful graphics card built for gamers and creators who need high performance in a small form factor (SFF). It features the latest NVIDIA Blackwell architecture and is equipped with 8GB of ultra-fast GDDR7 memory, making it ideal for demanding applications and modern games. Specifications: GPU:  NVIDIA GeForce RTX 5060 Ti (GB206) CUDA Cores:  4608 Core Clock:  2587 MHz (OC Mode) Memory:  8GB GDDR7 Memory Interface:  128-bit Effective Memory Clock:  28 GHz Bus Interface:  PCI Express 5.0 x8 Cooling System:  WINDFORCE dual-fan cooling Max Resolution:  7680 x 4320 (8K) Ports: 1 × HDMI 2.1b 3 × DisplayPort 2.1b Form Factor:  ATX, compact design (208 x 120 x 40 mm) Slot Width:  2 slots Power Connector:  8-pin TDP:  180W DirectX/OpenGL Support:  DirectX 12 Ultimate, OpenGL 4.6 HDCP Ready:  Yes Features: DLSS 4: AI-powered rendering for higher FPS and better image quality Ray Tracing: Real-time ray tracing for cinematic visuals NVIDIA Reflex 2: Enhanced responsiveness with Frame Warp technology NVIDIA Studio Support: Optimized for creative workflows like video editing and 3D rendering Ideal For: Compact gaming builds Creative professionals needing high GPU performance in limited space Users looking for next-gen features like DLSS 4 and advanced ray tracing

Read more less

GPU Engine Specs CUDA Cores 3840 Boost Clock (MHz) 2527MHz Base Clock (MHz) 2280MHz Thermal and Power Spec Minimum System Power Requirement (W) 550W Supplementary Power Connectors 1x PCIe 8-pin cables Memory Specs Memory Clock 28Gbps Standard Memory Config 8GB Memory Interface GDDR7 Memory Interface Width 128-bit Memory Bandwidth (GB/sec) 448 GB/sec Feature Support Real-Time Ray Tracing Yes Ray Tracing Cores 4th Generation, 58 TFLOPS Tensor Cores 5th Generation, 614 AI TOPS NVIDIA Architecture Blackwell Microsoft DirectX 12 Ultimate NVIDIA DLSS 4 NVIDIA Ansel Yes NVIDIA FreeStyle Yes Bus Support PCI Express Gen 5 NVIDIA ShadowPlay Yes OS Certification Windows 11 / 10, Linux, FreeBSDx86 NVIDIA Highlights Yes NVIDIA G-SYNC™-Ready Yes Game Ready Drivers Yes NVIDIA Studio Drivers Yes NVIDIA GPU Boost™ Yes Vulkan API 1.4 OpenGL 4.6 NVIDIA Encoder 1x Ninth Generation NVIDIA Decoder 1x Sixth Generation Accessories Graphics Card Dimensions Length 250mm Height 116mm Width 41mm Display Support Multi Monitor up to 4 Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC HDCP 2.3

Read more less

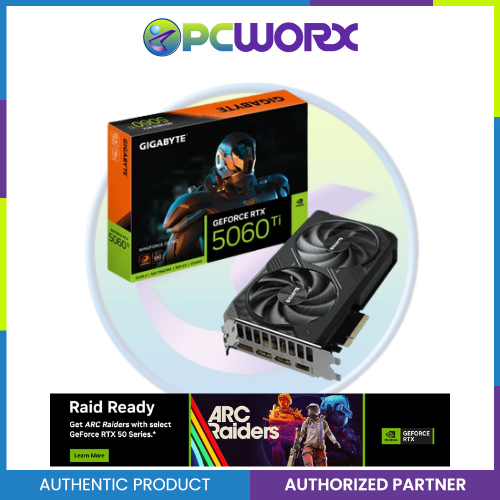

FEATURES Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX™ 5060 Ti Integrated with 16GB GDDR7 128bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel Reinforced structure CORE CLOCK 2587 MHz (Reference card :2572 MHz) WINDFORCE COOLING SYSTEM The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling. HAWK FAN The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics. GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter. ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. SERVER-GRADE THERMAL CONDUCTIVE GEL To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads. COPPER PLATE & COMPOSITE COPPER HEAT PIPE The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. SCREEN COOLING Extended heatsink allows air to pass through, providing better heat dissipation. REINFORCED STRUCTURE The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity. SPECIFICATIONS Graphics Processing GeForce RTX™ 5060 Ti Core Clock 2587 MHz (Reference card :2572 MHz) CUDA® Cores TBD Memory Clock 28 Gbps Memory Size 16 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=281 W=119 H=40 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 650W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *3HDMI 2.1b *1 Accessories Quick guide

Read more less

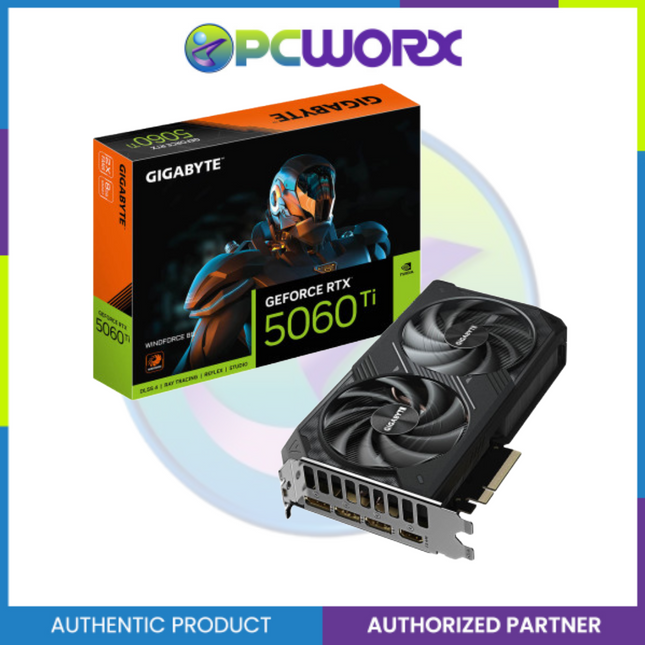

The GV-N506TWF2-8GD is a compact, high-performance graphics card from GIGABYTE’s WINDFORCE series, designed for small form factor (SFF) builds. It leverages NVIDIA’s latest Blackwell architecture and DLSS 4 technology to deliver stunning visuals, fast frame rates, and AI-enhanced performance for gaming and creative workloads. Specifications: GPU Architecture :NVIDIA Blackwell CUDA Cores: 4608 Core Clock: 2572 MHz Memory: 8GB GDDR7 Memory Interface: 128-bit Memory Speed: 28 Gbps Bus Interface: PCIe 5.0 x8 Max Resolution: 7680 × 4320 (8K) Cooling System: WINDFORCE dual-fan cooling Video Outputs: 1 × HDMI 2.1b 3 × DisplayPort 2.1b Form Factor: ATX (Compact dimensions: 8.19 x 4.72 x 0.1 inches) Power Connector: 8-pin TDP:~ 180W Advanced Features: DLSS 4: AI-powered Multi Frame Generation for higher FPS and improved image quality 1 Ray Tracing: Real-time ray tracing with enhanced RT Cores for cinematic visuals NVIDIA Reflex 2: Frame Warp technology for ultra-low latency in competitive gaming NVIDIA Studio Support: Optimized for creative applications like video editing and 3D rendering AI Enhancements: Voice and video improvements for streaming and conferencing Ideal Use Cases: Compact gaming PCs Creative workstations with limited space Users seeking next-gen performance and efficiency
