The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
REINFORCED STRUCTURE

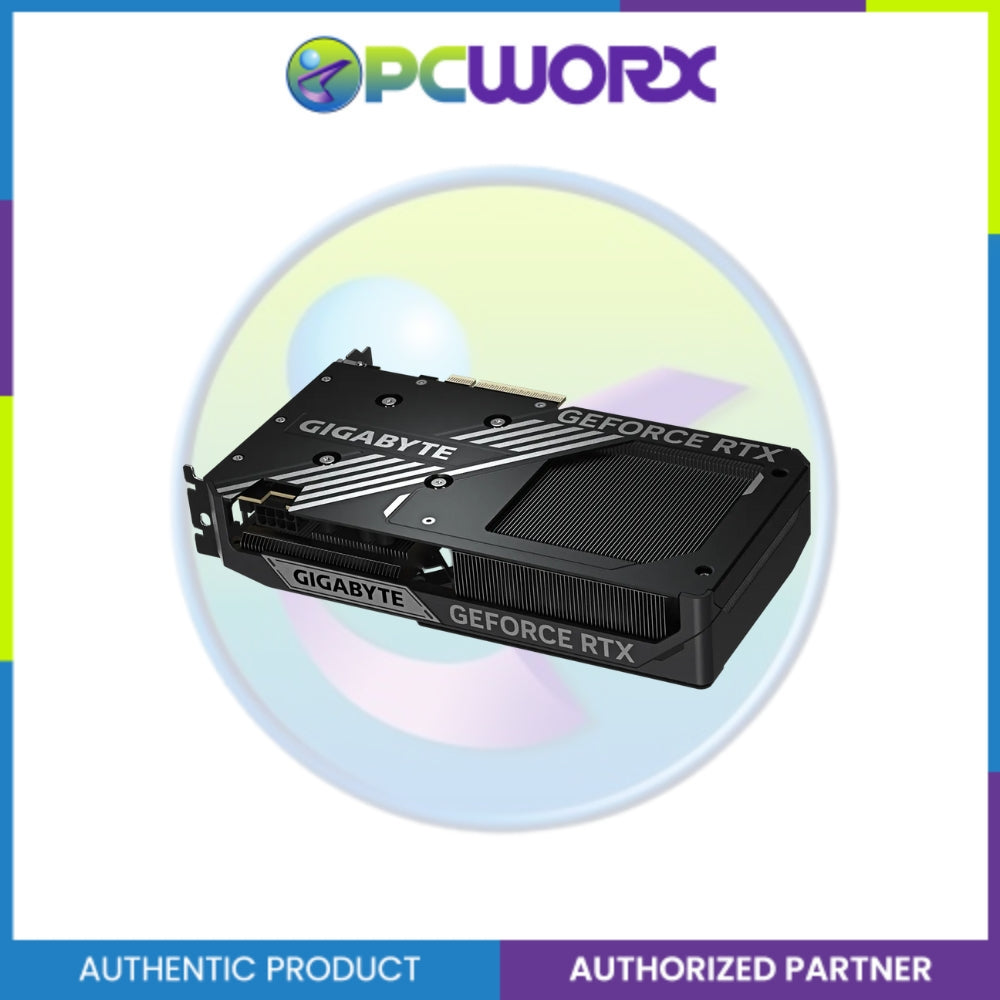

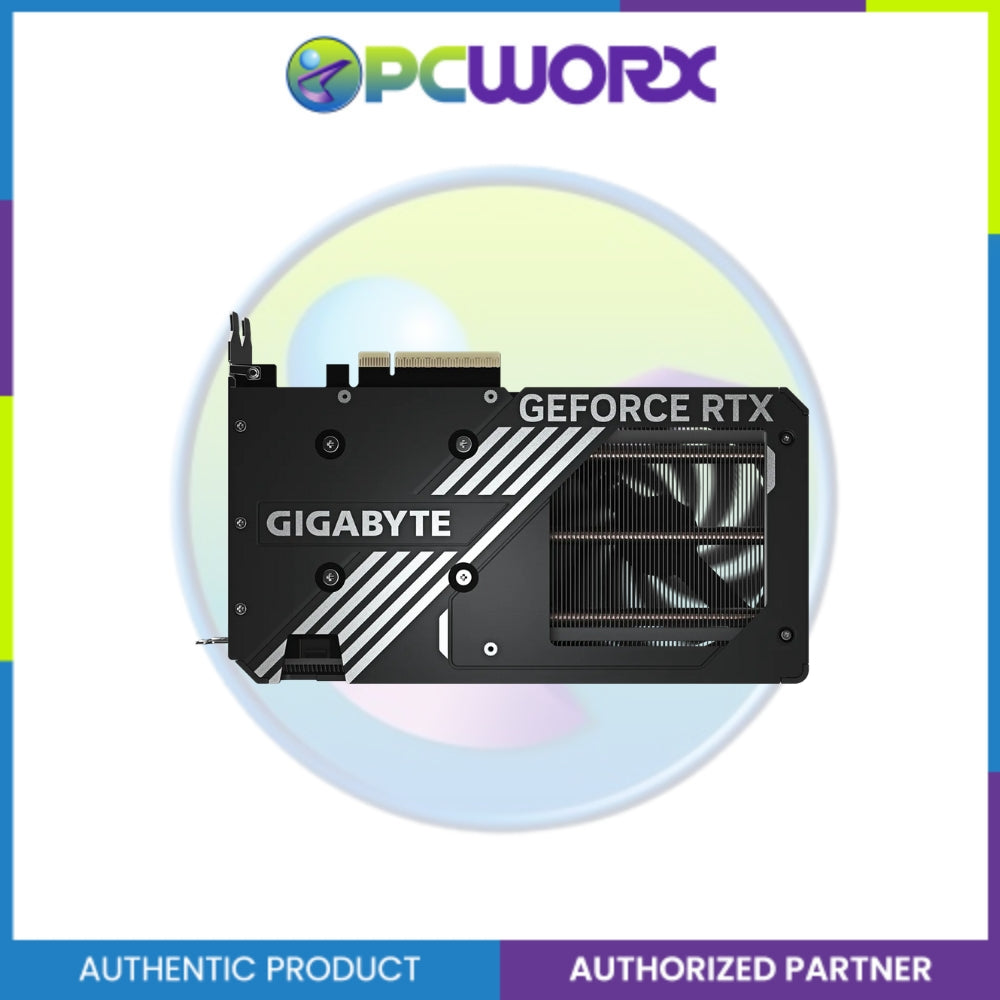

The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
SPECIFICATIONS
|
Graphics Processing
|
GeForce RTX™ 5060 Ti
|
|
Core Clock
|
2587 MHz (Reference card :2572 MHz)
|
|
CUDA® Cores
|
TBD
|
|
Memory Clock
|
28 Gbps
|
|
Memory Size
|
16 GB
|
|
Memory Type
|
GDDR7
|
|
Memory Bus
|
128 bit
|
|
Card Bus
|
PCI-E 5.0
|
|
Digital max resolution
|
7680x4320
|
|
Multi-view
|
4
|
|
Card size
|
L=281 W=119 H=40 mm
|
|
PCB Form
|
ATX
|
|
DirectX
|
DirectX 12 API
|
|
OpenGL
|
4.6
|
|
Recommended PSU
|
650W
|
|
Power Connectors
|
8 Pin*1
|
|

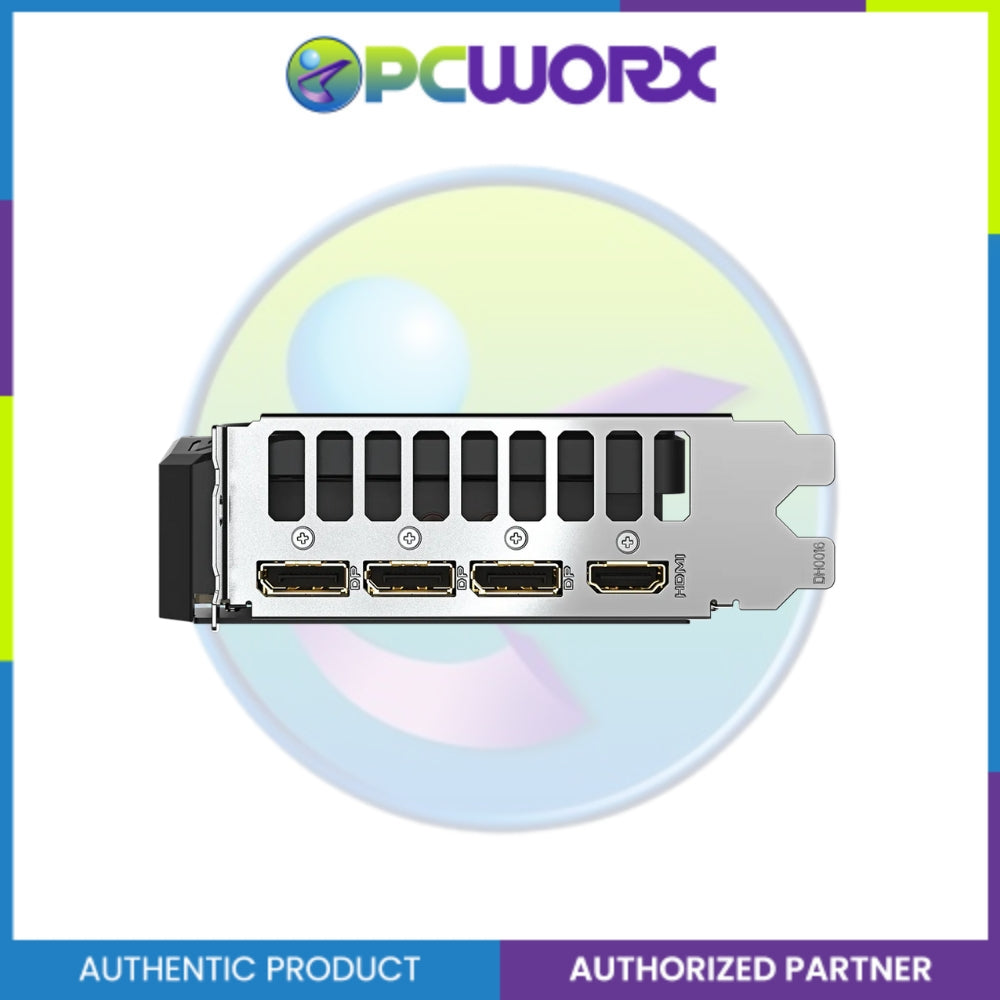

Output
|
DisplayPort 2.1b *3
HDMI 2.1b *1
|
|
Accessories
|
Quick guide
|
