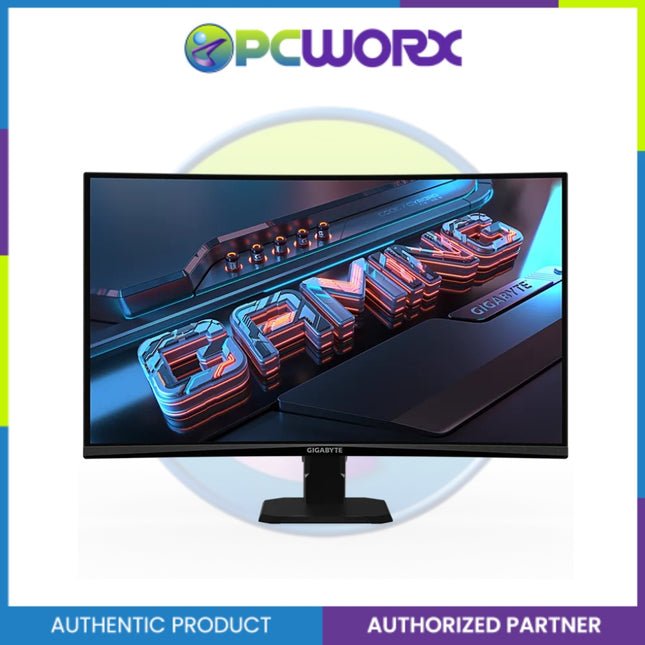

SPECIFICATION Panel Size (diagonal) 27" VA 1500R Display Viewing Area (HxV) 596.736 x 335.664 (mm) Panel Backlight/ Type Edge Display Surface(non-glare/ glare) Non-glare Color Saturation 122% sRGB True Resolution 2560 x 1440 (QHD) Pixel Pitch 0.2331*0.2331 Brightness 250 cd/m2 (TYP) Contrast Ratio 5000:01:00 Viewing Angle 178°(H)/178°(V) Display Colors 16.7M Response Time 1ms (MPRT) Refresh Rate 180Hz HDR HDR Ready Flicker-free Yes HBR3 Yes Connectivity 2 x HDMI 2.0 1 x Displayport 1.4 1 x Earphone Jack Speaker N/A Unique Features OSD Sidekick* Aim Stabilizer Black Equalizer Crosshair Timer Power Type Power Board Build-in Power Consumption 26W** Power Saving Mode <0.5W Power Off Mode <0.3W Voltage AC 100-240V ~ 50/60Hz Tilt(angle) -5°~+20° Swivel(angle) N/A Pivot(angle/direction) N/A Height Adjustment (mm) N/A VESA Wall Mounting(mm) 100*100 mm Kensington lock Yes Phys. Dimension with Stand(WxHxD) 610.5*441*208 mm Phys. Dimension w/o stand  (WxHxD) 610.5*362.5*78.3 mm Box Dimension (WxHxD) 688*448*148 mm Net Weight with stand (Esti.) 4.53 kg Net Weight without stand (Esti.) 3.62 kg Gross Weight (Esti.) 7.1 kg Accessories Power cable/DP cable/QSG/Warranty card Note *To enable OSD Sidekick (integrated in GCC), it requires connection between PC and monitor with HDMI/DP cable. **The test condition follows CEC standards.

Read more less

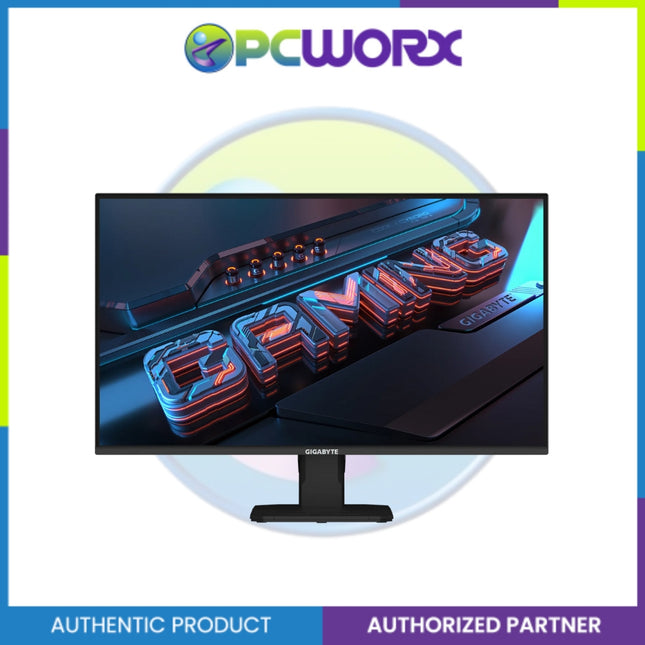

SPECIFICATION Panel Size (diagonal) 24.5" SS IPS Display Viewing Area (HxV) 543.744 x 302.616 (mm) Panel Backlight/ Type Edge Display Surface(non-glare/ glare) Non-glare Color Saturation 120% sRGB True Resolution 1920 x 1080(FHD) Pixel Pitch 0.0944X 0.2802 Brightness 300 cd/m2 (TYP) Contrast Ratio 1000:01:00 Viewing Angle 178°(H)/178°(V) Display Colors 16.7M Response Time 1ms (GTG) Refresh Rate 200 Hz HDR HDR 10 Flicker-free Yes Connectivity  2 x HDMI 2.01 x Displayport 1.41 x Earphone Jack Earphone Jack Yes Speaker N/A Unique Features OSD Sidekick*Aim StabilizerBlack EqualizerCrosshairTimerSmart OD Power Type Power Board Build-in Power Consumption 18W** Power Saving Mode 0.5W Power Off Mode 0.3W Voltage AC 100-240V ~ 50/60Hz Tilt(angle) -5°~+20° Swivel(angle) N/A Pivot(angle/direction) N/A Height Adjustment (mm) N/A VESA Wall Mounting(mm) 100*100mm Kensington lock Yes Phys. Dimension with Stand(WxHxD) 556.9*402.0*179.4 mm Phys. Dimension w/o stand  (WxHxD) 556.9*321.5*51.3 mm Box Dimension (WxHxD) 630*414*123 mm Net Weight with stand (Esti.) 3.11 kg Net Weight without stand (Esti.) 2.73 kg Gross Weight (Esti.) 4.0 kg Accessories Power cable/HDMI cable/QSG/Warranty card Note  *To enable OSD Sidekick (integrated in GCC), it requires connection between PC and monitor with HDMI/DP cable.**The test condition follows CEC standards.

Read more less

Graphics Processing Chipset:  NVIDIA® GeForce RTX™ 5060 Core Clock:  2512 MHz (OC mode), 2497 MHz (Reference clock) CUDA® Cores: 3840 Memory Clock:  28 Gbps Memory Size:  8 GB Memory Type:  GDDR7 Memory Bus:  128-bit  Connectivity and Display Card Bus:  PCI-E 5.0 Digital Max Resolution:  7680x4320 Multi-view:  Up to 4 displays  Cooling and Design  Cooling System:  WINDFORCE cooling system Cooling Features:  3D active fans, server-grade thermal paste for critical components Card Size:  Length: 199mm, Width: 116mm, Height: 40mm

Read more less

Ice white aesthetics 80 PLUS Silver certified (230V EU) Support Intel ATX 3.0 standard (compatible with ATX 3.1) 120mm Fluid Dynamic Bearing (FDB) Fan Flat cable design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection SPECIFICATION Model GP-P650SS ICE Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFC Active PFC (>0.9 typical) Input Voltage 155-240 Vac Input Current 6.3A Input Frequency 50-60 Hz Output Capacity 650W Dimension 150 x 140 x 86 mm Fan Type 120mm Fluid Dynamic Bearing (FDB) fan 80 PLUS Silver Efficiency 90% at typical load (230V EU) MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors  ATX/MB 20+4 Pin x 1 : 600mm*1CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1PCI-e 6+2 Pin x 2 : 600mm*2SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1

Read more less

80 PLUS Silver certified (230V EU) Support Intel ATX 3.0 standard (compatible with ATX 3.1) 120mm Fluid Dynamic Bearing (FDB) Fan Flat cable design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection SPECIFICATION Model GP-P650SS Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFC Active PFC (>0.9 typical) Input Voltage 155-240 Vac Input Current 6.3A Input Frequency 50-60 Hz Output Capacity 650W Dimension 150 x 140 x 86 mm Fan Type 120mm Fluid Dynamic Bearing (FDB) fan 80 PLUS Silver Efficiency 90% at typical load (230V EU) MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors  ATX/MB 20+4 Pin x 1 : 600mm*1CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1PCI-e 6+2 Pin x 2 : 600mm*2SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1

Read more less

Specifications: CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU Chipset Intel® B860 Express Chipset Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics   Integrated Graphics Processor-Intel® HD Graphics support:- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same time   Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage Interface CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU:- 1 x USB4® USB Type-C® port on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:- 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note)1 x DisplayPort (Note)1 x USB4® USB Type-C® port (DisplayPort (Note))3 x USB 3.2 Gen 1 ports5 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Operating System Support for Windows 11 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Read more less

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors Unparalleled Performance: Direct 10+1+2 Phases Digital VRM Solution Dual Channel DDR5: 2*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard III:  To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.   Model Brand GIGABYTE Model Z790I AORUS ULTRA Supported CPU CPU Socket Type  LGA 1700 CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold Chipsets Chipset  Intel Z790 Memory Number of Memory Slots 2x288pin (DDR5) Memory Standard DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 Maximum Memory Supported 96GB Channel Supported  Dual Channel Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Expansion Slots PCI Express 5.0 x16 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Storage Devices Serial ATA (SATA)  2 x SATA 6Gb/s M.2 1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) SATA RAID RAID 0 and RAID 1 support for SATA storage devices Additional RAID Controller RAID 0 and RAID 1 support for NVMe SSD storage devices Onboard Audio Audio Chipset  Realtek ALC4080 Onboard LAN Max LAN Speed 2.5Gbps Wireless LAN Intel Killer Wi-Fi 6E AX1690 Bluetooth Bluetooth 5.3 Rear Panel Ports Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Q-Flash Plus Button / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A Internal I/O Connectors Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header (Note 1) Other Connectors 1 x external power connector (Note 1)1 x CPU fan header1 x fan/water cooling pump header2 x system fan headers (SYS_FAN1/SYS_FAN2 (Note 1))1 x addressable LED strip header (Note 1)1 x RGB LED strip header2 x M.2 Socket 3 connectors (M2A_CPU (Note 2)/M2P_SB (Note 1))2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header (routed from the adapter card on the rear panel)1 x speaker header1 x reset button (Note 1)1 x reset jumper1 x Clear CMOS jumper(Note 1) The connector is on the front of GC-Z790I BTB PLUG.(Note 2) The connector is on the back of GC-Z790I BTB PLUG. Software Feature Windows 11 Supported Physical Spec Form Factor Mini ITX Dimensions (W x L) 6.7" x 6.7" Power Pin 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector Features Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup

Read more less

AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click：M.2 heatsinks with screwless design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal：VRM Thermal Armor Advanced  & M.2 Thermal Guard Ext. Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI     Specifications: CPU AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD X870 Memory Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standardRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.   Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices USB CPU+ASMedia USB4® controller:- 2 x USB4® USB Type-C® ports on the back panelCPU:- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 1 x USB 3.2 Gen 1 port on the back panelCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors3 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button2 x antenna connectors (2T2R)1 x HDMI port(Note)2 x USB4® USB Type-C® ports (DisplayPort*)1 x USB 3.2 Gen 2 Type-A port (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks* Actual support may vary by CPU. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm

Read more less

GIGABYTE Creator Motherboard AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors VisionLINK: One USB-C® Port for Video, Data Transfer and Charging Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors(Please refer "CPU Support List" for more information.) Chipset AMD B650 Memory Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module Onboard Graphics Integrated Graphics Processor:1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz* Support for drawing tablets and 20V@3A of power delivery.* Support for DisplayPort 1.4 version.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. Audio Realtek® ALC1220-VB CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Expansion Slots CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)* Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices USB CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU + USB 2.0 Hub:2 x USB 2.0/1.1 ports on the back panelChipset:1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset button1 x reset jumper2 x temperature sensor headers1 x Clear CMOS jumper Back Panel Connectors 2 x SMA antenna connectors (2T2R)2 x USB 2.0/1.1 ports1 x DisplayPort In port1 x HDMI port3 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support4 x USB 3.2 Gen 1 ports1 x RJ-45 port2 x audio jacks1 x optical S/PDIF Out connector I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm

Read more less

• AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors• Unparalleled Performance：5+2+2 Phases Digital VRM Solution• Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support Specifications: CPU AMD Socket AM5, support for:AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors(Please refer "CPU Support List" for more information.) Chipset AMD B650 Memory Support for DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and ExtremeMemory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band- BLUETOOTH 4.2- Support for 11ac wireless standard(Actual data rate may vary depending on environment and equipment.) Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices USB CPU:- 2 x USB 3.2 Gen 1 ports on the back panel- 1 x USB 2.0/1.1 port on the back panelChipset:- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available throughthe internal USB header)Chipset+USB 2.0 Hub:- 2 x USB 2.0/1.1 ports available through the internal USB header Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x Q-Flash Plus button2 x USB 3.2 Gen 1 ports1 x HDMI port1 x RJ-45 portŠ 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.0cm x 22.5cm

Read more less

B850 EAGLE WIFI6E Features X3D Turbo Mode : Unleash new era gaming performance DDR5 OC up to 8200MT/s AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 8+2+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking : GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna Extended Connectivity : HDMI, Displayport PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect SPECIFICATION CPU  AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) Chipset Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics  Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) Audio  Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication module Intel Wi-Fi 6E AX210 (PCB rev. 1.0)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standardRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) Expansion Slots  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3) Storage Interface  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices USB  CPU:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors  1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors  1 x DisplayPort*1 x HDMI port*1 x Q-Flash Plus button4 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port2 x USB 3.2 Gen 1 ports2 x antenna connectors (2T2R)3 x audio jacks* Actual support may vary by CPU. I/O Controller iTE I/O Controller Chip H/W Monitoring  Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS  1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features  Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
