KEY FEATURE Ultra Durable Main Japanese capacitors  Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan  OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time. HIGH QUALITY JAPANESE CAPACITORS The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable lifetime. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. COMPACT DESIGN With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints. SPECIFICATIONS Model GP-UD850GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity  850W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS  Gold Efficiency  90% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black  Connectors ATX/MB 20+4 Pin x 1: 610mm*1  CPU/EPS 4+4 Pin x 2: 600mm*2 PCI-e 6+2 Pin x 4: 600mm+150mm*2 SATA X 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+150mm*1

Read more less

KEY FEATURE Ultra Durable  Main Japanese capacitors  Enhanced thermal solution  120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable lifetime. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. SPECIFICATIONS Model GP-UD750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity  750W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan Efficiency  90% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black  Connectors ATX/MB 20+4 Pin x 1: 610mm*1  CPU/EPS 4+4 Pin x 2: 600mm*2 PCI-e 6+2 Pin x 4: 600mm+150mm*2 SATA X 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+150mm*1

Read more less

KEY FEATURES 80 PLUS bronze certified: up to 89% efficiency 100% Japanese Capacitors 120mm Hydraulic Bearing (HYB) Fan Single +12V rail Meet ErP LOT6 2013 (< 0.5W at standby mode) OPP/UVP/OVP/SCP/OCP protection 80 Plus Bronze Certified 80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency. Reliable Mesh Braided Cable P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case. 100% Japanese Capacitors All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. Single +12V Rail Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation. 120mm Hydraulic Bearing (HYB) Fan 120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable lifetime. SPECIFICATIONS Model P650B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 9A-4A Input Frequency 50-60 Hz Output Capacity  650W Dimension D150 x W140 x H86 mm Fan Type 120 mm Hydraulic Bearing Fan Efficiency  up to 85% at typical load MTBF >100,000 hours Protection  OPP/UVP/OVP/SCP/OCP Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE Connectors ATX/MB 20+4 Pin x 1 CPU/EPS 4+4 Pin x 1 PCI-e 6+2 Pin x 4, SATA x 6 4 Pin Peripheral x3  4 Pin Floppy x 1

Read more less

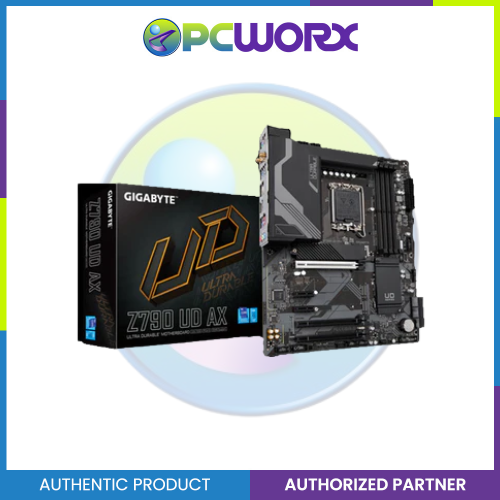

Specification Processor Socket LGA 1700 CPU Support 13th and 12th Gen Intel Core processors Chipset Intel Z790 Form Factor ATX Memory 4 x DDR5 DIMM sockets, up to 192 GB Memory Support Dual Channel DDR5, XMP 3.0 support, non-ECC Un-buffered DIMM Expansion Slots 1 x PCIe 5.0 x16 slot with EZ-Latch Plus<br>1 x PCIe 4.0 x16 slot Storage 3 x PCIe 4.0 x4 M.2 connectors<br>6 x SATA 6Gb/s connectors Networking 2.5GbE LAN<br>Intel Wi-Fi 6E 802.11ax and Bluetooth 5.3 Audio Realtek Audio CODEC Rear I/O 1 x USB Type-C (USB 3.2 Gen 2x2)<br>1 x USB Type-A (USB 3.2 Gen 2)<br>4 x USB 3.2 Gen 1 ports<br>1 x HDMI port<br>1 x DisplayPort<br>1 x RJ-45 port<br>3 x audio jacks Internal Connectors 1 x USB Type-C (USB 3.2 Gen 1) header<br>2 x USB 3.2 Gen 1 headers<br>Multiple fan and power headers Unique Features Q-Flash Plus (update BIOS without CPU/RAM/GPU)<br>Smart Fan 6<br>M.2 Thermal Guard CPU Chipset Memory Onboard Graphics Audio LAN Wireless Communication module Expansion Slots Storage Interface USB Internal I/O Connectors Back Panel Connectors I/O Controller H/W Monitoring BIOS Unique Features Bundled Software Operating System Form Factor   Z790 UD AX 1.0/1.1 LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Intel® Z790 Express Chipset Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX210 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks iTE® I/O Controller Chip Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Norton® Internet Security (OEM version) LAN bandwidth management software Support for Windows 11 64-bit Support for Windows 10 64-bit ATX Form Factor; 30.5cm x 24.4cm

Read more less

Key specifications CPU Socket:  LGA1700 CPU Support:  Intel Core 14th, 13th, and 12th Gen processors  Chipset:  Intel Z790 Express Chipset  Memory: 4 x DDR5 DIMM sockets  Supports dual-channel architecture  Max capacity:  256GB  Speeds up to 7600MHz (OC)  Supports Intel XMP 3.0  Storage: 4 x PCIe 4.0 x4 M.2 Connectors  6 x SATA 6Gb/s connectors  Expansion Slots: 1x PCIe x16 slot  (Details may vary by revision, refer to official specs for exact slot configuration) Networking: 2.5GbE LAN  Wi-Fi 6E 802.11ax  Bluetooth 5.3  Rear I/O: USB Type-C (USB 3.2 Gen 2x2) with 20Gb/s support  USB Type-C (USB 3.2 Gen 2) with 10Gb/s support  Multiple USB 3.2 Gen 2 and Gen 1 ports  HDMI and DisplayPort  Other Features: Twin 16+1+2 Phases Digital VRM Solution  Advanced Thermal Design and M.2 Thermal Guard  EZ-Latch Plus (screwless M.2 design)  Smart Fan 6  Q-Flash Plus (BIOS update without CPU, memory, or GPU)

Read more less

Processor and chipset CPU Socket:  LGA 1700 Processor Support:  Intel 12th, 13th, and 14th Gen Core processors  Memory Type:  DDR4 Slots:  4 x 288-Pin DIMM sockets Memory Support:  Dual Channel, XMP memory module support  Storage M.2 Connectors:  2 x PCIe 4.0 x4 M.2 connectors SATA:  4 x SATA 6Gb/s connectors RAID:  Supports RAID 0, 1, 5, and 10 for SATA devices  Expansion slots PCIe x16:  1 x PCI Express 4.0 x16 slot with EZ-Latch for quick release PCIe x1:  2 x PCI Express 3.0 x1 slots  Networking LAN:  2.5GbE LAN Wireless:  Wi-Fi 6E (802.11ax) and Bluetooth 5  Rear I/O USB:  1 x USB Type-C® (USB 3.2 Gen 2 10Gb/s), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1  Video Output:  1 x HDMI, 1 x DisplayPort  Audio:  8-channel HD Audio  Internal connectors USB:  1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers Power:  1 x 24-pin ATX power connector, 1 x 8-pin ATX 12V power connector Fan Headers:  1 x CPU fan header, 3 x system fan headers Lighting:  1 x addressable LED strip header, 1 x RGB LED strip header  Other features BIOS:  Q-Flash Plus for BIOS updates without a CPU, memory, or GPU Cooling:  Smart Fan 6 with multiple temperature sensors and hybrid fan headers Form Factor:  Micro-ATX

Read more less

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)ChipsetIntel® B760 Express ChipsetMemorySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.31 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version.(Graphics specifications may vary depending on CPU support.)Support for up to quad-display at the same timeAudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1Storage InterfaceCPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSBChipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacksI/O ControlleriTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusBundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorMicro ATX Form Factor; 24.4cm x 24.4cm
