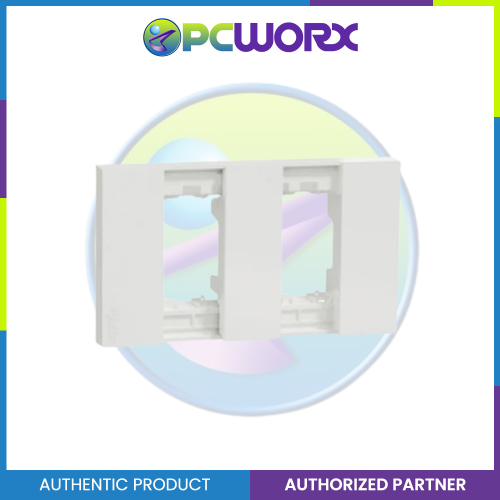

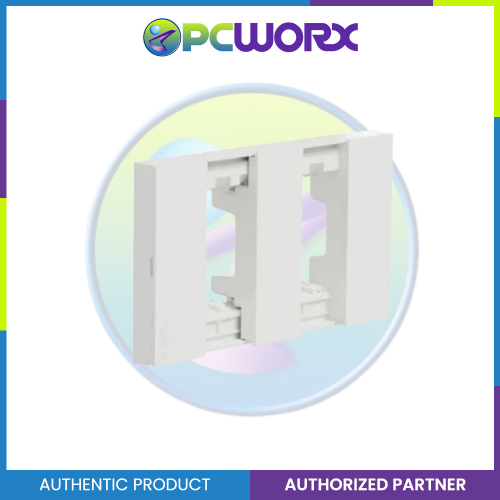

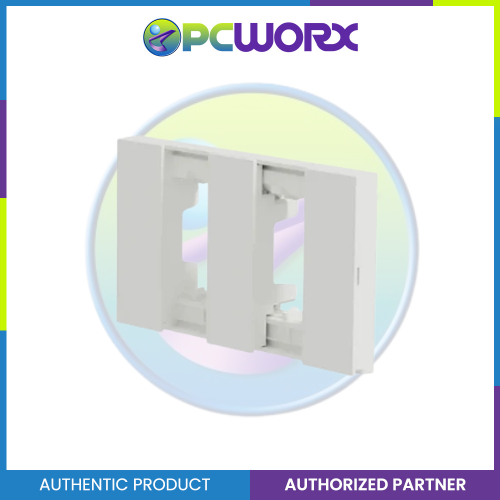

Schneider AvatarOn A 2 gangs Blank Plate - WHITE M3T02-WE

PCWORX

Schneider AvatarOn A 2 gangs Blank Plate - WHITE M3T02-WE

(0)

₱51.75

Specification	Details
Range of product	AvatarOn A
Product or component type	Blank plate
Number of gangs	2 gangs
Colour tint	White
Material	PC: grid plate, PC: side panels
Device mounting	Flush
Width	120 mm
Height	70 mm
Depth	25.7 mm
Ambient air temperature for operation	-5…45 °C
Relative humidity	0…95 %
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.6 cm
Package 1 Width	7 cm
Package 1 Length	12 cm
Package 1 Weight	77 g

In stock

Receives in 6 days.

Schneider AvatarOn A 2 USB port 5 V AC-DC USB Charger Outlet - BLACK M3T-USB2-BK | USB Outlet

PCWORX

Schneider AvatarOn A 2 USB port 5 V AC-DC USB Charger Outlet - BLACK M3T-USB2-BK | USB Outlet

(0)

₱1,330.56

Specification	Detail
Range of Product	AvatarOn A
Product / Component Type	USB charger
Mounting Mode	Flush-mounted
Integrated Connection Type	2 × USB ports, 5 V AC/DC
Maximum Load Current	2.4 A
Device Presentation	Complete product
Colour Tint	Black
Surface Finish	Matt
Surface Treatment	Painted
Ambient Air Temperature (Operation)	-5…45 °C
Ambient Air Temperature (Storage)	-5…60 °C
Relative Humidity	0…95 %
Rated Operational Voltage [Ue]	110…220 V, 50…60 Hz
Input Power	12 W
Maximum Load Current (2 outputs simultaneously)	2.4 A
Material	PC (UL94 V-0)
Screwdriver Shape	Philips No. 2
Clamping Connection Capacity	0.5…4 mm² (solid or flexible cables)
Wire Stripping Length	12 mm
Height	69.3 mm
Width	46.6 mm
Depth	36 mm
Embedding Depth	25 mm
Standards	IEC 62368-1
Product Certifications	IEC
IP Degree of Protection	IP20
Packing Unit Type	PCE
Units per Package	1
Package Dimensions (H × W × L)	3.6 × 4.66 × 7.0 cm
Package Weight	53.0 g

In stock

Receives in 6 days.

Schneider AvatarOn A 2 USB port 5 V AC-DC USB Charger outlet - GREY M3T-USB2-GY | USB Outlet

PCWORX

Schneider AvatarOn A 2 USB port 5 V AC-DC USB Charger outlet - GREY M3T-USB2-GY | USB Outlet

(0)

₱1,331.00

Category	Specification
Range of Product	AvatarOn A
Product / Component Type	USB Charger
Mounting Mode	Flush-mounted
Integrated Connection Type	2 × USB ports, 5 V AC/DC
Maximum Load Current	2.4 A
Device Presentation	Complete product
Colour Tint	Grey
Surface Finish	Matt
Surface Treatment	Painted
Operating Ambient Temperature	-5 to 45 °C
Storage Ambient Temperature	-5 to 60 °C
Relative Humidity	0–95%
Rated Operational Voltage (Ue)	110–220 V, 50–60 Hz
Input Power	12 W
Max Load Current (2 Outputs Simultaneously)	2.4 A
Material	PC (UL94 V-0)
Screwdriver Type	Philips No. 2
Clamping Connection Capacity	0.5–4 mm² (solid or flexible cables)
Wire Stripping Length	12 mm
Height	69.3 mm
Width	46.6 mm
Depth	36 mm
Embedding Depth	25 mm
Standards	IEC 62368-1
Product Certifications	IEC
IP Degree of Protection	IP20
Package 1 Type	PCE
Units in Package 1	1
Package 1 Dimensions (H × W × L)	3.6 × 4.66 × 7.0 cm
Package 1 Weight	53.0 g

In stock

Receives in 6 days.

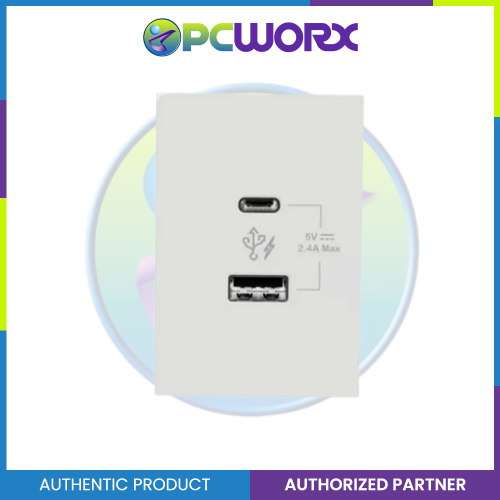

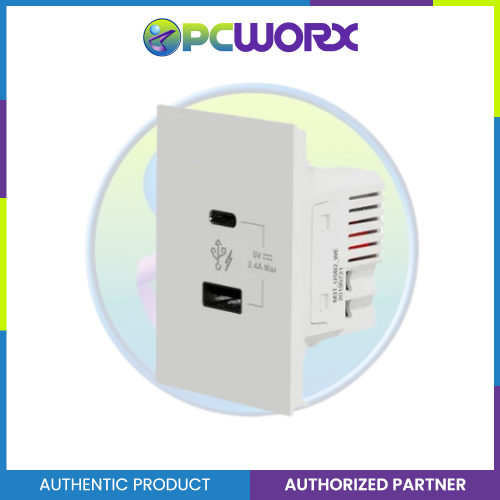

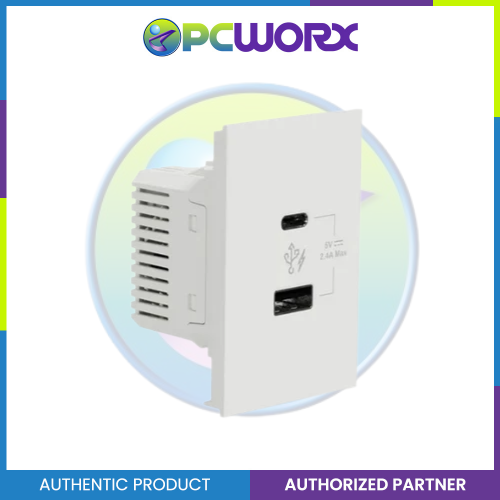

Schneider AvatarOn A 2 USB port 5 V AC-DC USB Charger Outlet - WHITE M3T-USB2-WE | USB Outlet

PCWORX

Schneider AvatarOn A 2 USB port 5 V AC-DC USB Charger Outlet - WHITE M3T-USB2-WE | USB Outlet

(0)

₱1,266.00

Product Specifications

Category	Specification
Range of Product	AvatarOn A
Product / Component Type	USB Charger
Mounting Mode	Flush-mounted
Integrated Connection Type	2 × USB ports, 5 V AC/DC
Maximum Load Current	2.4 A
Device Presentation	Complete product
Colour Tint	Grey
Surface Finish	Matt
Surface Treatment	Painted
Operating Ambient Temperature	-5 to 45 °C
Storage Ambient Temperature	-5 to 60 °C
Relative Humidity	0–95%
Rated Operational Voltage (Ue)	110–220 V, 50–60 Hz
Input Power	12 W
Max Load Current (2 Outputs Simultaneously)	2.4 A
Material	PC (UL94 V-0)
Screwdriver Type	Philips No. 2
Clamping Connection Capacity	0.5–4 mm² (solid or flexible cables)
Wire Stripping Length	12 mm
Height	69.3 mm
Width	46.6 mm
Depth	36 mm
Embedding Depth	25 mm

Standards & Protection

Category	Details
Standards	IEC 62368-1
Product Certifications	IEC
IP Degree of Protection	IP20

Packaging Information

Package Type	Units per Package	Height	Width	Length	Weight
PCE (Package 1)	1	3.6 cm	4.66 cm	7.0 cm	53.0 g
BB1 (Package 2)	10	9.1 cm	13.0 cm	25.5 cm	607.0 g
S03 (Package 3)	120	30.0 cm	30.0 cm	40.0 cm	7.929 kg

In stock

Receives in 6 days.

Schneider AvatarOn A 250 VA Rotary Dimmer - BLACK M3T1V400DM-BK

PCWORX

Schneider AvatarOn A 250 VA Rotary Dimmer - BLACK M3T1V400DM-BK

(0)

₱2,589.72

Schneider Electric AvatarOn dimmer M3T1V400DM_BK is a complete product in color black. 220...240V is the rated operational voltage. It is 23.1 mm in width, 69.3 mm in height, 55.3 mm in depth, and with an embedding depth of 29.5 mm. And the product weighs 0.033 kg. The IP rating of this device is IP20. What's more, it well satisfied the standard of IEC 60669-2-1. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.

AvatarOn A Dimmer – Specifications

Category	Feature	Specification
Main	Range of Product	AvatarOn A
	Product or Component Type	Dimmer
	Device Presentation	Complete product
	Provided Equipment	Switch
	Dimmer Control	270° rotary setting
	Load Type	Dimmable LED: 1 W (220–240 V AC) Fan: 400 W
	Dimmer Additional Information	2-wire connection
	Colour Tint	Black
Complementary	Rated Operational Voltage [Ue]	220–240 V AC, 50 Hz
	Height	69.3 mm
	Width	23.1 mm
	Depth	55.3 mm
	Embedding Depth	29.5 mm
	Net Weight	0.033 kg
Environment	IP Degree of Protection	IP20
	Operating Ambient Temperature	−5…45 °C
	Storage Ambient Temperature	−5…60 °C
	Relative Humidity	0…95 %
Standards	Compliance	IEC 60669-2-1
Packing Units	Unit Type Package 1	PCE
	Number of Units (Package 1)	1
	Package 1 Dimensions (H × W × L)	5.5 × 2.3 × 7.0 cm
	Package 1 Weight	35.0 g

In stock

Receives in 6 days.

Schneider AvatarOn A 250 VA Rotary Dimmer - GREY M3T1V400DM-GY

PCWORX

Schneider AvatarOn A 250 VA Rotary Dimmer - GREY M3T1V400DM-GY

(0)

₱2,589.72

Schneider Electric AvatarOn dimmer M3T1V400DM_GY is a complete product in color grey. 220...240V is the rated operational voltage. It is 23.1 mm in width, 69.3 mm in height, 55.3 mm in depth, and with an embedding depth of 29.5 mm. And the product weighs 0.033 kg. It reaches IP20 degree of protection too. What's more, it well satisfied the standard of IEC 60669-2-1. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.

Main Specifications

Category	Details
Range of Product	AvatarOn A
Product / Component Type	Dimmer
Device Presentation	Complete Product
Provided Equipment	Switch
Dimmer Control	270° Rotary Setting
Load Type	Dimmable LED: 1 W (220–240 V AC) Fan: up to 400 W
Additional Information	2-Wire Connection
Colour Tint	Black

Electrical & Dimensions

Category	Details
Rated Operational Voltage	220–240 V AC, 50 Hz
Height	69.3 mm
Width	23.1 mm
Depth	55.3 mm
Embedding Depth	29.5 mm
Net Weight	0.033 kg

Environmental Specifications

Category	Details
IP Degree of Protection	IP20
Operating Temperature	-5 °C to +45 °C
Storage Temperature	-5 °C to +60 °C
Relative Humidity	0–95 %

Standards & Compliance

Category	Details
Standards	IEC 60669-2-1

Packaging Information

Package 1

Category	Details
Unit Type	PCE
Units per Package	1
Dimensions (H×W×L)	5.5 × 2.3 × 7.0 cm
Weight	35.0 g

In stock

Receives in 6 days.

Schneider AvatarOn A 250 VA Rotary Dimmer - WHITE M3T1V400DM-WE

PCWORX

Schneider AvatarOn A 250 VA Rotary Dimmer - WHITE M3T1V400DM-WE

(0)

₱2,071.20

Schneider Electric AvatarOn dimmer M3T1V400DM_WE is a complete product in color white. In addition, the rated operational voltage of this device is 220...240V. It is 23.1 mm in width, 69.3 mm in height, 55.3 mm in depth, and with an embedding depth of 29.5 mm. And the product weighs 0.033 kg. The IP rating of this device is IP20. What's more, it well satisfied the standard of IEC 60669-2-1. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life.

Category	Feature	Details
Main	Range of Product	AvatarOn A
	Product Type	Dimmer
	Device Presentation	Complete product
	Provided Equipment	Switch
	Dimmer Control	270° rotary setting
	Load Type	Dimmable LED – 1 W – 220–240 V AC, Fan – 400 W
	Dimmer Additional Info	2-wire connection
	Colour Tint	Black
Complementary	Rated Operational Voltage ([Ue])	220–240 V AC 50 Hz
	Height	69.3 mm
	Width	23.1 mm
	Depth	55.3 mm
	Embedding Depth	29.5 mm
	Net Weight	0.033 kg
Environment	IP Degree of Protection	IP20
	Operating Temperature	-5…45 °C
	Storage Temperature	-5…60 °C
	Relative Humidity	0…95 %
Standards	Compliance	IEC 60669-2-1
Package 1	Unit Type	PCE
	Number of Units	1
	Package Height	5.5 cm
	Package Width	2.3 cm
	Package Length	7.0 cm
	Package Weight	35 g

Low in stock

Receives in 6 days.

Schneider AvatarOn A 3 gangs Blank Plate - BLACK M3T03-BK

PCWORX

Schneider AvatarOn A 3 gangs Blank Plate - BLACK M3T03-BK

(0)

₱63.25

In stock

Receives in 6 days.

Schneider AvatarOn A 3 gangs Blank Plate - GREY M3T03-GY

PCWORX

Schneider AvatarOn A 3 gangs Blank Plate - GREY M3T03-GY

(0)

₱63.60

Schneider Electric AvatarOn blank plate M3T03_GY is in color grey. Its matching mounting box can be recessed into the surface of the wall with flush type. This blank plate comes with 3 gangs. It is 120 mm in width, 70 mm in height, 19 mm in depth. A blanking plate is essential to help protect exposed sockets from dust and moisture. This blank plate looks aestetically pleasing as well as it ensures children are unable to push unwanted things into the exposed sockets. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Category	Specification	Details

Main

Range of Product

AvatarOn A

Product or Component Type

Blank plate

Number of Gangs

3 gangs

Colour Tint

Grey

Complementary

Material

PC: grid plate; PC: side panels

Device Mounting

Flush

Width

120 mm

Height

70 mm

Depth

19 mm

Environment

Operating Temperature

−5 to 45 °C

Relative Humidity

0–95%

Packing Units – Package 1

Unit Type

PCE

Units per Package

1

Height

1.9 cm

Width

7 cm

Length

12 cm

Weight

77 g

In stock

Receives in 6 days.

Schneider AvatarOn A 3 gangs Blank Plate - WHITE M3T03-WE

PCWORX

Schneider AvatarOn A 3 gangs Blank Plate - WHITE M3T03-WE

(0)

₱65.00

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦 • range of product: AvatarOn A • product or component type: Blank plate • number of gangs: 3 gangs • colour tint: White Complementary • material: PC: grid plate • PC: side panels • device mounting: Flush Environment • ambient air temperature for operation: -5…45 °C • relative humidity: 0…95 %

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦 • width: 120 mm • height: 70 mm • depth: 19 mm

Category	Parameter	Specification
Main	Range of product	AvatarOn A
	Product or component type	Blank plate
	Number of gangs	3 gangs
	Colour tint	White
Complementary	Material	PC: grid platePC: side panels
	Device mounting	Flush
	Width	120 mm
	Height	70 mm
	Depth	19 mm
Environment	Ambient air temperature for operation	-5…45 °C
	Relative humidity	0…95 %
Packing Units (Package 1)	Unit type	PCE
	Number of units	1
	Package height	1.9 cm
	Package width	7 cm
	Package length	12 cm
	Package weight	78 g

In stock

Receives in 6 days.

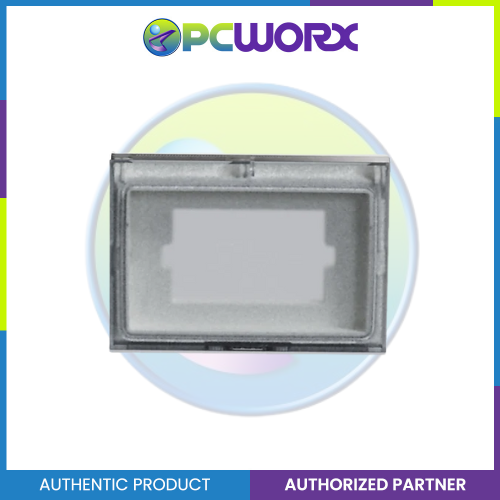

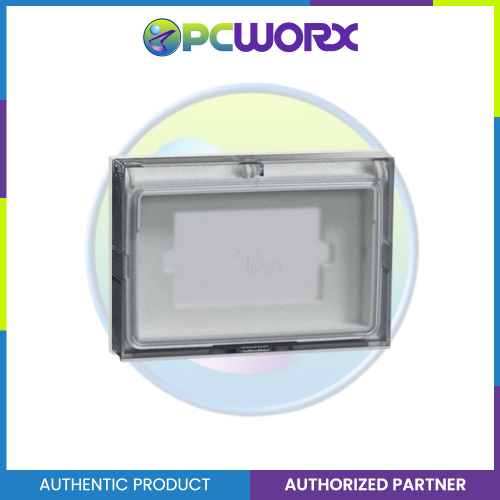

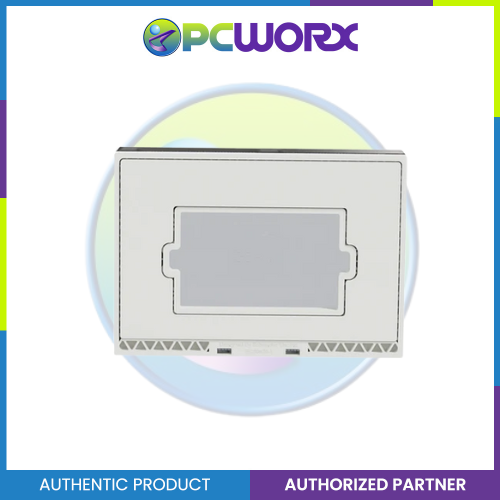

Schneider AvatarOn A Square Weather Proof Box White M3T01WP-WE

PCWORX

Schneider AvatarOn A Square Weather Proof Box White M3T01WP-WE

(0)

₱837.00

Category	Parameter	Specification
Main	Range of product	AvatarOn A
	Range	AvatarOn
	Product or component type	Weatherproof enclosure
	Colour tint	White
Complementary	Device presentation	Complete product
	Shape	Square
	Material	PC (polycarbonate) translucent
	Surface finish	Silicon textured
	Thickness	2.5 mm
	Length	143.28 mm
	Width	101.28 mm
	Depth	27.8 mm
Environment	Standards	IEC 60670-1
	IP degree of protection	IP55
Packing	Unit type of package 1	PCE
	Number of units in package 1	1
	Package 1 height	10.5 cm
	Package 1 width	5.9 cm
	Package 1 length	13 cm
	Package 1 weight	158 g

In stock

Receives in 6 days.

Schneider AvatarOn A Switched Socket Universal 16 A, 250 V, 2G, 3 pin M3T-SIS-WE | Switch Outlet

PCWORX

Schneider AvatarOn A Switched Socket Universal 16 A, 250 V, 2G, 3 pin M3T-SIS-WE | Switch Outlet

(0)

₱380.00

In stock

Receives in 6 days.

Schneider AvatarOn A Switched Socket Universal 16 A, 250 V, 2G, 3 pin, Black M3T-SIS-BK | Switch Outlet

PCWORX

Schneider AvatarOn A Switched Socket Universal 16 A, 250 V, 2G, 3 pin, Black M3T-SIS-BK | Switch Outlet

(0)

₱634.34

Category	Parameter	Specification
Main	Range	AvatarOn A
	Product or component type	Switched socket
	Device application	Power supply
	Device presentation	Complete product
	Colour tint	Black
Complementary	Socket number	2
	Outlet standard description	3 pins
	Outlet standard deviation	Universal
	Switch function	1-way
	Number of gangs	2 gangs
	Connections – terminals	Push-in
	Number of terminals	3
	Clamping connection capacity	Solid cable: 2 × 1.5…2 × 4 mm²
		Stranded cable: 2 × 1.5…2 × 4 mm²
	Wire stripping length	13 mm
	Material	Polycarbonate
	Surface finish	Glossy / Matt
	Device mounting	Flush
	Fixing mode	By 2 screws
Dimensions & Weight	Height	70 mm
	Width	120 mm
	Depth	30.3 mm
	Embedding depth	19.3 mm
	Net weight	0.118 kg
Electrical	Rated current	16 A at 250 V AC 50/60 Hz
Environment	IP degree of protection	IP20
	Operating temperature	-5…45 °C
	Storage temperature	-5…60 °C
	Relative humidity	0…95 %
	Standards	IEC 60884-2-3
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	3.6 cm
	Package 1 width	7 cm
	Package 1 length	12 cm
	Package 1 weight	117 g

In stock

Receives in 6 days.

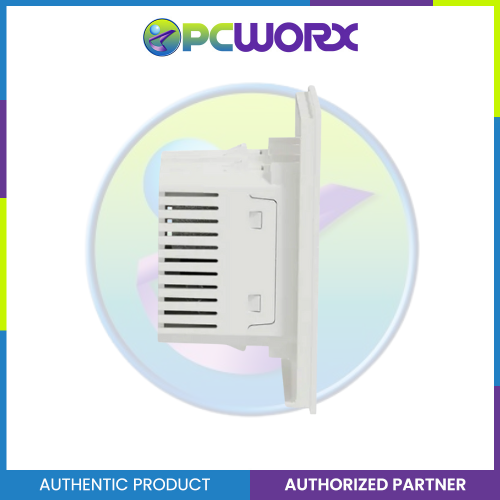

Schneider AvatarOn A Switched Socket Universal 16 A, 250 V, 2G, 3 pin, Grey M3T-SIS-GY | Switch Outlet

PCWORX

Schneider AvatarOn A Switched Socket Universal 16 A, 250 V, 2G, 3 pin, Grey M3T-SIS-GY | Switch Outlet

(0)

₱661.20

Category	Parameter	Specification
Main	Range	AvatarOn A
	Product or component type	Switched socket
	Device application	Power supply
	Device presentation	Complete product
	Colour tint	Grey
Complementary	Socket number	2
	Outlet standard description	3 pins
	Outlet standard deviation	Universal
	Switch function	1-way
	Number of gangs	2 gangs
	Connections – terminals	Push-in
	Number of terminals	3
	Clamping connection capacity	Solid cable: 2 × 1.5…2 × 4 mm²
		Stranded cable: 2 × 1.5…2 × 4 mm²
	Wire stripping length	13 mm
	Material	Polycarbonate
	Surface finish	Glossy / Matt
	Device mounting	Flush
	Fixing mode	By 2 screws
Dimensions & Weight	Height	70 mm
	Width	120 mm
	Depth	30.3 mm
	Embedding depth	19.3 mm
	Net weight	0.118 kg
Electrical	Rated current	16 A at 250 V AC 50/60 Hz
Environment	IP degree of protection	IP20
	Operating temperature	-5…45 °C
	Storage temperature	-5…60 °C
	Relative humidity	0…95 %
	Standards	IEC 60884-2-3
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	3.6 cm
	Package 1 width	7 cm
	Package 1 length	12 cm
	Package 1 weight	117 g

In stock

Receives in 6 days.

Schneider CA_CCS3045SA_T3P_G20 Outlet 2 GANG 3-PIN UNIVERSAL OUTLET_C12504

PCWORX

Schneider CA_CCS3045SA_T3P_G20 Outlet 2 GANG 3-PIN UNIVERSAL OUTLET_C12504

(0)

₱320.88

In stock

Receives in 6 days.

Schneider CA_FS2GT3P_OA_G20 Outlet 2 Gang 3pin Universal Socket_C12103

PCWORX

Schneider CA_FS2GT3P_OA_G20 Outlet 2 Gang 3pin Universal Socket_C12103

(0)

₱261.24

Sleek Design: functionality look stylish. The combination of classic white colour and streamline design is a testimonial of simple elegance. Better still, S-Flexi with FlexiFix helps you put up as many or as less wall plates as the interior design calls for. FlexiFix Module Mounting Design: That is the qunique design for the grid plate to allows you to position the modules anywhere along the inner slots of thegrid plate. This, together with the standardised sizing of the modules, gives you an interchangeable modular system with insurmountable flexibility to create your switches and sockets the way you want them. Made with high quality Polycarbonate (PC) materials: S-Flexi switches and sockets are virtually unbreakable. They are tested to comply with the IEC safety standards, ensuring maximum safety and reliability. Various Function and equipment size: With a range of switch and socket modules of various functions , this range also have international socket to support customer. S- Flexi created in such standard sizes as Large (L), Medium (M), Small (S) and Extra Small (XS), S-Flexi enables you to optimise your needs and fully utilise every inch of every wall plate.

Benefits

S-Flexi is that right tool for you. Engineered to deliver the highest level of versatility in installation and combination of modules, S-Flexi is just another masterpiece by Schneider Electric demonstrating a perfect blend of the functional and aesthetic elements in electrical accessories for the contemporary homes. S-Flexi is easy to install due to the special design of grid plate,S-Flexi is also safe and durable because of high quality material.

Applications

Residential, commercial applications. Flush- or surface-mounted installations.

S-Flexi also prepared for any kind of residential living and all non-residential applications like schools or gymnasium.

Category	Specification
Brand	Schneider Electric
SKU	3606470745_PH-18717948424
Type of Plugs	Universal Plug
Powerpoint Type	Double GPO
What’s in the Box	1x Schneider Electric S-Flexi 16A 250V 2 Gang 3-Pin Universal Socket Set (Assembled)
Qualification
License Type	PH_DTI_PS_ICC
License Code	Not specified

Out of stock

Receives in 6 days.

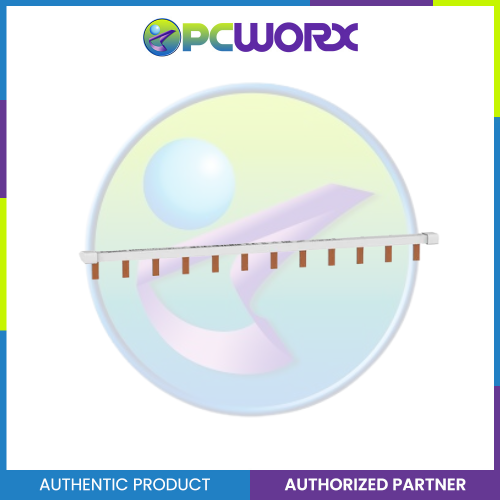

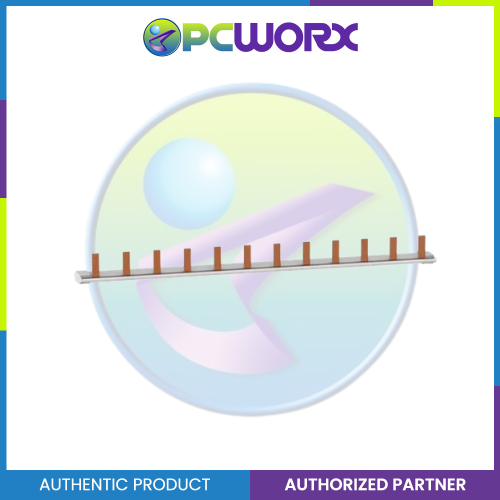

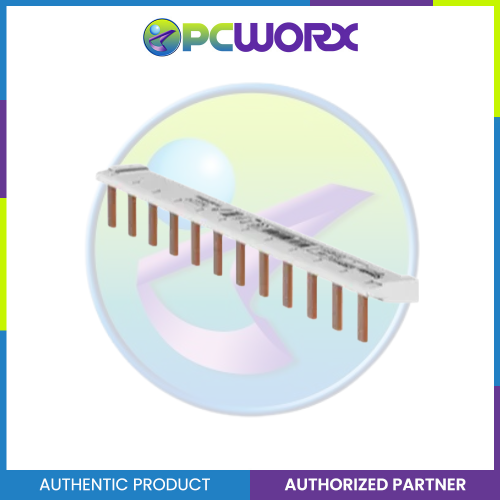

Schneider Easy9 Comb Busbar 1P 12 Modules Connection Comb (EZ9XPH112)

PCWORX

Schneider Easy9 Comb Busbar 1P 12 Modules Connection Comb (EZ9XPH112)

(0)

₱208.80

Easy9 Comb Busbar – Specifications

Category	Specification
Range	Easy9
Product or Component Type	Comb busbar
Accessory Category	Connection accessory
Mounting Mode	Horizontal
Lines Description	1L
Length (18 mm Modules)	12
Number of Ways	12 ways (1L)
Poles Configuration per Way	1 × 1P
Connection Pitch	18 mm
Distance Between Ways	18 mm
Connector Type	Tooth
Insulation	Insulated
Device Presentation	Cuttable
Provided Equipment	2 × end pieces
Rated Operational Current (Ie)	63 A at 40 °C
Rated Operational Voltage (Ue)	230 V AC, 50 Hz (Ph/N)
Rated Insulation Voltage (Ui)	500 V AC (IEC 61439-1)
Mounting Location	Top on tunnel-type terminals
9 mm Pitches	24
Width	220 mm
Colour	Light grey (RAL 7035)
Range Compatibility	Easy9, Easy9 XP
Standards	IEC 60439-1, IEC 60664
Fire Resistance	850 °C (30 s) – IEC 60695-2-1
Pollution Degree	2

Packing Units

Package Type	Quantity	Dimensions (H × W × L)	Weight
PCE	1	1.5 × 1.5 × 21.5 cm	35 g
BB1	15	5.9 × 8.5 × 24.8 cm	583 g
S03	270	30 × 30 × 40 cm	10.835 kg

Low in stock

Receives in 6 days.

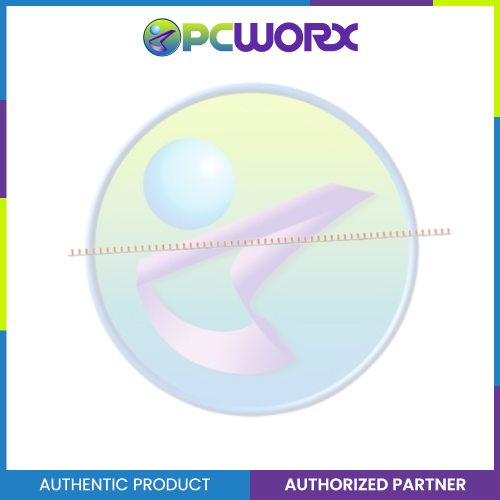

Schneider Easy9 Comb Busbar 1P 63A 57 Modules Connection Comb EZ9XPH157

PCWORX

Schneider Easy9 Comb Busbar 1P 63A 57 Modules Connection Comb EZ9XPH157

(0)

₱871.20

Specification	Details
Range	Easy9
Product Type	Comb busbar
Mounting Mode	Horizontal
Accessory / Separate Part Category	Connection accessory
Lines Description	1L
Length in 18 mm Modules	57
Standards	IEC 60439-1, IEC 60664
Number of Ways	57 ways 1L
Poles Configuration for 1 Way	1 × 1P
Connection Pitch	18 mm
Connector Type	Tooth
Distance Between Ways	18 mm
Insulation	Insulated
Device Presentation	Cuttable
Provided Equipment	2 end pieces
Rated Operational Current [Ie]	63 A at 40 °C
Rated Operational Voltage [Ue]	230 V AC 50 Hz Ph/N
Rated Insulation Voltage [Ui]	500 V AC (IEC 61439-1)
Mounting Location	Top on tunnel type terminals
9 mm Pitches	114
Width	1000 mm
Colour	Light grey (RAL 7035)
Range Compatibility	Easy9, Easy9 XP
Fire Resistance	850 °C (30 s, IEC 60695-2-1)
Pollution Degree	2
Packing Units – PCE	1 unit, 1.5 × 1.5 × 101.5 cm, 170 g
Packing Units – BB1	10 units, 5.2 × 8.8 × 106.5 cm, 1.916 kg
Packing Units – P12	270 units, 75 × 80 × 120 cm, 50.5 kg

In stock

Receives in 6 days.

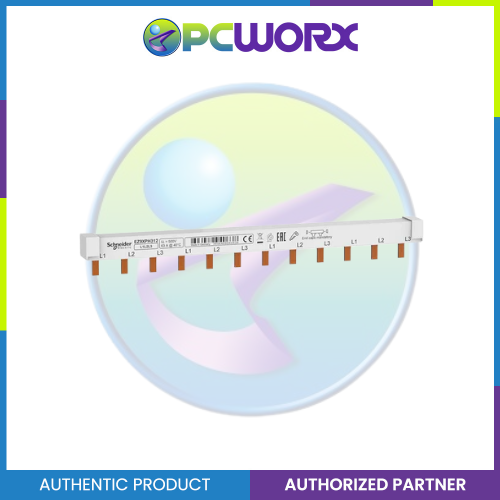

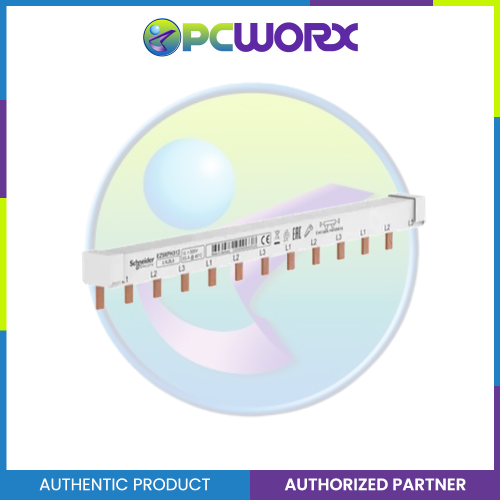

Schneider Easy9 Comb Busbar 3P 12 Modules Connection Comb EZ9XPH312

PCWORX

Schneider Easy9 Comb Busbar 3P 12 Modules Connection Comb EZ9XPH312

(0)

₱486.36

Category	Specification	Details
Main	Range	Easy9
	Product or component type	Comb busbar
	Mounting mode	Horizontal
	Accessory / separate part category	Connection accessory
	Lines description	3L
	Length in 18 mm modules	12
	Standards	IEC 60439-1, IEC 60664
Complementary	Number of ways	4 ways (3 L)
	Poles configuration for 1 way	1 × 3P
	Connection pitch	18 mm
	Connector type	Tooth
	Distance between ways	54 mm
	Insulation	Insulated
	Device presentation	Cuttable
	Provided equipment	2 end pieces
	Rated operational current [Ie]	63 A at 40 °C
	Rated operational voltage [Ue]	230 V AC 50 Hz (Ph/N)400 V AC 50 Hz (Ph/Ph)
	Rated insulation voltage [Ui]	500 V AC (IEC 61439-1)
	Mounting location	Top on tunnel type terminals
	9 mm pitches	24
	Width	220 mm
	Colour	Light grey (RAL 7035)
	Range compatibility	Easy9, Easy9 XP
Environment	Fire resistance	850 °C (30 s) – IEC 60695-2-1
	Pollution degree	2
Packing Units	Package 1	PCE – 1 unit – 1.7 × 2.5 × 21.6 cm – 80 g
	Package 2	BB1 – 10 units – 5.7 × 8.5 × 24.7 cm – 878 g
	Package 3	S02 – 80 units – 15 × 30 × 40 cm – 7.338 kg

In stock

Receives in 6 days.

PCWORX

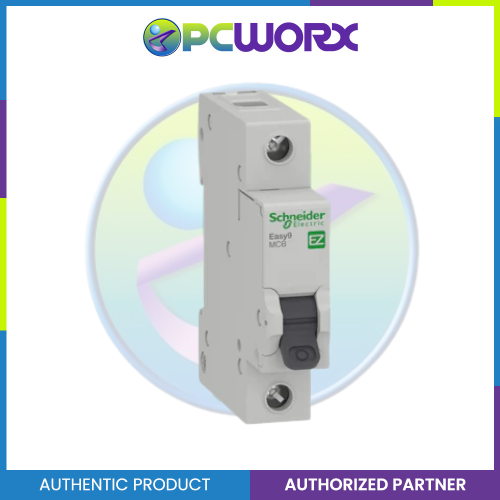

Schneider Easy9 IEC 1 Pole 50A DIN-Rail Type Miniature Circuit Breaker 230V 6 Kaic (EZ9F56150)

(0)

₱260.24

Easy9 Miniature Circuit Breaker – Specifications

Section	Parameter	Value
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	1P
	Number of protected poles	1
	Rated current (In)	50 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	6,000 A Icn at 230 V AC, 50/60 Hz (IEC 60898-1) 10,000 A Icn at 127 V AC, 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes, conforming to IEC 60898-1
Complementary	Network frequency	50/60 Hz
	Rated operational voltage (Ue)	230 V AC, 50 Hz 127 V AC, 50 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity (Ics)	6 kA, 100% × Icn at 230 V AC, 50/60 Hz (IEC 60898-1)
	Rated insulation voltage (Ui)	500 V AC, 50/60 Hz (IEC 60898-1)
	Rated impulse withstand voltage (Uimp)	4 kV (IEC 60898-1)
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	2
	Height	81 mm
	Width	18 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Connections – terminals	Tunnel type terminal (top/bottom), 1–25 mm² flexible Tunnel type terminal (top/bottom), 1–35 mm² rigid
	Tightening torque	3.5 N·m (top or bottom)
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	VDE CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Ambient air temperature (operation)	-5…60 °C
	Ambient air temperature (storage)	-40…85 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	7.5 × 1.8 × 8.5 cm
	Package 1 weight	119 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 1 Pole 63A DIN-Rail Type Miniature Circuit Breaker 230V 6 Kaic (EZ9F56163)

(0)

₱229.32

Specification	Detail
Range	Easy9
Device Application	Distribution
Product / Component Type	Miniature circuit-breaker
Device Short Name	Easy9 MCB
Poles	1P
Number of Protected Poles	1
Rated Current [In]	63 A
Network Type	AC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Breaking Capacity	6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-110000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for Isolation	Yes, conforming to IEC 60898-1
Network Frequency	50/60 Hz
Rated Operational Voltage [Ue]	230 V AC 50 Hz / 127 V AC 50 Hz
Magnetic Tripping Limit	5…10 × In
Rated Service Breaking Capacity [Ics]	6 kA 100 % × Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
Rated Insulation Voltage [Ui]	500 V AC 50/60 Hz conforming to IEC 60898-1
Rated Impulse Withstand Voltage [Uimp]	4 kV conforming to IEC 60898-1
Contact Position Indicator	Yes
Control Type	Toggle
Local Signalling	Without
Mounting Mode	Clip-on
Mounting Support	DIN rail
9 mm Pitches	2
Height	81 mm
Width	18 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical Durability	10000 cycles
Electrical Durability	4000 cycles
Connections - Terminals	Tunnel type terminal (top or bottom) 1–25 mm² flexibleTunnel type terminal (top or bottom) 1–35 mm² rigid
Tightening Torque	3.5 N·m top or bottom
Earth-leakage Protection	Without
Standards	IEC 60898-1
Product Certifications	VDE, CE
IP Degree of Protection	IP20 conforming to IEC 60529
Pollution Degree	2
Tropicalisation	2
Relative Humidity	95 % at -5…60 °C
Ambient Air Temperature for Operation	-5…60 °C
Ambient Air Temperature for Storage	-40…85 °C
Packing Unit Type	PCE
Number of Units in Package	1
Package Dimensions (H × W × L)	7.5 × 1.8 × 8.5 cm
Package Weight	122 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 1P 20A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51120)

(0)

₱275.78

Category	Parameter	Specification
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	1P
	Number of protected poles	1
	Rated current [In]	20 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1)
		10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	230 V AC 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity [Ics]	7.5 kA (75% Icn) at 230 V AC 50/60 Hz
	Limitation class	Class 3 (IEC 60898-1)
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	Number of 9 mm pitches	2
Dimensions	Height	81 mm
	Width	18 mm
	Depth	66.5 mm
Physical	Colour	Grey (RAL 7035)
	Mechanical durability	20,000 cycles
	Electrical durability	4,000 cycles
Connections	Terminal type	Tunnel type (top or bottom)
	Rigid conductor size	1…25 mm²
	Flexible conductor size	1…16 mm²
	Wire stripping length	14 mm
	Tightening torque	2 N·m
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	7.4 cm
	Package 1 width	1.8 cm
	Package 1 length	8.5 cm
	Package 1 weight	106 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 1P 32A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51132)

(0)

₱303.60

Category	Specification	Details
Main	Range	Easy9
	Device Application	Distribution
	Product / Component Type	Miniature Circuit-Breaker
	Device Short Name	Easy9 MCB
Electrical	Poles	1P
	Number of Protected Poles	1
	Rated Current (In)	32 A
	Network Type	AC
	Network Frequency	50/60 Hz
	Rated Operational Voltage (Ue)	230 V AC 50/60 Hz
	Trip Unit Technology	Thermal-magnetic
	Curve Code	C
	Magnetic Tripping Limit	5…10 × In
Breaking Capacity	Breaking Capacity (Icn)	10,000 A at 230 V AC 50/60 Hz (IEC 60898-1)
		10,000 A at 400 V AC 50/60 Hz (IEC 60898-1)
	Rated Service Breaking Capacity (Ics)	7,500 A (75% of Icn) at 230 V AC
	Limitation Class	3 (IEC 60898-1)
Insulation	Rated Insulation Voltage (Ui)	500 V AC 50/60 Hz
	Rated Impulse Withstand Voltage (Uimp)	4 kV
Compliance & Safety	Suitability for Isolation	Yes (IEC 60898-1)
	Earth-Leakage Protection	Without
	Standards	IEC 60898-1
	Product Certification	CE
	IP Degree of Protection	IP20 (IEC 60529)
Mechanical	Control Type	Toggle
	Contact Position Indicator	Yes
	Local Signalling	Without
	Mounting Mode	Clip-on
	Mounting Support	DIN Rail
	9 mm Pitches	2
	Colour	Grey (RAL 7035)
Dimensions	Height	81 mm
	Width	18 mm
	Depth	66.5 mm
Durability	Mechanical Durability	20,000 cycles
	Electrical Durability	4,000 cycles
Connections	Terminal Type	Tunnel type (top or bottom)
	Flexible Cable Size	1…25 mm²
	Rigid Cable Size	1…35 mm²
	Wire Stripping Length	14 mm
	Tightening Torque	3.5 N·m
Environmental	Pollution Degree	2
	Tropicalisation	2
	Relative Humidity	95% at -5…60 °C
	Operating Temperature	-5…60 °C
	Storage Temperature	-40…85 °C
Packaging	Unit Type of Package 1	PCE
	Units per Package 1	1
	Package 1 Height	7.4 cm
	Package 1 Width	1.8 cm
	Package 1 Length	8.5 cm
	Package 1 Weight	118 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 10A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51210)

(0)

₱418.00

Specification	Details
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
[In] rated current	10:00 AM
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation	Yes conforming to IEC 60898-1
Network frequency	50/60 Hz
[Ue] rated operational voltage	400 V AC 50/60 Hz
Magnetic tripping limit	5...10 x In
[Ics] rated service breaking capacity	7500 A 75 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60898-1
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10000 cycles
Electrical durability	4000 cycles
Connections - terminals	Tunnel type terminal (top or bottom) 1…25 mm² rigid; 1…16 mm² flexible
Tightening torque	2 N.m top or bottom
Earth-leakage protection	Without
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	2
Tropicalisation	2
Relative humidity	95 % at -5…60 °C
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-40…85 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.6 cm
Package 1 Width	3.6 cm
Package 1 Length	8.5 cm
Package 1 Weight	211.0 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 10A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56210)

(0)

₱306.60

Category	Specification	Details
Main	Range	Easy9
	Device application	Distribution
	Product / component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	2P
	Number of protected poles	2
	Rated current [In]	10 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10,000 A Icn at 220 V AC 50/60 Hz (IEC 60898-1)
		6,000 A Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	220 V AC / 400 V AC
	Magnetic tripping limit	5…10 × In
	Service breaking capacity [Ics]	6 kA at 230 V AC (100% Icn)
	Rated insulation voltage [Ui]	500 V AC
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	4
	Height	81 mm
	Width	36 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Terminal type	Tunnel terminal (top/bottom)
	Terminal capacity (rigid)	1–25 mm²
	Terminal capacity (flexible)	1–16 mm²
	Tightening torque	2 N·m (top or bottom)
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at −5…60°C
	Operating temperature	−5…60°C
	Storage temperature	−40…85°C
Packing Units	Unit type	PCE
	Units per package	1
	Package height	7.0 cm
	Package width	8.0 cm
	Package length	4.0 cm
	Package weight	198 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51216)

(0)

₱588.00

Category	Parameter	Specification
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	2P
	Number of protected poles	2
	Rated current [In]	16 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	400 V AC 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity [Ics]	7.5 kA (75% Icn) at 400 V AC
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	4
	Height	81 mm
	Width	36 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Connections – rigid cable	1…25 mm²
	Connections – flexible cable	1…16 mm²
	Tightening torque	2 N·m
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing	Unit type of package 1	PCE
	Number of units in package 1	1
	Package 1 height	7.6 cm
	Package 1 width	3.6 cm
	Package 1 length	8.5 cm
	Package 1 weight	211 g

Out of stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56216)

(0)

₱288.00

Category	Parameter	Specification
Main	Range	Easy9
	Device Application	Distribution
	Product or Component Type	Miniature Circuit-Breaker
	Device Short Name	Easy9 MCB
	Poles	2P
	Number of Protected Poles	2
	Rated Current [In]	16 A
	Network Type	AC
	Trip Unit Technology	Thermal-magnetic
	Curve Code	C
	Breaking Capacity	10 kA Icn at 220 V AC 50/60 Hz (IEC 60898-1)6 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for Isolation	Yes, conforming to IEC 60898-1
Complementary	Network Frequency	50/60 Hz
	Rated Operational Voltage [Ue]	220 V AC 50/60 Hz400 V AC 50/60 Hz
	Magnetic Tripping Limit	5…10 × In
	Rated Service Breaking Capacity [Ics]	6 kA (100% × Icn) at 230 V AC 50/60 Hz (IEC 60898-1)
	Rated Insulation Voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
	Rated Impulse Withstand Voltage [Uimp]	4 kV (IEC 60898-1)
	Contact Position Indicator	Yes
	Control Type	Toggle
	Local Signalling	Without
	Mounting Mode	Clip-on
	Mounting Support

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 220/400V 10kAIC EZ9F56220

(0)

₱331.20

Category	Specification
Main
Range	Easy9
Device application	Distribution
Product / component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
Rated current [In]	20 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10,000 A Icn @ 220 V AC 50/60 Hz (IEC 60898-1) 6,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)
Complementary
Network frequency	50/60 Hz
Rated operational voltage [Ue]	220 V AC 50/60 Hz 400 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Service breaking capacity [Ics]	6 kA (100% × Icn) @ 230 V AC 50/60 Hz (IEC 60898-1)
Rated insulation voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage [Uimp]	4 kV (IEC 60898-1)
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles
Connections – terminals	Tunnel terminal (top/bottom) 1–25 mm² rigid Tunnel terminal (top/bottom) 1–16 mm² flexible
Tightening torque	2 N·m (top/bottom)
Earth-leakage protection	Without
Environment
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at –5…60 °C
Ambient temperature (operation)	–5…60 °C
Ambient temperature (storage)	–40…85 °C
Packing Units
Package type 1	PCE
Units per package 1	1
Package 1 (H × W × L)	7.500 cm × 3.000 cm × 8.300 cm
Package 1 weight	193 g

In stock

Receives in 6 days.

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51220)

PCWORX

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51220)

(0)

₱516.00

Category	Specification
Main
Range	Easy9
Device application	Distribution
Product / component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
Rated current [In]	20 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)
Complementary
Network frequency	50/60 Hz
Rated operational voltage [Ue]	400 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Service breaking capacity [Ics]	7,500 A (75% × Icn) @ 400 V AC 50/60 Hz (IEC 60898-1)
Rated insulation voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage [Uimp]	4 kV (IEC 60898-1)
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles
Connections – terminals	Tunnel terminal (top/bottom) 1–25 mm² rigid Tunnel terminal (top/bottom) 1–16 mm² flexible
Tightening torque	2 N·m (top/bottom)
Earth-leakage protection	Without
Environment
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at –5…60 °C
Ambient temperature (operation)	–5…60 °C
Ambient temperature (storage)	–40…85 °C
Packing Units
Package type 1	PCE
Units per package 1	1
Package 1 (H × W × L)	7.6 cm × 3.6 cm × 8.5 cm
Package 1 weight	211 g

Low in stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 32A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51232)

(0)

₱618.00

Category	Specification
Range	Easy9
Device Application	Distribution
Product / Component Type	Miniature circuit-breaker
Device Short Name	Easy9 MCB
Poles	2P
Number of Protected Poles	2
Rated Current (In)	32 A
Network Type	AC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Breaking Capacity	10,000 A (Icn) at 400 V AC 50/60 Hz, IEC 60898-1
Suitability for Isolation	Yes, IEC 60898-1 compliant
Network Frequency	50/60 Hz
Rated Operational Voltage (Ue)	400 V AC 50/60 Hz
Magnetic Tripping Limit	5…10 × In
Rated Service Breaking Capacity (Ics)	7,500 A (75 % × Icn) at 400 V AC 50/60 Hz
Rated Insulation Voltage (Ui)	500 V AC 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)	4 kV
Contact Position Indicator	Yes
Control Type	Toggle
Local Signalling	Without
Mounting Mode	Clip-on
Mounting Support	DIN rail
9 mm Pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical Durability	10,000 cycles
Electrical Durability	4,000 cycles
Connections – Terminals	Tunnel terminal (top/bottom): 1–25 mm² flexible; 1–35 mm² rigid
Tightening Torque	3.5 N·m (top or bottom)
Earth-leakage Protection	Without
Standards	IEC 60898-1
Product Certifications	CE
IP Degree of Protection	IP20 (IEC 60529)
Pollution Degree	2
Tropicalisation	2
Relative Humidity	95 % at −5…60 °C
Ambient Temperature (Operation)	−5…60 °C
Ambient Temperature (Storage)	−40…85 °C

Package	Unit Type	Units per Package	Height	Width	Length	Weight
Package 1	PCE	1	7.6 cm	3.6 cm	8.5 cm	220 g
Package 2	BB1	6	8.8 cm	7.8 cm	22.6 cm	1.428 kg
Package 3	S03	72	30 cm	30 cm	40 cm	15.84 kg

In stock

Receives in 6 days.

𝗠𝗮𝗶𝗻
	Range Concept
	Product or component type Socket-outlet
	Device presentation Complete product
	Outlet poles configuration 2 x 2P + E with shutters
	Provided equipment Socket-outlet
	Colour tint White
	Type of packing Plastic bag
	Quantity per set 1

𝗖𝗼𝗺𝗽𝗹𝗲𝗺𝗲𝗻𝘁𝗮𝗿𝘆
	Number of power socket outlets 2
	Device mounting Wall
	Range compatibility Concept
	Number of modules 2 modules
	Fixing mode By screws
	Surface finish Glossy
	Surface treatment Untreated
	Rated current 16 A at 250 V AC 50/60 Hz
	Electrical durability 5000 cycles
	Connections - terminals 6 folded terminal
	Number of cables 3
Clamping connection capacity:	1.5...4 mm² for rigid cable(s)
	1.5...4 mm² for stranded cable(s)
Wire stripping length:	12 mm
Height:	117 mm
Width:	70 mm
Depth:	38 mm
Embedding depth:	28 mm
𝗘𝗻𝘃𝗶𝗿𝗼𝗻𝗺𝗲𝗻𝘁
Ambient air temperature for operation:	-5…40 °C
Relative humidity:	0…95 %
Standards:	IEC
Relative humidity:	0…95 %
𝗢𝗳𝗳𝗲𝗿 𝗦𝘂𝘀𝘁𝗮𝗶𝗻𝗮𝗯𝗶𝗹𝗶𝘁𝘆
Sustainable offer status:	Green Premium product
REACh Regulation: REACh Declaration:	REACh Declaration
REACh free of SVHC:	Yes
EU RoHS Directive:	Yes
REACh free of SVHC:	Yes
Compliant
EU RoHS Declaration:
Toxic heavy metal free:	Yes
Mercury free:	Yes
RoHS exemption information:	Yes
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
𝗣𝗮𝗰𝗸𝗶𝗻𝗴 𝗨𝗻𝗶𝘁
Height:	117 mm
Width:	70 mm
Depth:	38 mm

Main menu

Product comparison

Specifications
Main
Range of product
AvatarOn A
Product or component type
Blank plate
Number of gangs
3 gangs
Colour tint
Black
Colour tint
Black
Complementary
Material
PC: grid plate
PC: side panels
Device mounting
Flush
Width
120 mm
Height
70 mm
Depth
19 mm
Environment
Ambient air temperature for operation
-5…45 °C
Relative humidity
0…95 %
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.9 cm
Package 1 Width
7 cm
Package 1 Length
12 cm
Package 1 Weight
77 g
Unit Type of Package 2
BB1
Number of Units in Package 2
12
Package 2 Height
9.1 cm
Package 2 Width
13 cm
Package 2 Length
25.5 cm
Package 2 Weight
1.01 kg
Unit Type of Package 3
S03
Number of Units in Package 3
96
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
8.69 kg

Main menu

MAXIMIZEBF

Explore Related Collections
