β±306.60
| Category | Specification | Details |
|---|---|---|
| Main | Range | Easy9 |
| Device application | Distribution | |

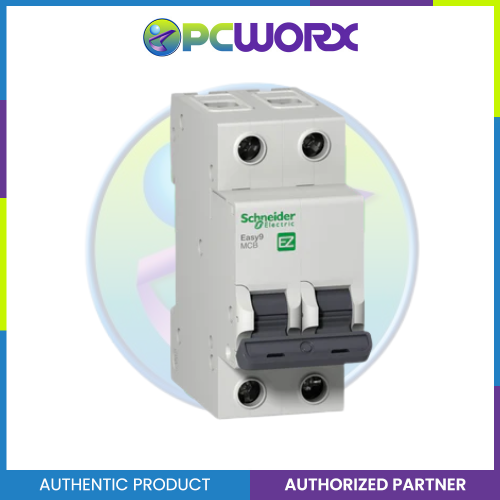

| Product / component type | Miniature circuit-breaker | |
| Device short name | Easy9 MCB | |
| Poles | 2P | |
| Number of protected poles | 2 | |
| Rated current [In] | 10 A | |
| Network type | AC | |
| Trip unit technology | Thermal-magnetic | |
| Curve code | C | |
| Breaking capacity | 10,000 A Icn at 220 V AC 50/60 Hz (IEC 60898-1) | |
| 6,000 A Icn at 400 V AC 50/60 Hz (IEC 60898-1) | ||
| Suitability for isolation | Yes (IEC 60898-1) | |
| Complementary | Network frequency | 50/60 Hz |
| Rated operational voltage [Ue] | 220 V AC / 400 V AC | |
| Magnetic tripping limit | 5β¦10 Γ In | |
| Service breaking capacity [Ics] | 6 kA at 230 V AC (100% Icn) | |
| Rated insulation voltage [Ui] | 500 V AC | |
| Rated impulse withstand voltage [Uimp] | 4 kV | |
| Contact position indicator | Yes | |
| Control type | Toggle | |
| Local signalling | Without | |
| Mounting mode | Clip-on | |
| Mounting support | DIN rail | |
| 9 mm pitches | 4 | |
| Height | 81 mm | |
| Width | 36 mm | |
| Depth | 66.5 mm | |
| Colour | Grey (RAL 7035) | |
| Mechanical durability | 10,000 cycles | |
| Electrical durability | 4,000 cycles | |
| Terminal type | Tunnel terminal (top/bottom) | |
| Terminal capacity (rigid) | 1β25 mmΒ² | |
| Terminal capacity (flexible) | 1β16 mmΒ² | |
| Tightening torque | 2 NΒ·m (top or bottom) | |
| Earth-leakage protection | Without | |
| Environment | Standards | IEC 60898-1 |
| Certifications | CE | |
| IP degree of protection | IP20 (IEC 60529) | |
| Pollution degree | 2 | |
| Tropicalisation | 2 | |
| Relative humidity | 95% at β5β¦60Β°C | |
| Operating temperature | β5β¦60Β°C | |
| Storage temperature | β40β¦85Β°C | |
| Packing Units | Unit type | PCE |
| Units per package | 1 | |
| Package height | 7.0 cm | |
| Package width | 8.0 cm | |
| Package length | 4.0 cm | |
| Package weight | 198 g |
β±306.60
Estimated delivery between June 11 and June 13.
Delivery Information
Metro Manila: 2β3 days | Provincial: 3β7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1β2 hours after checkout MonβSat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
β±306.60
β±306.60
Authorized Seller
100% Original Authentic Product
