Customizable LCD Screen: Personalize your gaming setup with the Spectre 96% mechanical keyboard with screen display; featuring a 1.14" TFT-LCD smart screen, easily upload your own GIFs for a dynamic display that sets your keyboard apart
16.8 Million RGB Illumination: Illuminate your setup with this LED mechanical keyboard; with a stunning RGB LED side underglow and 16.8 million colors of per-key customization, create immersive light shows that enhance your gaming experience
Tri-Mode Connectivity: Connect effortlessly using 2.4GHz Wireless (Dongle), Bluetooth 5.0, or USB-C for maximum versatility; a 4000mAh battery offers up to 400 hours of continuous usage on a single charge
Gasket Mount and Sound Dampening: The gasket mount structure and multi-layered foam padding of this creamy sounding keyboard deliver a smooth, quiet typing experience, reducing vibrations, echoes, and unwanted noise
PBT Double-Shot Keycaps and Hot-Swappable Sockets:The cherry profile PBT keycaps are built to last, while 5-pin hot-swappable sockets allow easy switch replacement; south-facing LEDs ensure compatibility with most aftermarket switches
Specification:
Dimensions
L382 x W145 x H38mm
(H44mm w/ Feet step 1)
(H51mm w/ Feet step 2)
Weight
0.98kg
Layout
96-Key 96% Layout
Legend
Standard US QWERTY
Switch Lifespan
50 million keystrokes
Cable Length
1.8m Detachable USB-C Braided Cable
Material
PC Plate + Plastic Case
Switch Type
Brown/Red Pre-lubed Switches
Keycaps
Double-shot, Non-Shinethrough, PBT Keycaps
LEDs
South-facing SMD LEDs
Specifications
Model:
Tecware Vision M
Form Factor:
mATX Midtower Chassis
Motherboard Compatibility:
mATX, ITX
Tempered Glass:
Front and side panels
Included Fans:
4x 120mm Orbis Spectrum ARGB Fans
Fan Hub:
Included
Radiator Support:
Front:
240/280mm
Rear:
120mm
Top:
240/280mm
GPU Clearance:
Up to 350mm
CPU Cooler Clearance:
Up to 165mm
PSU Length:
Up to 200mm
Drive Bays:
2x 3.5”
2x 2.5”
Expansion Slots:
4x PCI
I/O:
Super speed USB 3.0 x 2, HD Audio, USB 2.0 x 2
Filters:
Bottom full-length mesh filter, Magnetic front & top mesh
Dimensions:
L 423 x W 278.5 x H 480mm
VXL EVO ATX DUAL TEMPERED GLASS CASE
Panel Locking Mechanism
Easily pop in the panels for a seamless tempered glass display.
Remove thumbscrews before removing panels.
SPECIFICATIONS:
I/O:
Super Speed USB 3.0 x 2
HD Audio
BAYS:
2 x 3.5” HDD
3 x 2.5” SSD
7 x PCI Expansion Slots
FANS:
Rear: 1 x 120mm (included)
Top: 3 x 120 / 2 x 140mm
Bottom: 3 x 120mm
Side: 3 x 120mm (included)
SUPPORT AND CLEARANCE:
390mm Max GPU Length
160mm Max CPU Cooler Height
200mm Max PSU Length
ATX, mATX, ITX
RADIATOR CLEARANCE:
Top: 120 / 240 / 360mm
Side: 120 / 240 / 360mm
SIZE:
Dimensions: L445*W285*H430mm
KEY FEATURES
650W continuous output at 30°C/86°F operating environment.
80 PLUS 230V EU certified, deliver great efficiency under real world condition.
Low-profile flat cables.
Ultra Quiet 120mm fluid bearing fan delivers excellent airflow.
High amperage single +12V rail design.
DC-DC design for more precise electrical output.
Intel C6/C7 states & ErP ready.
Built-in industry grade protections: OVP, OPP, SCP
Compact Sizing: 150mm(W)x86mm(H)x140mm(D).
Thermaltake TR2 S 650W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Product details of PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply
PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply Thermaltake TR2 S 650WIncorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. Ultra Quiet FanTR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation. Multiple Connectors The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage. High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
SPECIFICATIONS
AC Input
Input Voltage: 200 - 240V~
Input Current: 6.3A
Frequency: 50Hz/60Hz
DC Output
+3.3V
Max Output Current: 18A
Max Output Power: 110W
+5V
Max Output Current: 18A
Max Output Power: 110W
+12V
Max Output Current: 54.2A
Max Output Power: 650W
-12V
Max Output Current: 0.3A
Max Output Power: 3.6W
+5VSB
Max Output Current: 3A
Max Output Power: 15W
Total Power
650W
General Info
P/N
PS-TRS-0650NNSAWU-P
Model
TRS-650AH2NLW-T
PFC
Active PFC
Power Good Signal
100-250 msec
Hold-Up Time
> 17 msec within 80% load
Cooling System
12cm FDB Fan
Dimension
150mm(W)x86mm(H)x140mm(D)
Environment
Operating Temperature
+5°C to +30°C
Operating Humidity
20% to 85%, non-condensing
Storage Temperature
-40°C to +55°C
Storage Humidity
10% to 95%, non-condensing
Miscellaneous
Efficiency
Meet 80 PLUS® 230V EU
MTBF
100,000 hrs minimum
Safety Approval
CE/LVD/CB/TUV
PCIe 6+2pin
2
Protections
Voltage Source
+3.3V, +5V, +12V
Over Voltage Protection
+3.3V: 3.764.3V, +5V: 5.747.0V, +12V: 13.4~15.6V
Over Power Protection
120%~160% over peak load
Short Circuit Protection
Short circuit on +5V, +12V, +3.3V, -12V will latch off, +5VSB auto-recovery
TR2 S 750W (DC to DC Version)
The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V EU Certified
TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC-to-DC circuit design provides very stable operation and enhanced voltage regulation.
AC INPUT
Input Voltage: 200-240VacInput Current: 8A Max.Frequency: 50Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
Max Output Current
18A
18A
62.5A
0.3A
2.5A
Max Output Power
100W
750W
3.6W
12.5W
Continuous Power
750W
SPECIFICATIONS
WATTS
750W (DC to DC)
MODEL
TRS-750AH4NXW
DIMENSION ( W/H/D )
150mm(W)x86mm(H)x 140mM (D)
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
>17msec at 80% load
INPUT CURRENT
8A Max.
INPUT FREQUENCY RANGE
50Hz
INPUT VOLTAGE
200-240Vac
OPERATING TEMPERATURE
5°C to + 40°C
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40°C to + 55°C
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
12cm Hydraulic Bearing Fan
EFFICIENCY
80 PLUS® 230V EU Certified
MTBF
100,000 hrs minimum
SAFETY APPROVAL
FCC/ICES/CB/cTUVus
PCI-E 6+2PIN
2
PROTECTION
OVP/OPP/SCP
P/N
CA-1B1-00M1WN-01
SERIES
Versa
MODEL
Versa H23 - Window
CASE TYPE
Mid Tower
DIMENSION (H X W X D)
429 x 209 x 491mm(16.9 x 8.2 x 19.3 inch)
NET WEIGHT
4.2 kg / 9.3 lb
PANEL
Transparent Window
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Front (intake) :(optional)120 x 120 x 25 mm x 2Rear (exhaust) :120 x 120 x 25 mm Turbo fan(1000rpm, 16dBA)
DRIVE BAYS-ACCESSIBLE-HIDDEN
-Accessible : 2 x 5.25’’-Hidden : 3 x 3.5’’ or 2.5’’, 3 x 2.5’’
EXPANSION SLOTS
7
MOTHERBOARDS
9.6” x 9.6” (Micro ATX),12” x 9.6” (ATX)
LCS UPGRADABLE
Supports 1/2”、3/8”、1/4” water tube<br />
I/O PORT
USB 3.0 x 1,USB 2.0 x 1, HD Audio x 1
PSU
Standard PS2 PSU (optional)
RADIATOR SUPPORT
Rear: 1 x 120mm
OTHER
CPU cooler height limitation: 155mmVGA length limitation: 315mm

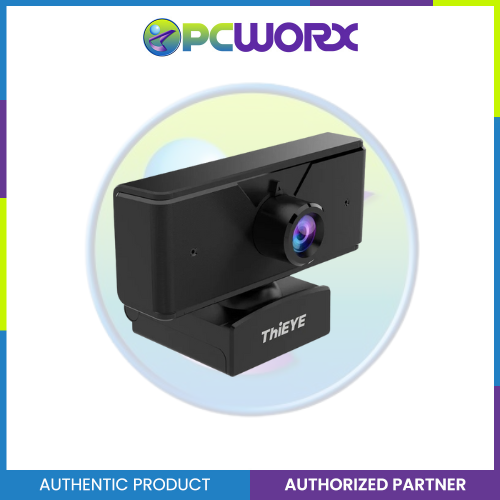

1080P / 30FPS Full HD Video
Auto Low-Light Correction
Noise-Cancelling Microphone
Drive Free(Plug & Play)
Compatibale with Windows, Mac OS, Android
Versatile Placement
Basic Specifications
Interface
USB 3.0 (USB 2.0 compatible)
Max. transfer rate
~ 5.0 Gbit/s
File system
NTFS (MS Windows)*The drive can be re-formatted to HFS+ file system for full Mac® compatibility.
Power
USB bus power (max. 900mA)
System requirements
Windows 10 / Windows 8.1 / Windows 7CPU with 750 MHz or faster, 10MB system hard disk space, 256MB system memory, one free port of USB 3.0 or USB 2.0
