Hardware

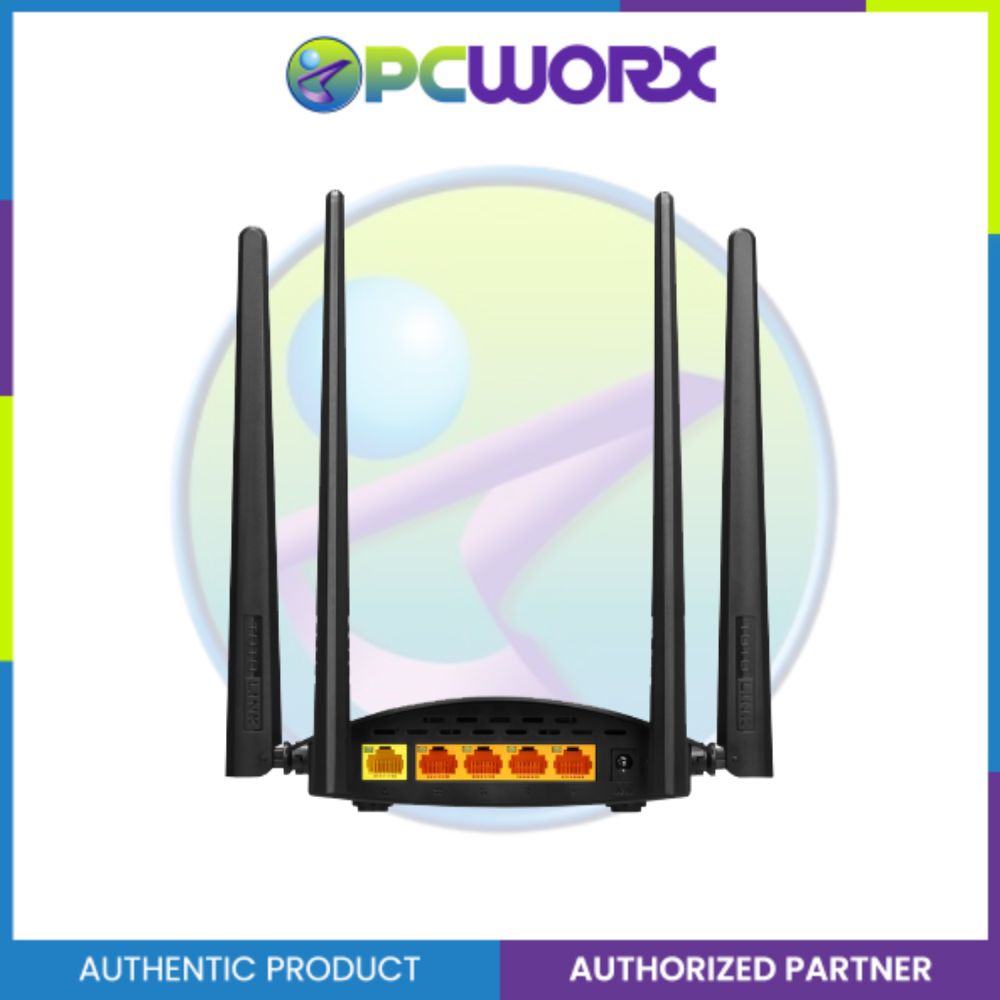

Interface: 4 * 100Mbps LAN Ports
1 * 100Mbps WAN Port
Power Supply: DC 9V/0.8A
Button: 1 * RST/WPS Button
LED Indicators: 1 * Status,
4 * LAN,
1 * WAN
Antenna: 4 * 5dBi fixed antennas
Dimensions: (L x W x H)170.2 x
138.0 x 40.6 mm (not including
antennas)
|
Software
Operation Mode: Gateway Mode
Bridge Mode
Repeater Mode
WISP Mode
Network:
- Static DHCP Setting, IPTV, IPV6 WAN Type
- Static IP, DHCP, PPPoE/Russia PPPoE,
- PPTP/Russia PPTP, L2TP/Russia L2TP
Wireless Functions: Multiple SSID, MAC
Authentication, WDS, WPS, WMM
Schedule: Reboot Schedule, Wireless Schedule
QoS: - QoS Setup, Connect Limit Control
Firewall:
- MAC Filtering, IP Filtering, Port Filtering,
URL Filtering Port Forwarding, DMZ
Management: Administrator Setting, Time
Setting, DDNS, Remote Management, UPnP,
Upgrade Firmware, System Configuration, System
Log, and more
|
|
Wireless
Standards: IEEE 802.11ac,
IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
IEEE 802.11n
RF Frequency: 2.4GHz/5GHz
Data Rate: 2.4GHz: Up to 300Mbps
5GHz: Up to 867Mbps
EIRP: 2.4GHz < 22dBm
5GHz < 20dBm
Wireless Security: 64/128-bit WEP, WPA, WPA2
and WPA-Mixed
Reception Sensitivity:
2.4G: 11b: <-81dbm;
11g: <-68dbm；
11n: HT20<-65dbm HT40:<-62dbm
5G: 11a:<-68dbm；
11n: HT20<-65dbm HT40: <-62dbm
11ac: <-51dbm
|
Others
Package Contents: A800R Wireless Router *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
Environment:
-Operating Temperature: 0℃~50 ℃ (32
℉~122℉)
- Storage Temperature: -40℃~70 ℃
(-40 ℉~158℉)
- Operating Humidity: 5%~95% non-
condensing
- Storage Humidity: 5%~95% non-condensing
|
