| Specifications - C3TN
|
| Model |
CS-C3TN(2MP) |
| Camera |
| Image Sensor |
1/2.7”Progressive Scan CMOS |
| Minimum Illumination |
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal) |
| Lens Mount |
M12 |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Compression |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive bit rate. |
| Image |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
Max: 30fps; Self-Adaptive during network transmission |
| Network |
| Wi-Fi Pairing |
AP Pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Max. Bitrate |
2M |
| Interface |
| Storage |
Micro SD card slot (Max. 256 GB) |
| Wired network |
RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Wi-Fi |
| Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps,11g: 54Mbps,11n: 144Mbps |
| General |
| Operating Conditions |
-4°F to 122 °F (-20ºC to 50ºC ); Humidity 95% or less ( non-condensing) |
| Power Supply |
DC 12V/1A |
| Power Consumption |
Max. 6W |
| IP Grade |
IP 67 |
| Night Vision Distance (Black/White Night Vision Mode) |
Max. 30 m (98 ft) |
| Dimensions |
72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions |
227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Net Weight |
253 g (8.9 oz) |
| In the box |
| In the box |

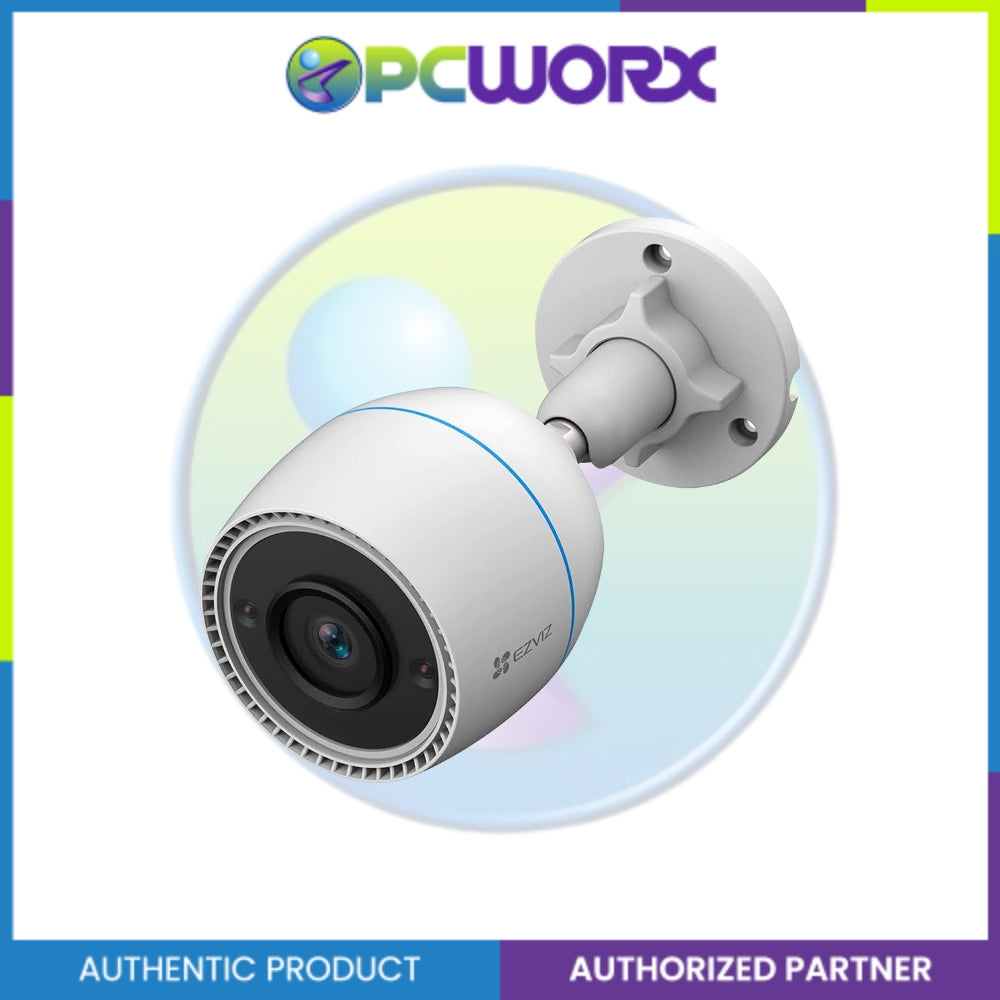

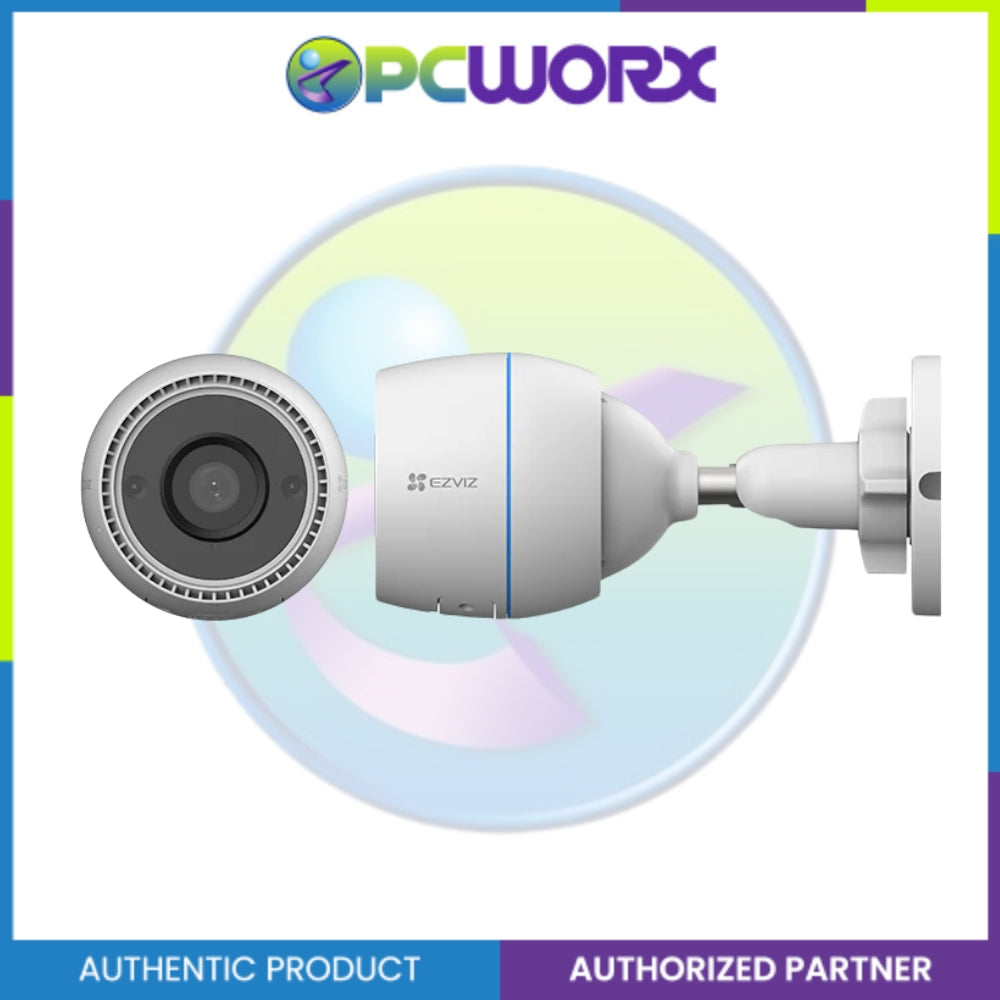

- C3TN Camera |
| - Drill Template |
| - Screw Kit |
| - Waterproof Kit |
| - Power Adapter |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
| Certifications |
CE / FCC / UL / RoHS / WEEE |
