Like all GeForce RTX™ Series GPUs, the GeForce RTX™ 3060 supports the trifecta of GeForce gaming innovations: NVIDIA DLSS, NVIDIA Reflex and NVIDIA Broadcast, which accelerate performance and enhance image quality. Together with real-time ray tracing, these technologies are the foundation of the GeForce gaming platform, which brings unparalleled performance and features to games and gamers everywhere.
Equipped with twin 90 mm fans and special practical design for heat dissipation, the exclusive carbon texture and outlook bring out the ultimate coolness of the card.
SPECIFICATIONS:
GPU Engine Specs:
CUDA Cores 3584
Boost Clock (MHz) 1777
1-Click OC Clock (MHz) 1792 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
Memory Speed 15 Gbps
Standard Memory Config 12GB
Memory Interface Width 192-bit GDDR6
Memory Bandwidth (GB/sec) 360
Feature Support:
PCI-E 4.0
Windows 10 64-bit, Linux 64-bit
Fan Feature:
2*90mm
Fan stop @ Idle (All Fan)
Display Support:
DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
Dimensions (with Bracket): 258*126*41.5mm
Dimensions (without Bracket): 245*112*41.5mm
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking
Reinforcing Backplate
A clean-looking brushed-finish backplate reinforces the length of the card.
graphics card fit into any build.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed-up power circuitry for pushing the card to its limits.
Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
SPECIFICATIONS:
Model Name:
GeForce RTX™ 3050 VENTUS 2X 8G OC
Graphics Processing Unit:
NVIDIA® GeForce RTX™ 3050
Interface:
PCI Express® Gen 4.0 x8
Core Clocks:
Boost: 1807 MHz
CUDA® CORES:
2560 Units
Memory Speed:
14 Gbps
Memory:
8GB GDDR6
Memory Bus:
128-bit
Output:
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support:
Y
Power consumption:
130W
Power connectors:
8-pin x 1
Recommended PSU:
550 W
Card Dimension (mm):
235 x 124 x 42 mm
Weight (Card / Package):
661 g / 1070 g
DirectX Version Support:
12 API
OpenGL Version Support:
4.6
Maximum Displays:
4
G-SYNC® technology:
Y
Adaptive Vertical Sync:
Y
Digital Maximum Resolution:
7680 x 4320
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
DESIGNED FOR BETTER DISSIPATION
Compared to generic fan designs, VENTUS series fans utilize custom fan design with a unique curve to enhance heat dissipation by generating more airflow and air pressure.
Traces of Brilliance
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed-up power circuitry for pushing the card to its limits.
GeForce RTX™ 3050 VENTUS 2X 6G OC
The GeForce RTX™ 3050 6GB is built with the NVIDIA Ampere architecture, featuring dedicated Ray Tracing Cores, AI Tensor Cores, and high-speed G6 memory. Step up to GeForce RTX.
Boost Clock / Memory Speed
1492 MHz / 14 Gbps
6GB GDDR6
DisplayPort x 1 (v1.4a)HDMI™ x 2 (Supports 4K@120Hz as specified in HDMI™ 2.1)
Dual Fan Thermal Design
Two fans and a huge heatsink ensure a cool and quiet experience for you.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Afterburner Overclocking Utility
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
SPECIFICATIONS:
Model Name:
GeForce RTX™ 3050 VENTUS 2X 6G OC
Graphics Processing Unit:
NVIDIA® GeForce RTX™ 3050
Interface:
PCI Express® Gen 4 x16 (uses x8)
Core Clocks:
Boost: 1492 MHz
CUDA® CORES:
2304 Units
Memory Speed:
14 Gbps
Memory:
6GB GDDR6
Memory Bus:
96-bit
Output:
DisplayPort x 1 (v1.4a)
HDMI™ x 2 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support:
Y
Power consumption:
70 W
Recommended PSU:
300 W
Card Dimension (mm):
189 x 109 x 42 mm
Weight (Card / Package):
381 g / 610 g
DirectX Version Support:
12 Ultimate
OpenGL Version Support:
4.6
Maximum Displays:
3
G-SYNC® technology:
Y
Digital Maximum Resolution:
7680 x 4320
OVERVIEW:
The GeForce RTX™ 3050 is built with the powerful graphics performance of the NVIDIA Ampere architecture. It offers dedicated 2nd gen RT Cores and 3rd gen Tensor Cores, new streaming multiprocessors, and high-speed G6 memory to tackle the latest games. Step up to GeForce RTX™.
The compact but powerful StormX Series is also introduced on the Palit GeForce RTX™ 3050 product line. The incredibly small package contains the mighty power of a full-sized graphics card. With only 17cm in length, Palit StormX is perfect for small form factor system. Gamers can experience 100% performance as a full-sized card while saving space and enjoy the portability.
SPECIFICATIONS:
Memory Amount:
8 GB
Memory Interface:
128 bit
DRAM Type:
GDDR6
Graphics Clock:
1552 MHz
Boost Clock:
1777 MHz
Memory Clock:
14 Gbps
CUDA Cores:
2560
Memory Bandwidth (GB/sec):
224
Microsoft DirectX:
Microsoft DirectX® 12 Ultimate
OpenGL:
4.6
Bus Support:
PCI-E 4.0
DVI:
Dual-Link DVI
HDMI:
HDMI 2.1
DisplayPort:
DP1.4a x 1
Maximum Digital Resolution:
7680x4320
Height:
2 Slot
Board Size:
162 x 117 x 40 mm
Graphics Card Power:
115 W
Recommended System Power:
550 W
Supplementary Power Connectors:
6-pin X1
Accessory:
Manual
Copper Base:
✓
0-dB TECH:
✓
mini-ITX support:
✓
Ray Tracing Cores:
✓
Tensor Cores:
✓
NVIDIA Ansel:
✓
NVIDIA Freestyle:
✓
NVIDIA Shadow Play:
✓
NVIDIA® Highlights:
✓
NVIDIA G-SYNC:
✓
NVIDIA Omniverse:
✓
NVIDIA GPU Boost:
✓
AV1 Decode:
✓
VR Ready:
✓
Multi Monitor:
3
NVIDIA Ampere Architecture:
✓
NVIDIA DLSS:
✓
NVIDIA Adaptive Shading:
✓
Real-Time Ray Tracing:
✓
NVIDIA Dynamic Super Resolution [DSR] Technology:
✓
NVIDIA Adaptive Vertical Sync:
✓
NVIDIA CUDA Technology:
✓
NVIDIA PhysX-ready:
✓
NVIDIA multi-projection:
✓
NVIDIA Vulkan RT API:
✓
NVIDIA TXAA Technology:
✓
NVIDIA MFAA Technology:
✓
NVIDIA Game Stream Technology:
✓
NVIDIA SHIELD ready:
✓

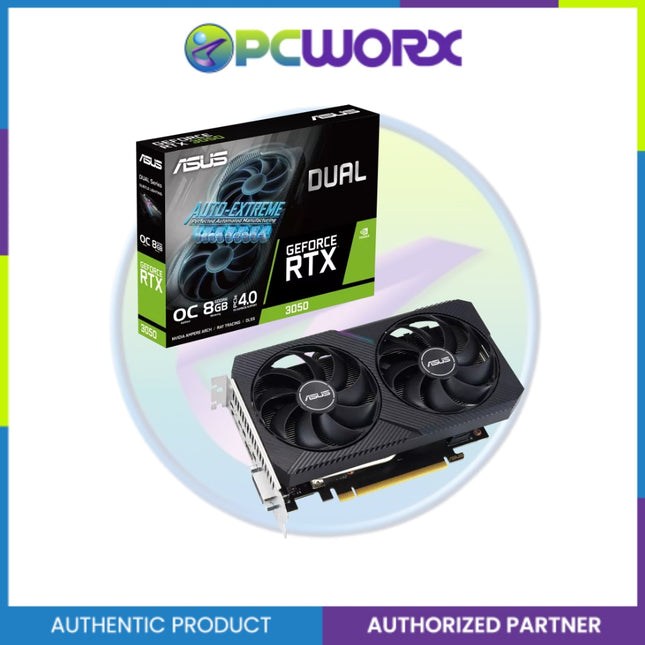

Specification of Asus DUAL-RTX3050-O8G-V2 Dual RTX3050 OC 8GB GDDR6 128-bit HDMI/DP/DVI Graphics:
Memory Speed:
14 Gbps
Memory Interface:
128-bit
Resolution:
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native DVI-D)
Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support:
3
NVlink/ Crossfire Support:
No
Accessories
1 x Collection card
1 x Speedsetup Manual
Software:
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver
Recommended PSU:
550W
Power Connectors:
1 x 6-pin
Slot:
2 Slot
Specification of Asus DUAL-RTX3050-O6G 6GB GDDR6 PCie4.0 14Gbps 96bit Graphics Card:
Model:
DUAL-RTX3050-O6G
Graphic Engine:
NVIDIA® GeForce RTX™ 3050
Bus Standard:
PCI Express 4.0
OpenGL:
OpenGL®4.6
Video Memory:
6GB GDDR6
Engine Clock:
OC mode: 1537 MHz (Boost Clock)
Default mode: 1507 MHz (Boost Clock)
CUDA Core:
2304
Memory Speed:
14 Gbps
Memory Interface:
96-bit
Resolution:
Digital Max Resolution 7680 x 4320
Interface:
Yes x 1 (Native DVI-D)
Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support:
Yes (2.3)
Maximum Display Support:
3
Maximum Display Support:
3
NVlink/ Crossfire Support:
No
Accessories:
1 x Speed setup Manual
Software:
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Recommended PSU:
450W
Power Connectors:
No
Slot:
2 Slot
Dimensions of Asus DUAL-RTX3050-O6G 6GB GDDR6 PCie4.0 14Gbps 96bit Graphics Card:
Dimensions:
201 x 120 x 37 mm 7.91 x 4.72 x 1.46 inches.

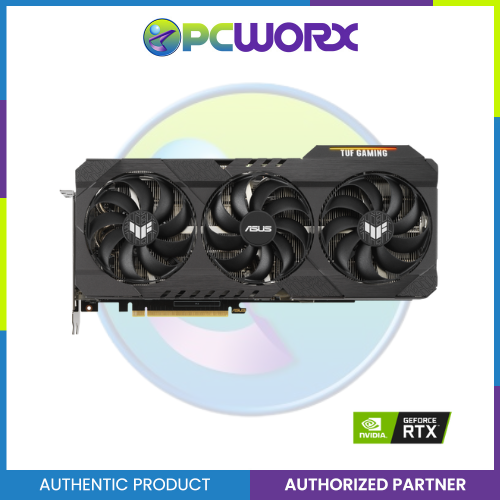

Model
TUF Gaming GeForce RTX™ 3080 Ti OC Edition
Graphic Engine
NVIDIA® GeForce RTX™ 3080 Ti
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode : 1785 MHz (Boost Clock)Gaming mode : 1755 MHz (Boost Clock)
CUDA Core
10240
Memory Speed
19 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)Yes x 3 (Native DisplayPort 1.4a)HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x TUF certificate of Reliability1 x Collection card1 x Speedsetup Manual
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
299.9 x 126.9 x 51.7 mm11.81 x 5 x 2.04 inch
Recommended PSU
850W
Power Connectors
2 x 8-pin
Slot
2.7 Slot
Marketing Name
Helios 300
Size
15.6"
Color
Black
Category
Gaming
Model
PH315-55-54RF
Part Number
NH.QGPSP.002
Processor
• Intel® Core i5-12500H processor (18 MB Smart Cache, 2.5 GHz Performance-core with Intel® Turbo Boost Technology 2.0 up to 4.5 GHz), supporting hybrid core architecture with Performance-core and Efficient-core
Memory
• 8 GB of DDR5 4800Mhz system memory, upgradable to 32 GB using two soDIMM modules
Memory Slots
2
Storage
512GB PCIe Gen4, 16 Gb/s, NVMe
M.2 Slots
2
Display Panel/ Resolution
• 15.6" display with IPS (In-Plane Switching) technology, Full HD 1920 x 1080, high-brightness (300 nits) Acer ComfyViewTM LED-backlit TFT LCD, supporting 165 Hz, 3 ms Overdrive, and G-Sync function• 16:9 aspect ratio, sRGB 100%• Wide viewing angle up to 170 degrees• Ultra-slim design• Mercury free, environment friendly
NVIDIA® GeForce RTX™
NVIDIA® GeForce RTX™ 3060 with 6GB of dedicated GDDR6 VRAM, supporting 6144 NVIDIA® CUDA® Cores
• 1245 - 1710 MHz Boost Clock• NVIDIA® GeForce® Experience• 2nd Gen Ray Tracing Cores• 3rd Gen Tensor Cores• PCI Express® Gen 4• Microsoft DirectX® 12 Ultimate• NVIDIA® Dynamic Boost 2.0• NVIDIA® Whisper Mode 2.0• NVIDIA® Resizable BAR• NVIDIA® DLSS• NVIDIA® Advanced Optimus• NVIDIA® G-SYNC®• NVIDIA® GPU BoostTM• Game Ready Drivers• Vulkan RT API• OpenGL 4.6• DisplayPort 1.4a, HDMI 2.1• 7th Gen NVIDIA® Encode• 5th Gen NVIDIA® Decoder• HDCP 2.3• VR Ready
Network Connection
WLAN• Killer Wireless Wi-Fi 6E 1675• 802.11 a/b/g/n/ac/ax wireless LAN• Band: 2.4 GHz ,5 GHz, and 6 GHz• 2x2 MU-MIMO technology• Support Bluetooth® 5.2 and aboveLAN• KillerTM Ethernet E2600• 10/100/1000 Mbps• Hibernation mode support• Wake On Lan support• IPv4 and IPv6 support
Operating System
• Windows 11 Home
Audio
• DTS® X:Ultra Audio, featuring optimized Bass, Loudness, SpeakerProtection with up to 6 custom content modes by smart amplifier• Supported in Windows Spatial Sound for PC Gaming with DTSlicense integrated• Immersive audio rendering over headphones and internal speakers• Acer Purified.Voice technology with dual built-in microphones.Features include far-field pickup, keystroke suppression, adaptivebeam forming, and pre-defined personal and conference call modes.• Compatible with Cortana with Voice• Acer TrueHarmony technology for lower distortion, wider frequencyrange, headphone-like audio and powerful sound
Adapter
3-pin 280W AC adapter
Battery Type
90 Wh 4-cell Li-ion battery
Camera
Video conferencing• Narrow USB FHD camera with blue glass• Compatible with Windows• 1920 x 1080 resolution• 1080p HD video at 60 fps with Temporal Noise Reduction• Dual Mic (33 mm + 33 mm)
Input/Output Ports
USB Type-C port:• USB 3.2 Gen 2 (up to 10 Gbps)• DisplayPort over USB-C• ThunderboltTM 4• USB charging 5 V; 3 A• DC-in port 20 V; 100 W• One USB 3.2 Gen 2 port featuring power-off USB charging• USB 3.2 Gen 2 port• USB 3.2 Gen 1 port• HDMI® 2.1 port with HDCP support• Mini DisplayPortTM 1.4• 3.5 mm headphone/speaker jack, supporting headsets with built-in microphone• Ethernet (RJ-45) port• DC-in jack for AC adapter
Keyboard & Touchpad
Keyboard• 103-/104-/107-key FineTip RGB-backlit keyboard with independent standard numeric keypad, international language supportTouchPad• Multi-gesture touchpad, supporting two-finger scroll; pinch; gestures to open Cortana, Action Center, multitasking; application commands• Microsoft Precision Touchpad certification• Moisture resistantControl Keys• Turbo Key
Bundled Accessory
LZ.BPKM6.B11 (BAG)
Warranty
2 Years Warranty
EAN
4711121243295
Dimensions
• 359.4 (W) x 276.4 (D) x 25.55/26.15 (H) mm (14.15 x 10.88 x 1.01/1.03 inches)
Weight
• 2.4 kg (5.29 lbs.) with 4-cell battery pack, Full HD display
Graphic EngineNVIDIA® GeForce RTX™ 3050Bus StandardPCI Express 4.0OpenGLOpenGL®4.6Video Memory8GB GDDR6Engine ClockOC mode : 1875 MHz (Boost Clock)Gaming mode : 1845 MHz (Boost Clock)CUDA Core2560Memory Speed14 GbpsMemory Interface128-bitResolutionDigital Max Resolution 7680 x 4320InterfaceYes x 2 (Native HDMI 2.1)Yes x 3 (Native DisplayPort 1.4a)HDCP Support Yes (2.3)Maximum Display Support4NVlink/ Crossfire SupportNoAccessories1 x Collection card1 x Speedsetup ManualSoftwareASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.Dimensions272 x 139 x 56 mm10.70 x 5.47 x 2.20 inchesRecommended PSU550WPower Connectors1 x 8-pinSlot2.8 slotAURA SYNCARGB_____________________________________________________Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
