Connectivity and speed  Wireless:  IEEE 802.11b/g/n on 2.4GHz, up to 300 Mbps Cellular:  4G LTE support with two external 3dBi antennas Wired:  1x 10/100 Fast Ethernet WAN port and 1x 10/100 Fast Ethernet LAN port SIM:  Nano SIM card slot Max Devices:  Up to 32 devices  Security and features  Wireless Encryption:  WPA/WPA2/WPA3, WEP, WPS Firewall:  NAT (Network Address Translation), SPI (Stateful Packet Inspection) Advanced Features:  WAN failover, port forwarding, UPnP, QoS, DHCP, DMZ, DDNS Modes:  Supports Router, AP, Wireless client, WISP, and Repeater modes  Physical and environmental  Dimensions:  105×105×31.5105 cross 105 cross 31.5 105×105×31.5 mm ( W×D×Hcap W cross cap D cross cap H 𝑊×𝐷×𝐻 ) Weight:  180 g Power:  100 ~ 240 V AC input, 12 V / 1A DC output Operating Temperature:  0∘C0 raised to the composed with power cap C 0∘𝐶 to  40∘C40 raised to the composed with power cap C 40∘𝐶 Product Highlights Fixed Network Broadband Router• Supports WAN connection types: DHCP, Static IP, PPPoE• Supports DDNS and DHCP ServersMobile network• Supports 3G and LTE technology• Supports auto and manual APN settings• Supports Fail-Over backupSecure Network Connection• Supports Wi-Fi Protected Setup (WPS)• Support WEP/WPA/WPA2/WPA3 wireless security encryption• Supports NAT firewall, IP / URL-based access control and MAC address filtering Features  IEEE Compliant Wireless LAN and Wired LAN Compliant with IEEE 802.11b/g/n 2.4GHz (300Mbps) wireless technology Advanced Networking Function for Specific Application: Supports Bandwidth Control (QoS) based on different local IP addresses Easy Installation and Management Web-based UI and Quick Setup Wizard for easyconfiguration Remote Management allows configuration from a remote site System status monitoring includes DHCP Client List and System Log With its outstanding stability of high-speed wireless transmission and enhancedreliability, the DWR-M905 can provide users with excellent multimedia streamingthrough their mobile devices anywhere, anytime in the home and office. Reliable, Uninterrupted Internet ConnectionThe Ethernet WAN port allows you to attach a DSL/cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your LTE network whenever the WAN link is lost. Easy to Set Up and UseSet up your network in minutes; the DWR-M905 comes equipped with an easy-to-followsetup wizard to get you up and running right away. It also comes preconfigured withglobal carrier profiles to help you get the most out of your LTE connection right out of the box. Secure Wired and Wireless ConnectionsThe DWR-M905 utilises dual-active firewalls (SPI and NAT) to prevent potential unwantedintrusions from Internet. WPA/WPA2/WPA3 wireless encryption keeps your wireless network secure and your traffic safe, allowing you to securely share your 4G LTE or 3G connections without worrying about unauthorised users accessing your network

Read more less

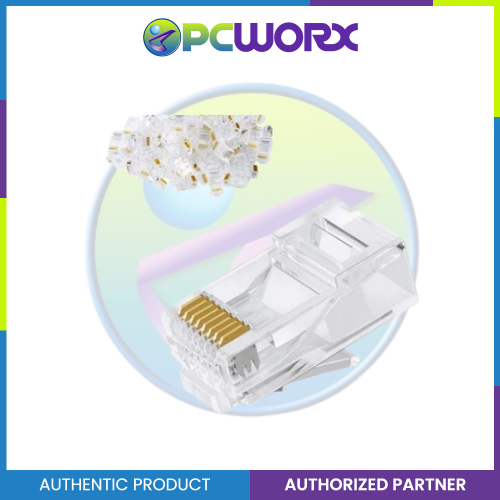

ELECTRICAL TEST • 250V AC max at 2 amps. • Dielectric with standing 500volts AC. • Insulation Resistance: 500 Megaohms • Termination Resistance 35 Megaohms MECHANICAL: • Cable-to-plug tensil strength 20LBs (89N)min. • Durabilty: • Insulation Resistance: 500 Megaohms • Gold Plating

Read more less

Vention HBZBB DP to HDMI 4K@60Hz Converter

Read more less

General specs  Model:  AD-OUF601-C Category:  Cat6E Length:  305 meters (1000 ft) Application:  High-performance data transfer for outdoor installations, telecommunications, CCTV, computer networking, and POE power supply  Conductor and material specs  Conductor material:  Copper Clad Aluminum (CCA) Conductor thickness:  0.5mm Conductor size:  24AWG or 23AWG Conductor structure:  Solid Number of conductors:  4 Pairs (8 total) Insulator material:  HDPE Insulation thickness:  0.18mm  Performance and physical specs  Shielding:  FTP (Foil Twisted Pair) with unshielded twisted pairs Filler:  PE CROSS Jacket material:  PVC+HDPE Jacket thickness:  0.65mm (±0.02mm) Stretching resistance:  (max) 400N Impedance:  100±15%Ω100 plus or minus 15 % cap omega 100±15%Ω at 1~250MHz Transmission velocity:  66% Working capacitance:  5.4nf/100m Insulation resistance:  10000MΩ⋅km10000 cap M cap omega center dot k m 10000𝑀Ω⋅𝑘𝑚 Operating temperature:  -40 ∘Cnegative 40 space raised to the composed with power cap C −40 ∘𝐶 to  +70 ∘Cpositive 70 space raised to the composed with power cap C +70 ∘𝐶

Read more less

5-Port Gigabit Desktop Switch with 4-Port PoE+ 5× 10/100/1000 Mbps RJ45 ports With four PoE+ ports, transfers data and power on one single cable Works with IEEE 802.3af/at compliant PDs 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 30 W for each PoE port Supports PoE Power up to 65 W for all PoE ports* Up to 250m data and power transmitting range under Extend Mode** PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices Plug and Play, no configuration and installation required HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 65 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 3.44 W (220/50 Hz. no PD connected)• 74.49 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation • 11.73 BTU/h (no PD connected)• 254.01 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4) Transfer Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Contents • TL-SG1005P• Power Adapter• Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Read more less

OC200 Omada Hardware Controller Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers. Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime. On-Premises Management: Locally monitor and manage devices with the ultimate security and stability. Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports. Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation. Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution. Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance. Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance. HARDWARE FEATURES Interface 2 × 10/100Mbps Ethernet Port1 × USB 2.0 Port for configuration backup1 × Micro USB Port for power Power Supply 802.3af/at PoE or Micro USB（DC 5V/1A） Dimensions 3.9 × 3.9 × 1.0in.(100 × 98 × 25mm) MANAGEMENT Omada App Yes Centralized Management • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers• Up to 1,000 ClientsNote: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200 Cloud Access Yes L3 Management Yes Multi-site Management Yes Management Features • Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration OTHERS Certification CE, FCC, RoHS Package Contents • Omada Hardware Controller OC200• Quick Installation Guide• Ethernet Cable System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Read more less

2.4GHz up to 300Mbps• LTE Downlink: Up to 150Mbps• LTE Uplink: Up to 50Mbps• 3 x 10/100Mbps LAN, 1 x 10/100Mbps WAN/LAN• 2 x 3G/4G Antennas• 2 x WI-FI Antennas• Support WPA3 Wireless security• Support TR069 management*• Supports WAN Failover (3G/4G &amp, Wired broadband connection)• In-built VPN Client for secure connection Specifications:  Frequency Support • FDD LTE: B1/3/5/7/8/20/28 • TDD 38,40,41 • WCDMA:B1/5/8 Device Interfaces • 1x 10/100 Fast Ethernet WAN port • 3x 10/100 Fast Ethernet LAN ports • 1x Reset button • 1 x WPS button • 1 x Power jack Power jack • 1 x Power switch • 2 x 5dBi external LTE antennas • 2 x 5dBi external 2.4G antennas • 1 x Power switch • 1x LTE Interface • 1x Nano SIM card Slot Data Rates • 2.4GHz up to 300Mbps Standards • 802.11b/g/n Wi-Fi Data Rates • HT20: up to 144 Mbps • HT40: up to 300 Mbps Wireless Encryption • Wi-Fi Protected Setup (WPS) • WPA/WPA2/WPA3 wireless encryption • 64/128-bit WEP (Wired Equivalent Privacy) • Wireless ACL MAC address filtering Firewall • Network Address Translation (NAT) • Stateful Packet Inspection (SPI) Advanced Features • WAN fail over • Port forwarding • IPsec VPN pass through • QoS Flow Control • TR-069 remote management • DMZ • IGMP proxy and MLD for IPTV • DHCP server, DHCP client • URL, IP,MAC filter • Virtual server • DDNS • IPv6 • Denial of Service (DoS) protection • Embedded AP with 4 SSIDs • Router, AP, Wireless client, WISP, Repeater mode Dimensions • 222x 147x 42 mm (Wx D x H) Weight • 240 g Power • Input: 100 ~ 240 V • Output: 12 V / 1A Temperature • Operating: -10°C to 40°C • Storage: -40°C to 70 °C Humidity • Operating: 10% to 95% non-condensing • Storage: 10% to 95% non-condensing Certifications • ROHS • CE

Read more less

Wireless specifications Wi-Fi Standard:  Wi-Fi 5 (802.11ac) Speed:  Up to 1200 Mbps (300 Mbps on 2.4GHz + 867 Mbps on 5GHz) Bands:  Dual-band (2.4GHz and 5GHz) Antennas:  Four 5dBi external antennas MU-MIMO:  Yes Mesh:  Yes (EasyMesh compatible)  Ports and buttons Gigabit Ethernet:  1 WAN and 3 LAN ports USB:  1x USB 2.0 port for media sharing Buttons:  WPS/Mesh, Reset  Security and management Security:  WPA/WPA2/WPA3 encryption, SPI firewall, MAC and IP filtering VPN Support:  PPTP, L2TP, IPsec passthrough QoS:  Smart QoS engine Management:  Web-based setup wizard and WEB GUI  Other features Operating Modes:  Router, Access Point, Repeater, Client Power:  12V/1A adapter

Read more less

Device Interfaces Wireless N 300Four 10/100 LAN ports10/100 WAN (Internet) port Antenna Two 5 dBi external antenna Standards IEEE 802.11n/g/bIEEE 802.3IEEE 802.3uIEEE 802.3x LEDs Power LEDInternet LED Minimum System Requirements Windows 8/7/Vista/XP SP3, or Mac OS X 10.4 or higherMicrosoft Internet Explorer 7, Firefox 12.0, Chrome 20.0,Safari 4.0, or other Java-enabled browserNetwork interface cardCable or DSL modemSubscription with an Internet Service Provider Security WPA & WPA2 (Wi-Fi Protected Access)Wi-Fi Protected Setup (WPS) - PIN Advanced Features Web setup wizardUPnP supportActive firewall - Network Address Translation (NAT)Repeater mode

Read more less

Conductor size                                     :  24AWG Conductor Material                            :  CCA No. of Conductor                                :  4P Insulator Material                              :  HDPE Insulator Thickness                           :  0.2mm Shield                                                    :  Aluminum Mylar+Braid Filler                                                      :  PE CROSS Unrip rope                                            :  Optional Jacket Thickness                                 :  0.92-0.96mm Stretching Resistance                         :  (max)40 Impedance                                            : 100±15%O at 1~250MHz Transmission Velocity                         :  66%

Read more less

Wireless  Wi-Fi Standard:  Wi-Fi 5 (802.11ac)  Frequency:  Dual-Band (2.4 GHz and 5 GHz)  Wireless Speed:  Up to 1750 Mbps total (450 Mbps on 2.4GHz, 1300 Mbps on 5GHz)  Antennas:  3 x Internal Omni-directional antennas  Antenna Gain:  4 dBi  Wireless Functions:  MU-MIMO, Seamless Roaming, Band Steering, Load Balancing  Security:  WPA2-Enterprise, WPA2-PSK  TP-LINK EAP245 AC1750 Wireless Dual Band Gigabit Ceiling ... TP-Link AC1750 Wireless Dual Band Gigabit Ceiling Mount Access ... ISP Supplies Hardware  Ethernet Ports:  1 x Gigabit Ethernet port that supports IEEE 802.3af PoE  Power Supply:  Supports 802.3af/at PoE and 48V Passive PoE  Max Power Consumption:  12.3W12.3 cap W 12.3𝑊 Mounting:  Ceiling or wall mounting (kits included)  Dimensions:  205.5×181.5×37.1205.5 cross 181.5 cross 37.1 205.5×181.5×37.1 mm  TP-Link EAP245 V1 AC1750 Wireless Dual Band Gigabit Ceiling ... ExcelDisc Management  Controller:  Omada Software Controller or Omada Cloud platform  Features:  Management VLAN, Captive Portal, Automatic Channel Assignment

Read more less
