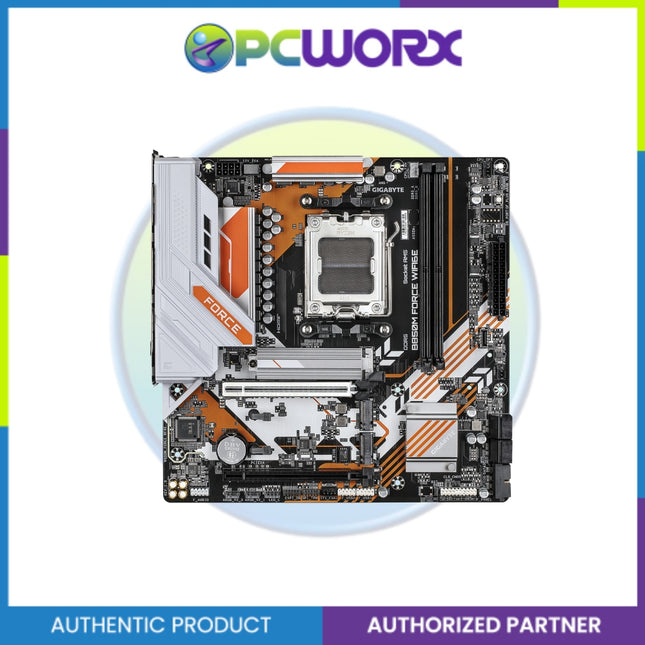

X3D Turbo Mode to unleash new era gaming performance AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors Digital 8+2+2 phases VRM solution Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch : PCIe x16 Slot with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4 Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN Extended Connectivity : DP, HDMI     Specification: CPU AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B850 Memory Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)Dual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16Support for AMD EXPO™ and XMP(Refer to "Memory Support List" on GIGABYTE's website.) Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, max 4096x2160@60 Hz* HDMI 2.1, HDCP 2.3, HDR- 1 x DisplayPort, max 3840x2160@144 Hz* DisplayPort 1.4(Graphics specifications may vary by CPU) Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* Configurable in audio software LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless MediaTek Wi-Fi 6E MT7902- Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz)- Bluetooth 5.3- 11ax 160MHz support(Actual data rate may vary) Expansion Slots 1 x PCIe x16 (CPU):- Ryzen 9000/7000: PCIe 5.0 x16- Ryzen 8000 Phoenix 1: PCIe 4.0 x8- Ryzen 8000 Phoenix 2: PCIe 4.0 x4* Supports GPU or NVMe SSD onlyChipset:- 1 x PCIe x16 (PCIe 4.0 x4) Storage CPU Integrated:- M2A_CPU: PCIe 5.0 (Ryzen 9000/7000), PCIe 4.0 (Ryzen 8000)- M2B_CPU: PCIe 4.0 (Ryzen 9000/8000)Chipset:- M2C_SB: PCIe 4.0 x2- 4 x SATA 6Gb/s connectorsRAID:- NVMe: RAID 0/1/5/10 (*RAID 5 only Ryzen 9000)- SATA: RAID 0/1/10 USB CPU:- 1 x USB Type-C® (USB 3.2 Gen 1)- 1 x USB 3.2 Gen 2 Type-A (red)- 1 x USB 2.0Chipset:- 1 x USB Type-C® (USB 3.2 Gen 1, internal)- 4 x USB 3.2 Gen 1 (2 rear, 2 internal)- 5 x USB 2.0 (1 rear, 4 internal) Internal I/O 1 x 24-pin ATX, 1 x 8-pin ATX 12VFan/pump headers, RGB headers3 x M.2, 4 x SATAFront panel, audio, USB headersTPM header, reset jumper, CMOS jumperQ-Flash Plus button Back Panel 1 x HDMI, 1 x DisplayPort1 x PS/21 x USB Type-C® (USB 3.2 Gen 1)2 x USB 3.2 Gen 11 x USB 3.2 Gen 2 Type-A (red)2 x USB 2.01 x RJ-452 x Antenna connectors3 x Audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Flow rate detectionFan fail warning, Fan control (depends on fan) BIOS 1 x 256 Mbit flashAMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC)Q-Flash, Q-Flash Plus, Smart Backup Software Norton® Internet Security (OEM) OS Support Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX; 24.4cm x 24.4cm

Read more less

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6 Supports Intel® Core™ 14th/ 13th /12th processors Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs 4+1+1 Hybrid Digital VRM Design GbE LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design   Specifications: CPU Support LGA1700 socket14th, 13th, 12th Gen Intel Core, Pentium Gold, CeleronL3 cache varies by CPU Chipset Intel H610 Express Chipset Memory 2 x DDR5 DIMM, up to 128GBUp to DDR5-5600 (depends on CPU)Dual channelSupports ECC (non-ECC mode) and non-ECC DIMMsXMP support Graphics Outputs 1 x D-Sub (1920x1200@60Hz)1 x HDMI (4096x2160@60Hz, HDMI 2.1)Graphics support varies by CPU Audio Realtek Audio CODEC2/4/5.1/7.1-channel HD Audio LAN Realtek GbE LAN (1Gbps) Expansion Slots 1 x PCIe 4.0 x16 (CPU)1 x PCIe 3.0 x1 (Chipset) Storage 1 x M.2 PCIe 3.0 x4/x2 (2280/2260)4 x SATA 6Gb/s USB Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0Internal: 2 x USB 3.2 Gen 1 (via header), 4 x USB 2.0 (via 2 headers) Internal Connectors 24-pin ATX, 8-pin 12V1 x CPU fan, 2 x system fan1 x M.2, 4 x SATA1 x RGB header, front panel, audio, speakerUSB 3.2 Gen 1 header, 2 x USB 2.0 headersTPM, serial port, chassis intrusion, Clear CMOS jumper Back Panel I/O 1 x PS/2 keyboard/mouse1 x D-Sub, 1 x HDMI2 x USB 3.2 Gen 1, 4 x USB 2.01 x RJ-45, 3 x audio jacks BIOS 128 Mbit flash, AMI UEFI BIOSQ-Flash support Unique Features GIGABYTE APP Center@BIOS, EasyTune, Smart Backup, System Info Viewer Bundled Software Norton Internet Security (OEM)LAN bandwidth software (discontinued) OS Support Windows 11 & 10 64-bit Form Factor Micro ATX (22.3 x 19.6 cm)

Read more less

Key specifications GPU:  NVIDIA GeForce RTX 5060 Ti Core Clock:  2617 MHz (Reference: 2572 MHz) CUDA Cores:  4608 Memory:  8GB GDDR7 Memory Interface:  128-bit Memory Speed:  28 Gbps Interface:  PCI Express 5.0 Max Resolution:  7680 x 4320 Multi-View:  4 displays Video Output:  3 x DisplayPort, 1 x HDMI Power Connector:  1x 8-Pin PCI Connector Recommended PSU:  650 Watt Card Size:  215mm length  Features Cooling System:  WINDFORCE with Hawk fans, composite copper heat pipes, and copper base GPU Architecture:  NVIDIA Blackwell Key Technologies:  DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2, full ray tracing, and neural rendering Additional Features:  Server-grade thermal conductive gel and a reinforced structure with a bent edge backplate

Read more less

Key specifications GPU:  GeForce RTX™ 5070 Ti CUDA Cores: 8960 Core Clock:  2452 MHz Memory:  16GB GDDR7 Memory Bus:  256-bit Memory Clock:  28 Gbps Interface:  PCI-E 5.0 Digital Max Resolution:  7680 x 4320 Video Output:  3x DisplayPort 2.1b, 1x HDMI 2.1b Card Size:  304 x 126 x 50 mm Recommended PSU:  750W Power Connectors:  1x 16-pin Cooling System:  WINDFORCE cooling system with server-grade thermal conductive gel, Hawk fans, and 3D Active Fan technology

Read more less

Key specifications Graphics Processing:  GeForce RTX 5060 Core Clock:  2550 MHz (OC mode) CUDA Cores: 3840 Memory:  8GB GDDR7 Memory Clock:  28 Gbps Memory Bus:  128-bit Bus Standard:  PCI-E 5.0 Architecture:  NVIDIA Blackwell Cooling System:  WINDFORCE cooling system Recommended PSU:  450W Digital Max Resolution:  7680 x 4320

Read more less

Key Features Supports Intel® Core™ Ultra processors (Series 2) Digital twin 14+1+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort   Specifications: CPU Support LGA1851 socketSupports Intel Core™ Ultra ProcessorsL3 cache varies by CPU Chipset Intel B860 Express Chipset Memory 4 x DDR5 DIMM, up to 256 GBUp to DDR5-9200 (OC)Dual channelSupports ECC (non-ECC mode) and non-ECC DIMMsXMP support Graphics Outputs 1 x USB4 Type-C (DP 2.1, 3840x2160@144Hz)1 x DisplayPort (DP 2.1, 3840x2160@144Hz)1 x HDMI (2.1, 4096x2160@60Hz)1 x Front HDMI (1.4, 1920x1080@30Hz)Supports up to quad-display Audio Realtek Audio CODEC2/4/5.1/7.1-channel HD AudioS/PDIF Out supported LAN Realtek 2.5GbE LAN Wireless Realtek Wi-Fi 7 (RTL8922AE, Rev 1.0) orMediaTek Wi-Fi 7 (MT7925, Rev 1.1)Bluetooth 5.4Supports 2.4/5/6 GHz bands Expansion Slots CPU: 1 x PCIe 5.0 x16 (graphics/NVMe only)Chipset: 2 x PCIe 4.0 x1 Storage CPU: 1 x M.2 PCIe 5.0 x4/x2 (25110/22110/2580/2280)Chipset: 2 x M.2 PCIe 4.0 x4/x2 (22110/2280)4 x SATA 6Gb/sRAID 0/1/5/10 (SATA only) USB Rear: 1 x USB4-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0Internal: 1 x USB-C (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers Internal Connectors 24-pin ATX, 2 x 8-pin ATX 12V1 x CPU fan, 1 x CPU/Water Pump3 x system fan, 1 x sys fan/water pump3 x ARGB Gen2 headers, 1 x RGB header3 x M.2, 4 x SATAAudio, TPM, HDMI, power/reset/Q-Flash Plus buttonsUSB-C, USB 3.2, USB 2.0 headers Back Panel I/O 1 x USB4-C, 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.01 x DP, 1 x HDMI2 x antenna connectors1 x RJ-45 (2.5GbE)1 x Optical S/PDIF Out, 2 x audio jacks BIOS 256 Mbit Flash, AMI UEFI BIOSQ-Flash, Q-Flash Plus, Smart Backup Unique Features GIGABYTE Control Center supportFan & temperature monitoringSmart Backup Bundled Software Norton Internet Security (OEM)LAN bandwidth manager OS Support Windows 11 64-bit only Form Factor ATX (30.5 x 24.4 cm)

Read more less

H610M K V2 (rev. 1.0) PCIe 4.0 Design, Gen3 x4 M.2 , GbE LAN , Anti-Sulfur Resistor, Smart Fan 6 Supports Intel® Core™ 14th/ 13th /12th processors Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs GbE LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design Specifications: CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors* L3 cache varies with CPU* Refer to "CPU Support List" Chipset Intel® H610 Express Chipset Memory 14th/13th Gen i9/i7: DDR5 5600/5200/4800/4400 MT/s13th Gen i5/i3 & 12th Gen: DDR5 4800/4400 MT/s2 x DDR5 DIMM sockets, up to 128 GBDual channel architectureECC/Non-ECC support (ECC operates in non-ECC mode)XMP support* Refer to "Memory Support List" Onboard Graphics Intel® HD Graphics (depends on CPU)1 x HDMI (4096x2160@60Hz) – HDMI 2.1, HDCP 2.31 x DisplayPort (4096x2304@60Hz) – DP 1.2, HDCP 2.3 Audio Realtek® Audio CODECHigh Definition Audio, 2/4/5.1/7.1-channel* Configurable via software LAN Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps) Expansion Slots CPU: 1 x PCIe x16 (PCIe 4.0, x16)Chipset: 1 x PCIe x1 (PCIe 3.0, x1) Storage Interface 1 x M.2 (PCIe 3.0 x4/x2)2 x SATA 6Gb/s USB Ports 4 x USB 3.2 Gen 1 (2 rear, 2 via header)6 x USB 2.0/1.1 (4 rear, 2 via header) Internal I/O 1 x 24-pin ATX1 x 8-pin ATX 12V1 x CPU fan header1 x System fan header1 x M.2 Socket 32 x SATA1 x Front panel header1 x Front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0 header1 x TPM header1 x Clear CMOS jumper Back Panel 1 x HDMI1 x DisplayPort2 x USB 3.2 Gen 14 x USB 2.01 x RJ-453 x audio jacks I/O Controller iTE® I/O Controller Chip Monitoring Voltage, Temperature, Fan speed, Water flowFan fail warningFan speed control (*depends on fan) BIOS 128 Mbit flash, AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features APP Center (*varies by model)- @BIOS, EasyTune, Smart Backup, System Info ViewerSupport for Q-Flash Bundled Software Norton® Internet Security (OEM), LAN bandwidth manager OS Support Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX, 22.6cm x 18.5cm

Read more less

PCIe Gen5 Performance : Perfect Sync to Win Supports Intel® Core™ 14th/ 13th /12th processors WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal. EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card Specification: CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU Chipset Intel® B760 Express Chipset Memory 14th and 13th Generation Intel® Core™ i9/i7 Processors:- Support for DDR5 5600/5200/4800/4400 MT/s memory modules13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:- Support for DDR5 4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version.(Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same time Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX210- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Storage Interface CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)- 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x antenna connectors (2T2R)1 x HDMI port (Note)2 x DisplayPorts (Note)3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Bundled Software Norton® Internet Security (OEM version) Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Read more less

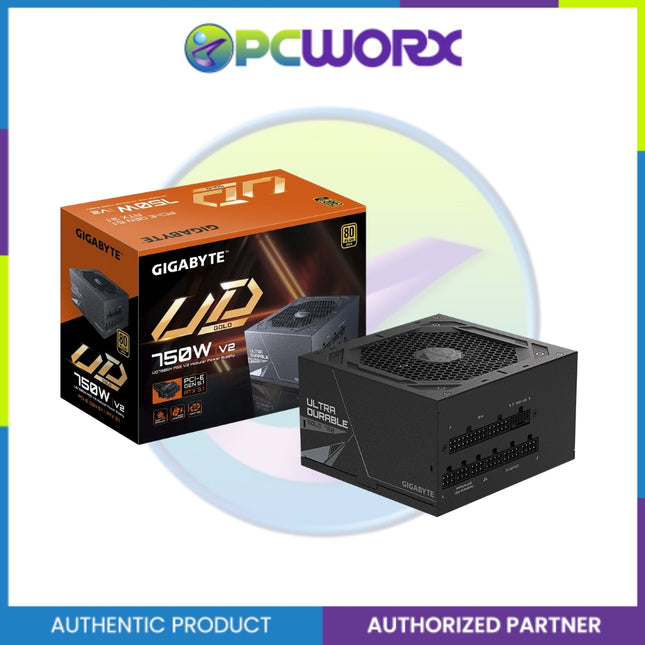

FULLY MODULAR DESIGN Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.   Specification: Model GP-UD750GM PG5 V2 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 750W Dimensions 150 x 140 x 86mm Fan Type 120mm Hydraulic Bearing(HYB) Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1PCI-e 6+2 Pin x 4 : 600mm+150mm*2PCI-e 12+4 Pin x 1:700mm*1SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1

Read more less

FULLY MODULAR DESIGN Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.   Specification: Model GP-UD850GM PG5 V2 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 850W Dimensions 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB) Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1PCI-e 6+2 Pin x 4 : 600mm+150mm*2PCI-e 12+4 Pin x 1:700mm*1SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1

Read more less
