Specifications
Main
Range
Resi9
Product name
Resi9 MP
Product or component type
Enclosure
enclosure type
Modular enclosure
Nb of 18 mm modules per row
18
Nb of horizontal rows
1
Type of door
Plain
Width
Wall: 378 mm
Outside: 402 mm
Height
Wall: 228 mm
Outside: 252 mm
Depth
Outside : 18 mm
Wall : 80 mm
Total : 98 mm
Complementary
Enclosure mounting
Flush
9 mm pitches
36
Total number of 18 mm modules
18
[In] rated current
63 A
Type of rail
35 mm asymmetrical rail
Mounting plate description
Without mounting plate
cable entry
Pre-cutted holes
Terminal block function
Earth / neutral
Number of terminal blocks
1 earth (screwed) with 16 outgoers
1 neutral (screwed) with 16 outgoers
Distribution block outgoers
2 x 16 mm² for earth
2 x 16 mm² for neutral
6 x 6 mm² for earth
6 x 6 mm² for neutral
8 x 10 mm² for earth
8 x 10 mm² for neutral
Enclosure material
Back part: technoplastic
Door: technoplastic
Front face: technoplastic
Internal depth
76 mm
Colour
Door: white (RAL 9003)
Front face: white (RAL 9003)
Market segment
Small commercial
Residential
Environment
Standards
IEC 60670-1
IEC 60670-24
Quality labels
IMQ
Fire resistance
Door: 650 °C
Back part: 650 °C
Front face: 650 °C
IP degree of protection
IP40
IK degree of protection
IK07
Ambient air temperature for operation
-25…60 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.900 cm
Package 1 Width
40.200 cm
Package 1 Length
25.200 cm
Package 1 Weight
1.200 kg
Unit Type of Package 2
BB1
Number of Units in Package 2
5
Package 2 Height
52.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
6.900 kg
Unit Type of Package 3
P12
Number of Units in Package 3
80
Package 3 Height
120.000 cm
Package 3 Width
80.000 cm
Package 3 Length
120.000 cm
Package 3 Weight
97.600 kg
Specifications
Main
Range
Resi9
Product name
Resi9 MP
Product or component type
Enclosure
enclosure type
Modular enclosure
Nb of 18 mm modules per row
12
Nb of horizontal rows
1
Type of door
Plain
Width
Wall: 270 mm
Outside: 294 mm
Height
Wall: 228 mm
Outside: 252 mm
Depth
Outside : 18 mm
Wall : 80 mm
Total : 98 mm
Complementary
Enclosure mounting
Flush
9 mm pitches
24
Total number of 18 mm modules
12
[In] rated current
63 A
Type of rail
35 mm asymmetrical rail
Mounting plate description
Without mounting plate
cable entry
Pre-cutted holes
Terminal block function
Earth / neutral
Number of terminal blocks
1 earth (screwed) with 8 outgoers
1 neutral (screwed) with 8 outgoers
Distribution block outgoers
1 x 16 mm² for earth
1 x 16 mm² for neutral
3 x 6 mm² for earth
3 x 6 mm² for neutral
4 x 10 mm² for earth
4 x 10 mm² for neutral
Enclosure material
Back part: technoplastic
Door: technoplastic
Front face: technoplastic
Internal depth
76 mm
Colour
Door: white (RAL 9003)
Front face: white (RAL 9003)
Market segment
Residential
Small commercial
Environment
Standards
IEC 60670-1
IEC 60670-24
Quality labels
IMQ
Fire resistance
Door: 650 °C
Back part: 650 °C
Front face: 650 °C
IP degree of protection
IP40
IK degree of protection
IK07
Ambient air temperature for operation
-25…60 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9.800 cm
Package 1 Width
29.400 cm
Package 1 Length
25.200 cm
Package 1 Weight
873.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
8
Package 2 Height
52.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
7.912 kg
Unit Type of Package 3
P12
Number of Units in Package 3
128
Package 3 Height
120.000 cm
Package 3 Width
80.000 cm
Package 3 Length
120.000 cm
Package 3 Weight
138.600 kg
FEATURES:

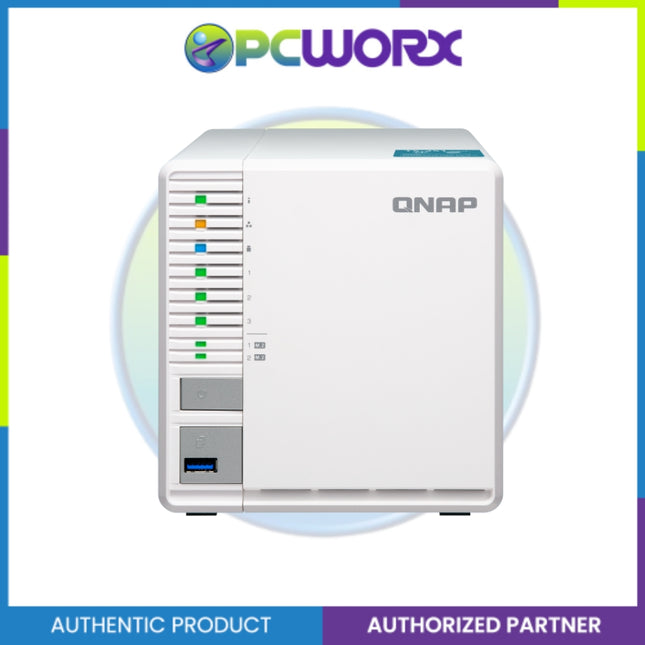

30% of QNAP users choose RAID 5 arrays for their NAS to provide higher data protection, better system performance and optimized storage utilization. The 3-bay TS-351 not only allows you to build a RAID 5 array on your NAS with the fewest disks but also features M.2 SSD slots and efficient auto-tiered storage that realizes optimal system performance. The TS-351 is also a home entertainment portal for streaming and sharing photos, music, and videos throughout your home and beyond. Featuring a minimalist design, the TS-351 can easily fit your home space as a brilliant digital hub!
Build a secure RAID 5 array with three disks for optimized storage capacity and protection against one disk failing.
H.264 hardware decoding and real-time transcoding; Full HD 1080p HDMI™ output for direct multimedia playback.
Install SSDs for cache acceleration with the built-in M.2 PCIe (Gen2 x1, up to 500 MB/s) NVMe SSD slots.
Effortlessly centralize, organize, browse, and share your multimedia files.
Qtier™ technology and SSD caching enable 24/7-optimized storage efficiency.
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
SPECIFICATIONS:
Maximum Memory:
8 GB (2 x 4 GB)
Memory Slot:
2 x SODIMM DDR3L
Flash Memory:
512MB (Dual boot OS protection)
Drive Bay:
3 x 3.5-inch SATA 6Gb/s, 3Gb/s
Bay 1, 2: SATA 3Gbps
Bay 1, 2: SATA 3Gbps
Drive Compatibility:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
An optional 2.5" drive tray base (TRAY-25-NK-BLK03) is needed to install a 2.5" SSD/HDD
Hot-swappable:
✓
M.2 Slot:
2 x M.2 2280 NVMe 500 MB/s slots
SSD Cache Acceleration Support:
Drive bay 3
M.2 Slots 1 to 2
Gigabit Ethernet Port (RJ45):
1
Wake on LAN (WOL):
✓
Jumbo Frame:
✓
USB 2.0 port:
2
USB 3.2 Gen 1 port:
1
HDMI™ Output:
1, HDMI™ 1.4a (up to 1080p)
Audio Output:
1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
Form Factor:
Tower
LED Indicators:
System Status, LAN, USB, HDD1~3, M.2 SSD1~2
Buttons:
Power, Reset, USB Copy
Dimensions (HxWxD):
142 × 150 × 260.1 mm
Weight (Net):
1.64 kg
Weight (Gross):
2.69 kg
Operating Temperature:
0 - 40 °C (32°F - 104°F)
Storage Temperature:
-20 - 70°C (-4°F - 158°F)
Relative Humidity:
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply:
65W adapter, 100 - 240V
Power Consumption: HDD Sleep Mode:
18.56 W
Power Consumption: Operating Mode, Typical:
26.22 W
Tested with drives fully populated.
Fan:
1 x 90mm, 12VDC
System Warning:
Voice prompts or Buzzer
Kensington Security Slot:
✓
DESCRIPTIONS:
specifications
Model:
Orico DDL35-U3
Supported Drives:
2.5-inch and 3.5-inch SATA HDD/SSD
Interface:
USB-B
Transfer Rate:
5Gbps (with UASP/TRIM support)
Data Cable:
USB-A to USB-B (1M)
Power:
12V 2A power adapter
Support Capacity:
Up to 18TB
Supported Systems:
Windows, Linux, Mac OS, Android
Material:
Alloy/Metal and ABS
Dimensions:
186 x 118 x 31.4mm
Installation:
Tool-free
Other features:
LED indicator for working status
DESCRIPTIONS:
Product Model: ORICO-DDL35-U3
Color: Black
Material: Alloy＋ABS
Dimension: 186*118*31.4mm
Compatible: 3.5-Inch HDD
Transmission Interface: USB-B
Transfer Protocol: 5Gbps
Support Capacity: 18TB
Data Cable: USB-A to -B (5Gbps), 1M Length
Power: 12V 2A
Support System: Windows/Linux/Mac OS/Android
