Genius USB SoundBar 200BT Bluetooth Soundbar with RGB Lighting

PCWORX

Genius USB SoundBar 200BT Bluetooth Soundbar with RGB Lighting

(0)

₱1,080.00

Out of stock

Receives in 6 days.

Genius Widecam F100 12MP Ultra Wide Full HD Webcam with Stereo Microphone

My Store

Genius Widecam F100 12MP Ultra Wide Full HD Webcam with Stereo Microphone

(0)

₱1,680.00

Out of stock

Receives in 6 days.

PCWORX

Gigabyte 256GB NVME M.2 2280 SSD

(0)

₱3,076.25

Out of stock

Receives in 6 days.

Gigabyte A520M-K V2 DDR4 AM4 A/L mATX Motherboard

PCWORX

Gigabyte A520M-K V2 DDR4 AM4 A/L mATX Motherboard

(0)

₱3,220.00

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GbE LAN with Bandwidth Management
8-Channel HD Audio with High Quality Audio Capacitors
Rear HDMI and D-sub for Multi-display Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use

SPECIFICATION

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
CPU	(Please refer "CPU Support List" for more information.)
Chipset	AMD A520
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Maximum shared memory of 16 GB
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
	Chipset:
	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
	Chipset:
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
USB	CPU:
	4 x USB 3.2 Gen 1 ports on the back panel
	Chipset:
	2 x USB 3.2 Gen 1 ports available through the internal USB header
	6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x speaker header
	1 x Clear CMOS jumper
	1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Smart Backup
	System Information Viewer
	Support for Q-Flash
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm

In stock

Receives in 6 days.

My Store

Gigabyte AERO 16 XE573PH934AH i7-12700H 16GB 1TB 16" RTX™ 3070 ti Q 8GB W11

(0)

₱70,871.25

Out of stock

Receives in 6 days.

Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

PCWORX

Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

(0)

₱3,967.50

AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra Durable™ PCIe 3.0 x16 Slot
NVMe PCIe 3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GbE LAN with Bandwidth Management
Rear DisplayPort and HDMI for Multi-display Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design

PERFORMANCE

GIGABYTE UD series motherboards use pure digital PWM + Low RDS (on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

CONNECTIVITY

NVMe PCIe Gen3 x4 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Category	Specification
CPU Support	AMD Socket AM4; supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series, and Ryzen™ 3000 G-Series processors
Chipset	AMD A520
Memory	4 × DDR4 DIMM slots, up to 128 GB (32 GB per DIMM)
Memory Speed	DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Memory Architecture	Dual-channel
Memory Type Support	ECC Un-buffered DIMM 1Rx8/2Rx8, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Memory Features	Supports Extreme Memory Profile (XMP)
Onboard Graphics	Requires CPU with integrated graphics
Display Outputs	1 × DisplayPort 1.4 (max 5120×2880@60 Hz), 1 × HDMI 2.1 (max 4096×2160@60 Hz)
Maximum Shared Graphics Memory	16 GB
Audio	Realtek® Audio CODEC, High-Definition Audio, 2 / 4 / 5.1 / 7.1-channel
LAN	Realtek® Gigabit Ethernet (1 Gbps / 100 Mbps)
Expansion Slots	1 × PCIe 3.0 x16 slot (CPU), 1 × PCIe 3.0 x1 slot (chipset)
Storage Interface	1 × M.2 Socket 3 (2280) supporting SATA & PCIe 3.0 x4/x2 SSDs; 4 × SATA 6 Gb/s connectors
RAID Support	RAID 0, 1, 10
USB (Rear / Internal)	4 × USB 3.2 Gen1 (rear), 2 × USB 3.2 Gen1 (internal header), 6 × USB 2.0/1.1 (4 rear, 2 internal)
Internal I/O Connectors	24-pin ATX power, 8-pin ATX 12V power, CPU fan header, system fan header, M.2 connector, 4 × SATA connectors, front panel header, front audio header, USB 3.2 Gen1 header, USB 2.0 header, TPM header (2×6), Clear CMOS jumper
Back Panel Connectors	PS/2 keyboard/mouse port, DisplayPort, HDMI, 4 × USB 3.2 Gen1, 2 × USB 2.0, RJ-45 LAN, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage detection, temperature detection, fan speed detection, fan fail warning, fan speed control
BIOS	1 × 128 Mbit Flash, AMI UEFI BIOS
BIOS Features	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Support	Windows 11 (64-bit), Windows 10 (64-bit)
Form Factor	Micro-ATX, 24.4 cm × 24.4 cm

Out of stock

Receives in 6 days.

Gigabyte AMD GA-A520M-DS3H-AC AM4 DDR4 AVL mATX

PCWORX

Gigabyte AMD GA-A520M-DS3H-AC AM4 DDR4 AVL mATX

(0)

₱5,369.00

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
Onboard Intel^® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI, DVI-D, Display Ports for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Category	Specification
CPU	AMD Socket AM4, support for Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 / Ryzen™ 3000 G-Series Processors (Refer to CPU Support List)
Chipset	AMD A520
Memory	4 x DDR4 DIMM sockets, up to 128 GB total (32 GB per DIMM); Dual channel; Supports ECC and non-ECC unbuffered memory; XMP supported
Supported Memory Speeds	Up to DDR4 4733(O.C.) depending on CPU model
Onboard Graphics	1 x DVI-D (1920x1200@60Hz), 1 x DisplayPort (5120x2880@60Hz), 1 x HDMI (4096x2160@60Hz); Supports up to 3 displays
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support
LAN	Realtek® GbE LAN (1 Gbps / 100 Mbps)
Wireless Communication	Intel® Wireless-AC 3168 (Wi-Fi 5, Bluetooth 4.2) or Intel® Wireless-AC 9260 (Wi-Fi 5, Bluetooth 5.1) or Realtek® RTL8821CE (Wi-Fi 5, Bluetooth 5.0) depending on PCB revision
Expansion Slots	1 x PCIe 3.0 x16 slot (CPU), 2 x PCIe 3.0 x1 slots (Chipset)
Storage Interface	1 x M.2 (PCIe 3.0 x4/x2 & SATA), 4 x SATA 6Gb/s ports, supports RAID 0/1/10
USB Ports	Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 2 x USB 3.2 Gen 1, 2 x USB 2.0
Internal I/O	24-pin ATX, 8-pin CPU, CPU fan, 2 system fan headers, RGB/ARGB headers, front panel audio, SATA, USB headers, TPM, serial port, Q-Flash Plus button
Back Panel I/O	PS/2 combo, DVI-D, DisplayPort, HDMI, 2 x SMA antenna connectors, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, and fan speed detection; Fan speed and failure warnings
BIOS	128 Mbit flash, AMI UEFI BIOS, supports Q-Flash and Q-Flash Plus
Unique Features	GIGABYTE APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer
Bundled Software	Norton® Internet Security (OEM), LAN Bandwidth Management Software
Operating System	Windows 10 64-bit, Windows 11 64-bit
Form Factor	Micro ATX (24.4 cm x 24.4 cm)

Low in stock

Receives in 6 days.

Gigabyte Aorus GP-ASM2NE6500GTTD 500GB M.2 2280 NVMe SSD

PCWORX

Gigabyte Aorus GP-ASM2NE6500GTTD 500GB M.2 2280 NVMe SSD

(0)

₱7,245.00

World First PCIe 4.0x4 Controller

The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.

NAND Flash Selected for High Quality and Performance

TOSHIBA BiCS4 96 Layers 3D TLC (800MT/s)

Toshiba BiCS4 NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS NVMe Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.

Capacity	Model	Sequential Read MB/s	Sequential Write MB/s	Random Read IOPS	Random Write IOPS
500GB	AORUS NVMe Gen4 SSD 500GB (GP-ASM2NE6500GTTD)	5000 MB/s	2500 MB/s	400k	550k
1000GB	AORUS NVMe Gen4 SSD 1TB (GP-ASM2NE6100TTTD)	5000 MB/s	4400 MB/s	750k	700k
2000GB	AORUS NVMe Gen4 SSD 2TB (GP-ASM2NE6200TTTD)	5000 MB/s	4400 MB/s	750k	700k

Out of stock

Receives in 6 days.

GIGABYTE G5 MD-51S1123SH i5-11400H 16GB 512GB SSD 15.6" RTX 3050 TI 4GB Win10

PCWORX

GIGABYTE G5 MD-51S1123SH i5-11400H 16GB 512GB SSD 15.6" RTX 3050 TI 4GB Win10

(0)

₱62,922.00

Out of stock

Receives in 6 days.

Gigabyte GA-A520I-AC Rev 1 AM4 DDR4 Mini-ITX Motherboard

PCWORX

Gigabyte GA-A520I-AC Rev 1 AM4 DDR4 Mini-ITX Motherboard

(0)

₱6,842.50

AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-Fast NVMe PCIe 3.0 x4 M.2
Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
Realtek GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

SPECIFICATIONS

CPU
	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
	(Please refer "CPU Support List" for more information.)
Chipset	AMD A520
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
	* ECC memory (ECC mode) support varies by CPU
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
	* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
	2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Support for up to 3 displays at the same time
Maximum shared memory	16 GB
Audio	Realtek® Audio CODEC
	High-Definition Audio
	2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module	Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
	WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 4.2
	Support for 11ac wireless standard
	* Actual data rate may vary depending on environment and equipment.
Expansion Slots
Integrated in the CPU:	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
	Storage Interface
	Integrated in the CPU:
	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
	Chipset:
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
Chipset:	4 x SATA 6Gb/s connectors
USB
Integrated in the CPU:	4 x USB 3.2 Gen 1 ports on the back panel
Chipset:	2 x USB 3.2 Gen 1 ports available through the internal USB header
	4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x speaker header
	1 x USB 3.2 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x serial port header
	1 x Clear CMOS jumper
	＊All fan headers are subject to support AIO Pump, Pump and high-performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	1 x DisplayPort
	2 x HDMI ports
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x Q-Flash Plus button
	1 x RJ-45 ports
	2 x SMA antenna connectors (1T1R)
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
	H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS	EasyTune
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Bundled Software
	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm

Low in stock

Receives in 6 days.

Gigabyte GA-A620M-H AMD AM5 Micro-ATX Motherboard

PCWORX

Gigabyte GA-A620M-H AMD AM5 Micro-ATX Motherboard

(0)

₱5,668.00

CPU Support:
- AMD Ryzen™ 7000 / 8000 / 9000 Series processors
- Socket AM5
Chipset: AMD A620
Memory:
- 2× DDR5 DIMM slots (Dual Channel)
- Up to 128GB
- Supports speeds up to 6400+ MT/s (OC)
- AMD EXPO™ & Intel® XMP ready
Storage:
- 1× M.2 PCIe 4.0 x4 slot (2280)
- 4× SATA 6Gb/s ports
- RAID 0/1/10 support
Expansion Slots:
- 1× PCIe 4.0 x16 (EZ-Latch)
- 1× PCIe 3.0 x1
Graphics Outputs:
- 1× HDMI 2.1 (4096×2160 @60Hz)
- 1× DisplayPort 1.4 (3840×2160 @144Hz)
Audio:
- Realtek® HD Audio Codec
- Supports 2/4/5.1/7.1-channel HD Audio
- High-End Audio Capacitors & Noise Guard
Networking:
- Realtek® GbE LAN (1 Gbps)
USB Ports:
- Rear I/O: 2× USB 3.2 Gen 1, 4× USB 2.0, 1× PS/2
- Internal: 2× USB 3.2 Gen 1 headers, 4× USB 2.0 headers
Cooling & Monitoring:
- Smart Fan 6
- 3× PWM/DC Fan Headers
- Dual Fan Curve Mode
- FAN STOP feature
Special Features:
- PCIe EZ-Latch for quick GPU release
- Q-Flash Plus: BIOS update without CPU, RAM, or GPU
- RGB Fusion: 1× Addressable LED Header, 1× RGB LED Header
Form Factor: Micro-ATX (23.0 cm × 22.5 cm)
OS Support: Windows 11/10 64-bit.

Category	Specification
CPU Support	AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 series
Chipset	AMD A620
Memory	2× DDR5 DIMM, up to 128GB; speeds: 6400(OC)–4400 MT/s; Dual-channel; supports EXPO & XMP
Graphics (iGPU)	1× DisplayPort (4K @144Hz), 1× HDMI (4K @60Hz); up to 3 displays
Audio	Realtek HD Audio; 2/4/5.1/7.1-channel
LAN	Realtek GbE (1 Gbps)
Expansion Slots	1× PCIe x16 (Gen4, varies by CPU); 1× PCIe x1 (Gen3)
Storage	1× M.2 (PCIe 4.0 x4/x2); 4× SATA 6Gb/s; RAID 0/1/10 (NVMe & SATA)
USB (Rear + Internal)	USB 3.2 Gen1 + USB 2.0 ports (total up to 12 via rear + headers)
Internal Connectors	24-pin ATX, 8-pin CPU, fan headers, RGB/LED headers, M.2, SATA, USB headers, TPM, CMOS jumper
Back Panel I/O	USB ports, PS/2, DisplayPort, HDMI, RJ-45 LAN, audio jacks, Q-Flash Plus button
I/O Controller	iTE I/O Controller Chip
Monitoring	Voltage, temperature, fan speed, flow rate, fan fail warning
BIOS	256 Mbit AMI UEFI BIOS
Special Features	GIGABYTE Control Center, Q-Flash Plus, Q-Flash
Software	Norton Internet Security (OEM), LAN management software
OS Support	Windows 11 & Windows 10 (64-bit)
Form Factor	Micro-ATX (23.0 × 22.5 cm)

Low in stock

Receives in 6 days.

PCWORX

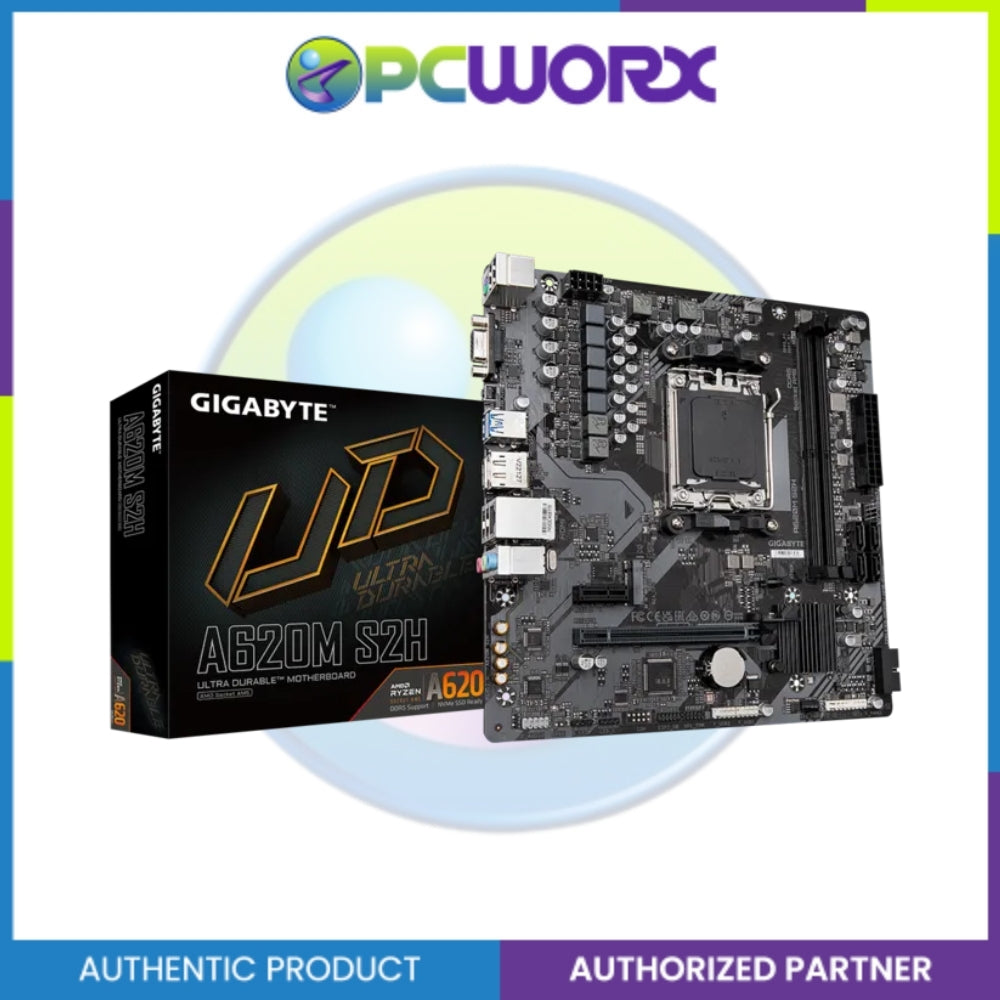

Gigabyte GA-A620M-S2H AM5 DDR5 m-ATX

(0)

₱6,800.00

Category	Specification
CPU Socket	AMD AM5
Supported CPUs	AMD Ryzen™ 7000 / 8000 / 9000 Series
Chipset	AMD A620
Form Factor	Micro-ATX
Dimensions	23.0 × 22.5 cm
Weight (Motherboard Only)	0.72 kg
Estimated Box Weight	1.15 – 1.45 kg
Memory Type	DDR5
Memory Slots	2 × DIMM
Maximum Memory	Up to 128GB
Memory Speeds	DDR5 4400 – 6400(OC) MT/s
Memory Architecture	Dual Channel
EXPO / XMP Support	Yes
Graphics Outputs	1 × HDMI 2.1, 1 × DisplayPort 1.4, 1 × D-Sub
Max Display Support	Up to 3 displays
PCIe Slots	1 × PCIe 4.0 x16 (CPU), 1 × PCIe 3.0 x1 (chipset)
Storage	1 × M.2 PCIe 4.0 x4/x2, 4 × SATA 6Gb/s
RAID Support	RAID 0 / 1 / 10
LAN	Realtek Gigabit LAN (1Gbps)
USB Rear Ports	USB 3.2 Gen1 + USB 2.0 combination (CPU + chipset)
Internal USB Headers	USB 3.2 Gen1 + USB 2.0 headers
Audio	Realtek HD Audio (7.1-channel)
Audio Jacks	3 × rear audio jacks
BIOS	256 Mbit AMI UEFI BIOS
Monitoring Features	Voltage, temperature, fan speed detection
Special Features	Q-Flash Plus, GCC support, RGB & ARGB headers
OS Support	Windows 10 / Windows 11 64-bit

Low in stock

Receives in 6 days.

Gigabyte GA-B450M-DS3H-WIFI 4-DIMM DDR4 AM4 MATX Mother board Gigabyte Mobo Gigabyte Motherboard

PCWORX

Gigabyte GA-B450M-DS3H-WIFI 4-DIMM DDR4 AM4 MATX Mother board Gigabyte Mobo Gigabyte Motherboard

(0)

₱5,016.00

AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel® Dual Band 802.11ac WIFI, CEC 2019 ready

Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel® Dual Band 802.11ac WIFI & BT 4.2

Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

High Quality Audio Capacitors and Audio Noise Guard Design

RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support

Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

APP Center Including EasyTune™ and Cloud Station™ Utilities

CEC 2019 Ready, Save Power with a Simple Click

Category	Specification
CPU Socket	AM4 (Supports AMD Ryzen™ 5000/5000 G-Series, 3rd/2nd/1st Gen Ryzen, Athlon with Radeon™ Vega Graphics)
Chipset	AMD B450
Memory	4 × DDR4 DIMM sockets, up to 128 GB, Dual ChannelSupports DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHzSupports ECC (non-ECC mode) and XMP
Onboard Graphics	HDMI port (max 4096×2160@60 Hz), max shared memory 16 GB
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1‑channel, S/PDIF Out support
LAN	Realtek® GbE LAN (1 Gbps)
Wireless	Realtek® Wi-Fi RTL8821CE, Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz, Bluetooth 5.0
Expansion Slots	1 × PCIe x16 (x16 mode), 1 × PCIe x16 (x1 mode), 1 × PCIe x1
Storage Interfaces	1 × M.2 Socket 3 (2242/2260/2280/22110, SATA/PCIe x4/x2)*4 × SATA 6 Gb/s, RAID 0/1/10
USB Ports	Back Panel: 4 × USB 3.1 Gen 1, 4 × USB 2.0/1.1Internal Headers: 2 × USB 3.1 Gen 1, 2 × USB 2.0/1.1
Internal I/O Connectors	24-pin ATX, 8-pin 12V, CPU fan, system fan, M.2, 4 × SATA 6 Gb/s, front panel, front audio, S/PDIF, RGB/LED headers, TPM header, serial, Clear CMOS jumper
Back Panel Connectors	1 × PS/2, 1 × HDMI, 4 × USB 3.1 Gen 1, 4 × USB 2.0/1.1, 2 × SMA antenna, 1 × RJ‑45, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, overheating warning, fan fail warning, fan speed control
BIOS	128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features / Software	APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, Q-Flash, Xpress InstallBundled: Norton Internet Security, cFosSpeed
OS Support	Windows 10 64-bit, Windows 7 64-bit*
Form Factor	Micro ATX, 24.4 cm × 21.5 cm

In stock

Receives in 6 days.

Gigabyte GA-B450M-K 2 DIMM AM4 DDR4 m-ATX

PCWORX

Gigabyte GA-B450M-K 2 DIMM AM4 DDR4 m-ATX

(0)

₱3,792.00

AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design

Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GbE LAN with Bandwidth Management
8-Channel HD Audio with High Quality Audio Capacitors
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
GIGABYTE APP Center, Simple and Easy Use

Supports AMD Ryzen™ Series Processors

Dual Channel DDR4, 2 DIMMs

M.2 Connector for SSD

All Solid Capacitors

SATA3

CONNECTIVITY

NVMe PCIe Gen 3x4 22110 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

■ 5 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS (on) MOSFETs Design

GIGABYTE motherboards use Low RDS (on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

SPECIFICATIONS:

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors
	(Please refer "CPU Support List" for more information.)
Chipset	AMD B450
Memory	Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor:
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Support for HDMI 2.0 version and HDCP 2.2.
	Maximum shared memory of 16 GB
Audio	Realtek® Audio CODEC
	High-Definition Audio
	2/4/5.1/7.1-channel
	You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/ 100 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16*
	Actual support may vary by CPU.
	Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1
Storage Interface	1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support)
	* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector.
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
	(Note) Supports only M.2 SATA SSDs when using an Athlon™ with Radeon™ Vega Graphics Processors.
USB	Chipset:
	2 x USB 3.2 Gen 1 ports available through the internal USB header
	6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:	4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x speaker header
	1 x Clear CMOS jumper
	1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	1 x HDMI 2.0 port
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Fan fail warning
	Fan speed control
	Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Smart Backup
	System Information Viewer
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
	Support for Windows 7 64-bit
	* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
	* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Micro ATX Form Factor; 24.4cm x 19.5cm

Low in stock

Receives in 6 days.

Gigabyte GA-B550-AORUS-ELITE-AX-V2 AM4 DDR4 ATX

PCWORX

Gigabyte GA-B550-AORUS-ELITE-AX-V2 AM4 DDR4 ATX

(0)

₱10,315.50

Category	Specifications
CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 Series / Ryzen™ 3000 G-Series Processors (Refer to “CPU Support List” for more information.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM) Supports DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Dual channel architecture Supports ECC and non-ECC Un-buffered DIMMs Supports Extreme Memory Profile (XMP) modules
Onboard Graphics	Integrated Graphics Processor: • 1 x DisplayPort (max 5120x2880@60 Hz, DP 1.4, HDCP 2.3, HDR) • 1 x HDMI (max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) • Max shared memory: 16 GB
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Supports S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit / 1 Gbit / 100 Mbit)
Wireless Communication	Intel® Wi-Fi 6 AX200 Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz Dual-Band) Bluetooth® 5 Supports 11ax 160MHz, up to 2.4 Gbps (actual speed varies)
Expansion Slots	• 1 x PCIe x16 (CPU): PCIe 4.0 x16 (Ryzen 5000/3000), PCIe 3.0 x16 (Ryzen G-Series) • 1 x PCIe x16 (Chipset): PCIe 3.0 x2 • 1 x PCIe x16 (Chipset): PCIe 3.0 x1 • 1 x PCIe x1 (Chipset): PCIe 3.0 x1
Storage Interface	• 1 x M.2 (M2A_CPU): 2242/2260/2280/22110 SSDs – PCIe 4.0 x4/x2 (Ryzen 5000/3000) – PCIe 3.0 x4/x2 (Ryzen G-Series) • 1 x M.2 (M2B_SB): PCIe 3.0 x4/x2 & SATA support • 4 x SATA 6Gb/s ports (RAID 0/1/10)
USB	CPU: – 2 x USB 3.2 Gen 2 Type-A (red, Ryzen 5000/3000) – 2 x USB 3.2 Gen 1 (red, Ryzen G-Series) – 2 x USB 3.2 Gen 1 on back panel Chipset: – 1 x USB Type-C (USB 3.2 Gen 1, internal) – 1 x USB 3.2 Gen 1 (rear) – 2 x USB 3.2 Gen 1 (internal header) – 2 x USB 2.0 (rear) Chipset + Hub: – 4 x USB 2.0 (internal headers)
Internal I/O	1 x 24-pin ATX main power 1 x 8-pin ATX 12V 2 x M.2 sockets 4 x SATA 6Gb/s 1 x CPU fan header 1 x water cooling fan header 3 x system fan headers 1 x CPU cooler RGB header 2 x addressable LED headers 2 x RGB LED headers 1 x front panel header 1 x front audio header 1 x USB Type-C header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x TPM header 1 x Clear CMOS jumper
Back Panel Connectors	1 x DisplayPort 1 x HDMI 2 x SMA antenna connectors 2 x USB 3.2 Gen 2 Type-A (Ryzen 5000/3000 only) 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x Q-Flash Plus button 1 x RJ-45 LAN port 1 x optical S/PDIF Out 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage / Temperature / Fan Speed / Water Flow Detection Overheat & Fan Fail Warning Fan Speed Control (depends on fan model)
BIOS	1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer Support for Q-Flash Plus & Q-Flash
Bundled Software	Norton® Internet Security (OEM) LAN bandwidth management software
Operating System	Windows 11 64-bit / Windows 10 64-bit
Form Factor	ATX, 30.5 cm x 24.4 cm

Out of stock

Receives in 6 days.

Gigabyte GA-B550I-AORUS-PRO-AX Mini ITX AM4 DDR4

PCWORX

Gigabyte GA-B550I-AORUS-PRO-AX Mini ITX AM4 DDR4

(0)

₱11,454.00

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel^® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Onboard Intel^® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
Blazing Fast 2.5GbE LAN with Bandwidth Management
USB 3.2 Gen2 Type-C™ & DisplayPort + Dual HDMI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

ADVANCED THERMAL SOLUTION

Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

SPECIFICATIONS:

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B550
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB
Audio	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
USB	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm

Out of stock

Receives in 6 days.

Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX

PCWORX

Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX

(0)

₱7,920.00

General specifications
Form Factor:	Micro-ATX
CPU Socket:	AM4
Chipset:	AMD B550
Supported Processors:	AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000/3000 G-Series
Memory
Slots:	4 x DDR4 DIMM
Maximum Capacity:	128GB
Memory Type:	ECC/Non-ECC Unbuffered
Speed:	Up to 4733 MHz (OC)
Storage
M.2 Slots:	Dual M.2 connectors supporting PCIe 4.0/3.0 SSDs
SATA Ports:	4 x SATA 3 ports
Expansion and Graphics
PCIe:	One PCIe 4.0 x16 slot
Onboard Graphics:
1 x DVI-D port (1920x1200@60Hz)
1 x HDMI 2.1 port (4096x2160@60Hz)
Max 16 GB shared memory
Audio
Codec:	Realtek ALC887 (7.1-channel) or Realtek ALC1200
Features:	High-Quality Audio Capacitors and Audio Noise Guard
Networking
LAN:	Realtek GbE LAN chip with Bandwidth Management

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Realtek GbE LAN with Bandwidth Management
Rear HDMI & DVI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

Specification

B550M AORUS ELITE (rev. 1.0/1.1/1.2)

rev. 1.3

Key Features

Specification

Support

News & Awards

Buy

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
1. AMD B550
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
  * Actual support may vary by AMD CPU's specification.
2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
1. Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
1. Supporting PCIe 3.0 x1 mode
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
1. Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 2 x addressable LED strip headers
6. 2 x RGB LED strip headers
7. 1 x CPU cooler LED strip/RGB LED strip header
8. 2 x M.2 Socket 3 connectors
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB 3.2 Gen 1 header
13. 1 x USB 2.0/1.1 header
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
15. 1 x serial port header
16. 1 x Clear CMOS jumper
17. 1 x Q-Flash Plus button
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm

Out of stock

Receives in 6 days.

Gigabyte GA-B550M-DS3H-AC-R2 AM4 DDR4 M-ATX

PCWORX

Gigabyte GA-B550M-DS3H-AC-R2 AM4 DDR4 M-ATX

(0)

₱6,509.00

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB
Audio	Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (PCB rev. 1.7) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard and up to 433 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: - Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs: - AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: - Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset Support for RAID 0, RAID 1, and RAID 10
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Low in stock

Receives in 6 days.

Gigabyte GA-B550M-DS3H-AC-R2 Wi-Fi AM4 DDR4 m-ATX Mobo

PCWORX

Gigabyte GA-B550M-DS3H-AC-R2 Wi-Fi AM4 DDR4 m-ATX Mobo

(0)

₱6,394.00

SPECIFICATION

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB
Audio	Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (PCB rev. 1.7) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard and up to 433 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: - Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs: - AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: - Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset Support for RAID 0, RAID 1, and RAID 10
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 2 x SMA antenna connectors 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Low in stock

Receives in 6 days.

Gigabyte GA-B550M-DS3H-R2 AM4 DDR4 m-ATX Motherboard

PCWORX

Gigabyte GA-B550M-DS3H-R2 AM4 DDR4 m-ATX Motherboard

(0)

₱5,476.37

AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital 5+3 phases VRM solution
Dual Channel DDR4：4*DIMMs
EZ-Latch：PCIe slots with Quick Release Design
Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal：VRM Thermal Armor Advanced
Fast Networking：GbE LAN
Extended Connectivity：HDMI, Displayport
PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Specification:

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

In stock

Receives in 6 days.

PCWORX

Gigabyte GA-B550M-K AM4 DDR4 m-ATX

(0)

₱4,634.50

Category	Specification
CPU	AMD Socket AM4, supports Ryzen™ 5000/5000 G/4000 G/3000/3000 G-Series processors
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets, up to 128 GB, DDR4 2133–4733 MHz (OC), dual channel, ECC & non-ECC support, XMP support
Onboard Graphics	1 x DisplayPort 1.4 (max 5120x2880@60Hz), 1 x HDMI 2.1 (max 4096x2160@60Hz), max shared memory 16 GB
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	1 x PCIe x16 (CPU), 1 x PCIe x1 (Chipset)
Storage Interface	2 x M.2 (M2A_CPU PCIe 4.0/3.0, M2B_SB PCIe 3.0), 4 x SATA 6Gb/s (RAID 0/1/10)
USB Ports	CPU: 4 x USB 3.2 Gen1 (back) Chipset: 2 x USB 3.2 Gen1 (internal), 6 x USB 2.0/1.1 (4 back, 2 internal)
Internal I/O Connectors	24-pin ATX, 8-pin CPU 12V, CPU/system fan headers, 2 x M.2 sockets, 4 x SATA, front panel & audio headers, USB 3.2/2.0 headers, TPM header, Clear CMOS jumper
Back Panel Connectors	PS/2, DisplayPort, HDMI, 4 x USB 3.2 Gen1, 4 x USB 2.0/1.1, RJ-45, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan speed, Fan fail warning, Fan speed control (depends on cooler)
BIOS	128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	APP Center, @BIOS, EasyTune, Smart Backup, System Info Viewer, Q-Flash
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Support	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX, 24.4 x 24.4 cm

Out of stock

Receives in 6 days.

Gigabyte GA-B650-A-ELITE-AX V2 DRR5 AM5 ATX

PCWORX

Gigabyte GA-B650-A-ELITE-AX V2 DRR5 AM5 ATX

(0)

₱12,466.00

Memory,
to the future

All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.

Best-in-class Compatibility

DDR5 Overclocking Up to

8000 MT/s

* Memory overlocking and EXPO/XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 Auto Booster

one click to boost native DDR5-4800 to 5000

AMD EXPO™/ Intel® XMP 3.0 User Profile

optimizes memory settings and achieve the best performance for the system

High Bandwidth

one click to increase DDR5 bandwidth

Low Latency

one click to shorten DDR5 latency

Hardware Craftsmanship

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Shielded Memory Routing

Memory routing is shielded within the PCB's inner layer to protect against interference.

Daisy-Chained Routing

Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.

Efficient Thermal

Overall Thermal

Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Connectivity versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Enjoy reliable gaming audio

High Quality Sound

Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment.

Audiophile Grade Capacitors

Premium Grade Audio capacitors provide stable current, delivering a studio-quality experience.

Elevating Performance Together

AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

UC BIOS

Redesigned as user-centered and provides intuitive performance tweakers.

Redesigned UI and UX

an intuitive operation interface with an aesthetically pleasing design.

Quick Access

9 customizable option slots for effortless access in Easy Mode.

Category	Specifications
CPU	AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series Processors. See CPU Support List for details.
Chipset	AMD B650
Memory	DDR5 4400–8000(OC) MT/s, 4 DIMM slots, up to 256 GB (64 GB per DIMM), dual-channel, ECC not supported, AMD EXPO/XMP supported.
Onboard Graphics	1 x DisplayPort (3840×2160@144 Hz, DP 1.4, HDR), 1 x HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3).
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software.
LAN & Wi-Fi	Realtek® 2.5GbE LAN, Wi-Fi 6E RTL8852CE (PCB 1.0) / Intel® Wi-Fi 6E AX210 (PCB 1.1), Bluetooth 5.3, 2.4/5/6 GHz bands.
Expansion Slots	CPU: 1 x PCIe x16 (PCIEX16, modes depend on CPU). Chipset: 2 x PCIe x16 (PCIEX1_1/2).
Storage Interface	3 x M.2 (CPU + Chipset, PCIe 4.0/5.0 x4/x2 depending on CPU), 4 x SATA 6 Gb/s, RAID 0/1/10 support.
USB Ports	CPU: 1 x USB-C 3.2 Gen2, 2 x USB-A 3.2 Gen2. Chipset: 1 x USB-C 3.2 Gen2x2, 3 x USB 3.2 Gen1, 4 x USB 2.0. Total: multiple back panel and internal headers.
Internal I/O Connectors	24-pin ATX, 8-pin + 4-pin CPU power, CPU/system fan headers, RGB/ARGB headers, M.2 connectors, SATA, front panel USB/audio, TPM header, reset/clear CMOS.
Back Panel Connectors	Q-Flash Plus button, 2 antennas (2T2R), DisplayPort, HDMI, USB-C 3.2 Gen2, 2 x USB-A 3.2 Gen2, 5 x USB 3.2 Gen1, 4 x USB 2.0, RJ-45, 3 audio jacks.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control (dependent on installed fans/pump).
BIOS	256 Mbit flash, AMI UEFI, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus.
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software.
Operating System	Windows 11 64-bit, Windows 10 64-bit.
Form Factor	ATX, 30.5 cm x 24.4 cm

Low in stock

Receives in 6 days.

Gigabyte GA-B650-A-ELITE-AX-ICE White AM5 DDR5 ATX Mobo

PCWORX

Gigabyte GA-B650-A-ELITE-AX-ICE White AM5 DDR5 ATX Mobo

(0)

₱13,848.00

Category	Details
CPU	AMD Socket AM5Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors*Refer to CPU Support List for details
Chipset	AMD B650
Memory	4 × DDR5 DIMM sockets, up to 256GB (64GB per DIMM)Dual-channel architectureSupports DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/sSupports non-ECC Unbuffered DIMM (1Rx8/2Rx8/1Rx16)Supports AMD EXPO™ & XMP*Memory support varies by CPU
Onboard Graphics	Integrated AMD Radeon™ Graphics (CPU dependent)1 × DisplayPort (3840×2160@144Hz, DP 1.4, HDR)1 × HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3)
Audio	Realtek® Audio CODECHigh-Definition Audio2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps)
Wireless (PCB rev 1.0)	Realtek® Wi-Fi 6E RTL8852CEWi-Fi a/b/g/n/ac/ax (2.4/5/6GHz)Bluetooth 5.311ax 160MHz support
Wireless (PCB rev 1.1)	Intel® Wi-Fi 6E AX210Wi-Fi a/b/g/n/ac/ax (2.4/5/6GHz)Bluetooth 5.311ax 160MHz support
Expansion Slots	1 × PCIe x16 (CPU integrated)- Ryzen 7000/9000: PCIe 4.0 x16- Ryzen 8000 Phoenix 1: x8- Ryzen 8000 Phoenix 2: x42 × PCIe x16 (Chipset, PCIe 3.0 x1 mode)
Storage Interface	3 × M.2 (PCIe 5.0/4.0 depending on CPU)4 × SATA 6Gb/sRAID 0/1/10 (NVMe & SATA)
USB (Rear + Internal)	USB 3.2 Gen 2 Type-C (rear)2 × USB 3.2 Gen 2 Type-A (rear)USB 3.2 Gen 2x2 Type-C (internal header)USB 3.2 Gen 1 (rear + internal)USB 2.0/1.1 (rear + internal)
Internal I/O	24-pin ATX + 8-pin + 4-pin CPU powerMultiple fan & pump headersRGB & ARGB headers3 × M.2 sockets4 × SATAFront panel, audio, USB headersTPM headerClear CMOS jumper
Back Panel	Q-Flash Plus button2 × Antenna connectorsDisplayPort + HDMIUSB Type-C + USB Type-A portsRJ-45 LAN3 × Audio jacks
I/O Controller	iTE® I/O ControllerVoltage, temperature & fan monitoringFan fail warning & control
BIOS	256 Mbit flashAMI UEFI BIOSSupports PnP, DMI, WfM, SM BIOS, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) support

Out of stock

Receives in 6 days.

Gigabyte GA-B650-AERO-G AM5 DDR5 ATX Motherboard

PCWORX

Gigabyte GA-B650-AERO-G AM5 DDR5 ATX Motherboard

(0)

₱17,790.50

GIGABYTE Creator Motherboard

AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
VisionLINK: One USB-C^® Port for Video, Data Transfer and Charging
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: Intel^® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP IN, HDMI, Front USB-C^® 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B650
Memory	Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
Onboard Graphics	Integrated Graphics Processor: 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Audio	Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Back Panel Connectors	2 x SMA antenna connectors (2T2R) 2 x USB 2.0/1.1 ports 1 x DisplayPort In port 1 x HDMI port 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x audio jacks 1 x optical S/PDIF Out connector
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

Low in stock

Receives in 6 days.

Gigabyte GA-B650-EAGLE-AX AM5 DDR5 ATX Motherboard

PCWORX

Gigabyte GA-B650-EAGLE-AX AM5 DDR5 ATX Motherboard

(0)

₱10,896.00

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Category	Details
CPU	AMD Socket AM5; supports AMD Ryzen™ 7000 / 8000 / 9000 Series processors
Chipset	AMD B650
Memory	4× DDR5 DIMM slots, up to 256GB; speeds up to 8000(OC); Dual-channel; supports EXPO™ & XMP; Non-ECC Unbuffered DIMMs
Onboard Graphics	Integrated AMD Radeon™ Graphics (via CPU); 1× DisplayPort (4K@144Hz), 1× HDMI 2.1 (4K@60Hz)
Audio	Realtek® HD Audio CODEC; 2/4/5.1/7.1-channel
LAN	Realtek® Gigabit LAN (10/100/1000 Mbps)
Wireless	Wi-Fi 6E (Realtek RTL8852CE or Intel AX210 depending on revision), Bluetooth 5.3
Expansion Slots	1× PCIe x16 (Gen4, varies by CPU); 3× PCIe x1 (Gen3)
Storage Interface	3× M.2 slots (PCIe 5.0 + PCIe 4.0); 4× SATA 6Gb/s; RAID 0/1/10 supported
USB (Rear + Internal)	USB 3.2 Gen2 Type-A, USB 3.2 Gen1 Type-A & Type-C, USB 2.0 (multiple via rear and headers)
Internal I/O Connectors	24-pin ATX, 8-pin CPU power, fan headers, RGB/ARGB headers, 3× M.2, 4× SATA, USB headers, TPM header, Q-Flash Plus button, CMOS jumper
Back Panel Connectors	DisplayPort, HDMI, PS/2, USB-C, USB-A (Gen2 + Gen1 + USB2.0), RJ-45 LAN, WiFi antenna connectors, 3× audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage, temperature, fan speed, water cooling flow detection, fan control & warnings
BIOS	256 Mbit flash; AMI UEFI BIOS; supports PnP, DMI, WfM, SMBIOS, ACPI
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Support	Windows 11 (64-bit), Windows 10 (64-bit)
Form Factor	ATX (30.5 cm × 24.4 cm)

Low in stock

Receives in 6 days.

Gigabyte GA-B650E-A-STEALTH-ICE AM5 DDR5 PCIe 5.0 Motherboard

PCWORX

Gigabyte GA-B650E-A-STEALTH-ICE AM5 DDR5 PCIe 5.0 Motherboard

(0)

₱18,733.50

Key Features

AMD Socket AM5:	Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
Digital twin 12+2+2 phases VRM solution
Dual Channel DDR5:	4*DIMMs with AMD EXPO™Memory Module Support
PCIe UD Slot X:	PCIe 5.0 x16 slot with 10X strength for graphics card
WIFI EZ-Plug:	Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Match:	Magnetic alignment for easy installation of large heat sinks
EZ-Latch Click:	M.2 heatsinks with screwless design
EZ-Latch Plus:	M.2 slots with Quick Release & Screwless Design
Sensor Panel Link:	Onboard video port for hassle-free in-chassis panel setup
UC BIOS:	User-Centred intuitive UX with Quick Access function
Back Plate:	With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality
Ultra-Fast Storage:	3M.2 slots, including 1 PCIe 5.0 x4
Efficient Overall Thermal:	VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Fast Networking:	2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
Extended Connectivity:	HDMI, Onboard HDMI, USB-C with DP-Alt
Reliable Audio:	8-Ch HD Audio & Audiophile Grade Capacitors
World's First true White Reverse Connector Motherboard

What is STEALTH Design?

Not just a PC build kit, Stealth Series Product delivers a revolutionary building experience. By having virtually no wire and cable cluttering, a faster assembly time, smoother directional airflow, and better performance, flaunt a cableless seeming desktop with unrestricted space.

Maximized Chassis Compatibility

The Stealth series excels in high chassis compatibility, supporting numerous manufacturers. It enables PC DIY enthusiasts and gamers alike to effortlessly assemble personalized computer setups without constraints.

Connectivity versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

SPECIFICATIONS

CPU
AMD Socket AM5, support for:	AMD Ryzen™ 9000 Series Processors/
	AMD Ryzen™ 8000 Series Processors/
	AMD Ryzen™ 7000 Series Processors
	(Go to GIGABYTE's website for the latest CPU support list.)
Chipset:	AMD B650
Memory:	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support forAMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics:	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	- 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs
	and a maximum resolution of 3840x2160@144 Hz
Onboard Graphics:	Support for DisplayPort 1.4 version and HDR.
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Support for HDMI 2.1 version and HDCP 2.3.
	Support for native HDMI 2.1 TMDS compatible ports.
	- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
	Support for HDMI 1.4 version
	(Graphics specifications may vary depending on CPU support.)
Audio:	Realtek® Audio CODEC
	High-Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software.To configure 7.1-channel audio, access the audio software for audio settings.
LAN:	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:	MediaTek Wi-Fi 7 MT7925
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots:	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
	- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface:	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
	- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	- AMD Ryzen™ 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 (Note1)
	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	CPU + USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports on the back panel
Chipset:	- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
	- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
	Chipset+USB 3.2 Gen 1 Hub:
	- 4 x USB 3.2 Gen 1 ports on the back panel
	(Note 1) This USB Type-C® port supports a maximum speed of 40Gbps. Actual support may vary by CPU.
Internal I/O Connectors:	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x HDMI port (Note2)
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper
	(Note 2) Only available with the AMD Radeon™ Graphics Processors.
Back Panel Connectors:
	1 x Q-Flash Plus button
	2 x SMA antenna connectors (2T2R)
	1 x HDMI port
	1 x USB Type-C® port (DisplayPort)
	2 x USB 3.2 Gen 2 Type-A ports (red)
	5 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller:	iTE® I/O Controller Chip
	H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS:
	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
	Unique Features
	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

In stock

Receives in 6 days.

Gigabyte GA-B650I-AX DDR5 AM5 Motherboard

PCWORX

Gigabyte GA-B650I-AX DDR5 AM5 Motherboard

(0)

₱10,580.00

General Information

Feature	Specification
Model	Gigabyte B650I AX
Form Factor	Mini-ITX (17 × 17 cm)
Chipset	AMD B650
CPU Socket	AMD AM5
Supported CPUs	AMD Ryzen 7000 / 8000 / 9000 Series
VRM Design	5+2+1 Phase Digital VRM
BIOS	UEFI BIOS with Q-Flash Plus

Memory

Feature	Specification
Memory Type	DDR5
Slots	2 × DDR5 DIMM
Max Capacity	Up to 128 GB (2 × 64 GB)
Memory Channels	Dual-Channel
Supported Speeds	4800 – 8000 MHz (OC)
Profiles	AMD EXPO / Intel XMP support
ECC	Non-ECC Unbuffered

Expansion Slots

Slot	Details
PCIe Slot	1 × PCIe 4.0 x16 (for GPU)
Additional	PCIe EZ-Latch quick release

Storage

Storage Type	Quantity
M.2 NVMe	1 × PCIe 4.0 x4
SATA	2 × SATA III (6 Gb/s)
RAID Support	RAID 0 / 1 / 5 / 10

Graphics Output

(Depends on CPU with integrated graphics)

Port	Maximum Resolution
DisplayPort 1.4	3840×2160 @ 144 Hz
HDMI 2.1	4096×2160 @ 60 Hz

Networking

Feature	Controller
LAN	Realtek 2.5 GbE
Wi-Fi	Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.3

Audio

Feature	Specification
Codec	Realtek ALC897
Audio Channels	2 / 4 / 5.1 / 7.1 HD Audio

Rear I/O Ports

Typical rear ports include:

1 × HDMI 2.1
1 × DisplayPort 1.4
1 × USB-C (USB 3.2 Gen1)
1 × USB 3.2 Gen2 Type-A
3 × USB 3.2 Gen1 Type-A
4 × USB 2.0
1 × 2.5 Gb Ethernet
Wi-Fi antenna connectors
3 × Audio jacks

Internal Headers / Features

3 × Fan headers (Smart Fan 6)
1 × Addressable RGB header
1 × RGB LED header
Front panel USB headers
TPM support
Q-Flash Plus BIOS update (no CPU required)
Temperature & voltage monitoring sensors

Physical Dimensions

Specification	Value
Form Factor	Mini-ITX
Size	170 mm × 170 mm

Low in stock

Receives in 6 days.

Gigabyte GA-B650M-A-ELITE-AX-ICE AM5 DDR5 m-ATX Mobo

PCWORX

Gigabyte GA-B650M-A-ELITE-AX-ICE AM5 DDR5 m-ATX Mobo

(0)

₱12,063.50

AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E
Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Motherboard Specifications Table

CPU Support

Item	Details
Socket	AMD AM5
Supported CPUs	AMD Ryzen™ 7000 / 8000 / 9000 Series
Notes	CPU support depends on BIOS version

Chipset

Item	Details
Chipset	AMD B650

Memory

Item	Details
Memory Type	DDR5
Slots	4 × DDR5 DIMM
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual-Channel
Supported Speeds	Up to DDR5-8000 (OC), down to DDR5-4400
Memory Support	Non-ECC Un-buffered (1Rx8 / 2Rx8 / 1Rx16)
Profiles	AMD EXPO™, Intel XMP

Onboard Graphics

Port	Specification
DisplayPort	DP 1.4, up to 3840×2160 @144 Hz, HDR
HDMI	HDMI 2.1, up to 4096×2160 @60 Hz, HDCP 2.3
GPU	Integrated AMD Radeon™ Graphics (CPU-dependent)

Audio

Item	Details
Codec	Realtek® High Definition Audio
Channels	2 / 4 / 5.1 / 7.1
Digital Audio	Optical S/PDIF Out

Networking

Item	Details
LAN	Realtek® 2.5GbE
Wi-Fi (Rev. 1.0)	Realtek Wi-Fi 6E RTL8852CE
Wi-Fi (Rev. 1.1)	Intel® Wi-Fi 6E AX210
Bluetooth	Bluetooth® 5.3

Expansion Slots

Slot	Details
PCIe x16 (CPU)	PCIe 4.0 x16 / x8 / x4 (CPU-dependent)
PCIe x16 (Chipset)	PCIe 4.0 x4

Storage

Interface	Details
M.2 (M2A_CPU)	PCIe 5.0 x4 (Ryzen 7000/9000), PCIe 4.0 x4 (Ryzen 8000)
M.2 (M2B_CPU)	PCIe 4.0 x4/x2
SATA	4 × SATA 6 Gb/s
RAID	RAID 0 / 1 / 10 (NVMe & SATA)

USB Ports

Source	Ports
CPU	1 × USB-C (USB 3.2 Gen 2), 2 × USB-A (USB 3.2 Gen 2)
Chipset	USB-C (USB 3.2 Gen 2x2), USB 3.2 Gen 1, USB 2.0
Back Panel Total	USB-C, USB-A Gen 2, Gen 1, USB 2.0

Internal Connectors

Type	Quantity
ATX Power	24-pin + 8-pin CPU
Fan / Pump Headers	6
M.2 Slots	2
SATA	4
RGB / ARGB Headers	5
USB Headers	USB-C Gen 2x2, USB 3.2 Gen 1, USB 2.0
Others	TPM, Front Panel, Audio, Reset, Clear CMOS

Back Panel I/O

Connector	Quantity
HDMI	1
DisplayPort	1
USB-C	1
USB-A	11 (Gen 2 / Gen 1 / USB 2.0)
LAN	1 × RJ-45
Audio	Optical S/PDIF + 2 audio jacks
Antenna	2 × SMA

BIOS & Features

Item	Details
BIOS	AMI UEFI, 256 Mbit
Flash Utilities	Q-Flash, Q-Flash Plus
Monitoring	Voltage, temp, fan & pump monitoring
Software	GIGABYTE Control Center

Operating System

OS Support
Windows 11 64-bit
Windows 10 64-bit

Form Factor

Item	Details
Form Factor	Micro-ATX
Dimensions	24.4 cm × 24.4 cm

Out of stock

Receives in 6 days.

Gigabyte GA-B650M-AORUS-ELITE-AX DDR5 AM5 m-ATX

PCWORX

Gigabyte GA-B650M-AORUS-ELITE-AX DDR5 AM5 m-ATX

(0)

₱11,741.50

Unparalleled Performance

Twin Digital VRM Design
PCIe 5.0 Design
EXPO & XMP Support
OC GUIDE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Outstanding Thermal Design

Thermal Design
M.2 Thermal Guard
2X Copper PCB
Smart Fan 6

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY

802.11ax Wi-Fi 6E
2.5GbE LAN
Front USB-C^® 20Gb/s
Rear USB-C^® 10Gb/s
Hi-Fi Audio

PERSONALIZATION

UEFI BIOS
GIGABYTE Control Center
Multi-Key

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

DIY Friendly
Q-Flash Plus

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Key Feature

AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Unparalleled Performance：Twin 12*+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, DP, Front USB-C^® 20Gb/s, Rear USB-C^® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS

CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
	(Please refer "CPU Support List" for more information.)
Chipset	AMD B650
Memory	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor:
	1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 1.4 version and HDR.
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC
	High-Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	LAN
Wireless Communication module	AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.2
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.3
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
	AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
	1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
	2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	CPU + USB 2.0 Hub:
	4 x USB 2.0/1.1 ports on the back panel
	Chipset:
	1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
	3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
	4 x USB 2.0/1.1 ports available through the internal USB headers
	Chipset+USB 3.2 Gen 1 Hub:
	4 x USB 3.2 Gen 1 ports on the back pane
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x water cooling CPU fan header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	1 x CPU cooler LED strip/RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x serial port header
	1 x THB_U4 add-in card connector
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	1 x Q-Flash Plus button
	2 x SMA antenna connectors (2T2R)
	1 x DisplayPort
	1 x HDMI port
	1 x USB Type-C® port, with USB 3.2 Gen 2 support
	2 x USB 3.2 Gen 2 Type-A ports (red)
	5 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	1 x optical S/PDIF Out connector
	2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Low in stock

Receives in 6 days.

Gigabyte GA-B650M-D3HP Micro ATX AM5 DDR5 M-ATX

PCWORX

Gigabyte GA-B650M-D3HP Micro ATX AM5 DDR5 M-ATX

(0)

₱7,590.00

AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
Extended Connectivity：2*DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications:

Category	Specification
CPU	AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series processors
Chipset	AMD B650
Memory	DDR5 up to 8000(OC), 4× DIMM, max 256GB, dual-channel, supports EXPO & XMP
Onboard Graphics	AMD Radeon™ (via CPU); 2× DisplayPort (4K@144Hz), 1× HDMI 2.1 (4K@60Hz); triple display support
Audio	Realtek® HD Audio, 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN
Wireless Communication	Wi-Fi 6E (802.11ax) + Bluetooth 5.3
Expansion Slots	1× PCIe 4.0 x16, 1× PCIe 3.0 x1
Storage Interface	2× M.2 PCIe 4.0, 4× SATA 6Gb/s, RAID 0/1/10
USB	USB Type-C®, USB 3.2 Gen1, USB 2.0 (rear & internal)
Internal I/O Connectors	24-pin ATX, 8-pin CPU, fan headers, RGB/ARGB headers, USB headers, TPM, Q-Flash Plus

Low in stock

Receives in 6 days.

Power supply:	Bluetooth 5.1 or line in
Total output power (W):	4 W
Driver unit:	2-inch x2, 3 ohm
Frequency response:	120 Hz – 20 kHz
Signal to noise ratio:	≧ 75 dB
Inputs sensitivity:	600 +/- 100 mV
Power source:	USB DC 5 V
Other:
Weight (grams):	Approx. 691 g
Dimensions (W x H x D) mm (inches):	448 x 72.6 x 73.5 ( 17.6" x 2.86" x 2.89" )
System requirements:	Works with a 0.14 in (3.5 mm) input including a television, computer, smartphone, and tablet music player.
Colors:	Black

General specifications
Model Name:	WideCam F100
Interface:	USB 2.0
Weight:	Approx. 82 g
Dimensions:	150 x 49 x 48 mm
Color:	Black
Included:	Webcam, USB extension cable, multi-language user manual
Image and video
Image Sensor:	1080p Full HD pixel CMOS
Resolution (DPI):	12MP (Interpolation), 1920 x 1080, 1280 x 720, 640 x 480 pixels
Lens:	Manual focus lens with glass lens
View Angle:	120° ultra-wide angle
Video Format:	MPEG/WMV
Video Recording:	Up to 1080p at 30fps
Additional Features:	Time-lapse function
Audio
Microphone:	Built-in high-sensitivity stereo microphone
Compatibility
Operating Systems:	Windows 7, 8, 8.1, 10 or later; Mac OS X 10.10 or later; Linux 2.6.21 or above

Specifications
Form Factor:	M.2 2280
Interface:	PCI-Express 3.0 x4, NVMe 1.3
Total Capacity:	256GB
Sequential Read Speed:	Up to 1700 MB/s
Sequential Write Speed:	Up to 1100 MB/s
Random Read IOPS:	Up to 180k
Warranty:	Limited 5-year or 300TBW
Supported Technologies:	Host Memory Buffer (HMB), TRIM, and S.M.A.R.T

Brand	Gigabyte
Series	AERO-16-XE5

Market Name	AERO-16-XE5-73PH934AH
OS	Win 11
Processor (CPU)	12th Gen Intel® Core™ i7-12700H
Video Graphics	NVIDIA® GeForce RTX™ 3070 Ti
Display (Panel)	16.0" Thin Bezel UHD+ 3840x2400 Samsung AMOLED
RAM	16GB DDR5 4800 (8GB*2)
Storage	Gen4 1TB
I/O Port	2x Thunderbolt™ 4 Support DisplayPort™ / one port support Power Delivery / High-speed Transferring
	1 x USB 3.2 Gen2 (Type C) Support High-speed Transferring
	1 x USB 3.2 Gen1 (Type A)
	1 x microSD Card Reader with UHS-II support
	1 x HDMI2.1
	1 x 3.5mm Audio Combo
	1 x DC-in
Audio	2x 2W Speaker
WiFi	Wi-Fi 6E (802.11ax) (Triple band) 2x2
Bluetooth	Bluetooth® V5.2
Webcam	FHD (1080p ) Webcam
Dimensions (W x D x H)	35.6(W) x 24.85(D) x 2.24 (H) cm
Weight	~2.30 kg
Color	Twilight Silver

Key specifications
Processor:	Intel Core i5-11400H (2.7 GHz base clock, up to 4.5 GHz turbo)
Graphics:	NVIDIA GeForce RTX 3050 Ti with 4GB GDDR6 memory
Display:	15.6-inch Full HD (1920x1080) IPS, 144Hz refresh rate
Memory:	16GB DDR4-3200 RAM (2 x 8GB)
Storage:	512GB PCIe NVMe SSD
Operating System:	Windows 10 Home
Keyboard:	All-zone single-color backlit keyboard with 15 color options
Battery:	48.96Wh Li-ion battery
Weight:	Approximately 2.2 kg (4.85 lbs)
Ports and connectivity
USB: 1x USB 2.0 Type-A, 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C
Video:	1x HDMI 2.0, 1x mini DisplayPort 1.4
Audio:	1x Audio combo jack, 1x Microphone jack
Other:	1x SD Card Reader, 1x RJ-45 LAN port, 1x DC-in Jack
Wireless:	Wi-Fi 6 and Bluetooth 5.2

Main menu

Product comparison

Main menu

MAXIMIZEBF

Explore Related Collections
