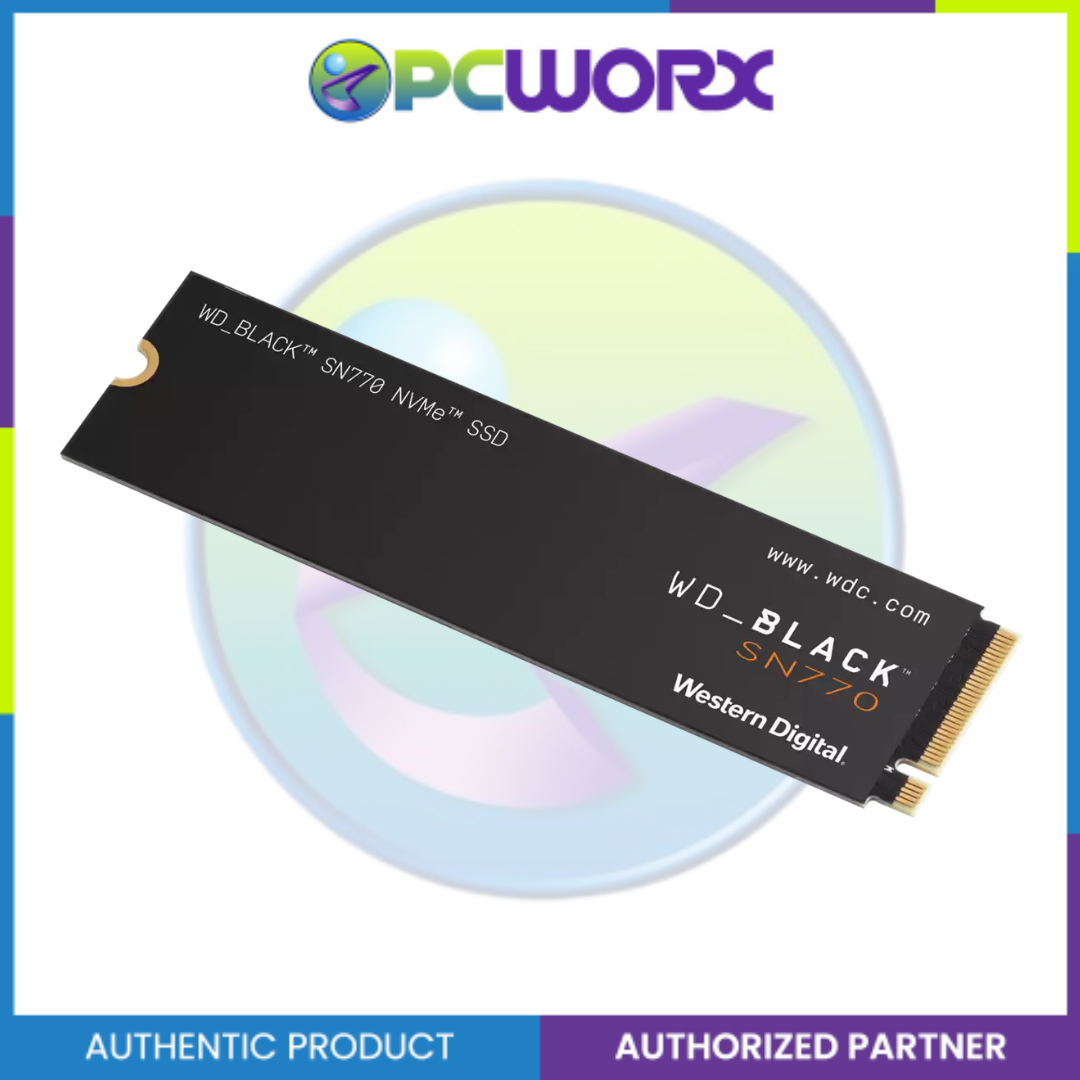

Western Digital WDS500G3X0E 500GB SN770 M.2 NVME 2280 PCIe GEN4 SSD

Upgrade Your Rig. Elevate Your Game.

Get ready to game even faster with the WD_BLACK SN770 NVMe SSD. Zoom past load times and get into the action now with a purpose-built gaming drive that boasts up to 40% faster performance and up to 20% more power efficiency at maximum speed over the previous generation3 (1TB model), plus a PCIe® Gen4 interface4 that delivers blazing speeds of up to 5,150MB/s1 (1TB and 2TB models).

First into the Action
Get into the match fast as you zoom past load times with blazing speeds of up to 5,150MB/s1 (1TB and 2TB models).

Smoother, Faster Gaming
Improve in-game responsiveness and streaming with the PCIe® Gen4 interface4 for a performance boost you can see and feel. The interface is compatible with leading CPU and motherboard platforms and backwards-compatible with PCIe® Gen3.

Store More
Available in capacities up to 2TB2, the WD_BLACK SN770 NVMe SSD gives you tons of storage for your latest games with space left over for future updates and downloadable content.

Turbocharge Your Laptop
Get up to 20% more power efficiency at maximum speed over the previous generation3 (1TB model) for an even better overall gaming experience on your portable rig.

Game Longer and Better
Optimize peak performance in gaming mode and monitor your drive’s health with the WD_BLACK Dashboard (Windows® only) so you can game with confidence using this reliable drive from a trusted brand backed by a 5-year limited warranty5.

DirectStorage Supported
Supports Microsoft’s DirectStorage technology for future games that improves load times.

Specifications

Capacity
500GB
Form Factor
M.2 2280
Sequential Read Performance
5000MB/s
Sequential Write Performance
4000MB/s
Random Read
460K IOPS
Random Write
800K IOPS
Interface
PCIe Gen4 x4
Warranty
5-Year Limited Warranty
Endurance (TBW)
300
Dimensions (L x W x H)
80mm x 22mm x 2.38mm
Weight
5.5gms
Model Number
WDS500G3X0E
Operating Temperature
0°C to 85°C
Non-Operating Temperature
-40°C to 85°C
Certifications
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

Product Features

• Endurance of up to 1200TBW
• Helps fuel in-game responsiveness, minimize stutter, and provide smooth streaming
• Get tons of space for your latest games, future updates, and downloadable content with capacities up to 2TB

Compatibility

Windows® 11, Windows® 10, Windows® 8.1

In The Box

• WD_BLACK SN770 NVMe SSD



Model Numbers

250GB: WDS250G3X0E

500GB: WDS500G3X0E

1TB: WDS100T3X0E

2TB: WDS200T3X0E



How It Compares

Model	WD_BLACK SN770 NVMe™ SSD - 500GB	WD_BLACK 3.5-Inch Gaming Hard Drive Capacity, Cache Size                                        500GB, 64MB                                      1TB, 64MB                                      2TB, 64MB                                      4TB, 256MB                                      6TB, 256MB                                      6TB, 128MB                                      8TB, 256MB                                      8TB, 128MB                                      10TB, 256MB                                      10TB, 512MB
Features	Endurance of up to 1200TBW  Helps fuel in-game responsiveness, minimize stutter, and provide smooth streaming Get tons of space for your latest games, future updates, and downloadable content with capacities up to 2TB	Designed for gamers, system builders, and professionals 2X DRAM cache up to 256MiB for faster read speeds on higher capacity models StableTrac™ and Dynamic Cache Technology (2TB and up)
Capacity	500GB	500GB
Category	Internal SSD	Internal HDD
Form Factor	M.2 2280	3.5-Inch
Model Number	WDS500G3X0E	WD5003AZEX
