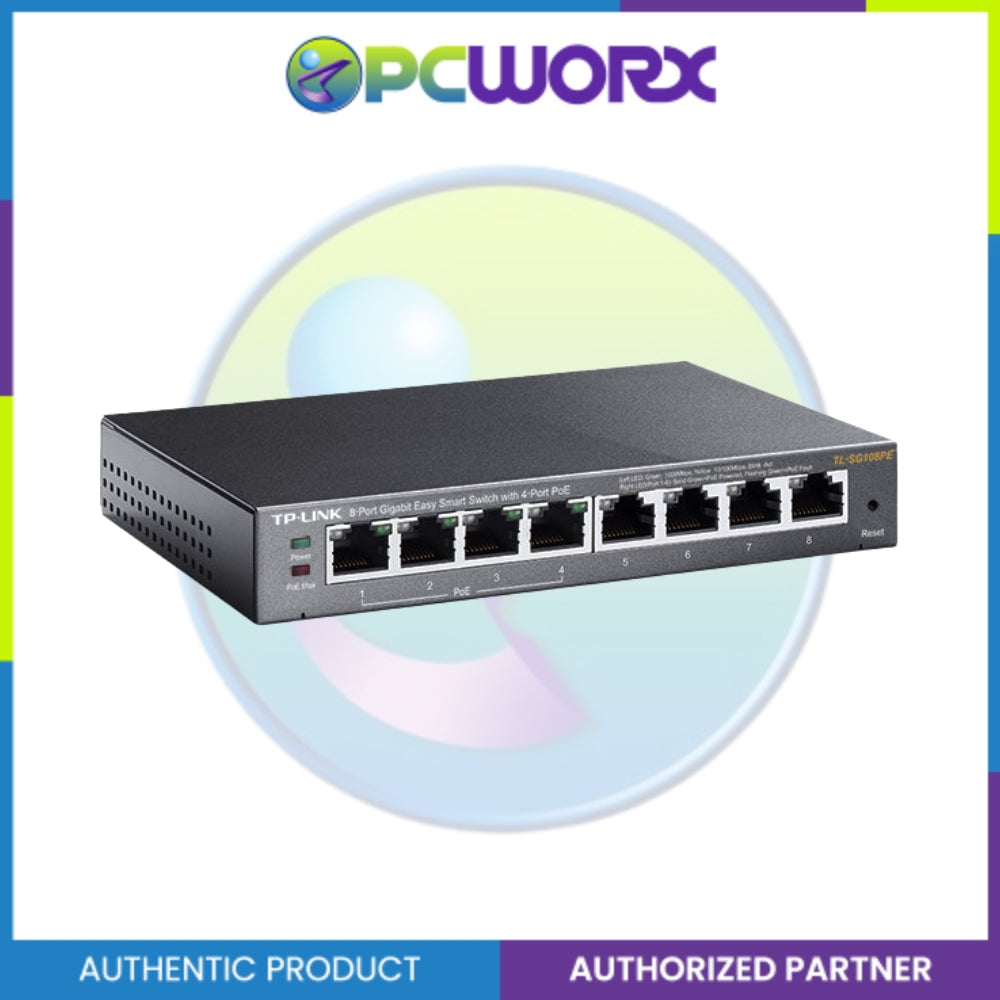

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Description

HARDWARE FEATURES - TL-SG108PE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE+ Ports(RJ45)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption 5.2W with no PoE device connected
65.2W with 55W PoE devices connected
Max Heat Dissipation 17.57 BTU/h with no PoE device connected
222.39 BTU/h with 55W PoE devices connected
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft® Windows® for optional management utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Product form

HARDWARE FEATURES - TL-SG108PE Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface... Read more

Free pickup in our shop(s)

SKU: 0000024477

2 in stock

₱2,852.00 Excl. VAT

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO

    • Guaranteed secure & safe checkout.

    Description

    HARDWARE FEATURES - TL-SG108PE
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    Interface 8 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Power Supply External Power Adapter(Output: 48VDC / 1.25A)
    PoE+ Ports(RJ45)
    PoE Ports (RJ45) Standard: 802.3 af compliant
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 55W
    Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
    Max Power Consumption 5.2W with no PoE device connected
    65.2W with 55W PoE devices connected
    Max Heat Dissipation 17.57 BTU/h with no PoE device connected
    222.39 BTU/h with 55W PoE devices connected
    PERFORMANCE
    Switching Capacity 16Gbps
    Packet Forwarding Rate 11.9Mpps
    MAC Address Table 4K
    Packet Buffer Memory 1.5Mb
    Jumbo Frame 15KB
    SOFTWARE FEATURES
    Quality of Service Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
    L2 Features IGMP Snooping V1/V2/V3
    Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
    Management Web-based GUI
    Easy Smart Configuration Utility
    Transmission Method Store-And-Forward
    OTHERS
    Certification FCC, RoHS
    Package Contents TL-SG108PE
    Power Adapter
    Installation Guide
    Resource CD
    Rubber Feet
    System Requirements Microsoft® Windows® for optional management utility
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90%RH non-condensing
    Storage Humidity: 5%~95%RH non-condensing
