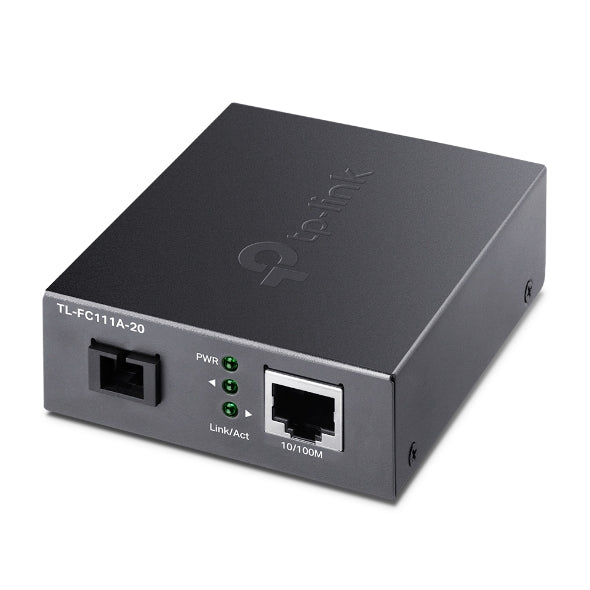

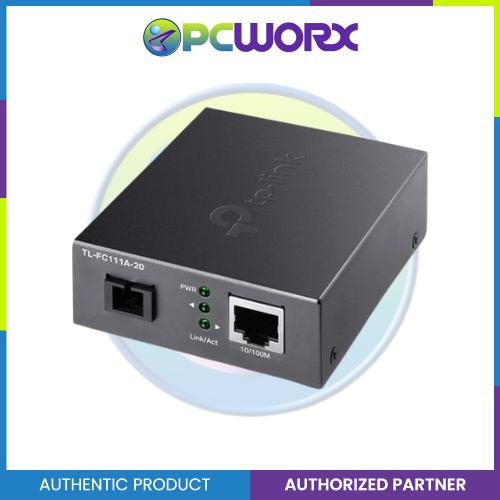

TP-Link TL-FC111A-20 Tx 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Direc

Description

NETWORK - TL-FC111A-20
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Interface • 1× 100 Mbps SC Fiber Port
• 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function Auto-negotiation of half-duplex / full-duplex transfer mode
Full-duplex flow control (IEEE 802.3x)
Half-duplex flow control (Backpressure)
Extends fiber distance up to 20km (12.4 miles)
Ports 1x 100M single SC/UPC port
1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX 1550 nm
WDM RX 1310 nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External Power Adapter: 5 V/0.6 A
Safety & Emission FCC, CE, RoHS
Fiber Type 9/125 μm single-mode fber (≤20 km)
Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
OTHERS
Package Contents • Media Converter TL-FC111A-20
• Power Adapter
• Installation Guide

TP-Link TL-FC111A-20 Tx 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Direc

Product form

NETWORK - TL-FC111A-20 Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u ENVIRONMENT Operating Temperature 0˚C to 50˚C (32˚F to 122˚F) Storage Temperature -40˚C... Read more

Free pickup in our shop(s)

SKU: 0000057596

1 in stock

₱700.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    NETWORK - TL-FC111A-20
    Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
    ENVIRONMENT
    Operating Temperature 0˚C to 50˚C (32˚F to 122˚F)
    Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
    Operating Humidity 10% to 90% RH non-condensing
    Storage Humidity 5% to 90% RH non-condensing
    HARDWARE FEATURES
    Interface • 1× 100 Mbps SC Fiber Port
    • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
    Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
    Power Supply External Power Adapter: 5 V/0.6 A
    LED PWR, Link/Act
    Dimensions ( W x D x H ) 94.5*73*27 mm
    Wave Length 1550 nm TX, 1310 nm RX
    MEDIA CONVERTER & MODULE
    Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE802.3u
    Basic Function Auto-negotiation of half-duplex / full-duplex transfer mode
    Full-duplex flow control (IEEE 802.3x)
    Half-duplex flow control (Backpressure)
    Extends fiber distance up to 20km (12.4 miles)
    Ports 1x 100M single SC/UPC port
    1x 10/100M RJ45 port (Auto MDI/MDIX)
    WDM TX 1550 nm
    WDM RX 1310 nm
    Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Network Media 100BASE-FX Single-mode fiber
    LED Indicators PWR, Link/Act
    Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
    (95 × 73 × 27 mm)
    Power Supply External Power Adapter: 5 V/0.6 A
    Safety & Emission FCC, CE, RoHS
    Fiber Type 9/125 μm single-mode fber (≤20 km)
    Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    OTHERS
    Package Contents • Media Converter TL-FC111A-20
    • Power Adapter
    • Installation Guide
