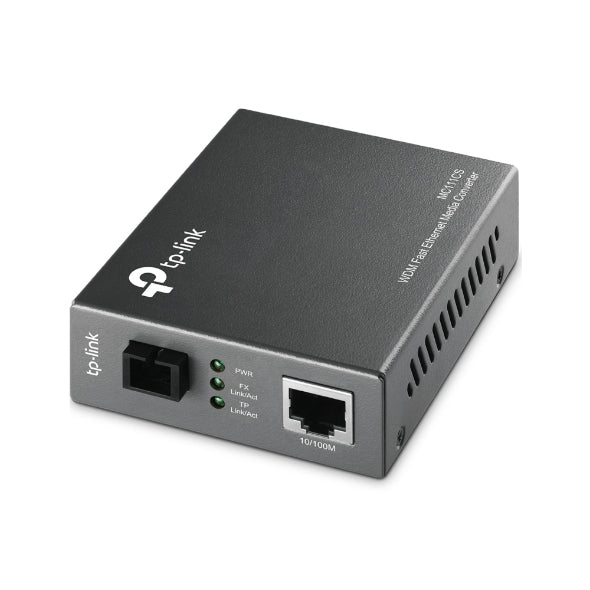

TP-Link MC111CS 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional

Description

MEDIA CONVERTER & MODULE - MC111CS
Standards and Protocols IEEE 802.3, IEEE 802.3u
Basic Function Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
minimize the loss caused by link failure timely
Extends fiber distance up to 20km (12.5 miles)
Ports 1 x 100M SC/UPC port
1 x 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length 1550nm Tx/1310nm Rx
WDM TX 1550nm
WDM RX 1310nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 x 2.9 x 1.1 in.
(95 x 73 x 27 mm)
Power Supply External Power Adapter
Max Power Consumption 2.49W
Safety & Emission FCC, CE, RoHS
Package Contents • Media Converter MC111CS
• Power Adapter
• Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

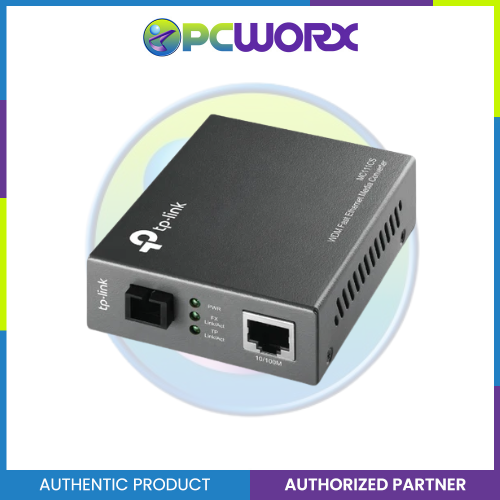

TP-Link MC111CS 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional

Product form

MEDIA CONVERTER & MODULE - MC111CS Standards and Protocols IEEE 802.3, IEEE 802.3u Basic Function Adopts WDM technologyHalf/Full-Duplex transfer mode for... Read more

Free pickup in our shop(s)

SKU: 0000061648

1 in stock

₱1,115.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    MEDIA CONVERTER & MODULE - MC111CS
    Standards and Protocols IEEE 802.3, IEEE 802.3u
    Basic Function Adopts WDM technology
    Half/Full-Duplex transfer mode for FX port
    minimize the loss caused by link failure timely
    Extends fiber distance up to 20km (12.5 miles)
    Ports 1 x 100M SC/UPC port
    1 x 10/100M RJ45 port (Auto MDI/MDIX)
    Wave Length 1550nm Tx/1310nm Rx
    WDM TX 1550nm
    WDM RX 1310nm
    Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Network Media 100BASE-FX Single-mode Fiber
    LED Indicators PWR, Link/Act
    Dimensions (W*D*H) 3.7 x 2.9 x 1.1 in.
    (95 x 73 x 27 mm)
    Power Supply External Power Adapter
    Max Power Consumption 2.49W
    Safety & Emission FCC, CE, RoHS
    Package Contents • Media Converter MC111CS
    • Power Adapter
    • Installation Guide
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
