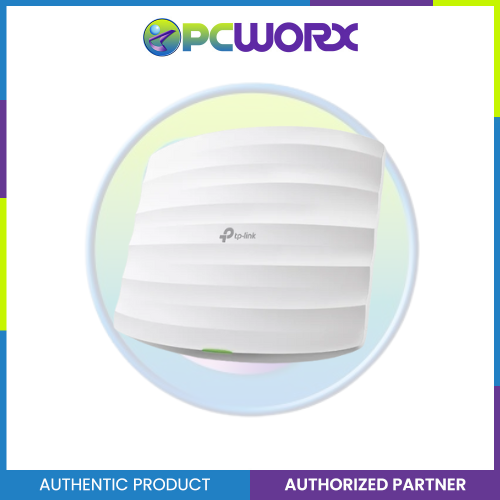

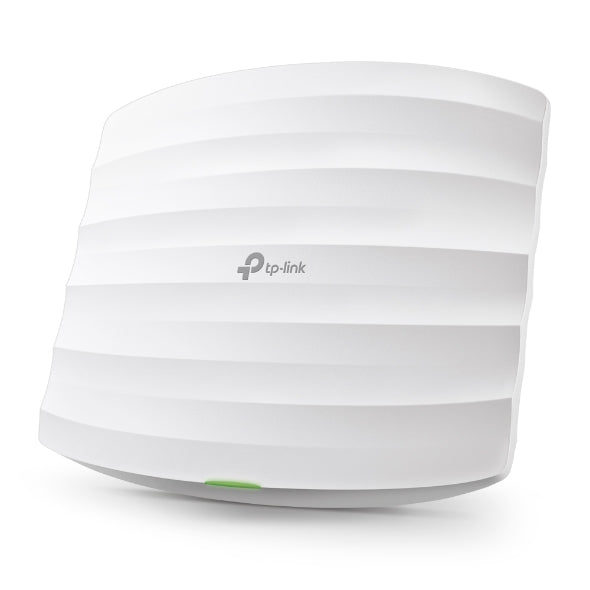

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Description

HARDWARE FEATURES - EAP225
Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply • 802.3af/at PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption • EU: 10.5 W
• US: 12.6 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power • CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
OTHERS
Certification CE, FCC, RoHS
Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Product form

HARDWARE FEATURES - EAP225  Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) Physical Security Lock Yes Button Reset... Read more

SKU: 0000033808

Out of stock

₱2,530.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    HARDWARE FEATURES - EAP225
    Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
    Physical Security Lock Yes
    Button Reset
    Power Supply • 802.3af/at PoE
    • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
    Power Consumption • EU: 10.5 W
    • US: 12.6 W
    Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
    Antenna Type 3 Internal Omni
    • 2.4 GHz: 4 dBi
    • 5 GHz: 5 dBi
    Mounting Ceiling /Wall Mounting (Kits included)
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11ac/n/g/b/a
    Frequency 2.4 GHz and 5 GHz
    Signal Rate • 5 GHz:Up to 867 Mbps
    • 2.4 GHz:Up to 450 Mbps
    Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • Seamless Roaming*
    • Omada Mesh*
    • Band Steering
    • Load Balance
    • MU-MIMO
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
    Wireless Security • Captive Portal Authentication*
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    Transmission Power • CE:
    ≤20 dBm(2.4 GHz, EIRP)
    ≤23 dBm(5 GHz, EIRP)
    • FCC:
    ≤24 dBm(2.4 GHz)
    ≤22 dBm(5 GHz)
    MANAGEMENT
    Omada App Yes
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1,v2c
    System Logging Local/Remote Syslog Local/Remote Syslog
    SSH Yes
    Web-based Management HTTP/HTTPS
    L3 Management Yes
    Multi-site Management Yes
    Management VLAN Yes
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
    • Passive PoE Adapter
    • Power Cord
    • Mounting Kits
    • Installation Guide
    System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
