Description

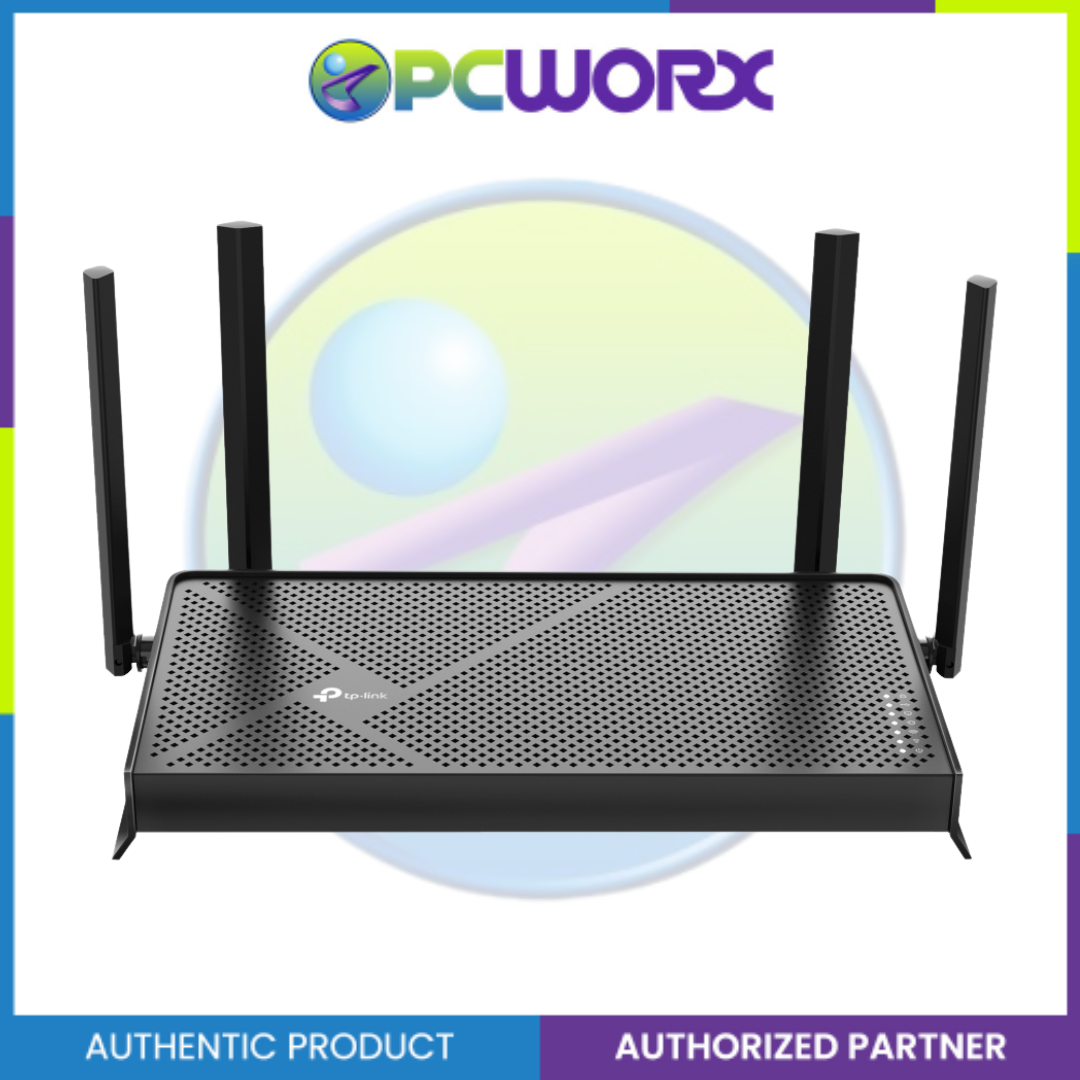

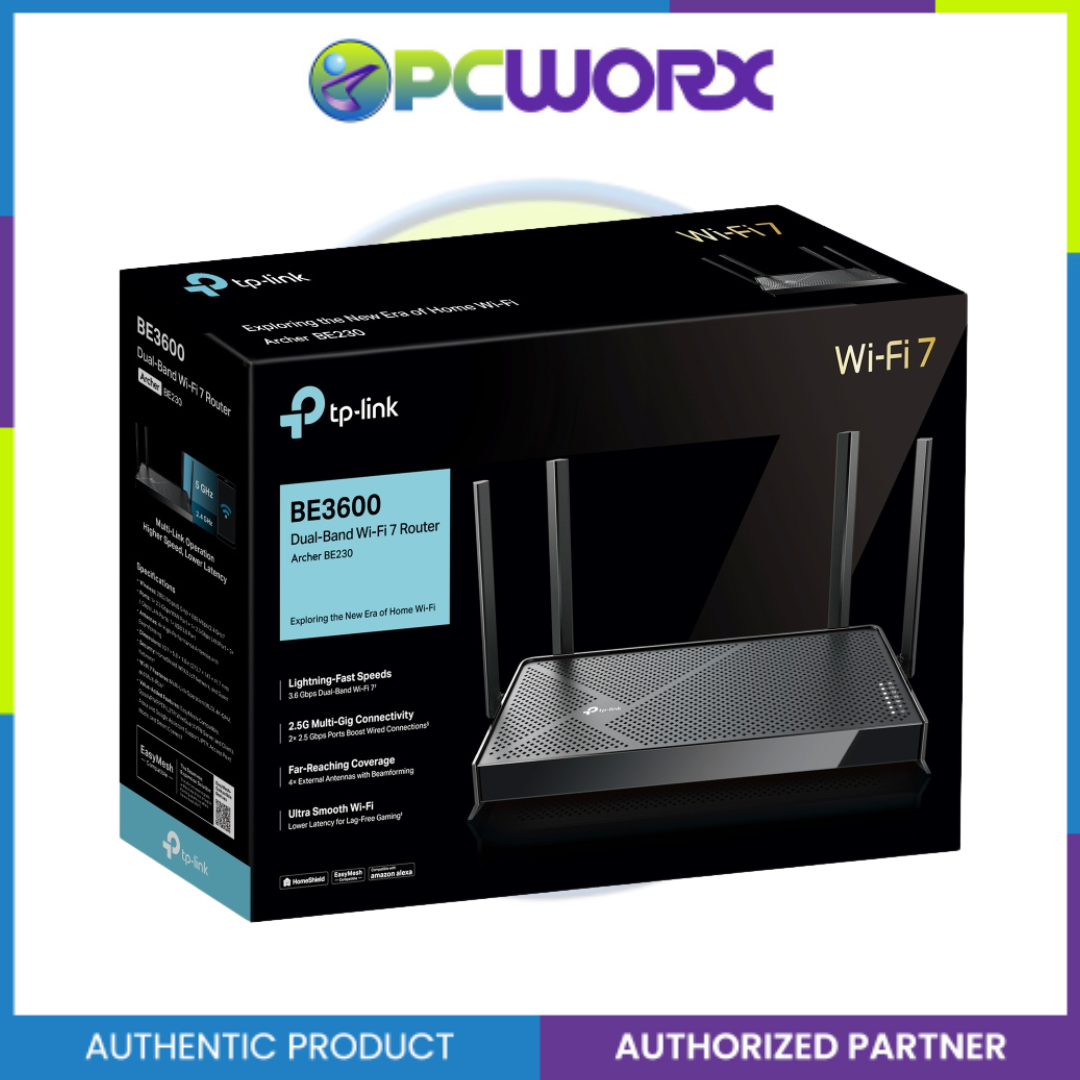

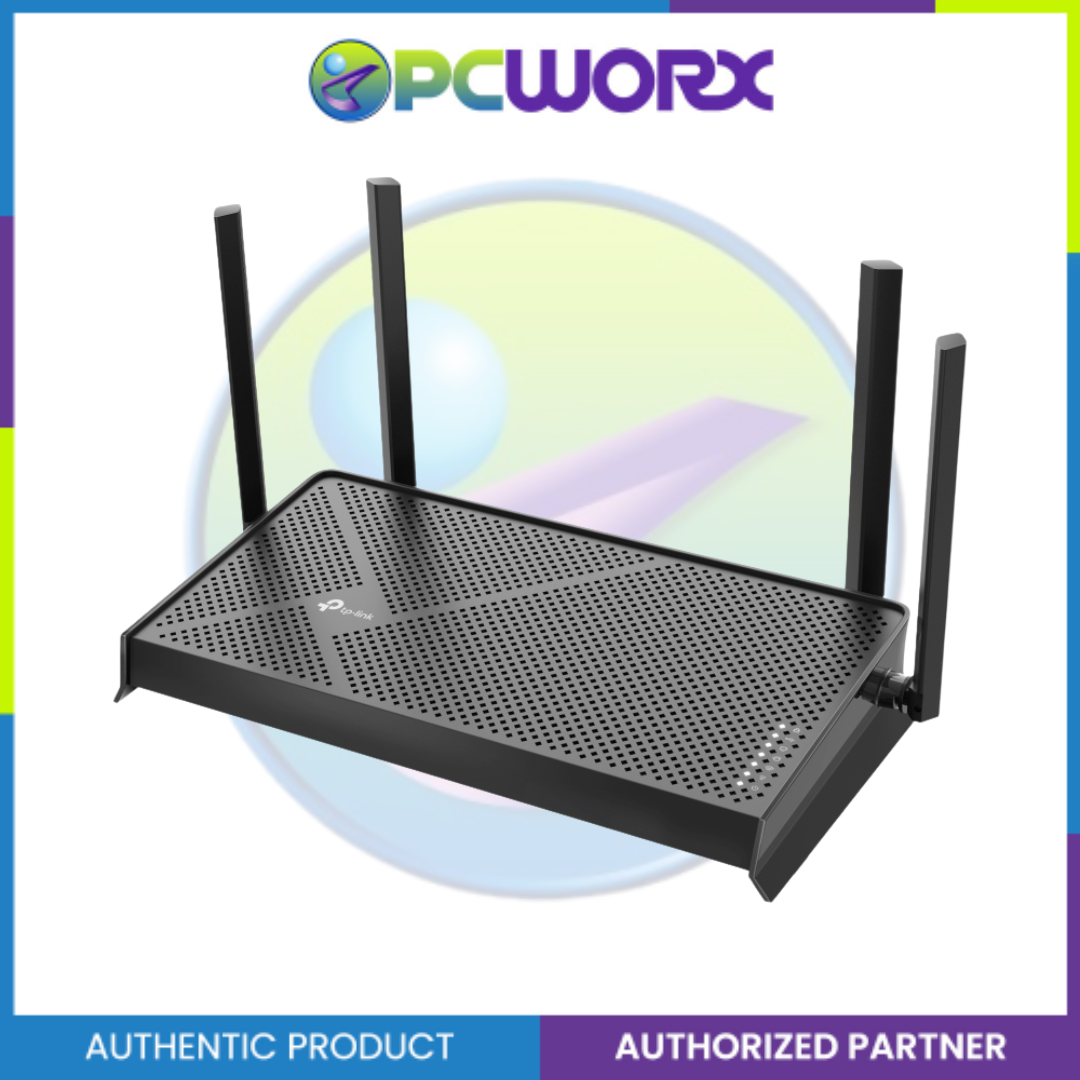

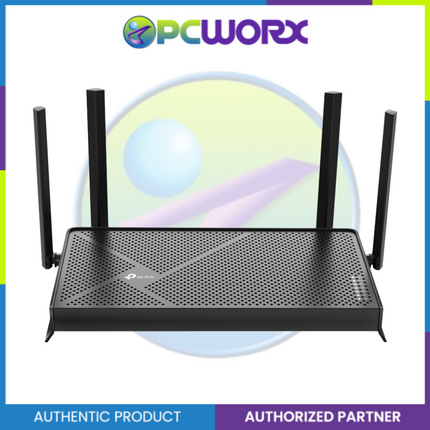

Archer BE230 New
BE3600 Dual-Band Wi-Fi 7 Router
-
3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
- 2× 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.
-
Maximized Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
-
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
-
Easy Setup and Use: Network management has never been easier with the Tether app.
-
TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
-
Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers.
WIRELESS
WiFi Speeds
BE3600
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)
WiFi Range
3 Bedroom Houses
4× External Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
Advanced Functions
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network
Wireless Mode
• Router Mode
• Access Point Mode
SECURITY
Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server
VPN Client
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client
WiFi Encryption
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
HARDWARE

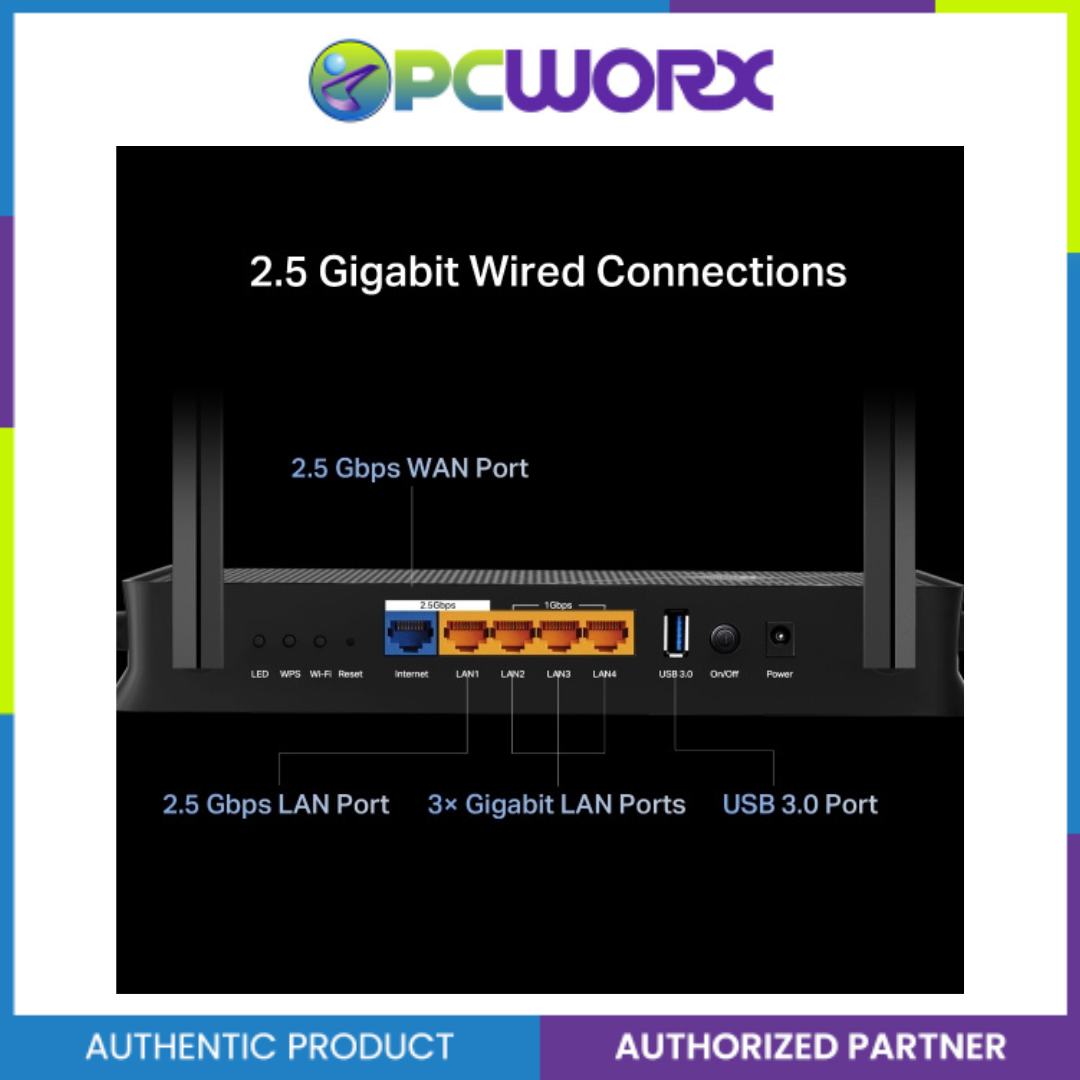

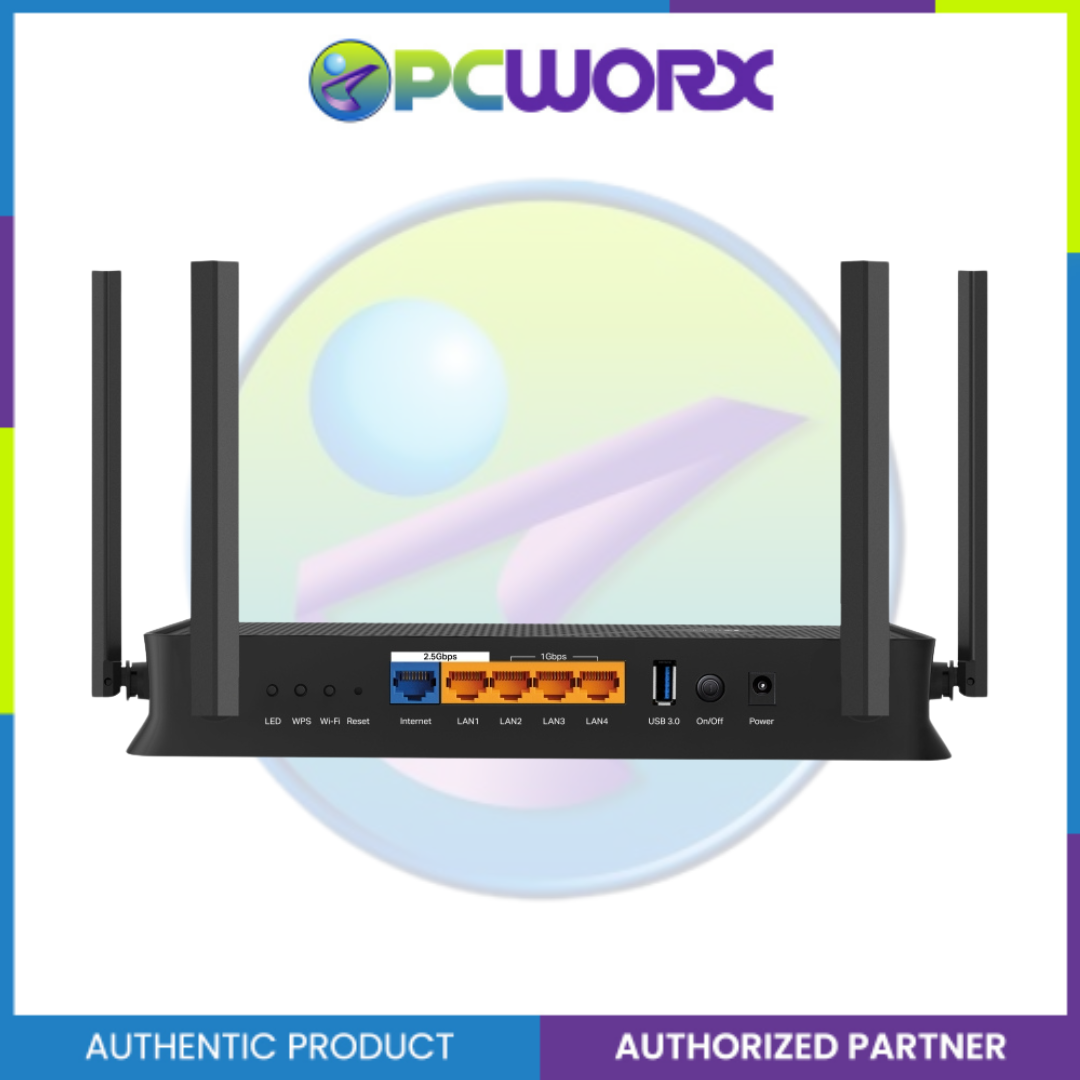

Ethernet Ports
• 1× 2.5 Gbps WAN
• 1× 2.5 Gbps LAN
• 3× 1 Gbps LAN
USB Support
1× USB 3.0
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server
Buttons
• Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button
Power
12 V ⎓ 2 A (US)
12 V ⎓ 1.5 A (EU)
SOFTWARE
Protocol
• IPv4
• IPv6
Service Kit
HomeShield
EasyMesh
Compatible with EasyMesh
Parental Controls
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Type
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service
QoS by Device
Cloud Service
• Auto Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP
• Address Reservation
• DHCP Client List
• Server
DDNS
• TP-Link
• NO-IP
• DynDNS
Management
• Tether App
• Webpage
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications CE, FCC, RoHS
Environment
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
