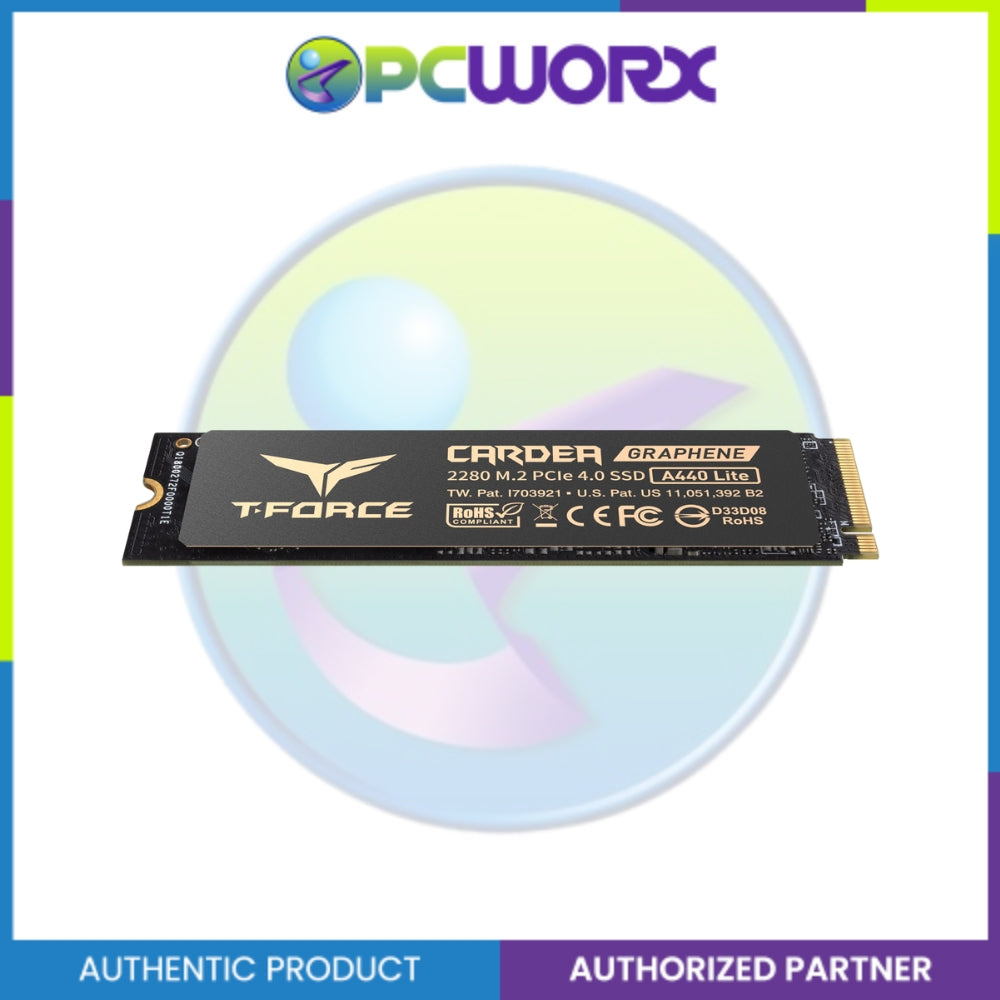

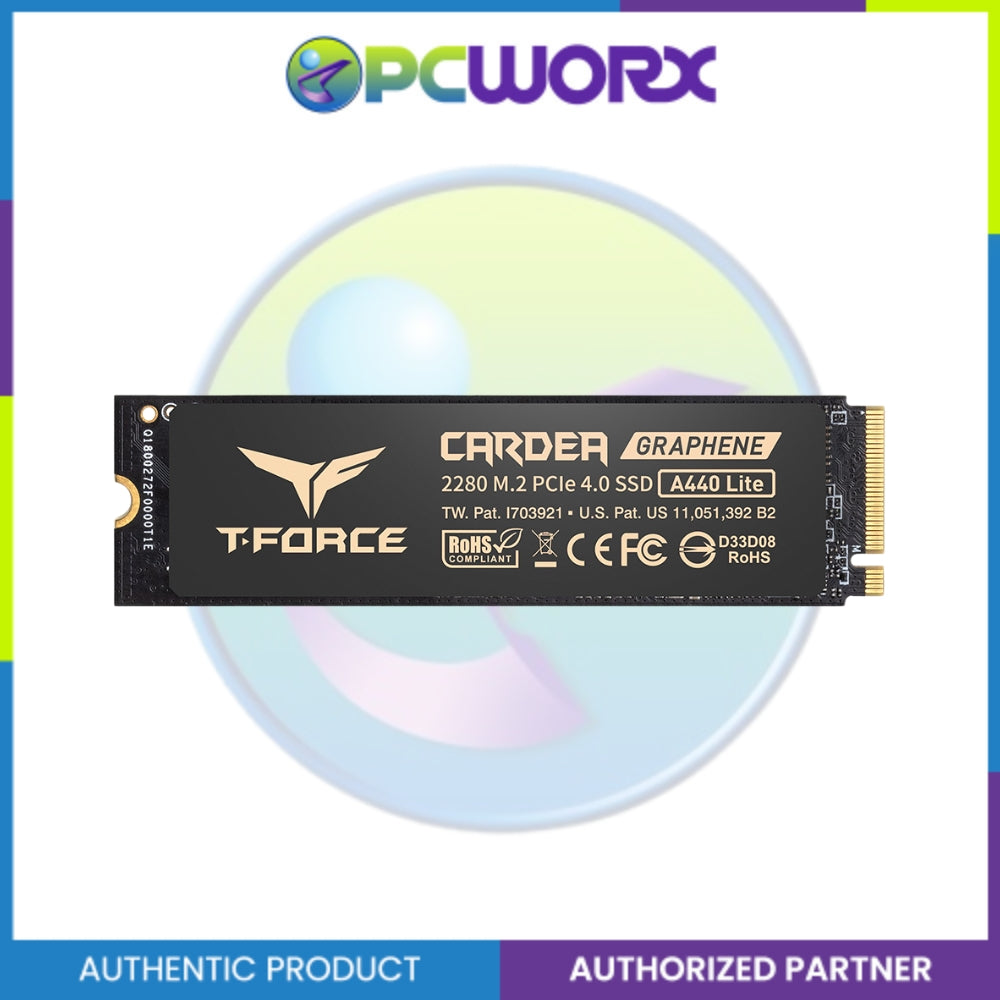

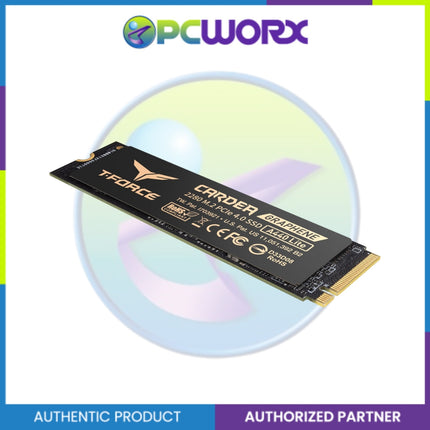

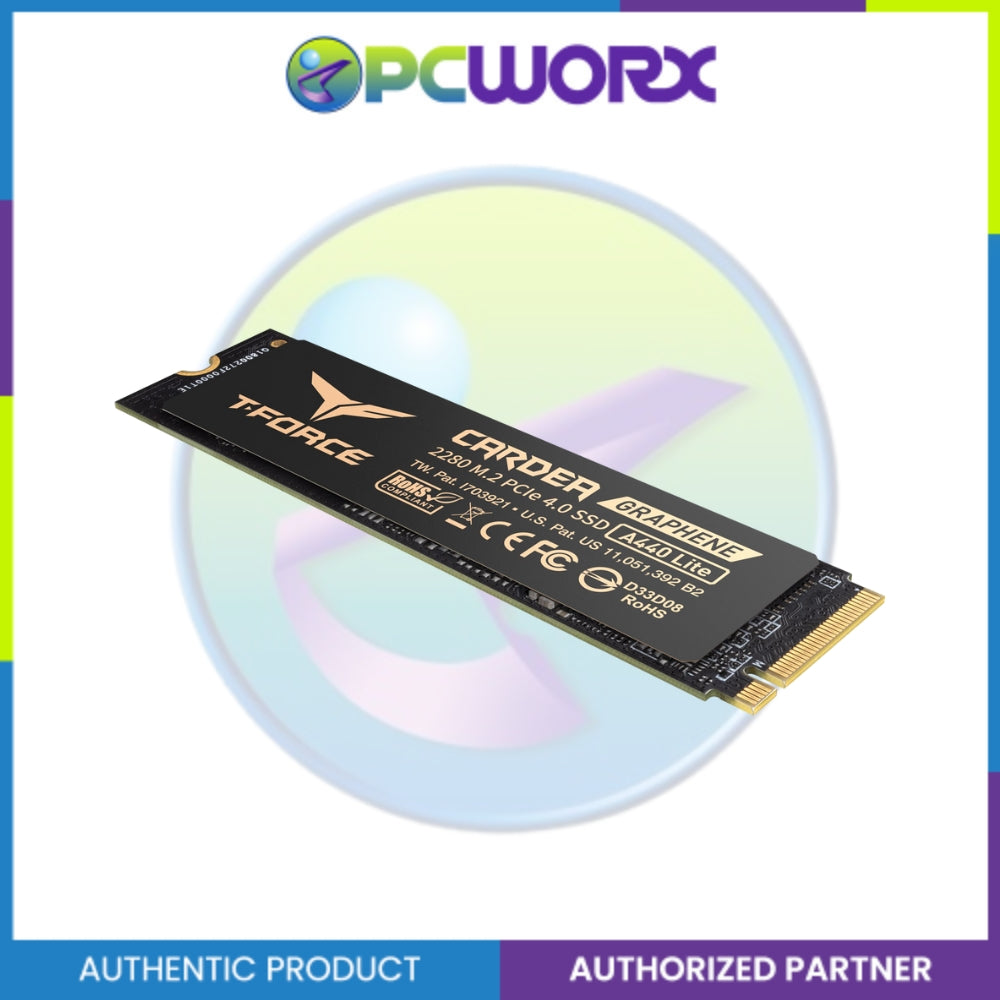

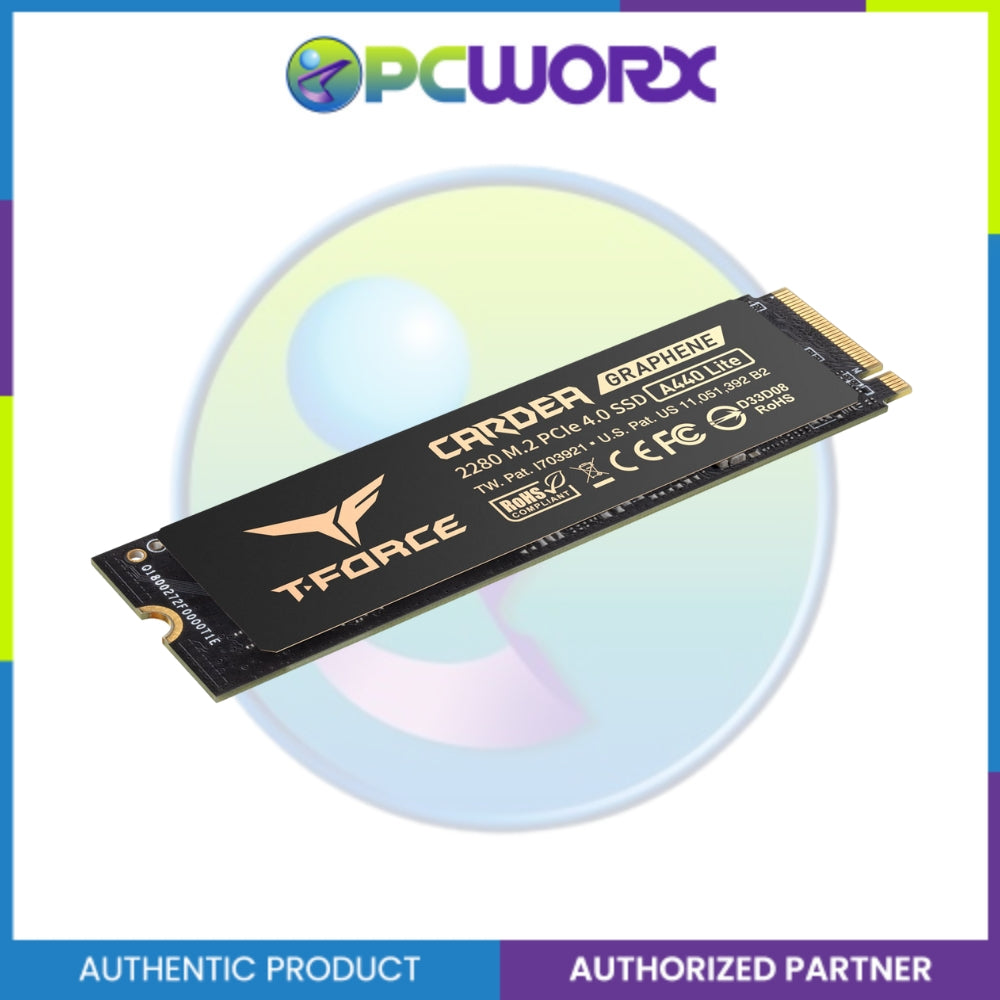

TeamGroup TM8FFQ512G0C129 512GB A440 Cardea Lite Graphene HeatSink M.2 NVME SSD

Description

General specifications
Model:  A440 Lite
Capacity:  512GB
Interface:  PCIe Gen4x4 with NVMe
Controller:  Phison PS5027-E27T
NAND Type:  162-layer TLC NAND
DRAM Cache:  None (uses Host-Memory-Buffer (HMB))
Dimensions:

80.0(L)×22.0(W)×3.7(H) mm80.0 open paren cap L close paren cross 22.0 open paren cap W close paren cross 3.7 open paren cap H close paren mm
80.0(𝐿)×22.0(𝑊)×3.7(𝐻) mm
Weight:  7g
Endurance:  300 TBW
Warranty:  5 Years
Performance
Sequential Read:  Up to 7,000 MB/s
Sequential Write:  Up to 4,500 MB/s
Other specs
Shock Resistance:  1,500G/0.5ms
Vibration Resistance:  80Hz~2,000Hz/20G
MTBF:  1,500,000 Hours
Operating Temperature:

0∘C0 raised to the composed with power cap C
0∘𝐶
to

70∘C70 raised to the composed with power cap C
70∘𝐶
Storage Temperature:

-40∘Cnegative 40 raised to the composed with power cap C
−40∘𝐶
to

85∘C85 raised to the composed with power cap C
85∘𝐶
Heat Sink:  Pre-installed ultra-thin graphene heat sink
  • Ultimate Read/Write Performance
  • Storage Expandable across Platforms with Ultra-slim Size for Easy Installation
  • Preset Controller Solution for Optimal Quality
  • Optimized Performance Offers Reliability and Long Lifespan
  • S.M.A.R.T. Monitoring System
  • Be Eco-friendly and Conserve the Earth
  • Patented Graphene Heat Sink

    Invention patent number in the US: US11051392B2

    Invention patent number in Taiwan: I703921

    Utility model patent number in China: CN 211019739 U
  • Patented S.M.A.R.T. Software

    Invention patent number in Taiwan: I751753

TeamGroup TM8FFQ512G0C129 512GB A440 Cardea Lite Graphene HeatSink M.2 NVME SSD

Product form

General specifications  Model:  A440 Lite Capacity:  512GB Interface:  PCIe Gen4x4 with NVMe Controller:  Phison PS5027-E27T NAND Type:  162-layer TLC NAND... Read more

Free pickup in our shop(s)

SKU: 0000069089

5 in stock

₱3,000.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    General specifications
    Model:  A440 Lite
    Capacity:  512GB
    Interface:  PCIe Gen4x4 with NVMe
    Controller:  Phison PS5027-E27T
    NAND Type:  162-layer TLC NAND
    DRAM Cache:  None (uses Host-Memory-Buffer (HMB))
    Dimensions:

    80.0(L)×22.0(W)×3.7(H) mm80.0 open paren cap L close paren cross 22.0 open paren cap W close paren cross 3.7 open paren cap H close paren mm
    80.0(𝐿)×22.0(𝑊)×3.7(𝐻) mm
    Weight:  7g
    Endurance:  300 TBW
    Warranty:  5 Years
    Performance
    Sequential Read:  Up to 7,000 MB/s
    Sequential Write:  Up to 4,500 MB/s
    Other specs
    Shock Resistance:  1,500G/0.5ms
    Vibration Resistance:  80Hz~2,000Hz/20G
    MTBF:  1,500,000 Hours
    Operating Temperature:

    0∘C0 raised to the composed with power cap C
    0∘𝐶
    to

    70∘C70 raised to the composed with power cap C
    70∘𝐶
    Storage Temperature:

    -40∘Cnegative 40 raised to the composed with power cap C
    −40∘𝐶
    to

    85∘C85 raised to the composed with power cap C
    85∘𝐶
    Heat Sink:  Pre-installed ultra-thin graphene heat sink
    • Ultimate Read/Write Performance
    • Storage Expandable across Platforms with Ultra-slim Size for Easy Installation
    • Preset Controller Solution for Optimal Quality
    • Optimized Performance Offers Reliability and Long Lifespan
    • S.M.A.R.T. Monitoring System
    • Be Eco-friendly and Conserve the Earth
    • Patented Graphene Heat Sink

      Invention patent number in the US: US11051392B2

      Invention patent number in Taiwan: I703921

      Utility model patent number in China: CN 211019739 U
    • Patented S.M.A.R.T. Software

      Invention patent number in Taiwan: I751753
