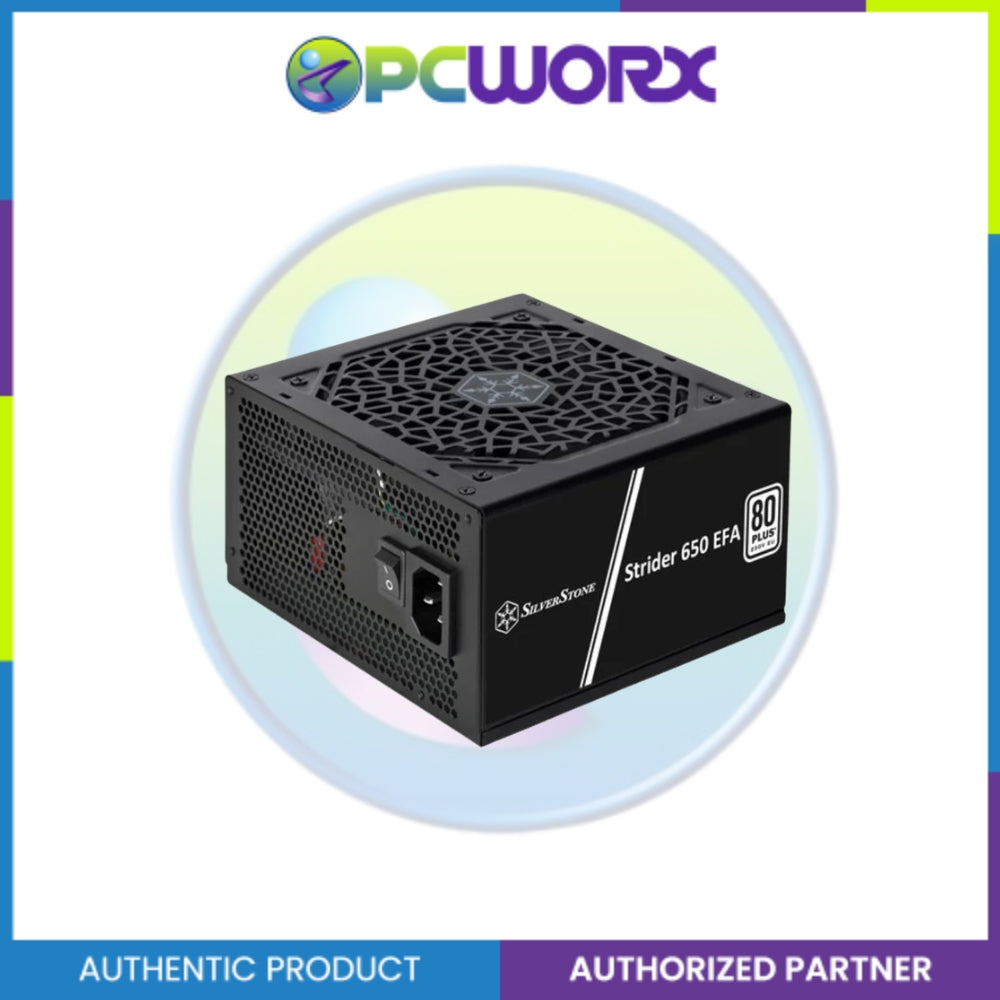

SilverStone SST-ST650-EFA Strider Essential 650W 80+ APFC Non-Modular PSU

Description

  • Wattage: 650 W
  • Efficiency / Certification: 80 PLUS (EF / EFA series)
  • Input Voltage Range: 180 V to 264 V AC
  • Input Frequency: 47 Hz – 63 Hz
  • PFC: Active PFC (power factor > 0.9 at full load)
  • +12V Rail: Single +12V rail
  • +12V Capacity: ~576 W on +12V rail (48 A)
  • +3.3V & +5V Combined: 100 W
  • Ripple & Noise: ~50 mV on +3.3V / +5V, ~120 mV on +12V (typical)
  • Regulation: ±5% for +3.3V / +5V / +12V
  • Protections: Over Power (OPP), Over Voltage (OVP), Under Voltage (UVP), Short Circuit (SCP)

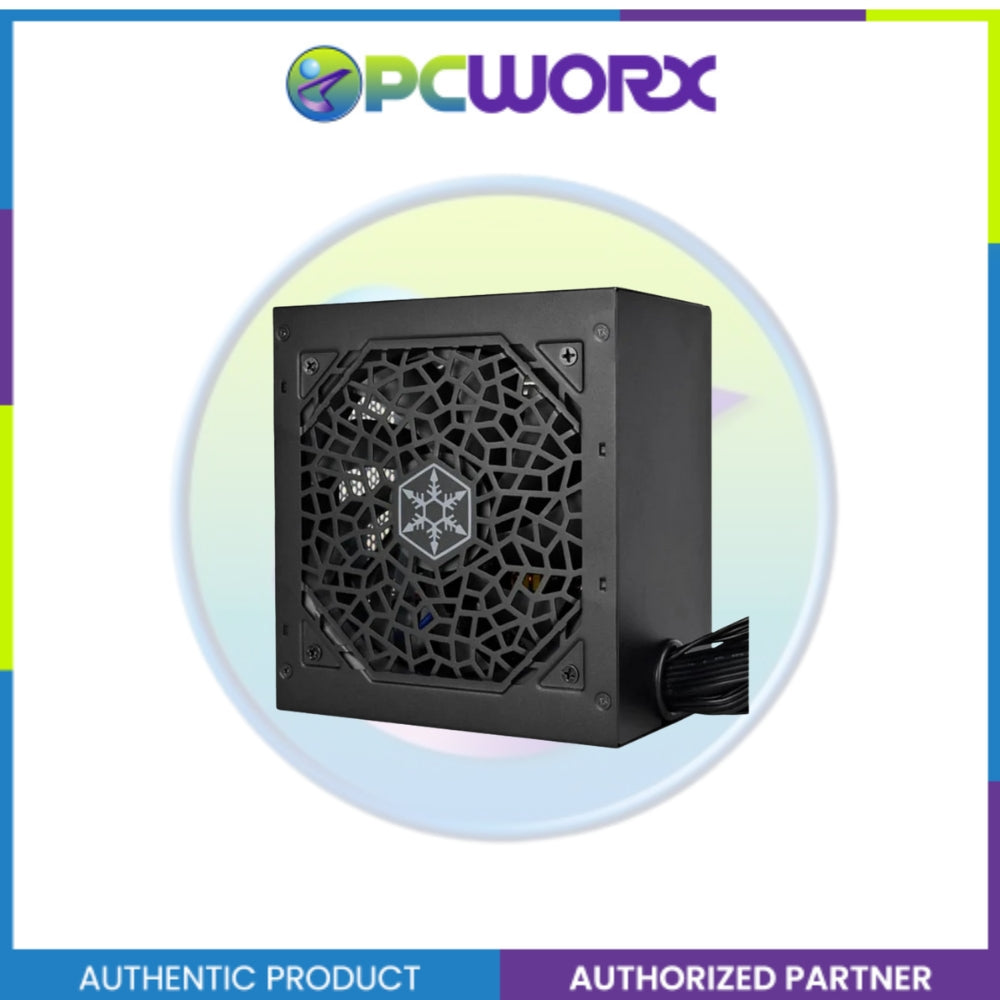

  • Cooling: Single 120 mm fan
  • Noise Level: ~18 dBA (minimum)
  • MTBF: 100,000 hours
  • Operating Temperature: 0 °C to 40 °C continuous rated
  • Connectors:
    Specification Details
    Motherboard Connector 1 × 20+4 pin ATX (≈ 500 mm)
    CPU Power Connector 1 × 8 (4+4) EPS / CPU (≈ 750 mm)
    PCIe Connectors 2 × PCIe 6+2 pin
    SATA Connectors 6 × SATA
    Molex / Peripheral 2 × 4-pin Molex
    Floppy Connector 1 × 4-pin floppy (via adaptor)
    Form Factor ATX
    Brand SilverStone
    Model SST-ST650-EFA
    Wattage Rating 650W
    Efficiency Rating 80 PLUS (EF / EFA Series)
    RGB Lighting No
    SKU 5266684268_PH-31274276426

SilverStone SST-ST650-EFA Strider Essential 650W 80+ APFC Non-Modular PSU

Product form

Wattage: 650 W Efficiency / Certification: 80 PLUS (EF / EFA series) Input Voltage Range: 180 V to 264 V... Read more

Free pickup in our shop(s)

SKU: 0000071025

5 in stock

₱2,392.58

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    • Wattage: 650 W
    • Efficiency / Certification: 80 PLUS (EF / EFA series)
    • Input Voltage Range: 180 V to 264 V AC
    • Input Frequency: 47 Hz – 63 Hz
    • PFC: Active PFC (power factor > 0.9 at full load)
    • +12V Rail: Single +12V rail
    • +12V Capacity: ~576 W on +12V rail (48 A)
    • +3.3V & +5V Combined: 100 W
    • Ripple & Noise: ~50 mV on +3.3V / +5V, ~120 mV on +12V (typical)
    • Regulation: ±5% for +3.3V / +5V / +12V
    • Protections: Over Power (OPP), Over Voltage (OVP), Under Voltage (UVP), Short Circuit (SCP)
    • Cooling: Single 120 mm fan
    • Noise Level: ~18 dBA (minimum)
    • MTBF: 100,000 hours
    • Operating Temperature: 0 °C to 40 °C continuous rated
    • Connectors:
      Specification Details
      Motherboard Connector 1 × 20+4 pin ATX (≈ 500 mm)
      CPU Power Connector 1 × 8 (4+4) EPS / CPU (≈ 750 mm)
      PCIe Connectors 2 × PCIe 6+2 pin
      SATA Connectors 6 × SATA
      Molex / Peripheral 2 × 4-pin Molex
      Floppy Connector 1 × 4-pin floppy (via adaptor)
      Form Factor ATX
      Brand SilverStone
      Model SST-ST650-EFA
      Wattage Rating 650W
      Efficiency Rating 80 PLUS (EF / EFA Series)
      RGB Lighting No
      SKU 5266684268_PH-31274276426
