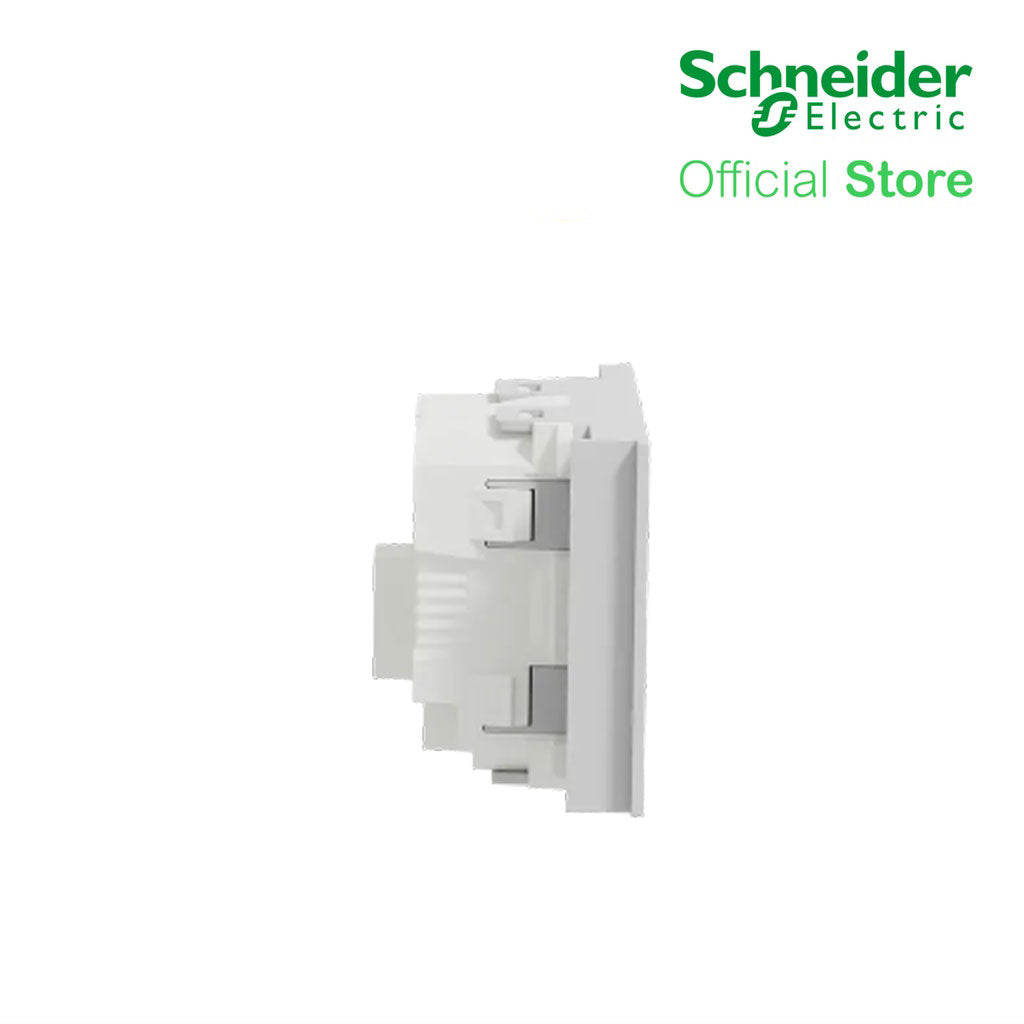

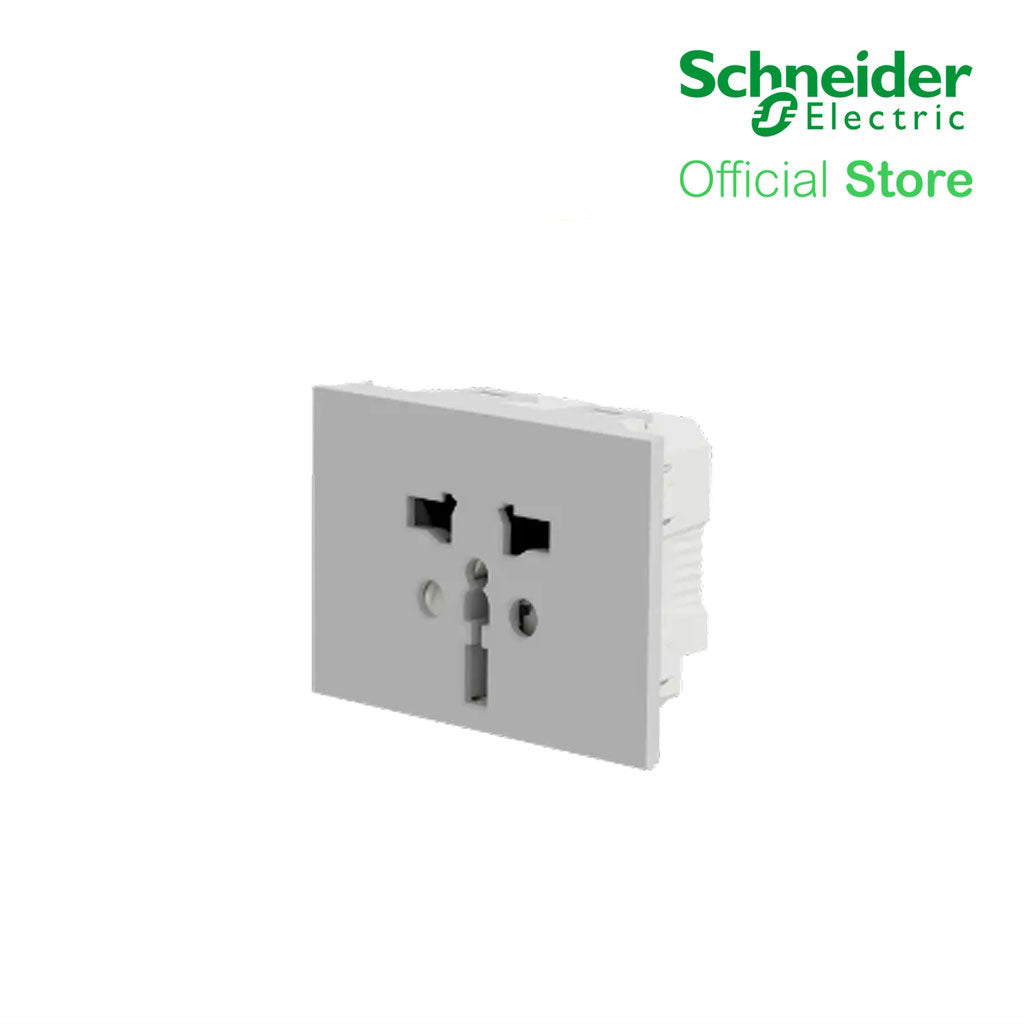

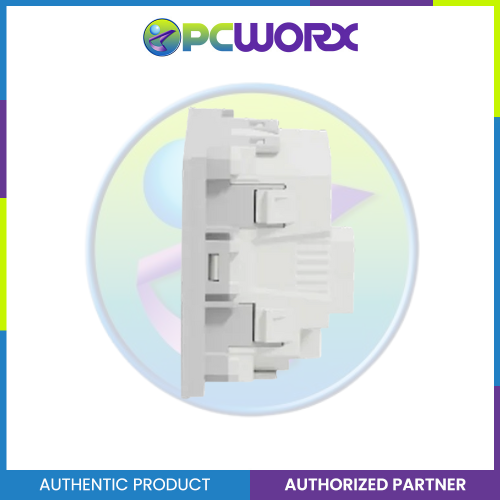

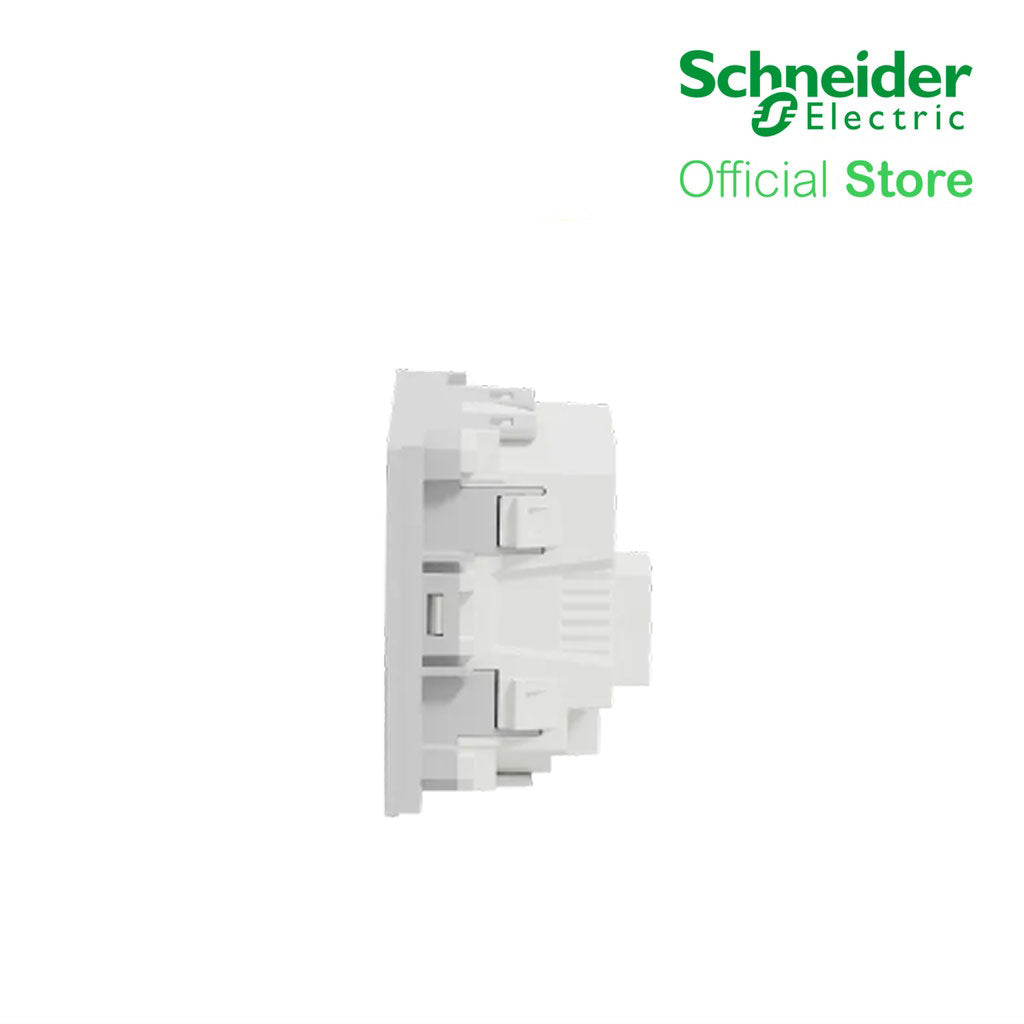

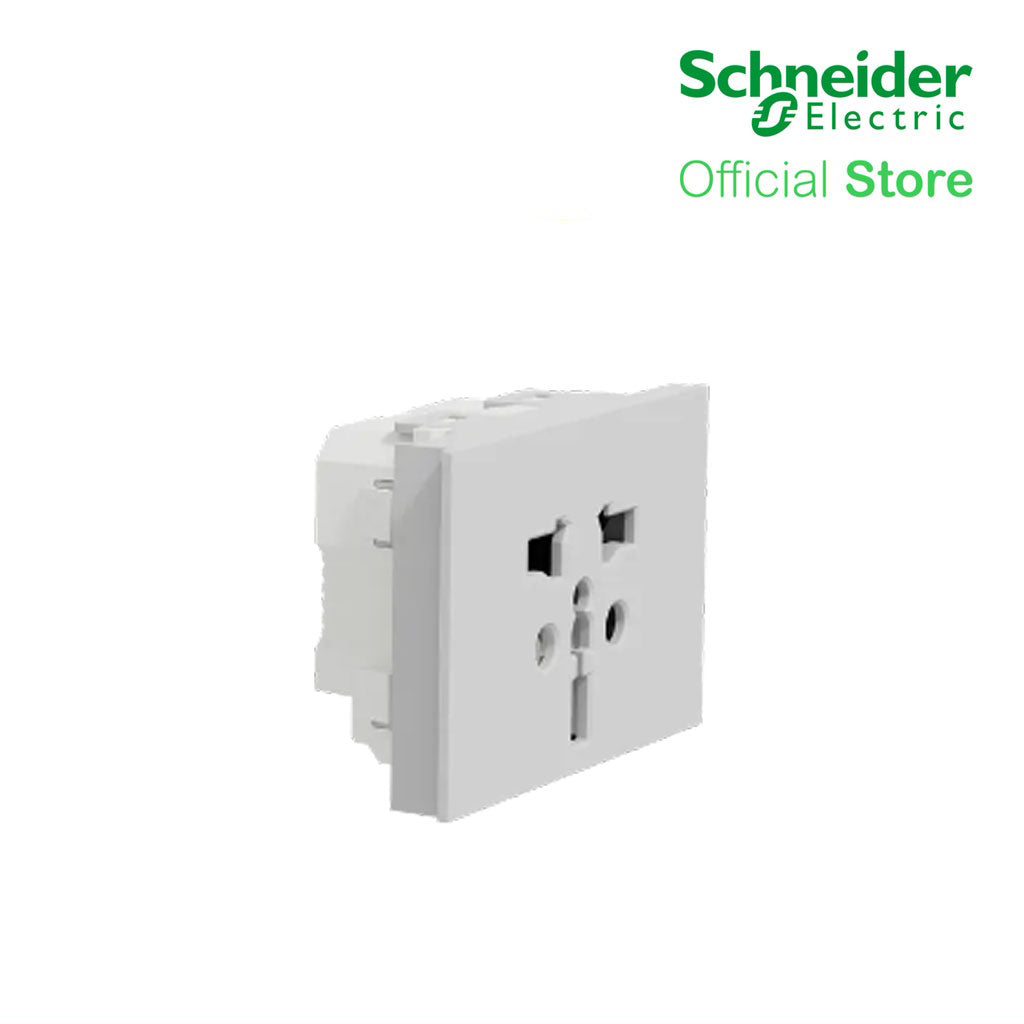

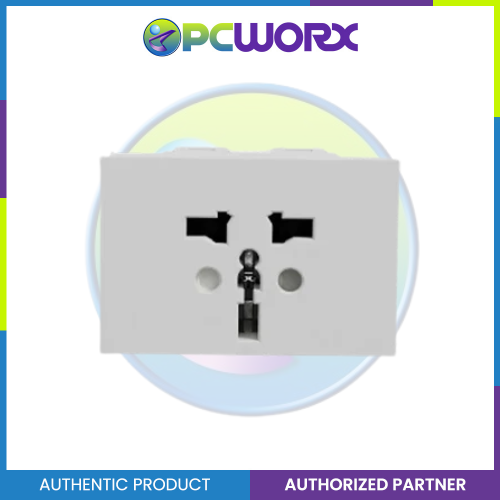

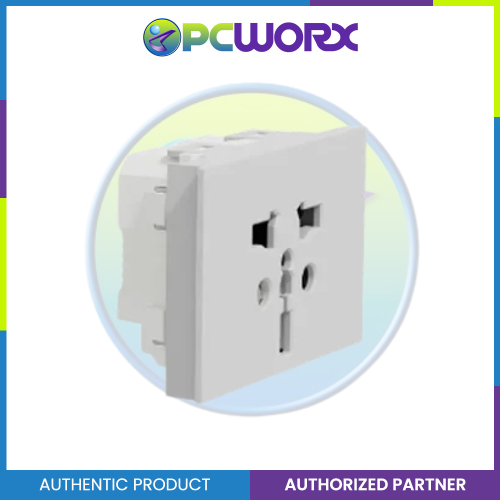

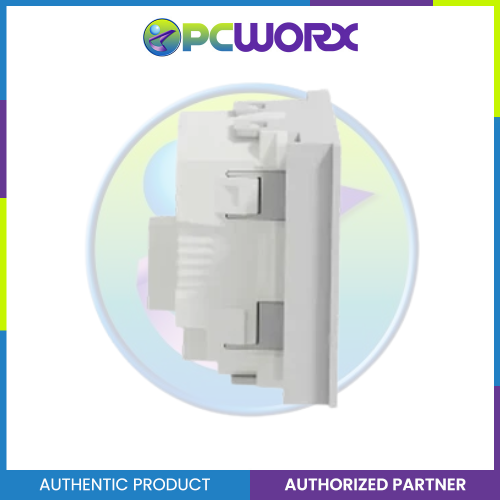

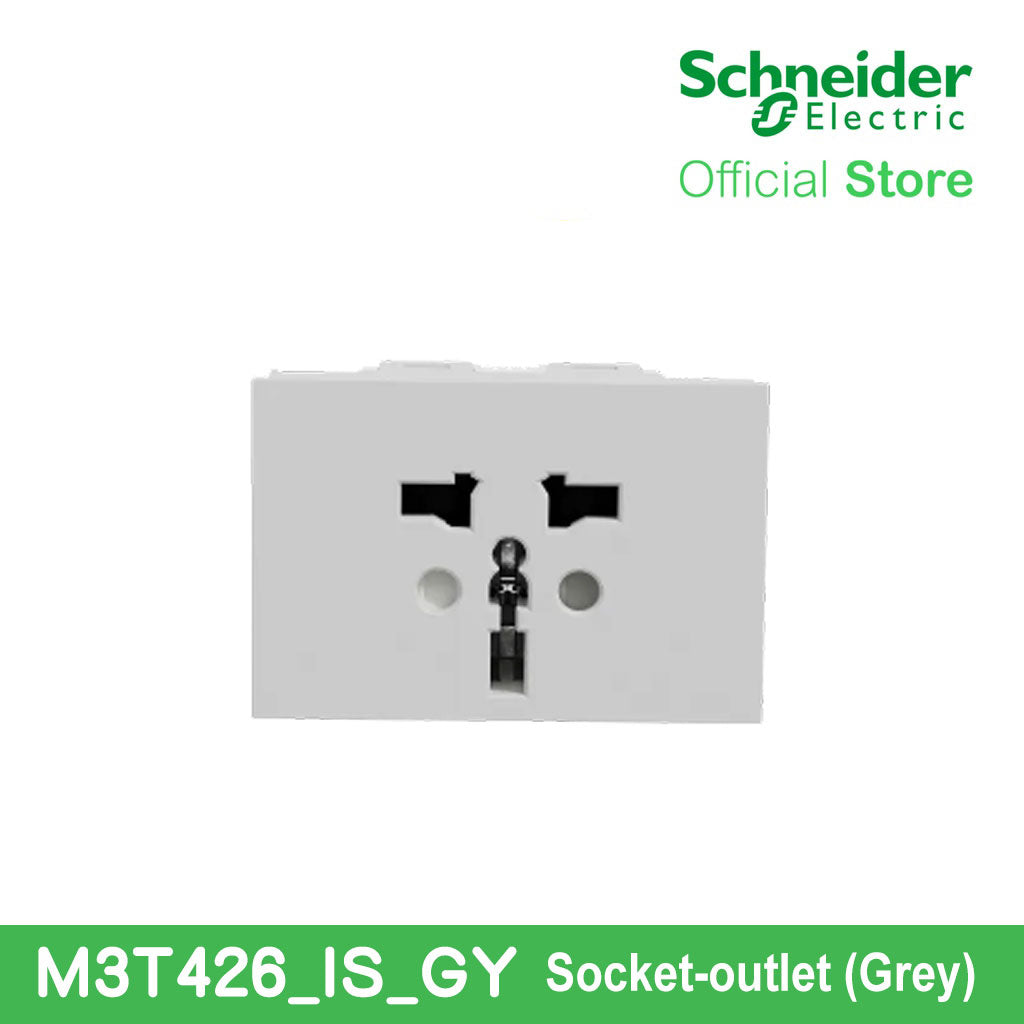

Schneider Electric AvatarOn socket-outlet M3T426_IS_GY is a complete product in color grey. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its connection terminals are screw terminal. It is 46.6 mm in width, 69.3 mm in height, and 33.85 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
Specifications
Main
| Parameter |
Specification |
| Range of product |
AvatarOn A |
| Product or component type |
Socket-outlet |
| Device presentation |
Complete product |
| Colour tint |
Grey |
Complementary
| Parameter |
Specification |
| Rated current |
16 A at 250 V AC, 50β60 Hz |
| Socket number |
1 |
| Clamping connection capacity |
2 Γ 1.5β4 mmΒ² (solid cables)
2 Γ 1.5β4 mmΒ² (stranded cables) |
| Connections β terminals |

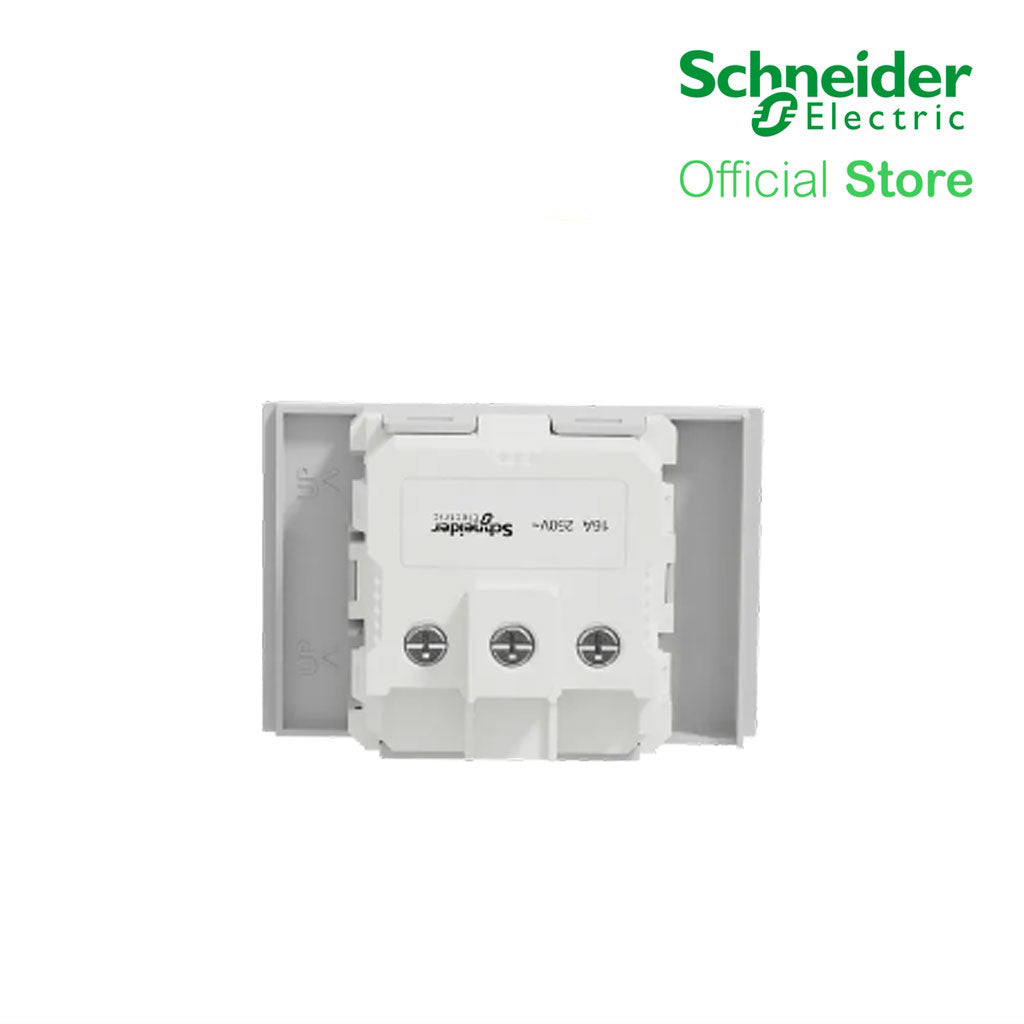

Screw terminal |
| Material |
Polycarbonate cover
Polycarbonate base |
| Device mounting |
Flush |
| Width |
46.6 mm |
| Height |
69.3 mm |
| Depth |
33.85 mm |
| Embedding depth |
23.05 mm |
Environment
| Parameter |
Specification |
| IP degree of protection |
IP20 |
| Max. operating temperature |
35 Β°C |
| Storage temperature |
-5 to 45 Β°C |
| Relative humidity |
0β95 % |
| Operating altitude |
< 2000 m |
| Standards |
IEC 60884-1 |
| Product certifications |
IEC |
Packing Units
| Parameter |
Specification |
| Unit type of package 1 |
PCE |
| Number of units in package 1 |
1 |
| Package height |
3.4 cm |
| Package width |
4.66 cm |
| Package length |
7.0 cm |
| Package weight |
52.0 g |
