| Main |
|
| Range |
Easy9 |
| Device application |
Distribution |
| Product / component type |

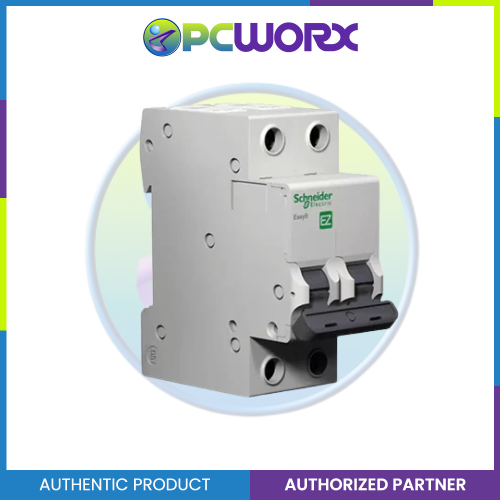

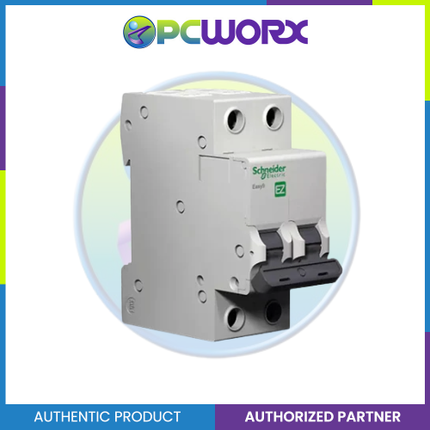

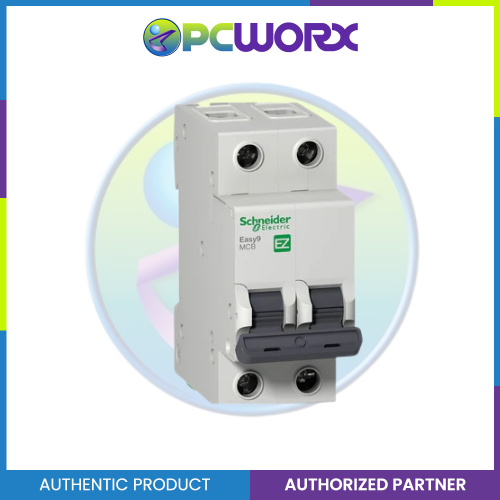

Miniature circuit-breaker |
| Device short name |
Easy9 MCB |
| Poles |
2P |
| Number of protected poles |
2 |
| Rated current [In] |
20 A |
| Network type |
AC |
| Trip unit technology |
Thermal-magnetic |
| Curve code |
C |
| Breaking capacity |
10,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1) |
| Suitability for isolation |
Yes (IEC 60898-1) |
| Complementary |
|
| Network frequency |
50/60 Hz |
| Rated operational voltage [Ue] |
400 V AC 50/60 Hz |
| Magnetic tripping limit |
5…10 × In |
| Service breaking capacity [Ics] |
7,500 A (75% × Icn) @ 400 V AC 50/60 Hz (IEC 60898-1) |
| Rated insulation voltage [Ui] |
500 V AC 50/60 Hz (IEC 60898-1) |
| Rated impulse withstand voltage [Uimp] |
4 kV (IEC 60898-1) |
| Contact position indicator |
Yes |
| Control type |
Toggle |
| Local signalling |
Without |
| Mounting mode |
Clip-on |
| Mounting support |
DIN rail |
| 9 mm pitches |
4 |
| Height |
81 mm |
| Width |
36 mm |
| Depth |
66.5 mm |
| Colour |
Grey (RAL 7035) |
| Mechanical durability |
10,000 cycles |
| Electrical durability |
4,000 cycles |
| Connections – terminals |
Tunnel terminal (top/bottom) 1–25 mm² rigid
Tunnel terminal (top/bottom) 1–16 mm² flexible |
| Tightening torque |
2 N·m (top/bottom) |
| Earth-leakage protection |
Without |
| Environment |
|
| Standards |
IEC 60898-1 |
| Product certifications |
CE |
| IP degree of protection |
IP20 (IEC 60529) |
| Pollution degree |
2 |
| Tropicalisation |
2 |
| Relative humidity |
95% at –5…60 °C |
| Ambient temperature (operation) |
–5…60 °C |
| Ambient temperature (storage) |
–40…85 °C |
| Packing Units |
|
| Package type 1 |
PCE |
| Units per package 1 |
1 |
| Package 1 (H × W × L) |
7.6 cm × 3.6 cm × 8.5 cm |
| Package 1 weight |
211 g |
