β±275.78

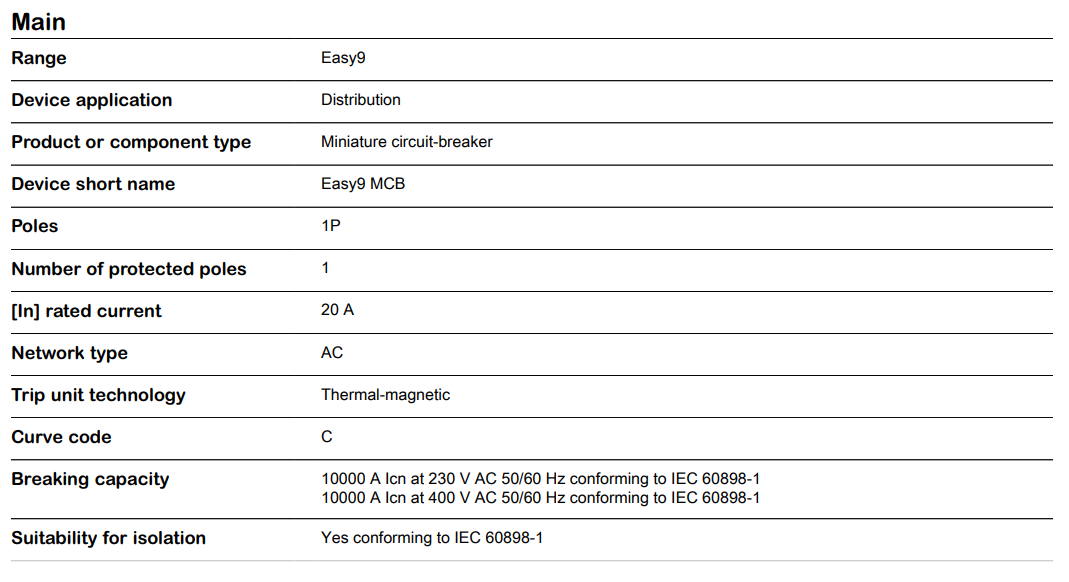

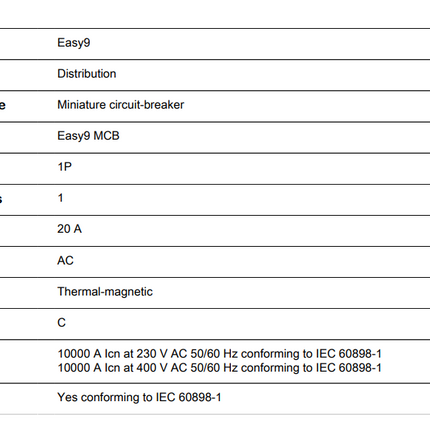

| Category | Parameter | Specification |
|---|---|---|

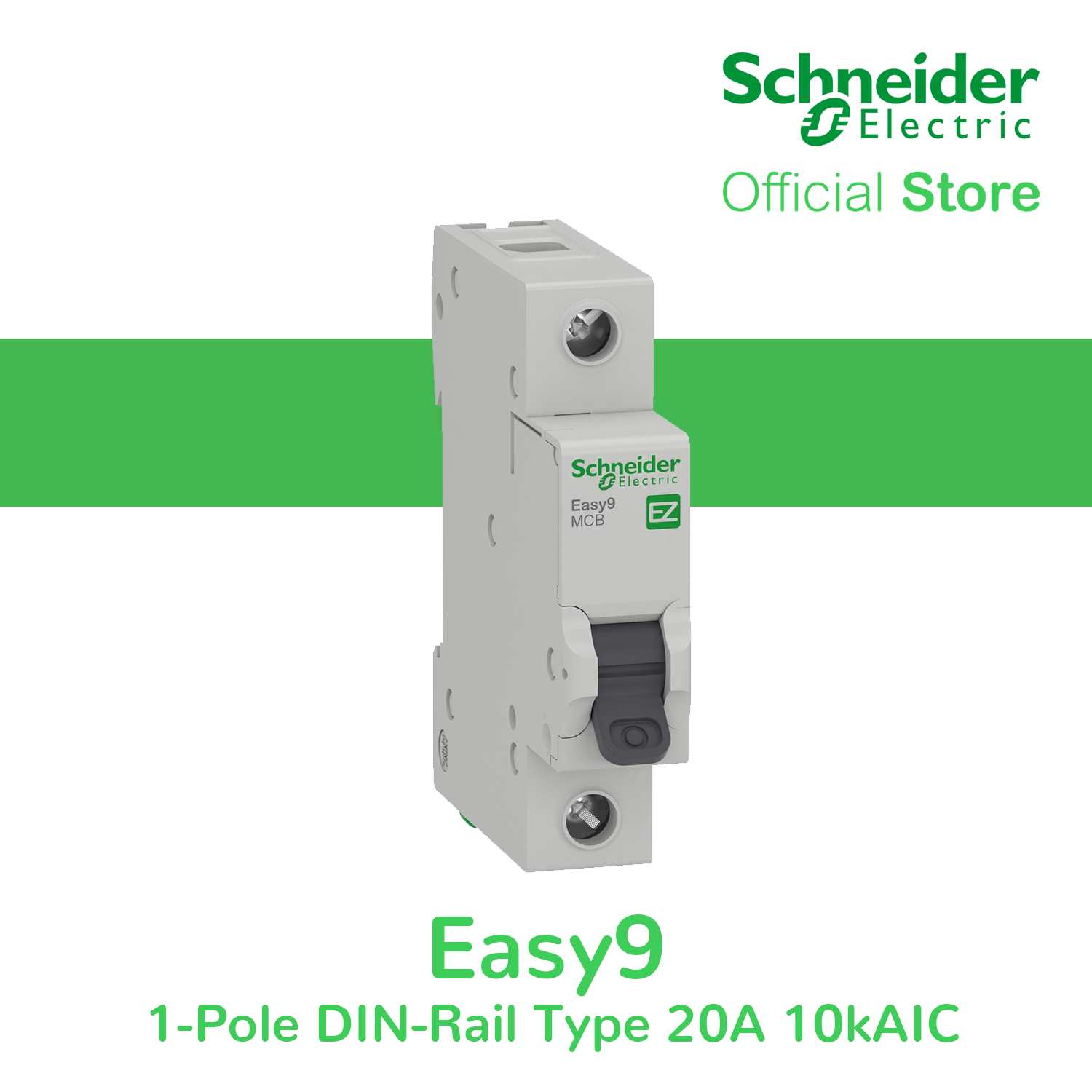

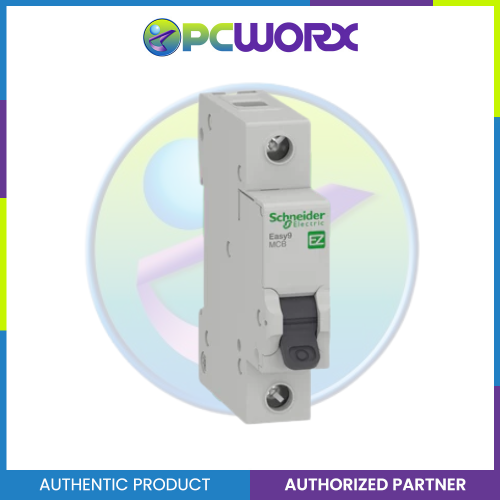

| Main | Range | Easy9 |
| Device application | Distribution | |
| Product or component type | Miniature circuit-breaker | |
| Device short name | Easy9 MCB | |
| Poles | 1P | |
| Number of protected poles | 1 | |
| Rated current [In] | 20 A | |
| Network type | AC | |
| Trip unit technology | Thermal-magnetic | |
| Curve code | C | |
| Breaking capacity | 10 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1) | |
| 10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1) | ||
| Suitability for isolation | Yes (IEC 60898-1) | |
| Complementary | Network frequency | 50/60 Hz |
| Rated operational voltage [Ue] | 230 V AC 50/60 Hz | |
| Magnetic tripping limit | 5β¦10 Γ In | |
| Rated service breaking capacity [Ics] | 7.5 kA (75% Icn) at 230 V AC 50/60 Hz | |
| Limitation class | Class 3 (IEC 60898-1) | |
| Rated insulation voltage [Ui] | 500 V AC 50/60 Hz | |
| Rated impulse withstand voltage [Uimp] | 4 kV | |
| Contact position indicator | Yes | |
| Control type | Toggle | |
| Local signalling | Without | |
| Mounting mode | Clip-on | |
| Mounting support | DIN rail | |
| Number of 9 mm pitches | 2 | |

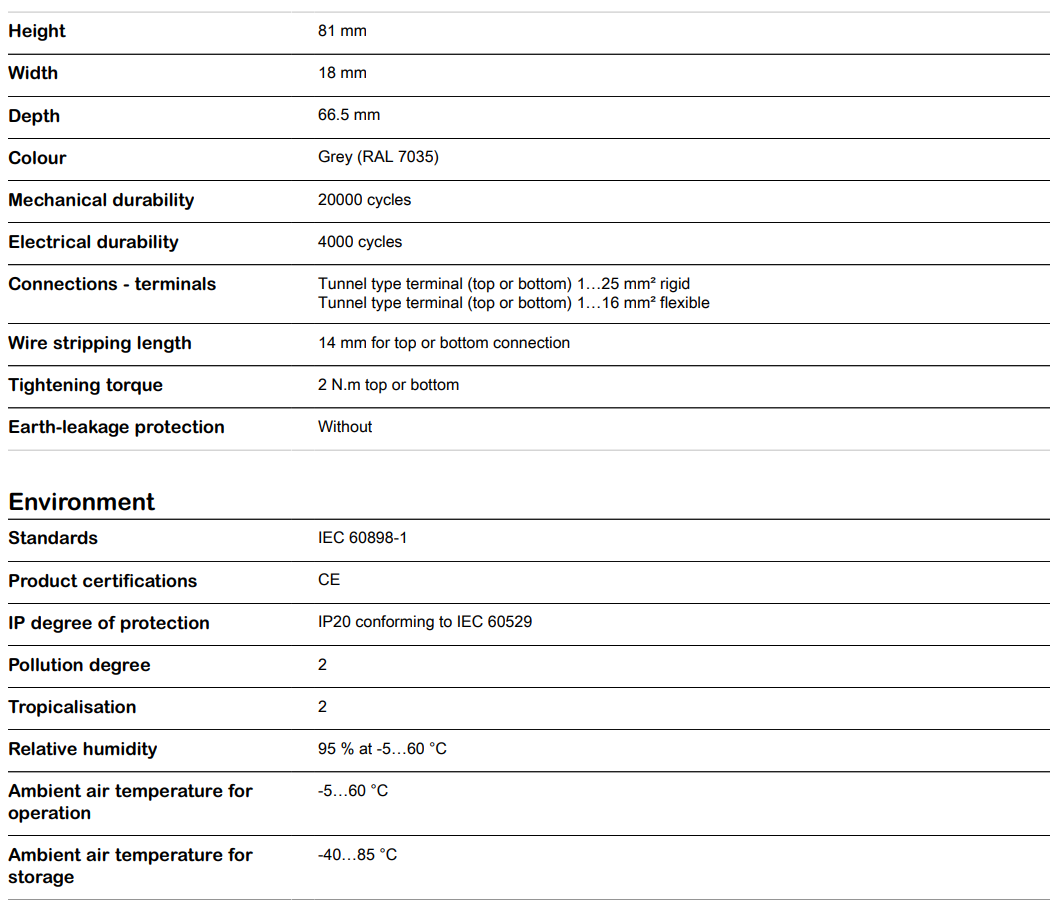

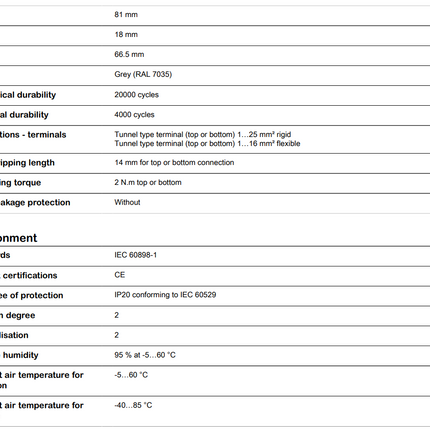

| Dimensions | Height | 81 mm |
| Width | 18 mm | |
| Depth | 66.5 mm | |
| Physical | Colour | Grey (RAL 7035) |
| Mechanical durability | 20,000 cycles | |
| Electrical durability | 4,000 cycles | |
| Connections | Terminal type | Tunnel type (top or bottom) |
| Rigid conductor size | 1β¦25 mmΒ² | |
| Flexible conductor size | 1β¦16 mmΒ² | |
| Wire stripping length | 14 mm | |
| Tightening torque | 2 NΒ·m | |
| Earth-leakage protection | Without | |
| Environment | Standards | IEC 60898-1 |
| Product certifications | CE | |
| IP degree of protection | IP20 (IEC 60529) | |
| Pollution degree | 2 | |
| Tropicalisation | 2 | |
| Relative humidity | 95% at -5β¦60 Β°C | |
| Operating temperature | -5β¦60 Β°C | |
| Storage temperature | -40β¦85 Β°C | |
| Packing Units | Unit type of Package 1 | PCE |
| Number of units in Package 1 | 1 | |
| Package 1 height | 7.4 cm | |
| Package 1 width | 1.8 cm | |
| Package 1 length | 8.5 cm | |
| Package 1 weight | 106 g |
β±275.78
Estimated delivery between June 05 and June 07.
Delivery Information
Metro Manila: 2β3 days | Provincial: 3β7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1β2 hours after checkout MonβSat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
β±275.78
β±275.78
Authorized Seller
100% Original Authentic Product
| Category | Parameter | Specification |
|---|---|---|
| Main | Range | Easy9 |
| Device application | Distribution | |
| Product or component type | Miniature circuit-breaker | |
| Device short name | Easy9 MCB | |
| Poles | 1P | |
| Number of protected poles | 1 | |
| Rated current [In] | 20 A | |
| Network type | AC | |
| Trip unit technology | Thermal-magnetic | |
| Curve code | C | |
| Breaking capacity | 10 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1) | |
| 10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1) | ||
| Suitability for isolation | Yes (IEC 60898-1) | |
| Complementary | Network frequency | 50/60 Hz |
| Rated operational voltage [Ue] | 230 V AC 50/60 Hz | |
| Magnetic tripping limit | 5β¦10 Γ In | |
| Rated service breaking capacity [Ics] | 7.5 kA (75% Icn) at 230 V AC 50/60 Hz | |
| Limitation class | Class 3 (IEC 60898-1) | |
| Rated insulation voltage [Ui] | 500 V AC 50/60 Hz | |
| Rated impulse withstand voltage [Uimp] | 4 kV | |
| Contact position indicator | Yes | |
| Control type | Toggle | |
| Local signalling | Without | |
| Mounting mode | Clip-on | |
| Mounting support | DIN rail | |
| Number of 9 mm pitches | 2 | |
| Dimensions | Height | 81 mm |
| Width | 18 mm | |
| Depth | 66.5 mm | |
| Physical | Colour | Grey (RAL 7035) |
| Mechanical durability | 20,000 cycles | |
| Electrical durability | 4,000 cycles | |
| Connections | Terminal type | Tunnel type (top or bottom) |
| Rigid conductor size | 1β¦25 mmΒ² | |
| Flexible conductor size | 1β¦16 mmΒ² | |
| Wire stripping length | 14 mm | |
| Tightening torque | 2 NΒ·m | |
| Earth-leakage protection | Without | |
| Environment | Standards | IEC 60898-1 |
| Product certifications | CE | |
| IP degree of protection | IP20 (IEC 60529) | |
| Pollution degree | 2 | |
| Tropicalisation | 2 | |
| Relative humidity | 95% at -5β¦60 Β°C | |
| Operating temperature | -5β¦60 Β°C | |
| Storage temperature | -40β¦85 Β°C | |
| Packing Units | Unit type of Package 1 | PCE |
| Number of units in Package 1 | 1 | |
| Package 1 height | 7.4 cm | |
| Package 1 width | 1.8 cm | |
| Package 1 length | 8.5 cm | |
| Package 1 weight | 106 g |
Authencity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
