| Specifications |
| Main |
|
| Range |
|
| Easy9 |
|
| Device application |
| Distribution |
| Product or component type |

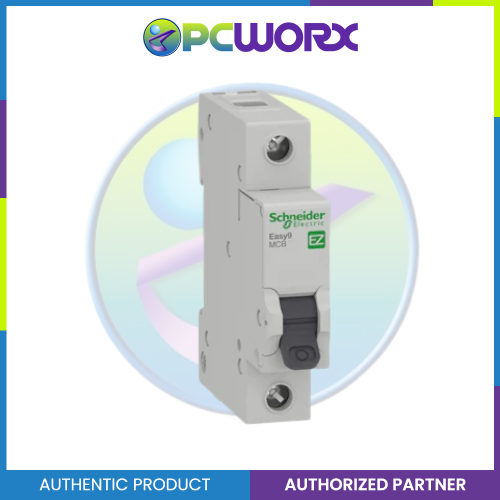

| Miniature circuit-breaker |
| Device short name |
| Easy9 MCB |
| Poles |
|
| 1P |
|
| Number of protected poles |
| 1 |
|
| [In] rated current |
| 63 A |
|
| Network type |
| AC |
|
| Trip unit technology |
| Thermal-magnetic |
| Curve code |
| C |
|
| Breaking capacity |
| 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 |
| 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 |
| Suitability for isolation |
| Yes conforming to IEC 60898-1 |
| Complementary |
| Network frequency |
| 50/60 Hz |
|
| [Ue] rated operational voltage |
| 230 V AC 50 Hz |
| 127 V AC 50 Hz |
| Magnetic tripping limit |
| 5...10 x In |
|
| [Ics] rated service breaking capacity |
| 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 |
| [Ui] rated insulation voltage |
| 500 V AC 50/60 Hz conforming to IEC 60898-1 |
| [Uimp] rated impulse withstand voltage |
| 4 kV conforming to IEC 60898-1 |
| Contact position indicator |
| Yes |
|
| Control type |
| Toggle |
|
| Local signalling |
| Without |
|
| Mounting mode |
| Clip-on |
|
| Mounting support |
| DIN rail |
|
| 9 mm pitches |
| 2 |
|
| Height |
|
| 81 mm |
|
| Width |
|
| 18 mm |
|
| Depth |
|
| 66.5 mm |
|
| Colour |
|
| Grey (RAL 7035) |
| Mechanical durability |
| 10000 cycles |
| Electrical durability |
| 4000 cycles |
| Connections - terminals |
| Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Tunnel type terminal (top or bottom) 1…35 mm² rigid |
| Tightening torque |
| 3.5 N.m top or bottom |
| Earth-leakage protection |
| Without |
|
| Environment |
| Standards |
| IEC 60898-1 |
| Product certifications |
| VDE |
|
| CE |
|
| IP degree of protection |
| IP20 conforming to IEC 60529 |
| Pollution degree |
| 2 |
|
| Tropicalisation |
| 2 |
|
| Relative humidity |
| 95 % at -5…60 °C |
| Ambient air temperature for operation |
| -5…60 °C |
|
| Ambient air temperature for storage |
| -40…85 °C |
|
| Packing Units |
| Unit Type of Package 1 |
| PCE |
|
| Number of Units in Package 1 |
| 1 |
|
| Package 1 Height |
| 7.500 cm |
|
| Package 1 Width |
| 1.800 cm |
|
| Package 1 Length |
| 8.500 cm |
|
| Package 1 Weight |
| 122.000 g |
|
| Unit Type of Package 2 |
| BB1 |
|
| Number of Units in Package 2 |
| 12 |
|
| Package 2 Height |
| 8.300 cm |
|
| Package 2 Width |
| 9.200 cm |
|
| Package 2 Length |
| 23.000 cm |
| Package 2 Weight |
| 1.525 kg |
|
| Unit Type of Package 3 |
| S03 |
|
| Number of Units in Package 3 |
| 144 |
|
| Package 3 Height |
| 30.000 cm |
| Package 3 Width |
| 30.000 cm |
| Package 3 Length |
| 40.000 cm |
| Package 3 Weight |
| 18.946 kg |
|
