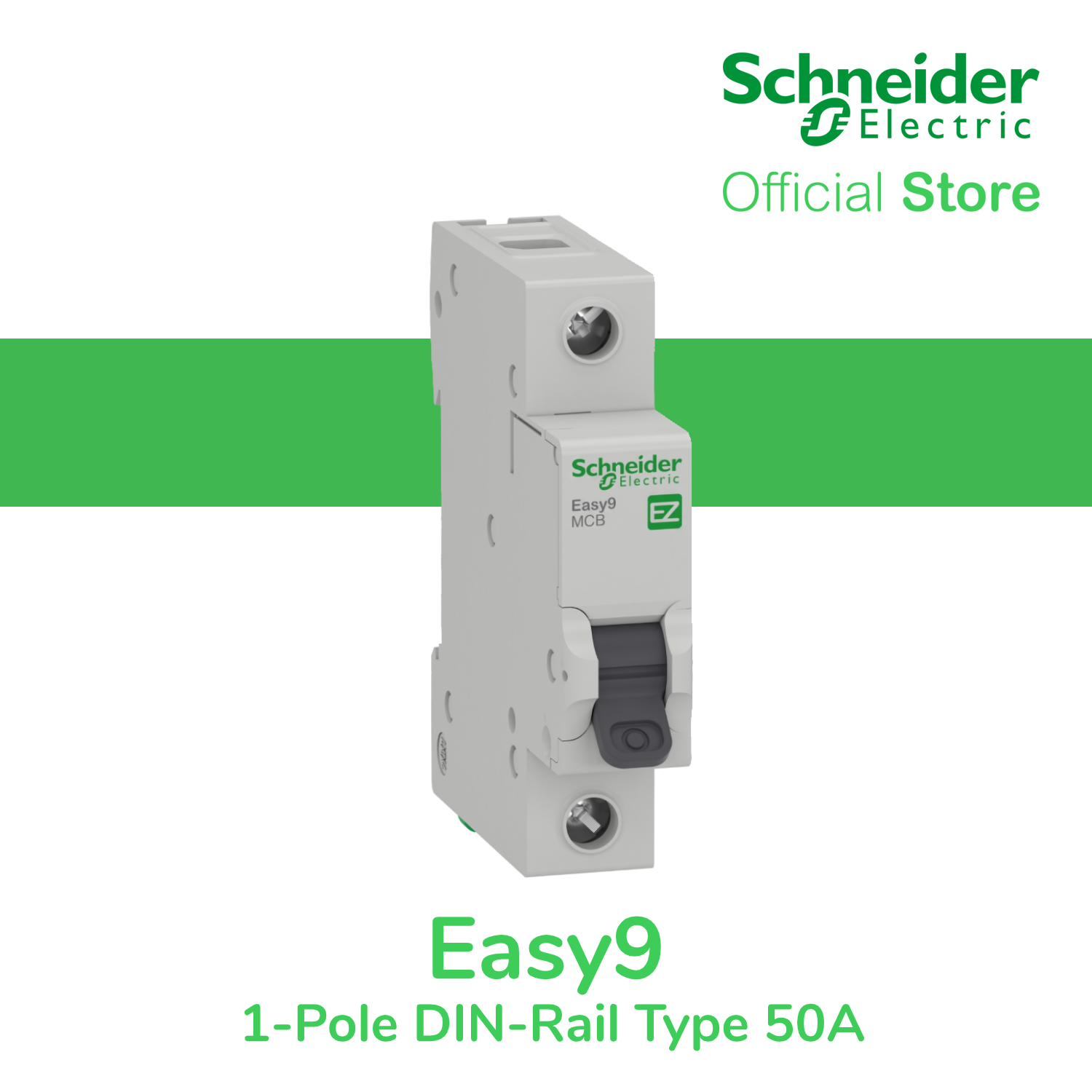

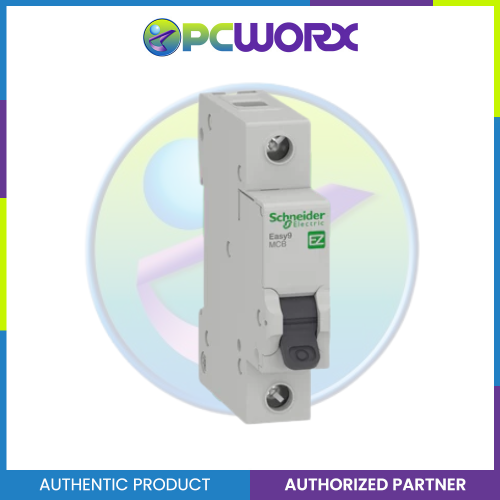

Schneider Easy9 IEC 1 Pole 50A DIN-Rail Type Miniature Circuit Breaker 230V 6 Kaic (EZ9F56150)

Schneider Easy9 IEC 1 Pole 50A DIN-Rail Type Miniature Circuit Breaker 230V 6 Kaic (EZ9F56150)

(0)
SKU: 0000064474

₱260.24

color_family: White
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Easy9 IEC 1 Pole 50A DIN-Rail Type Miniature Circuit Breaker 230V 6 Kaic (EZ9F56150)

₱260.24

₱260.24

Choose option
color_family: White
  • White

Authorized Seller

100% Original Authentic Product

Easy9 Miniature Circuit Breaker – Specifications

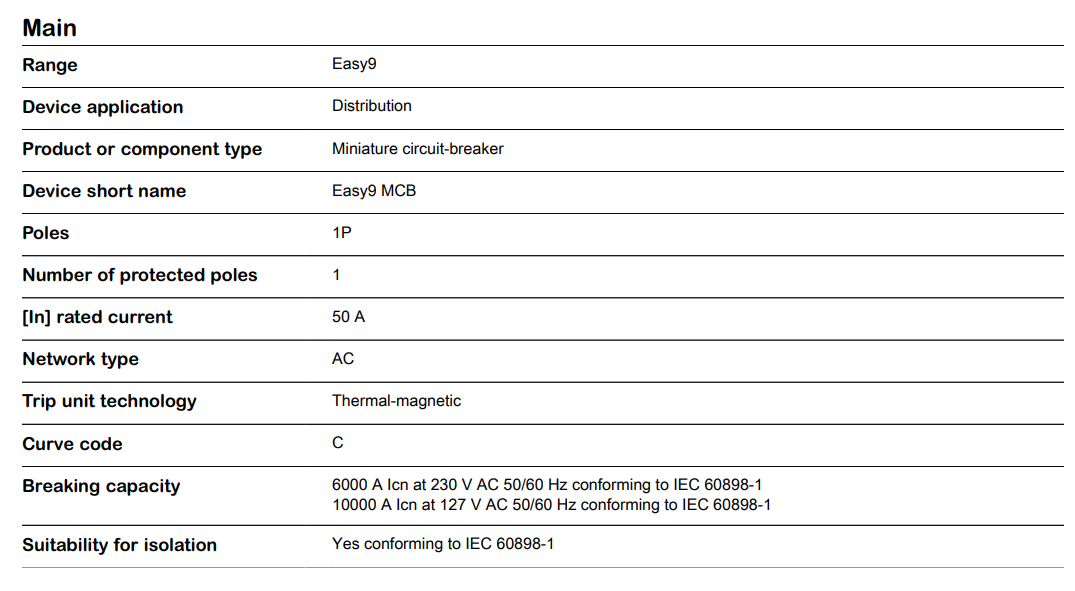

Section Parameter Value
Main Range Easy9
Device application Distribution
Product or component type Miniature circuit-breaker
Device short name Easy9 MCB
Poles 1P
Number of protected poles 1
Rated current (In) 50 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 6,000 A Icn at 230 V AC, 50/60 Hz (IEC 60898-1)
10,000 A Icn at 127 V AC, 50/60 Hz (IEC 60898-1)
Suitability for isolation Yes, conforming to IEC 60898-1

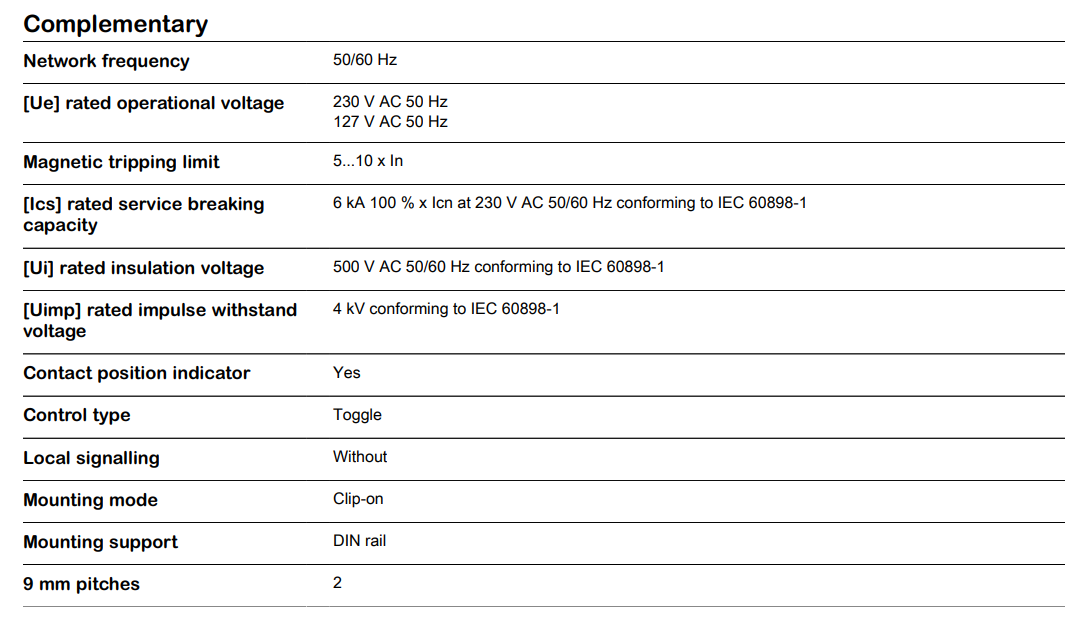

Complementary Network frequency 50/60 Hz
Rated operational voltage (Ue) 230 V AC, 50 Hz
127 V AC, 50 Hz
Magnetic tripping limit 5…10 × In
Rated service breaking capacity (Ics) 6 kA, 100% × Icn at 230 V AC, 50/60 Hz (IEC 60898-1)
Rated insulation voltage (Ui) 500 V AC, 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage (Uimp) 4 kV (IEC 60898-1)
Contact position indicator Yes
Control type Toggle
Local signalling Without
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 2

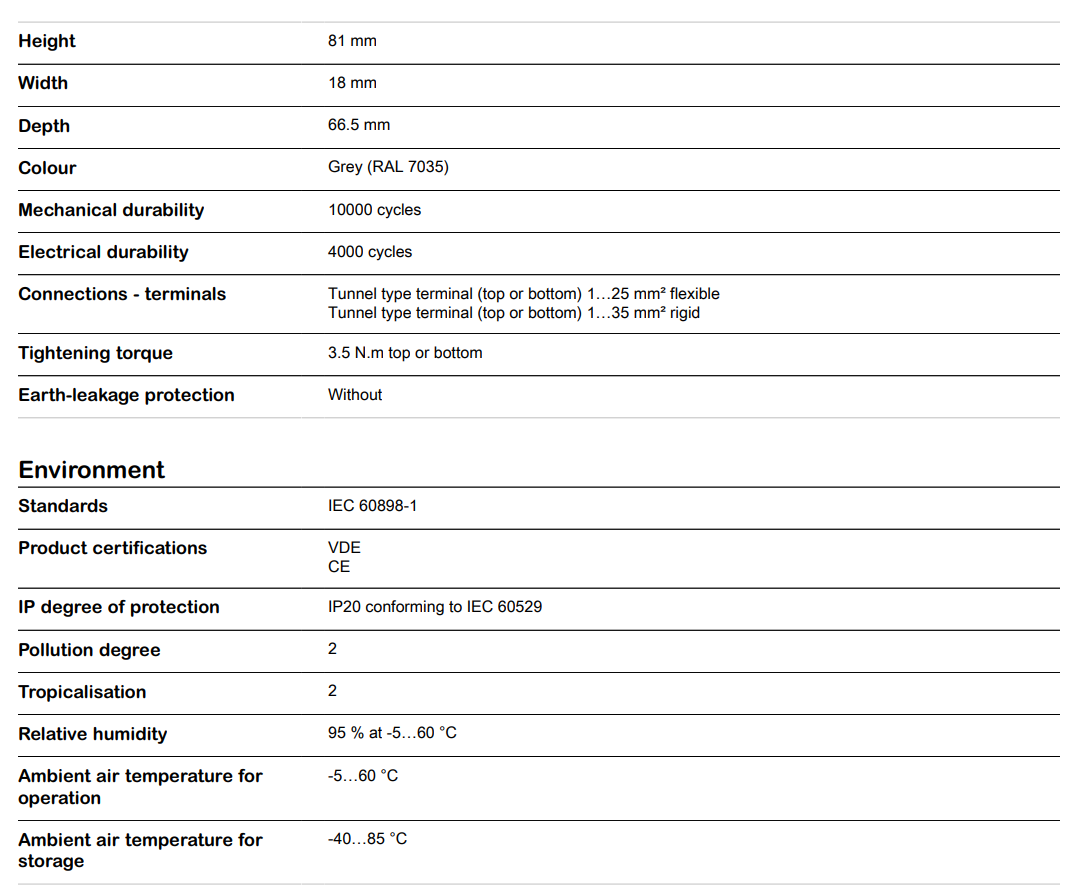

Height 81 mm
Width 18 mm
Depth 66.5 mm
Colour Grey (RAL 7035)
Mechanical durability 10,000 cycles
Electrical durability 4,000 cycles
Connections – terminals Tunnel type terminal (top/bottom), 1–25 mm² flexible
Tunnel type terminal (top/bottom), 1–35 mm² rigid
Tightening torque 3.5 N·m (top or bottom)
Earth-leakage protection Without
Environment Standards IEC 60898-1
Product certifications VDE
CE
IP degree of protection IP20 (IEC 60529)
Pollution degree 2
Tropicalisation 2
Relative humidity 95% at -5…60 °C
Ambient air temperature (operation) -5…60 °C
Ambient air temperature (storage) -40…85 °C
Packing Units Unit type – Package 1 PCE
Units per Package 1 1
Package 1 dimensions (H × W × L) 7.5 × 1.8 × 8.5 cm
Package 1 weight 119 g
