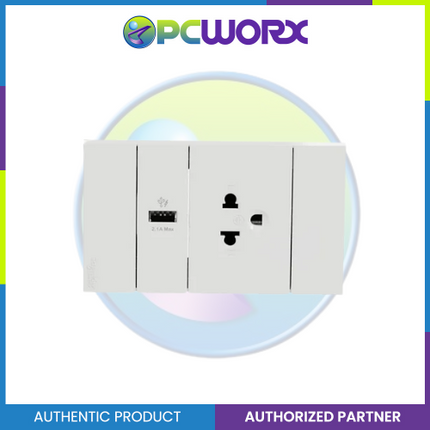

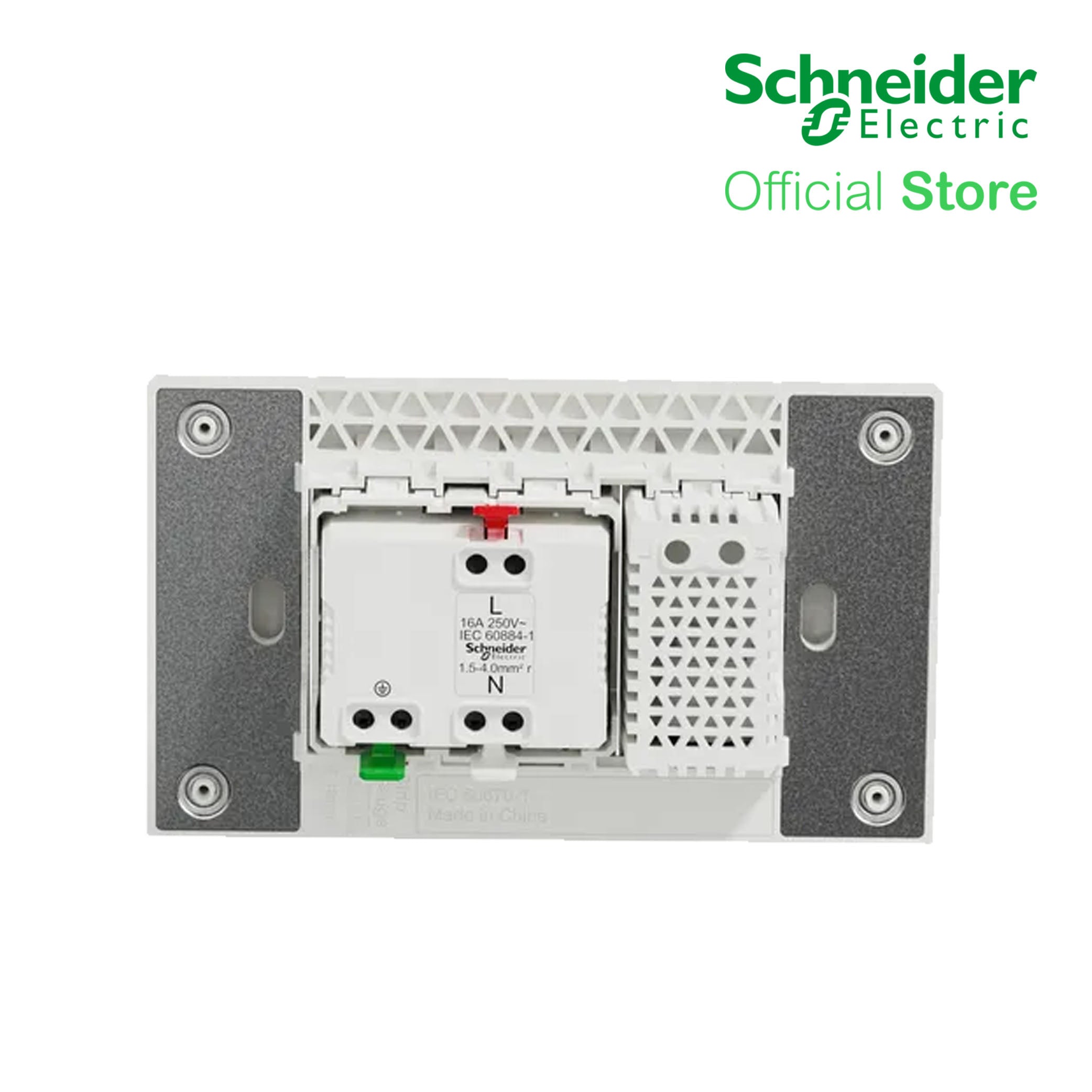

Schneider AvatarOn A 16A 250V 3 Pin USB Charger Universal Socket White A70426USB-UST-WE | Switch Outlet

Description

Specifications
Main
Range of product
AvatarOn A
Product or component type
USB charger + socket-outlet
Complementary
Integrated connection type
1 USB port 5 V AC 2.1 A 50...60 Hz
3 socket-outlet 250 V AC 16 A 50...60 Hz
Device presentation
Complete product
Colour tint
White
Ambient air temperature for operation
-5…60 °C
Relative humidity
0…95 %
Service life in cycles
5000 cycles
Connections - terminals
3 pins
Number of terminals
3
Clamping connection capacity
0.5...4 mm² for solid cable(s)
2 x 1.5...2 x 4 mm² for stranded cable(s)
Material
PC
Wire stripping length
13 mm
Height
70 mm
Width
120 mm
Depth
36.35 mm
Embedding depth
24.85 mm
Standards
IEC 62368-1
IEC 60884-1
Environment
Product certifications
IEC
IP degree of protection
IP20
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4 cm
Package 1 Width
7 cm
Package 1 Length
12 cm
Package 1 Weight
137 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
9 cm
Package 2 Width
19 cm
Package 2 Length
27 cm
Package 2 Weight
1.5 kg
Unit Type of Package 3
S03
Number of Units in Package 3
60
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
10 kg

Schneider AvatarOn A 16A 250V 3 Pin USB Charger Universal Socket White A70426USB-UST-WE | Switch Outlet

Product form

Specifications Main Range of product AvatarOn A Product or component type USB charger + socket-outlet Complementary Integrated connection type 1... Read more

Free pickup in our shop(s)

SKU: 0000064508

20 in stock

₱1,035.72
