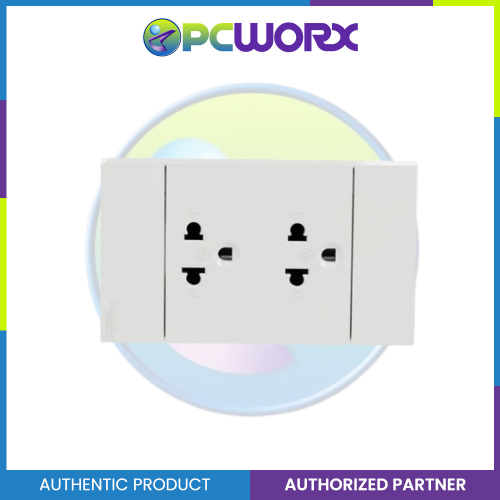

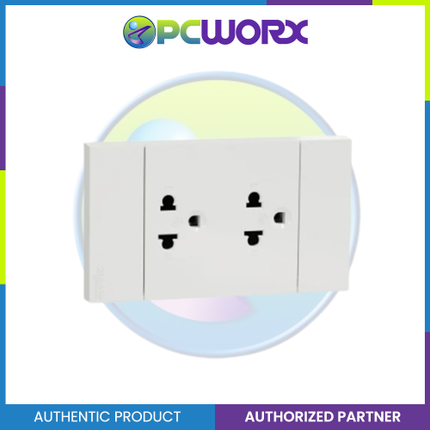

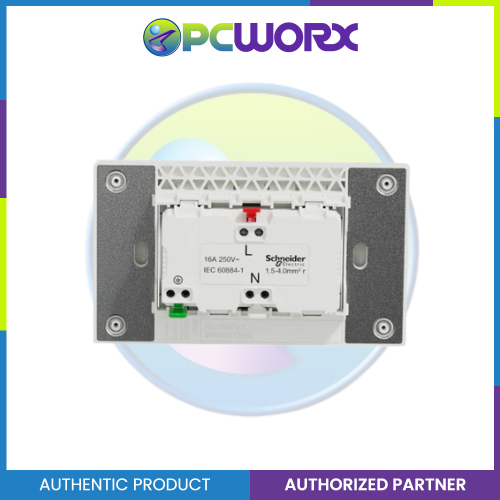

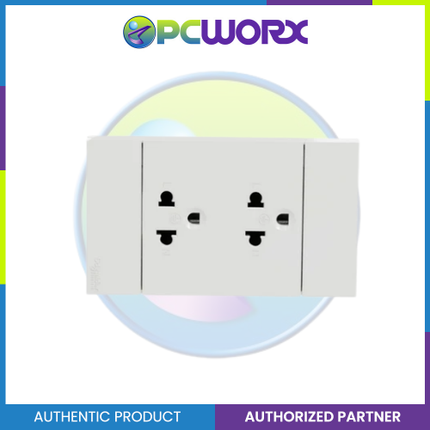

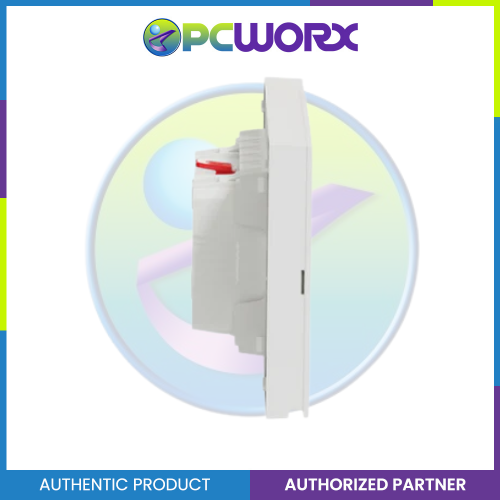

Schneider AvatarOn A 16A 250V 2G 3 Pin Universal Socket-outlet Grey A70426UST-GY

Description

Category Parameter Specification
Main Range of product AvatarOn A
Product or component type Socket-outlet
Device presentation Complete product
Colour tint Grey
Outlet poles configuration 2P + E
Complementary Rated current 16 A at 250 V AC, 50…60 Hz
Socket number 1
Clamping connection capacity (solid) 2 × 1.5…2 × 4 mm²
Clamping connection capacity (stranded) 2 × 1.5…2 × 4 mm²
Connections – terminals Screwless terminals
Material (grid plate) Polycarbonate
Material (cover) Polycarbonate
Device mounting Flush
Width 120 mm
Height 70 mm
Depth 30.3 mm
Embedding depth 19 mm
Environment IP degree of protection IP20
Maximum ambient air temperature (operation) 35 °C
Ambient air temperature (storage) -5…45 °C
Relative humidity 0…95 %
Operating altitude < 2000 m
Standards Standards IEC 60884-1
Product certifications IEC
Packing Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 3 cm
Package 1 width 7 cm
Package 1 length 12 cm
Package 1 weight 137 g


Schneider AvatarOn A 16A 250V 2G 3 Pin Universal Socket-outlet Grey A70426UST-GY

Product form

Category Parameter Specification Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint... Read more

Free pickup in our shop(s)

SKU: 0000064510

10 in stock

₱395.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Category Parameter Specification
    Main Range of product AvatarOn A
    Product or component type Socket-outlet
    Device presentation Complete product
    Colour tint Grey
    Outlet poles configuration 2P + E
    Complementary Rated current 16 A at 250 V AC, 50…60 Hz
    Socket number 1
    Clamping connection capacity (solid) 2 × 1.5…2 × 4 mm²
    Clamping connection capacity (stranded) 2 × 1.5…2 × 4 mm²
    Connections – terminals Screwless terminals
    Material (grid plate) Polycarbonate
    Material (cover) Polycarbonate
    Device mounting Flush
    Width 120 mm
    Height 70 mm
    Depth 30.3 mm
    Embedding depth 19 mm
    Environment IP degree of protection IP20
    Maximum ambient air temperature (operation) 35 °C
    Ambient air temperature (storage) -5…45 °C
    Relative humidity 0…95 %
    Operating altitude < 2000 m
    Standards Standards IEC 60884-1
    Product certifications IEC
    Packing Unit type of package 1 PCE
    Number of units in package 1 1
    Package 1 height 3 cm
    Package 1 width 7 cm
    Package 1 length 12 cm
    Package 1 weight 137 g
