| Specifications |
| Main |
|
| Device application |
| Distribution |
| Range |
|
| Acti9 |
|
| Product name |

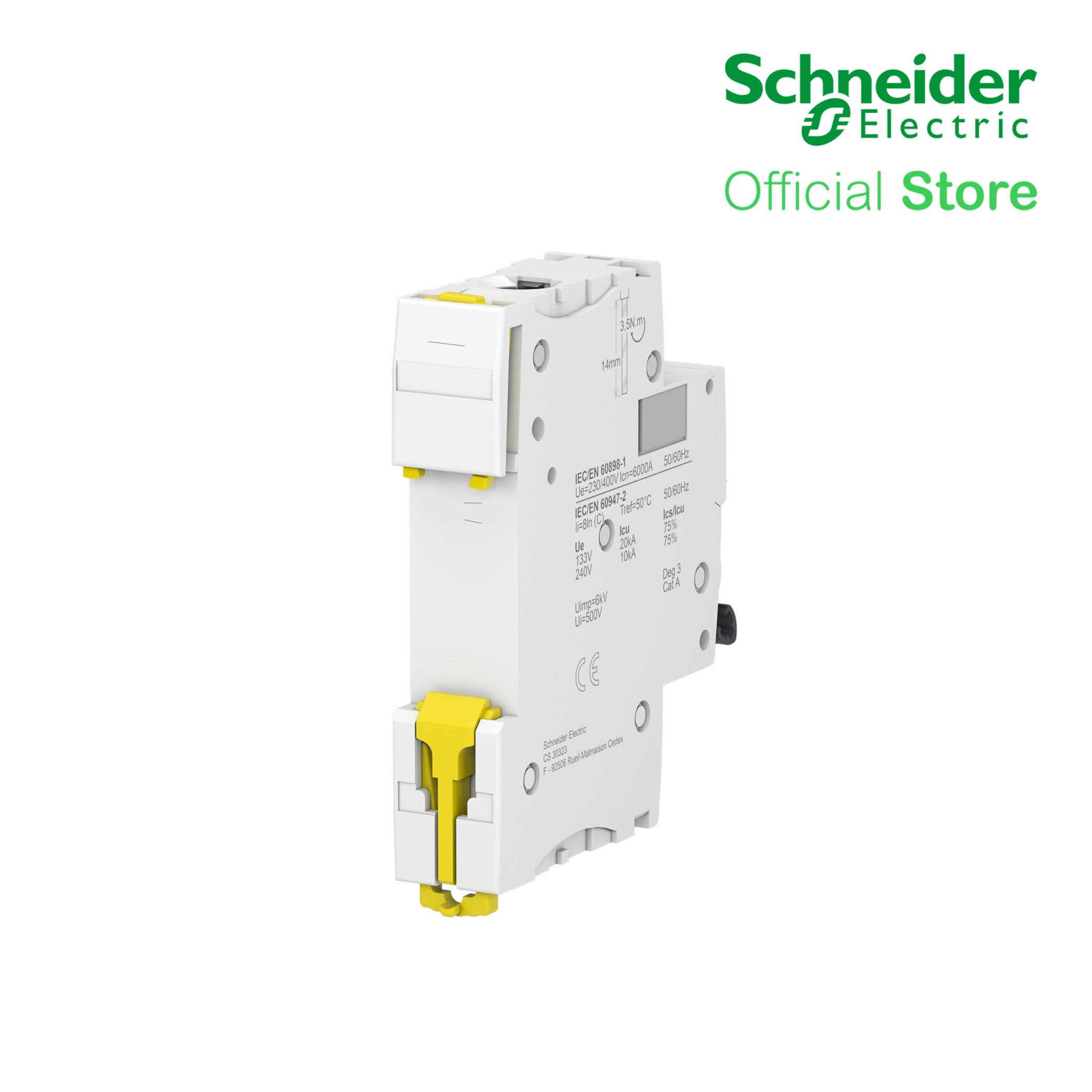

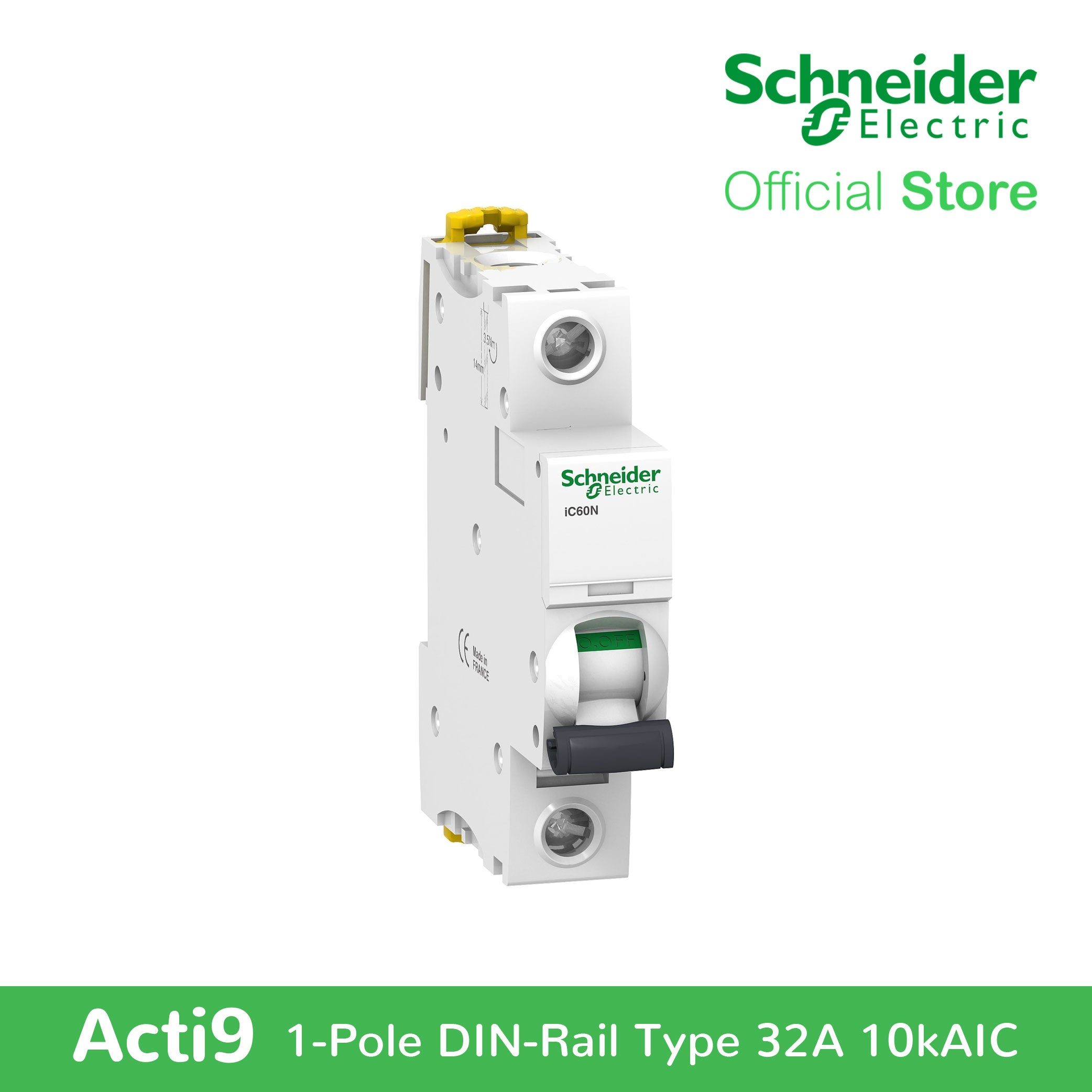

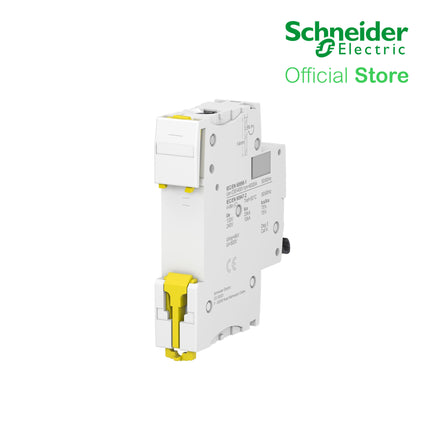

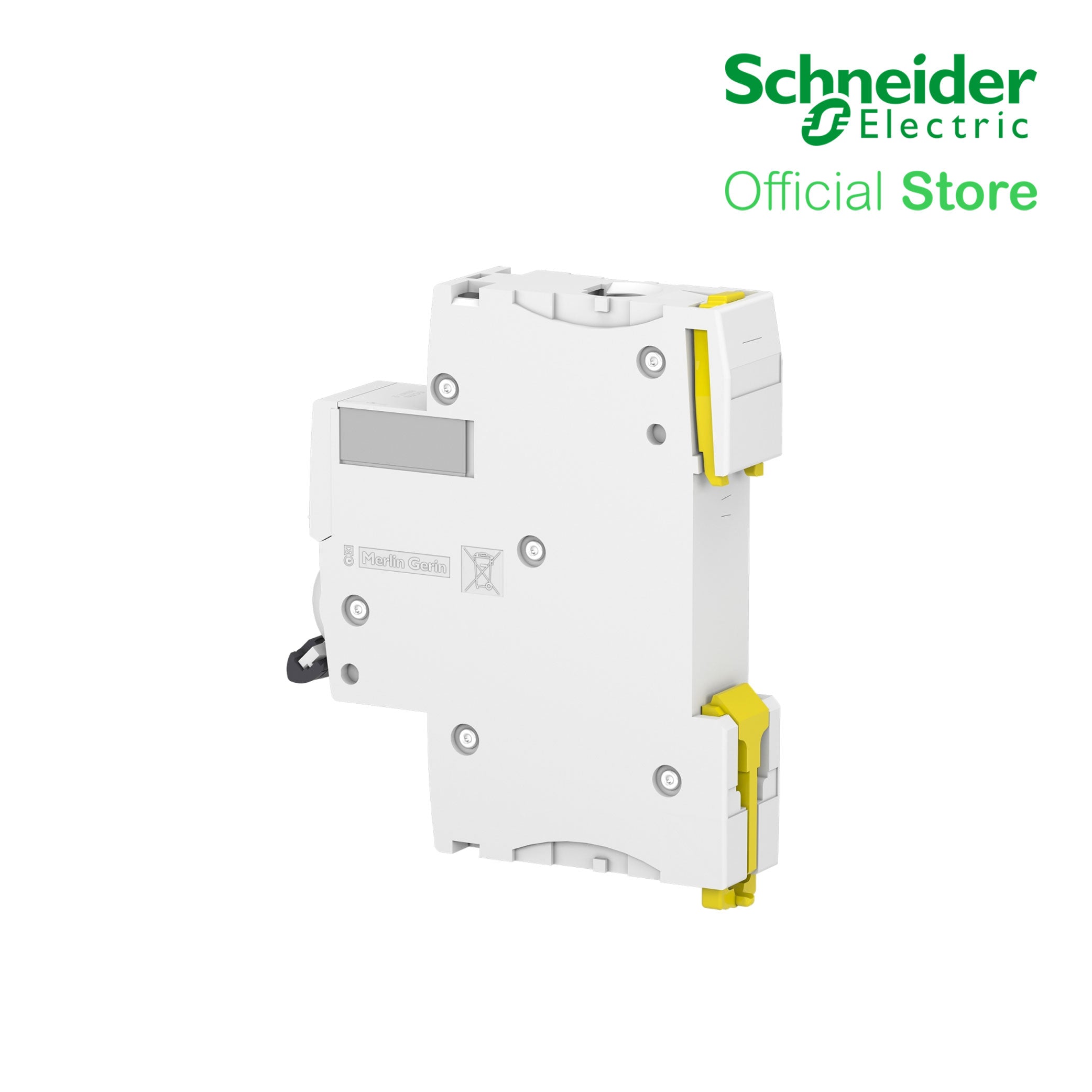

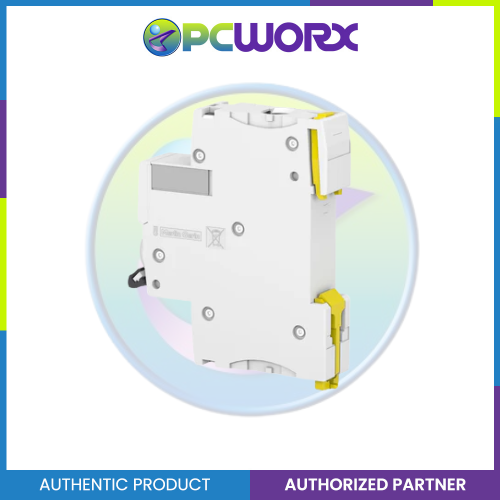

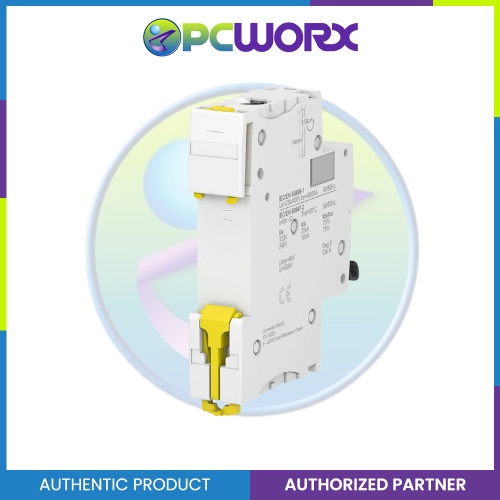

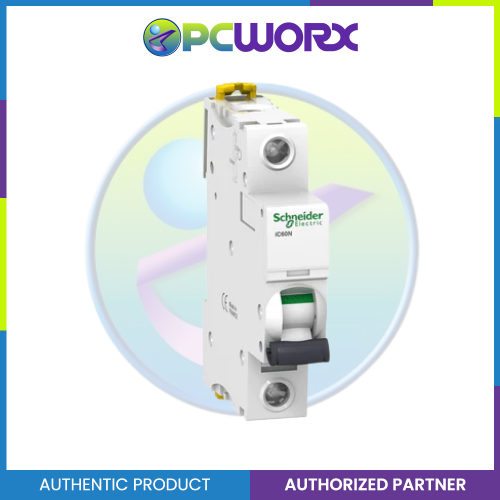

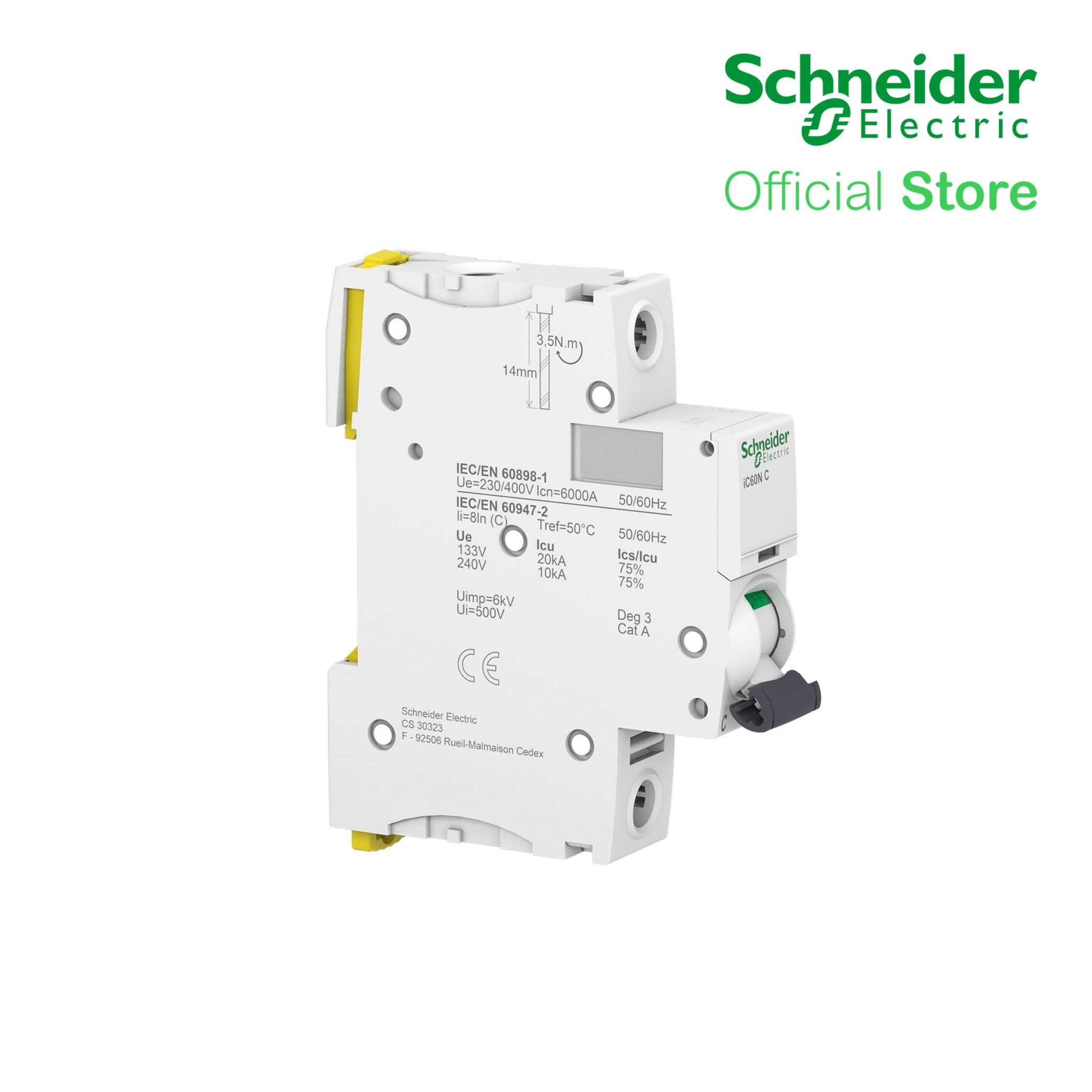

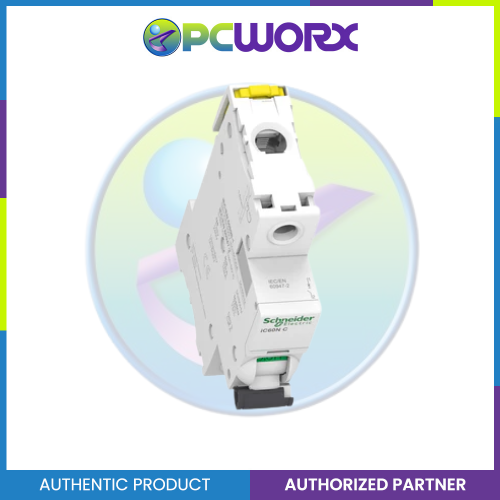

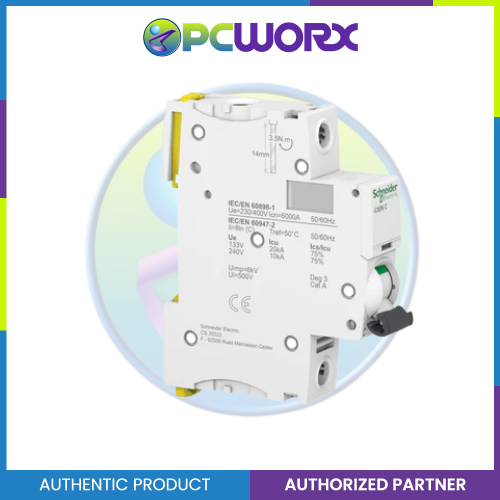

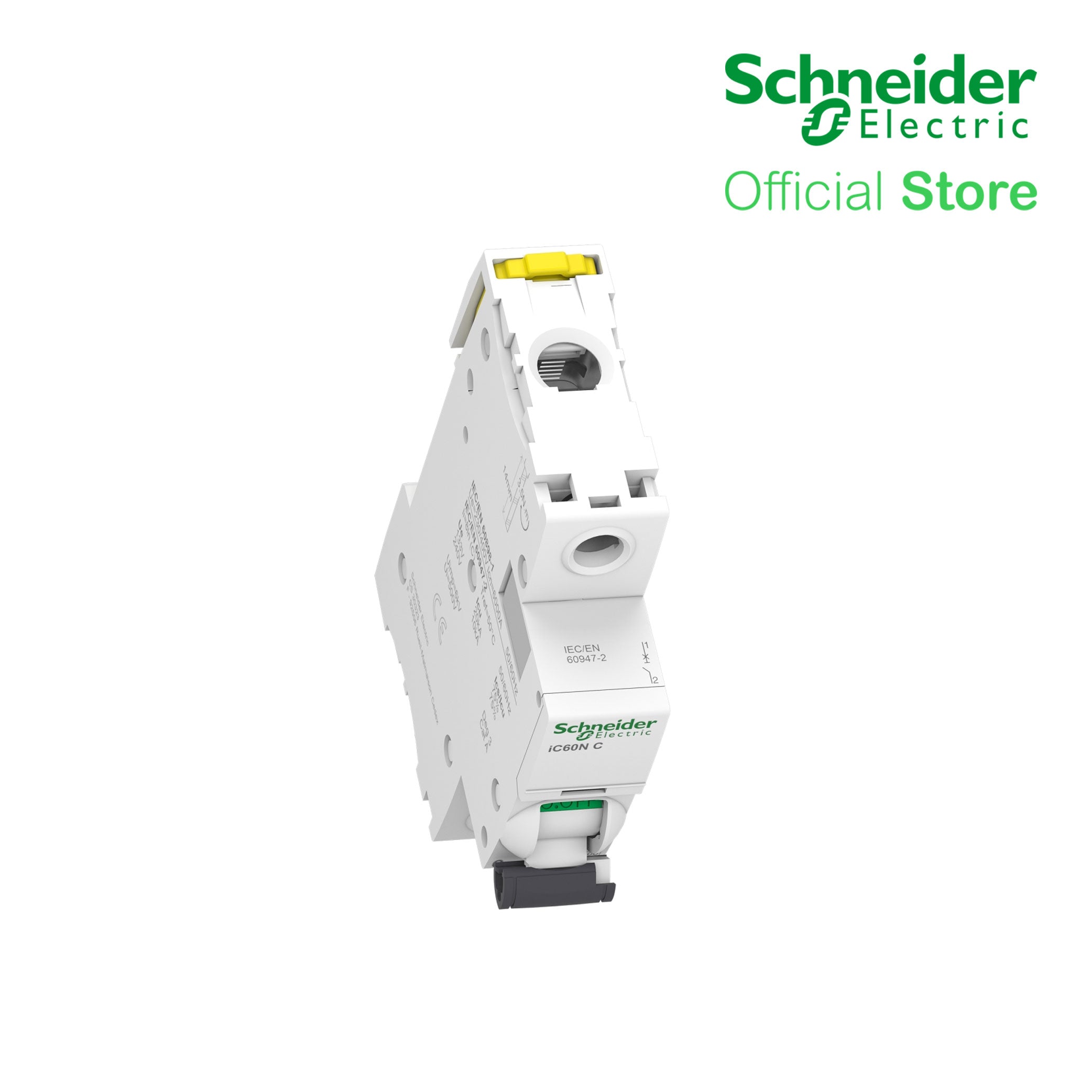

| Acti9 iC60 |
| Product or component type |
| Miniature circuit-breaker |
| Device short name |
| IC60N |
|
| Poles description |
| 1P |
|
| Number of protected poles |
| 1 |
|
| [In] rated current |
| 32 A |
|
| Network type |
| AC |
|
| DC |
|
| Trip unit technology |
| Thermal-magnetic |
| Curve code |
| C |
|
| Breaking capacity |
| 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| 10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2 |
| 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 |
| 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Utilisation category |
| Category A conforming to EN 60947-2 |
| Category A conforming to IEC 60947-2 |
| Suitability for isolation |
| Yes conforming to EN 60898-1 |
| Yes conforming to EN 60947-2 |
| Yes conforming to IEC 60898-1 |
| Yes conforming to IEC 60947-2 |
| Standards |
| EN 60947-2 |
| IEC 60947-2 |
| EN 60898-1 |
| IEC 60898-1 |
| Complementary |
| Network frequency |
| 50/60 Hz |
|
| Magnetic tripping limit |
| 8 x In +/- 20 % |
| [Ics] rated service breaking capacity |
| 27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz |
| 7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz |
| 27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz |
| 7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz |
| 15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz |
| 15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz |
| 6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz |
| 6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz |
| 10 kA 100 % conforming to EN 60947-2 - 72 V DC |
| 10 kA 100 % conforming to IEC 60947-2 - 72 V DC |
| 15 kA 100 % conforming to EN 60947-2 - 12...60 V DC |
| 15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC |
| Limitation class |
| 3 conforming to EN 60898-1 |
| 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage |
| 500 V AC 50/60 Hz conforming to EN 60947-2 |
| 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage |
| 6 kV conforming to EN 60947-2 |
| 6 kV conforming to IEC 60947-2 |
| Contact position indicator |
| Yes |
|
| Control type |
| Toggle |
|
| Local signalling |
| Trip indicator |
| Mounting mode |
| Fixed |
|
| Mounting support |
| DIN rail |
|
| Comb busbar and distribution block compatibility |
| Top or bottom: YES |
| 9 mm pitches |
| 2 |
|
| Height |
|
| 85 mm |
|
| Width |
|
| 18 mm |
|
| Depth |
|
| 78.5 mm |
|
| Net weight |
| 0.215 kg |
|
| Colour |
|
| White |
|
| Mechanical durability |
| 20000 cycles |
| Electrical durability |
| 10000 cycles |
| Connections - terminals |
| Single terminal (top or bottom) 1…35 mm² rigid |
| Single terminal (top or bottom) 1…25 mm² flexible |
| Wire stripping length |
| 14 mm for top or bottom connection |
| Tightening torque |
| 3.5 N.m top or bottom |
| Earth-leakage protection |
| Without |
|
| Environment |
| IP degree of protection |
| IP20 conforming to IEC 60529 |
| IP20 conforming to EN 60529 |
| Pollution degree |
| 3 conforming to EN 60947-2 |
| 3 conforming to IEC 60947-2 |
| Overvoltage category |
| IV |
|
| Tropicalisation |
| 2 conforming to IEC 60068-1 |
| Relative humidity |
| 95 % at 55 °C |
| Operating altitude |
| 0...2000 m |
| Ambient air temperature for operation |
| -35…70 °C |
|
| Ambient air temperature for storage |
| -40…85 °C |
|
| Packing Units |
| Unit Type of Package 1 |
| PCE |
|
| Number of Units in Package 1 |
| 1 |
|
| Package 1 Height |
| 2.000 cm |
|
| Package 1 Width |
| 7.500 cm |
|
| Package 1 Length |
| 9.500 cm |
|
| Package 1 Weight |
| 120.500 g |
|
| Unit Type of Package 2 |
| BB1 |
|
| Number of Units in Package 2 |
| 12 |
|
| Package 2 Height |
| 8.000 cm |
|
| Package 2 Width |
| 10.000 cm |
| Package 2 Length |
| 22.500 cm |
| Package 2 Weight |
| 1.500 kg |
|
| Unit Type of Package 3 |
| S03 |
|
| Number of Units in Package 3 |
| 132 |
|
| Package 3 Height |
| 30.000 cm |
| Package 3 Width |
| 30.000 cm |
| Package 3 Length |
| 40.000 cm |
| Package 3 Weight |
| 16.876 kg |
|
