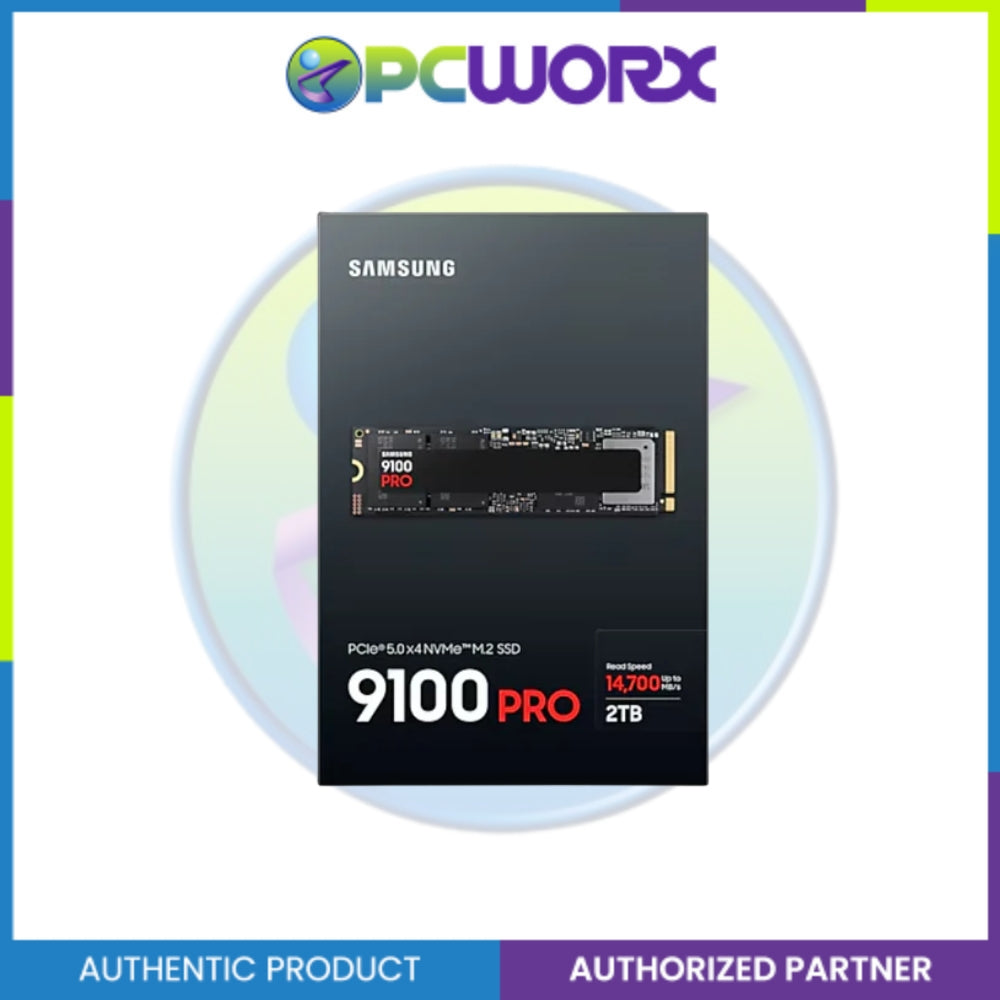

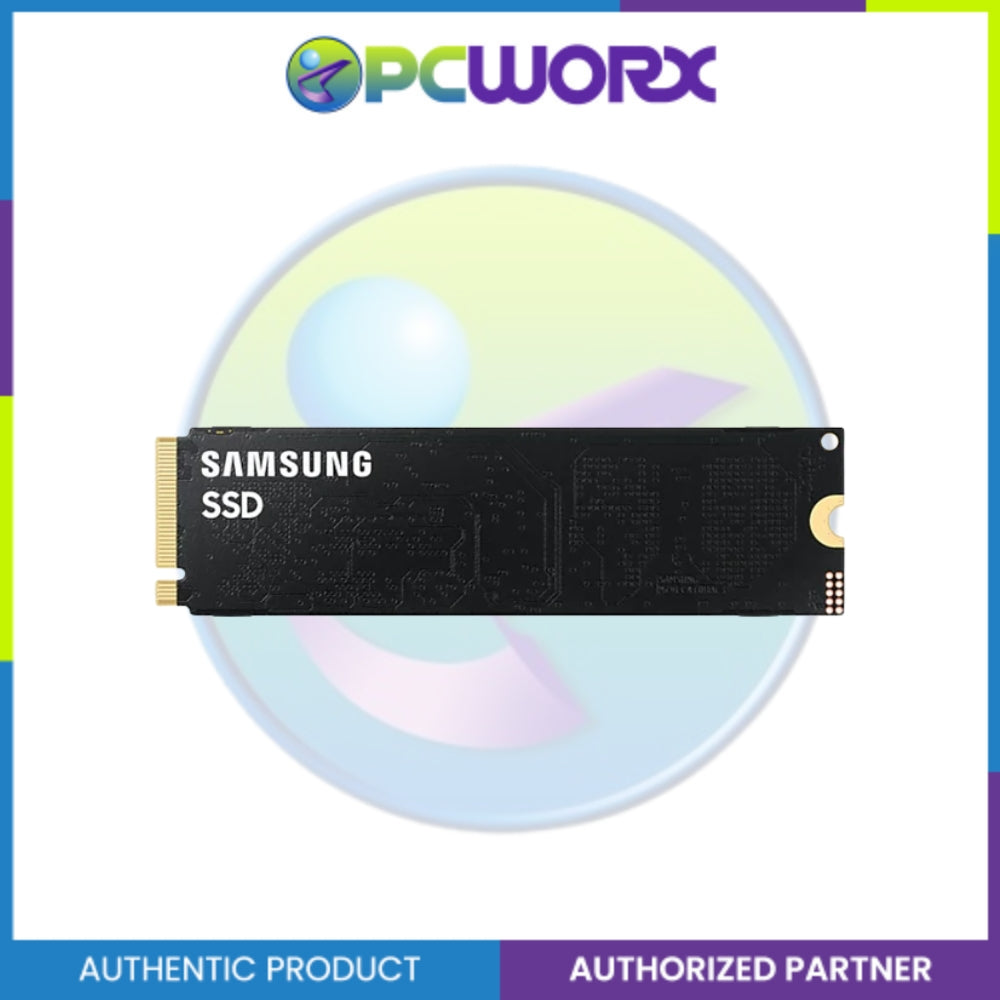

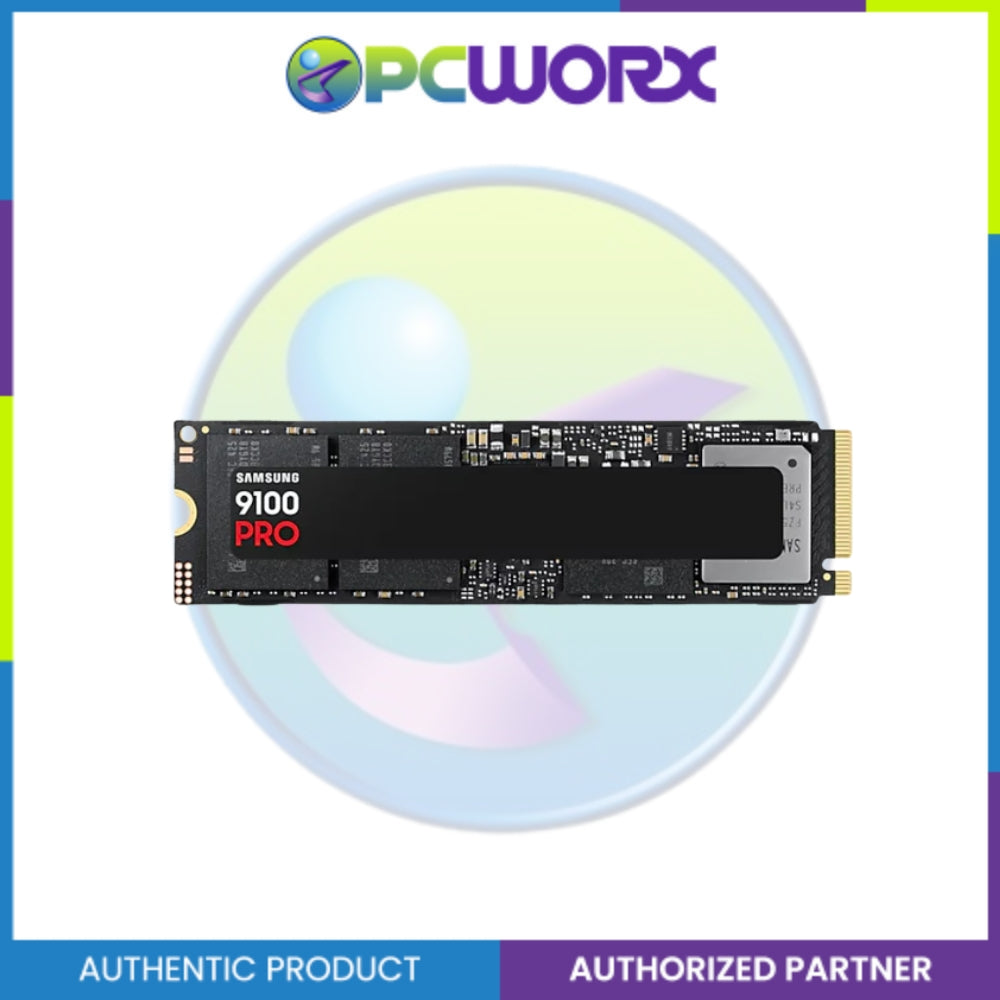

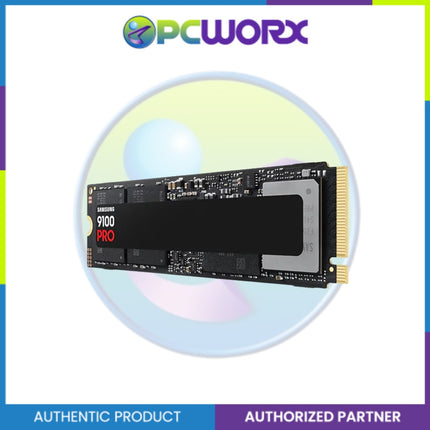

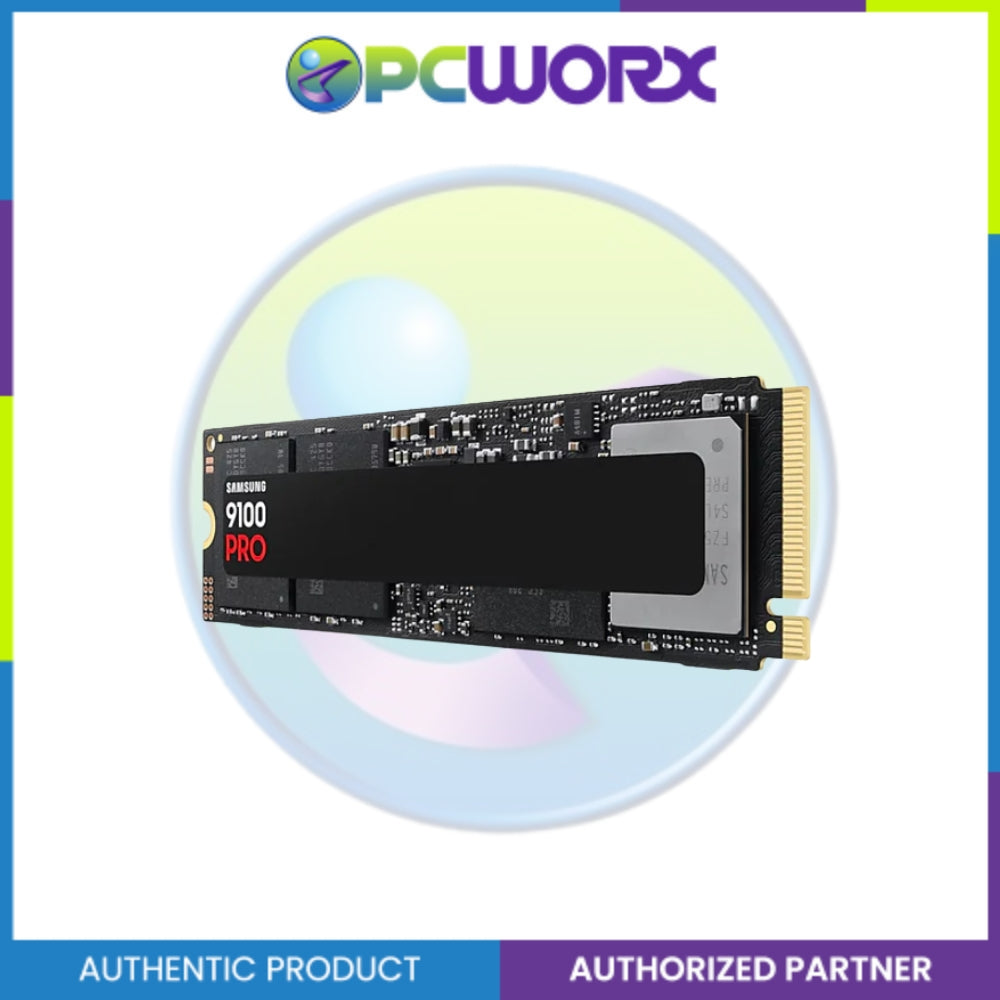

Samsung MZ-VAP1T0BW 1TB 9100 Pro M.2 NVME SSD

Description


Performance ready for a new era

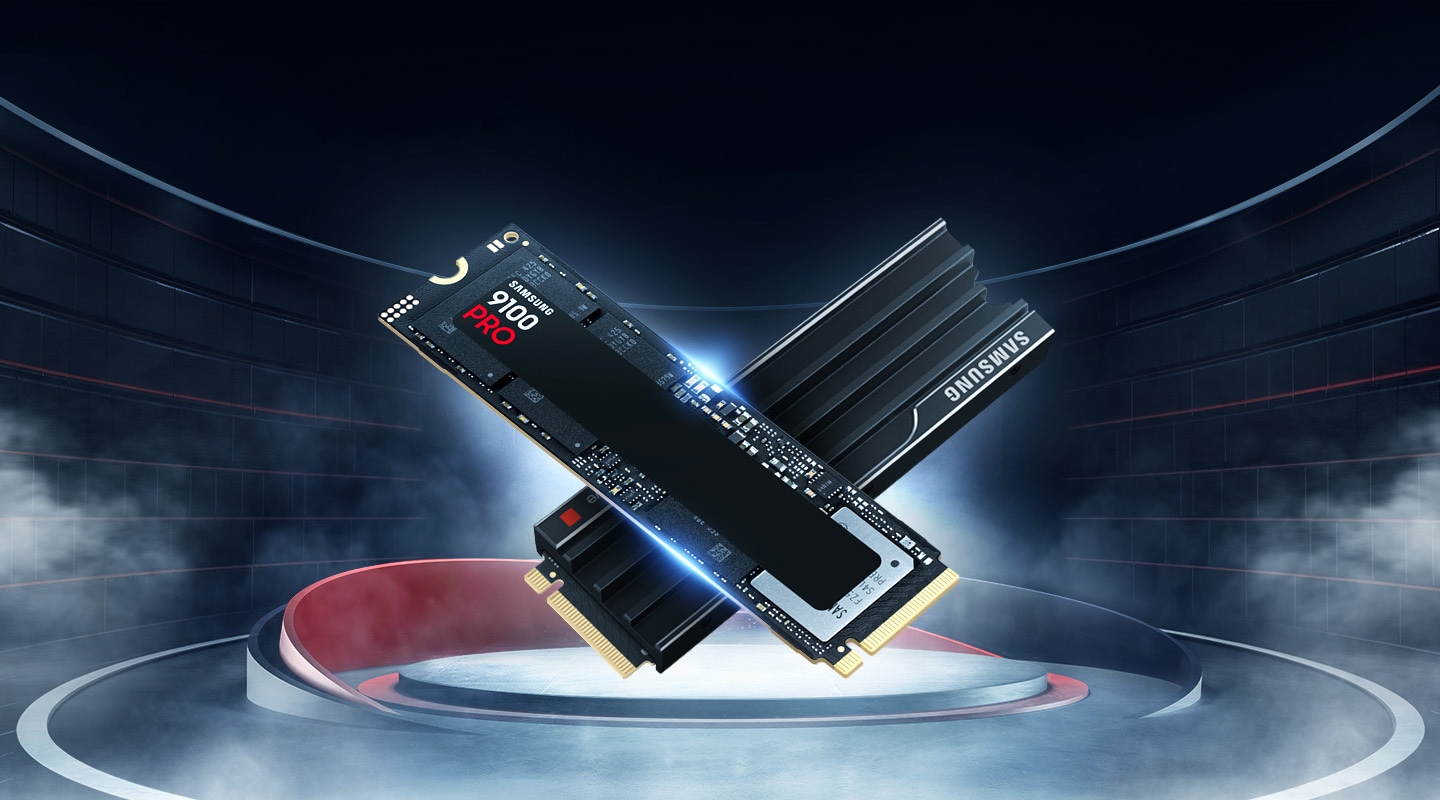

The 9100 PRO and 9100 PRO with Heatsink are here.

Breakthrough PCIe® 5.0 performance

Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

With the 9100 PRO, it says "up to 2x faster", "PCIe® 5.0". Below that, it says "Sequential Read up to 14,800 MB/s", "Sequential Write up to 13,400 MB/s" with icons indicating Sequential speed, and "Random Read up to 2,200K IOPS", Random Write up to 2,600K IOPS" with icons indicating Random speed.

*Sequential and random write performance was measured with Intelligent Turbo Write technology activated, which only operates within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.*To maximise the performance of the 9100 PRO, please check whether your system supports PCIe® 5.0 on Intel or AMD website.

Impressive processing power

Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Several puzzle pieces are coming together. It says "Random Read up to 2,200K IOPS", Random Write up to 2,600K IOPS" along with an icon indicating Random speed.

Rapid AI creation

Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

A person is using an AI application on a laptop. It has the words "Random Read up to 2,200K IOPS" and "Random Write up to 2,600K IOPS" written on it, along with an icon indicating random speed.

*Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.

Exceptional performance at your fingertips

Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Several cases of using desktop PC, laptop. Below, there are icons written by 1TB, 2TB, 4TB, and 8TB.

Extraordinary thermal efficiency

Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

The detailed components that make up the 9100 PRO are visible. There are two components that say "SAMSUNG V-NAND" and one each that says "SAMSUNG DRAM" and "SAMSUNG Controller." Around it, an arrow indicating the direction in which heat is emitted is visible, and "Nickel coated controller" and "Heat spreader label" are written. On one side again, "Thermal Control" is written with the icon, which means temperature control.

*Image shown for illustrative purposes only.*990 PRO sequential read/write 1,221/1,255 MB/s per Watt, 9100 PRO sequential read/write 1,822/1,703 MB/s per Watt based on the internal test result of the 2TB capacity model.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

*For detailed information, please visit Samsung Magician software website.https://semiconductor.samsung.com/consumer-storage/magician/


Samsung magician software is running on the PC screen.Below that, the three core functions "Data Migration", "Integrative drive Health check", and "Firmware Update" are indicated in text and icons.

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.


Samsung's memory products are installed on the motherboard.
Specification Details
Interface PCIe® 5.0 x4, NVMe™ 2.0
Sequential Read Up to 14,700 MB/s (Performance may vary based on system hardware & configuration)
Sequential Write Up to 13,300 MB/s (Performance may vary based on system hardware & configuration)
Application Client PCs, Game Consoles
Weight Max 9.0 g
Dimension (WxHxD) Max 80.15 × Max 22.15 × Max 2.38 mm
Capacity 1,000 GB (1 GB = 1 Billion bytes by IDEMA)
Form Factor M.2 (2280)
Storage Memory Samsung V-NAND TLC
Controller Samsung in-house Controller
Cache Memory Samsung 1 GB Low Power DDR4X SDRAM
TRIM Support Supported
S.M.A.R.T Support Supported
Garbage Collection (GC) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN Support Not Supported
Device Sleep Mode Support Yes
Random Read Up to 1,850,000 IOPS (Performance may vary based on system hardware & configuration)
Random Write Up to 2,600,000 IOPS (Performance may vary based on system hardware & configuration)
Average Power Consumption Read: 7.6 W / Write: 7.2 W (System-dependent)
Power Consumption (Idle) Typical 4 mW
Power Consumption (Device Sleep) Typical 3.3 mW
Allowable Voltage 3.3 V ± 5%
Reliability (MTBF) 1.5 Million Hours
Operating Temperature 0 – 70 °C
Shock 1,500 G, 0.5 ms (Half sine)
Installation Kit Not Available
Management Software Magician Software for SSD management

Samsung MZ-VAP1T0BW 1TB 9100 Pro M.2 NVME SSD

Product form

Performance ready for a new era Breakthrough PCIe® 5.0 performance Push PCIe® 5.0 performance to the max. 9100 PRO achieves... Read more

Free pickup in our shop(s)

SKU: 0000069650

2 in stock

₱9,904.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description


    Performance ready for a new era

    The 9100 PRO and 9100 PRO with Heatsink are here.

    Breakthrough PCIe® 5.0 performance

    Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

    With the 9100 PRO, it says "up to 2x faster", "PCIe® 5.0". Below that, it says "Sequential Read up to 14,800 MB/s", "Sequential Write up to 13,400 MB/s" with icons indicating Sequential speed, and "Random Read up to 2,200K IOPS", Random Write up to 2,600K IOPS" with icons indicating Random speed.

    *Sequential and random write performance was measured with Intelligent Turbo Write technology activated, which only operates within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.*To maximise the performance of the 9100 PRO, please check whether your system supports PCIe® 5.0 on Intel or AMD website.

    Impressive processing power

    Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

    Several puzzle pieces are coming together. It says "Random Read up to 2,200K IOPS", Random Write up to 2,600K IOPS" along with an icon indicating Random speed.

    Rapid AI creation

    Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

    A person is using an AI application on a laptop. It has the words "Random Read up to 2,200K IOPS" and "Random Write up to 2,600K IOPS" written on it, along with an icon indicating random speed.

    *Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.

    Exceptional performance at your fingertips

    Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

    Several cases of using desktop PC, laptop. Below, there are icons written by 1TB, 2TB, 4TB, and 8TB.

    Extraordinary thermal efficiency

    Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

    The detailed components that make up the 9100 PRO are visible. There are two components that say "SAMSUNG V-NAND" and one each that says "SAMSUNG DRAM" and "SAMSUNG Controller." Around it, an arrow indicating the direction in which heat is emitted is visible, and "Nickel coated controller" and "Heat spreader label" are written. On one side again, "Thermal Control" is written with the icon, which means temperature control.

    *Image shown for illustrative purposes only.*990 PRO sequential read/write 1,221/1,255 MB/s per Watt, 9100 PRO sequential read/write 1,822/1,703 MB/s per Watt based on the internal test result of the 2TB capacity model.

    Samsung Magician software

    Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

    *For detailed information, please visit Samsung Magician software website.https://semiconductor.samsung.com/consumer-storage/magician/


    Samsung magician software is running on the PC screen.Below that, the three core functions "Data Migration", "Integrative drive Health check", and "Firmware Update" are indicated in text and icons.

    Bringing innovations to life

    For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.


    Samsung's memory products are installed on the motherboard.
    Specification Details
    Interface PCIe® 5.0 x4, NVMe™ 2.0
    Sequential Read Up to 14,700 MB/s (Performance may vary based on system hardware & configuration)
    Sequential Write Up to 13,300 MB/s (Performance may vary based on system hardware & configuration)
    Application Client PCs, Game Consoles
    Weight Max 9.0 g
    Dimension (WxHxD) Max 80.15 × Max 22.15 × Max 2.38 mm
    Capacity 1,000 GB (1 GB = 1 Billion bytes by IDEMA)
    Form Factor M.2 (2280)
    Storage Memory Samsung V-NAND TLC
    Controller Samsung in-house Controller
    Cache Memory Samsung 1 GB Low Power DDR4X SDRAM
    TRIM Support Supported
    S.M.A.R.T Support Supported
    Garbage Collection (GC) Auto Garbage Collection Algorithm
    Encryption Support AES 256-bit (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
    WWN Support Not Supported
    Device Sleep Mode Support Yes
    Random Read Up to 1,850,000 IOPS (Performance may vary based on system hardware & configuration)
    Random Write Up to 2,600,000 IOPS (Performance may vary based on system hardware & configuration)
    Average Power Consumption Read: 7.6 W / Write: 7.2 W (System-dependent)
    Power Consumption (Idle) Typical 4 mW
    Power Consumption (Device Sleep) Typical 3.3 mW
    Allowable Voltage 3.3 V ± 5%
    Reliability (MTBF) 1.5 Million Hours
    Operating Temperature 0 – 70 °C
    Shock 1,500 G, 0.5 ms (Half sine)
    Installation Kit Not Available
    Management Software Magician Software for SSD management
