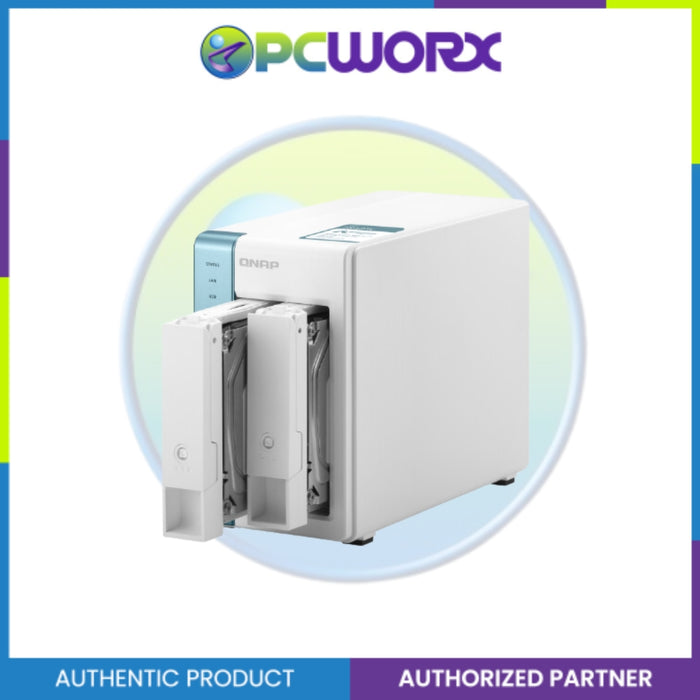

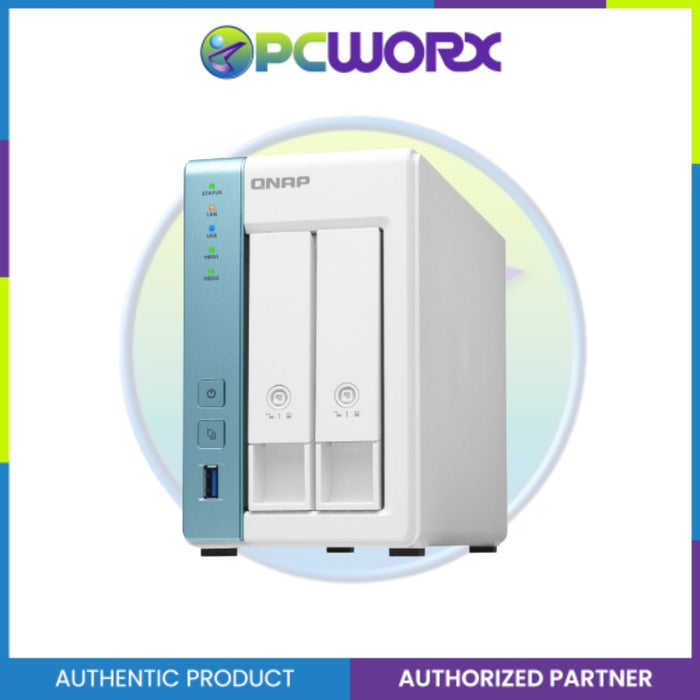

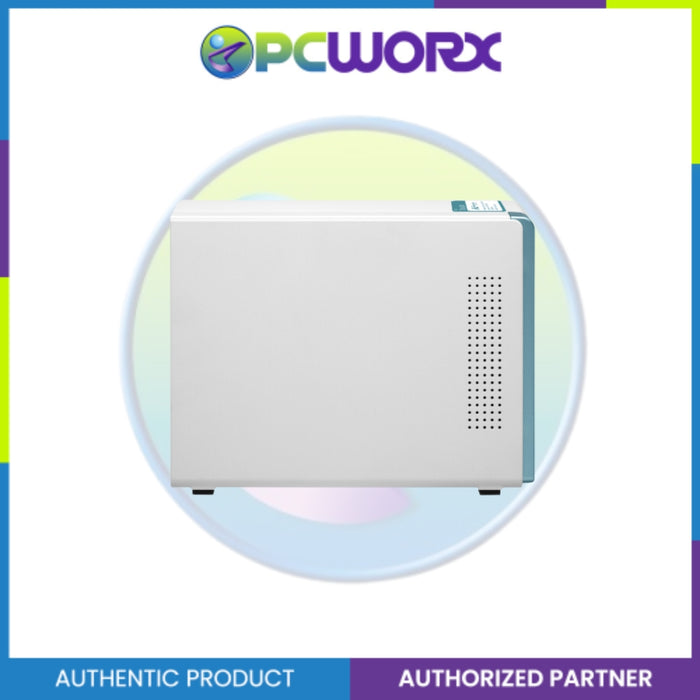

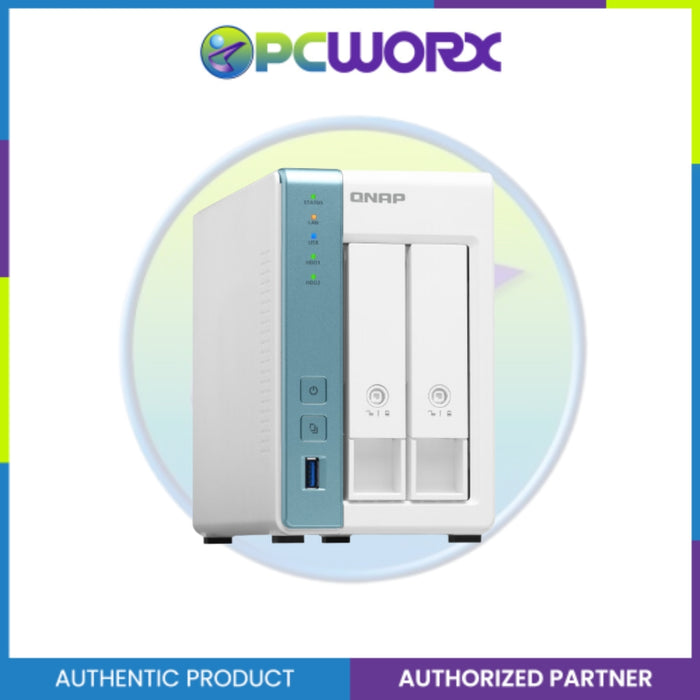

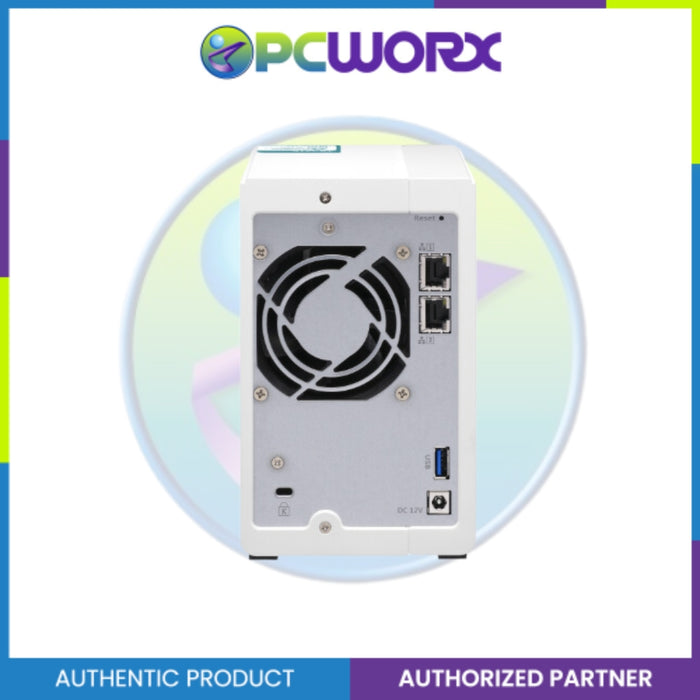

Qnap TS-231K 2-Bay 1.7GHz QuadCore D3 1GB SATA Desktop NAS
DESCRIPTIONS:
Powered by quad-core 1.7 GHz processor, the TS-231K provides 2 drive bays storage space to securely store your important files and data, while allowing you to easily share files with family and friends. Featuring a compact pure white minimalist design, the TS-231K can easily integrate with any home décor and takes up very little space. The TS-231K comes with lockable drive trays, ensuring the drives will not be accidentally removed or fall out and cause data loss. The TS-231K provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.
- File Station enables centralized file management on the NAS, connected devices, and connected clouds, making data management more easily, while saving time.
- HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers and cloud storage for comprehensive backup and disaster recovery.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
- Rich multimedia applications and a wide range of streaming methods, bringing greater multimedia enjoyment.
- Connect to external USB devices such as card readers, uninterruptable power supply through the USB 3.2 Gen 1 port for greater application potential.
- myQNAPcloud service allows you to easily access, manage, and share NAS files via the Internet.
SPECIFICATIONS: |
|
CPU |
AnnapurnaLabs, an Amazon company Alpine AL214, 4-core, 1.7GHz |
CPU Architecture |
32-bit ARM |
Floating Point Unit |
|
Encryption Engine |
|
System Memory |
1GB DDR3 |
Maximum Memory |
1GB DDR3 |
Flash Memory |
512 MB (Dual boot OS protection) |
Drive Bay |
2 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility |
3.5-inch bays: |
3.5-inch SATA hard disk drives |
|
2.5-inch SATA hard disk drives |
|
2.5-inch SATA solid state drives |
|
Hot-swappable |
|
SSD Cache Acceleration Support |
|
Gigabit Ethernet Port (RJ45) |
2 |
Wake on LAN (WOL) |
|
Jumbo Frame |
|
USB 3.2 Gen 1 port |
2 |
Form Factor |
Tower |
LED Indicators |
Power, Status, LAN, USB, HDD1-2 |
Buttons |
Power, Reset, USB Auto Copy |
Dimensions (HxWxD) |
165 × 102 × 220.6 mm |
Weight (Net) |
1.46 kg |
Weight (Gross) |
2.49 kg |
Operating Temperature |
0 - 40 °C (32°F - 104°F) |
Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit |
60W/65W |
adapter (12VDC), 100-240VAC |
|
Power Consumption: Disk Standby Mode |
8.46 |
Power Consumption: Operating Mode, Typical |
15.6 W |
Tested with drives fully populated. |
|
Fan |
1 x 7 cm smart fan (12V DC) |
System Warning |
Buzzer |
Kensington Security Slot |
|
Standard Warranty |
2 |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
400 |
