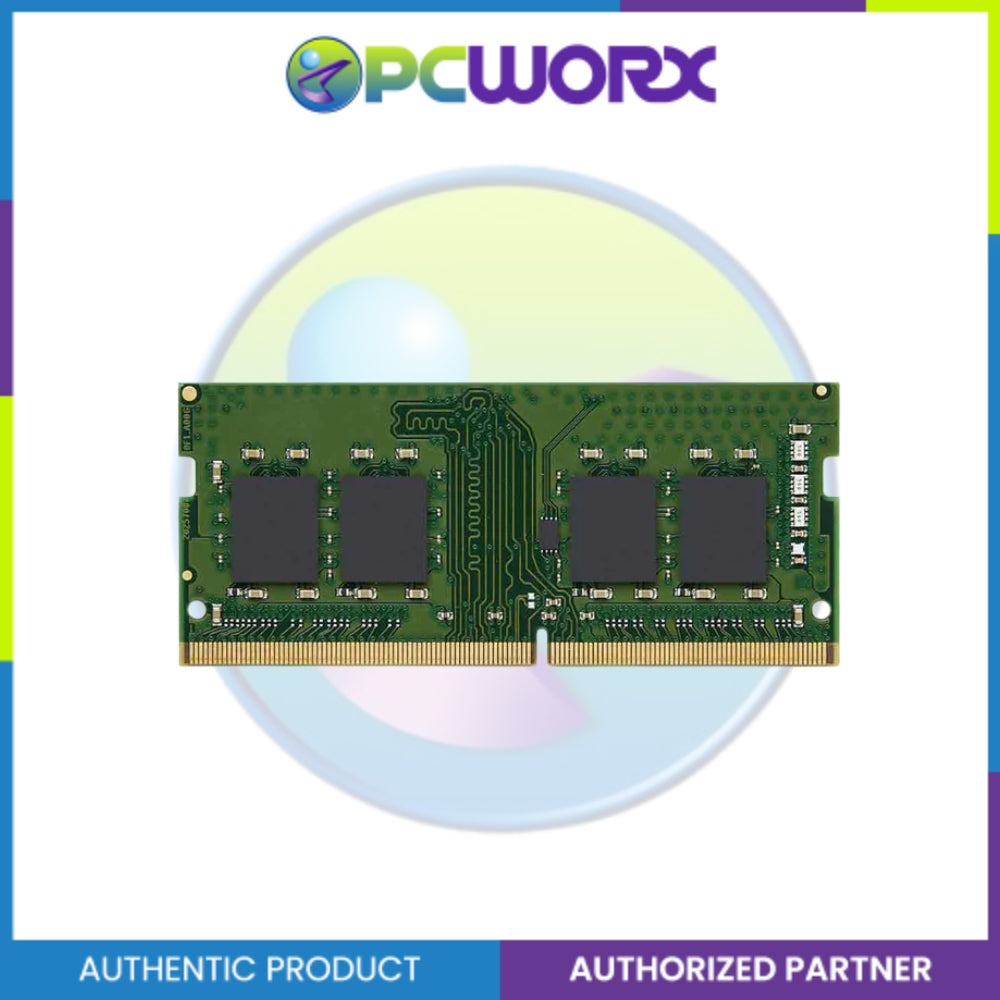

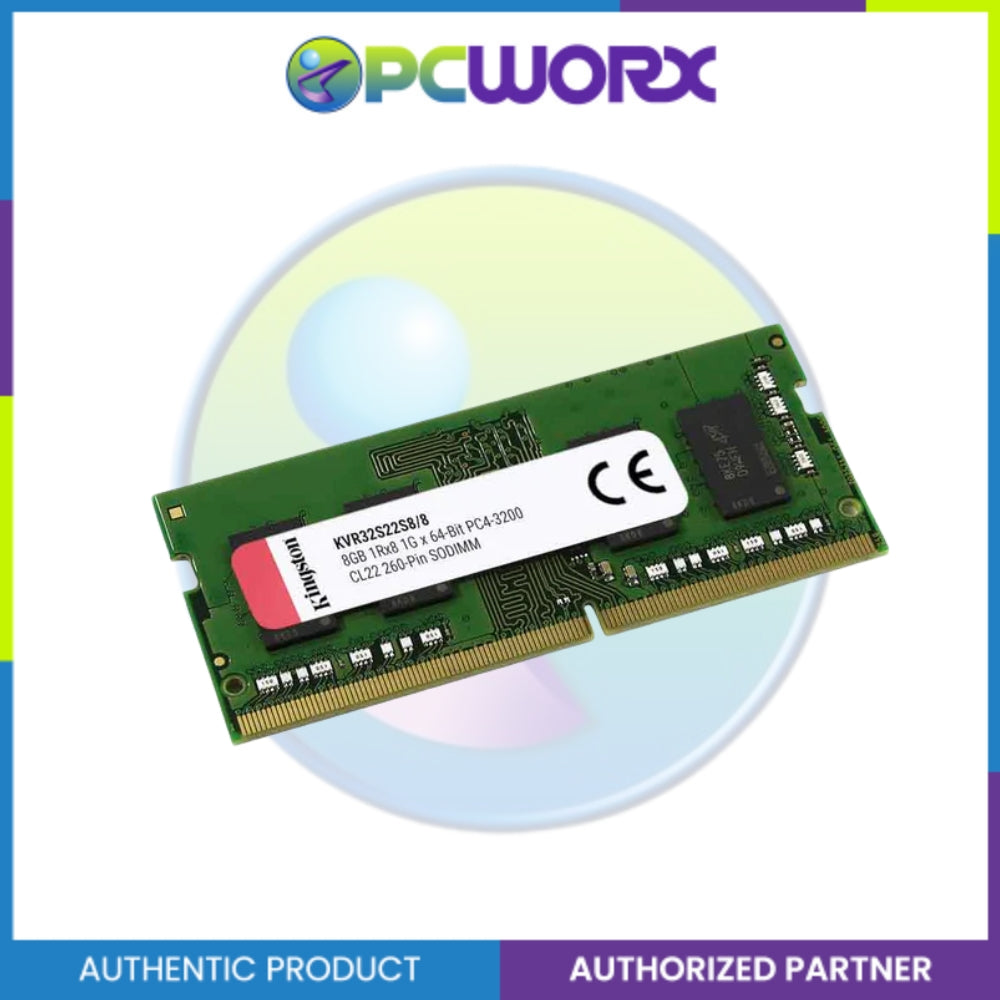

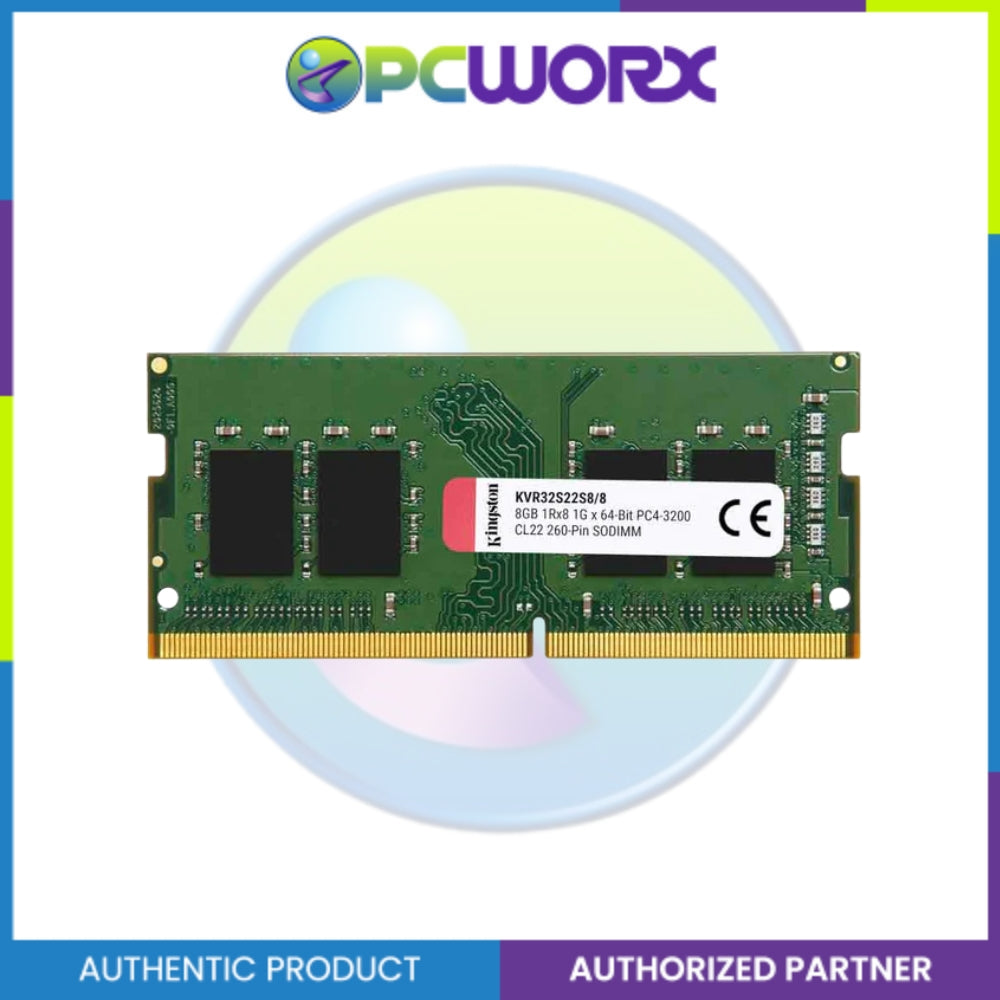

Kingston KVR32S22S8/8WP 8GB DDR4 3200mhz Sodimm

Description

Value RAM's KVR32S22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

FEATURES :

• Power Supply: VDD =  1.2V Typical
• VDDQ =  1.2V Typical
• VPP =  2.5V Typical
• VDDSPD =  2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB:  Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
CL(IDD) 22 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin)		 350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0C to +85C
Storage Temperature -55C to +100C



Kingston KVR32S22S8/8WP 8GB DDR4 3200mhz Sodimm

Product form

Value RAM's KVR32S22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on... Read more

Free pickup in our shop(s)

SKU: 0000072113

5 in stock

₱4,056.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Value RAM's KVR32S22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

    FEATURES :

    • Power Supply: VDD =  1.2V Typical
    • VDDQ =  1.2V Typical
    • VPP =  2.5V Typical
    • VDDSPD =  2.2V to 3.6V
    • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
    • Low-power auto self refresh (LPASR)
    • Data bus inversion (DBI) for data bus
    • On-die VREFDQ generation and calibration
    • Single-rank
    • On-board I2 serial presence-detect (SPD) EEPROM
    • 16 internal banks; 4 groups of 4 banks each
    • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
    • Selectable BC4 or BL8 on-the-fly (OTF)
    • Fly-by topology
    • Terminated control command and address bus
    • PCB:  Height 1.18” (30.00mm)
    • RoHS Compliant and Halogen-Free
    CL(IDD) 22 cycles
    Row Cycle Time (tRCmin) 45.75ns(min.)
    Refresh to Active/Refresh
    Command Time (tRFCmin)    		 350ns(min.)
    Row Active Time (tRASmin) 32ns(min.)
    UL Rating 94 V - 0
    Operating Temperature 0C to +85C
    Storage Temperature -55C to +100C
