Kingston KVR32S22D8/16WP 16GB 3200Mhz DDR4 Sodimm

Description

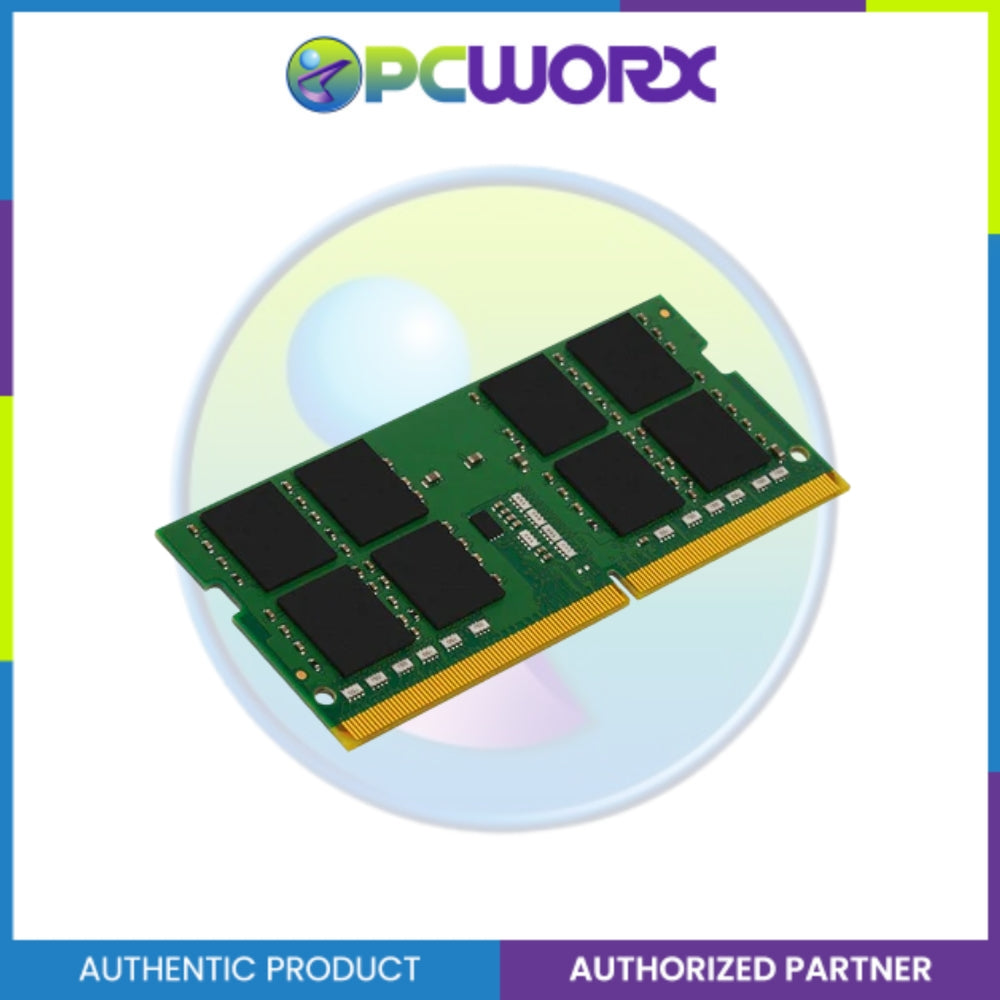

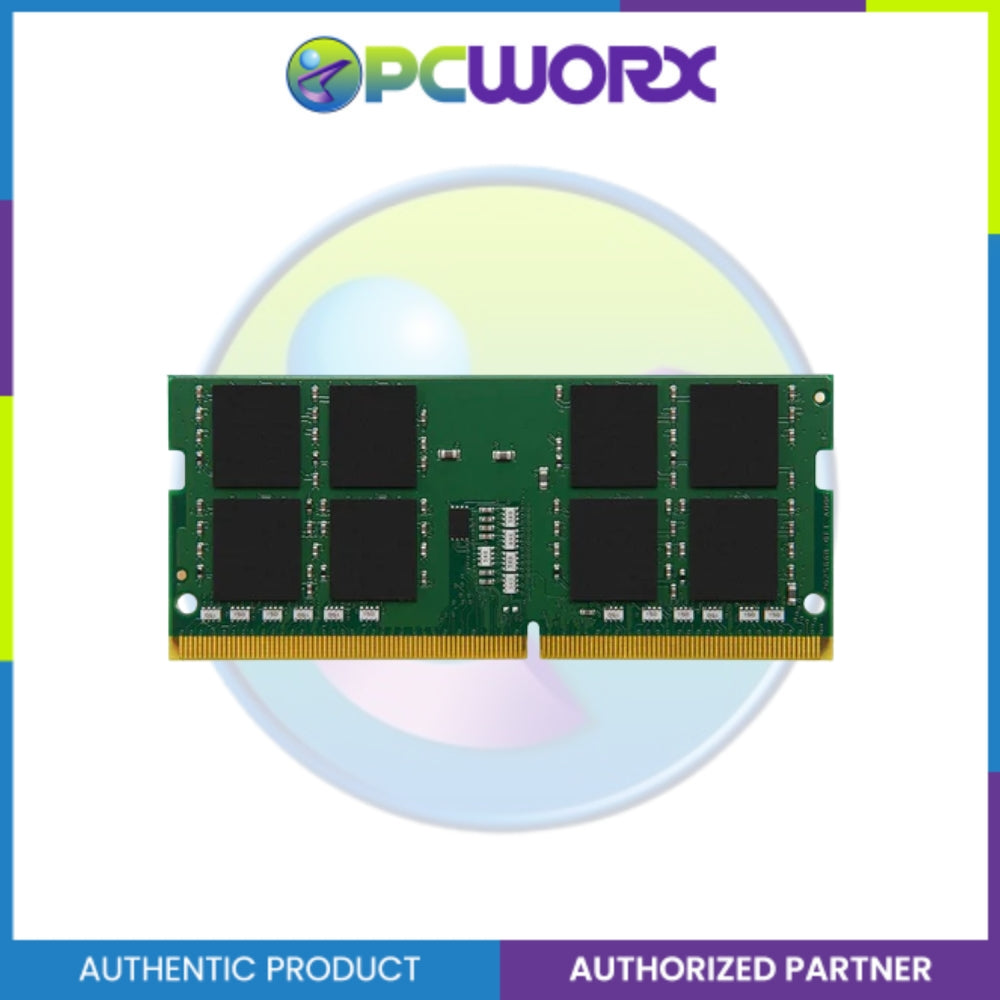

ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22 22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Feature Specification
Power Supply VDD = 1.2V Typical
VDDQ 1.2V Typical
VPP 2.5V Typical
VDDSPD 2.2V to 3.6V
On-Die Termination Nominal and dynamic ODT for data, strobe, and mask signals
Low-Power Mode Auto self refresh (LPASR)
Data Bus Data bus inversion (DBI)
On-Die VREFDQ Generation and calibration
Rank Dual-rank
SPD On-board I2 serial presence-detect (EEPROM)
Internal Banks 16 internal ban

Kingston KVR32S22D8/16WP 16GB 3200Mhz DDR4 Sodimm

Product form

ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x... Read more

SKU: 0000072046

Out of stock

₱7,944.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22 22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

    Feature Specification
    Power Supply VDD = 1.2V Typical
    VDDQ 1.2V Typical
    VPP 2.5V Typical
    VDDSPD 2.2V to 3.6V
    On-Die Termination Nominal and dynamic ODT for data, strobe, and mask signals
    Low-Power Mode Auto self refresh (LPASR)
    Data Bus Data bus inversion (DBI)
    On-Die VREFDQ Generation and calibration
    Rank Dual-rank
    SPD On-board I2 serial presence-detect (EEPROM)
    Internal Banks 16 internal ban
