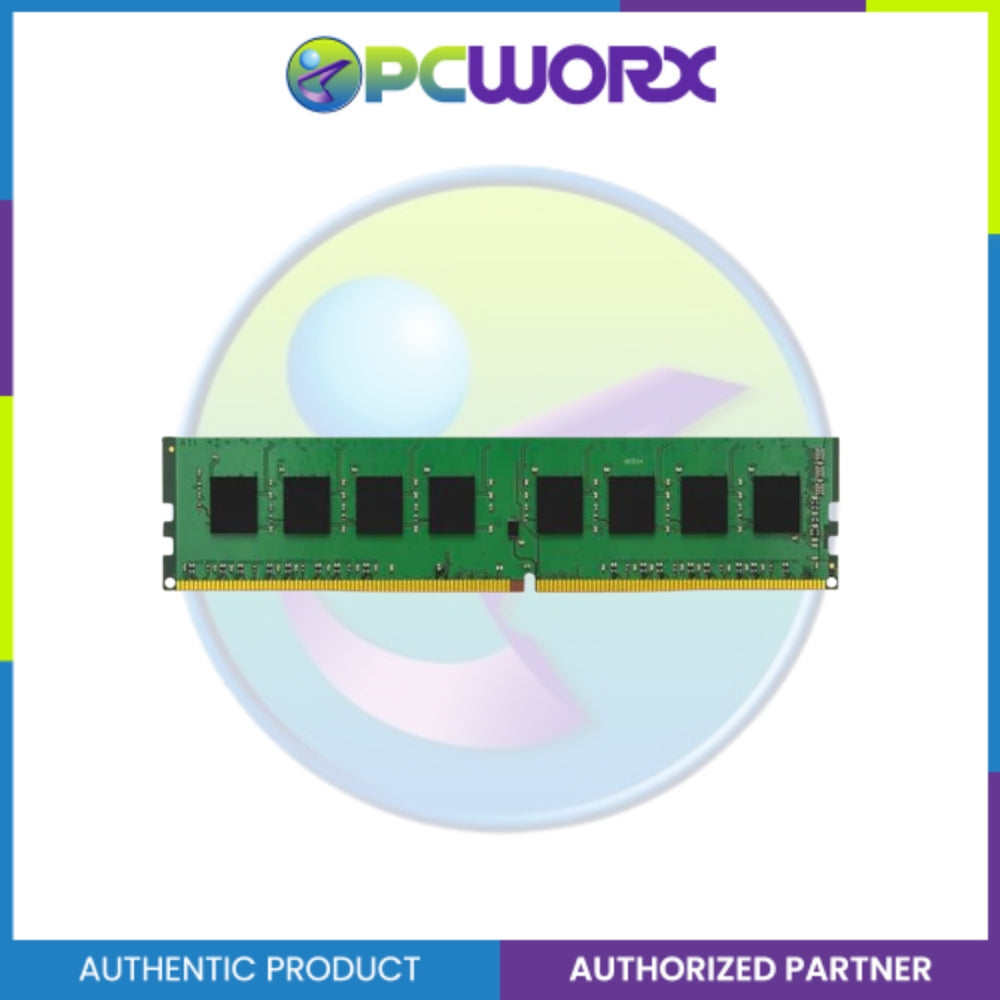

Kingston KVR32N22S8/8WP 8GB 3200MHz DDR4 Dimm

Description

This document describes KVR32N22S8/8, a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to the JEDEC-standard DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers



Specifications:

Power Supply VDD = 1.2V Typical
VDDQ 1.2V Typical
VPP 2.5V Typical
VDDSPD 2.2V to 3.6V
On-Die Termination Nominal and dynamic ODT for data, strobe, and mask signals
LPASR Low-power auto self refresh
DBI Data bus inversion for data bus
VREFDQ On-die generation and calibration
Rank Single-rank
SPD EEPROM On-board I2 serial presence-detect
Internal Banks 16 banks; 4 groups of 4 each
Burst Fixed BC4 and BL8 via MRS
OTF Selectable BC4 or BL8 on-the-fly
Topology Fly-by
Bus Terminated control command and address bus
PCB Height 1.23” (31.25mm)
Compliance RoHS Compliant and Halogen-Free

Kingston KVR32N22S8/8WP 8GB 3200MHz DDR4 Dimm

Product form

This document describes KVR32N22S8/8, a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 1G... Read more

Free pickup in our shop(s)

SKU: 0000072380

₱4,056.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    This document describes KVR32N22S8/8, a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to the JEDEC-standard DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers



    Specifications:

    Power Supply VDD = 1.2V Typical
    VDDQ 1.2V Typical
    VPP 2.5V Typical
    VDDSPD 2.2V to 3.6V
    On-Die Termination Nominal and dynamic ODT for data, strobe, and mask signals
    LPASR Low-power auto self refresh
    DBI Data bus inversion for data bus
    VREFDQ On-die generation and calibration
    Rank Single-rank
    SPD EEPROM On-board I2 serial presence-detect
    Internal Banks 16 banks; 4 groups of 4 each
    Burst Fixed BC4 and BL8 via MRS
    OTF Selectable BC4 or BL8 on-the-fly
    Topology Fly-by
    Bus Terminated control command and address bus
    PCB Height 1.23” (31.25mm)
    Compliance RoHS Compliant and Halogen-Free
